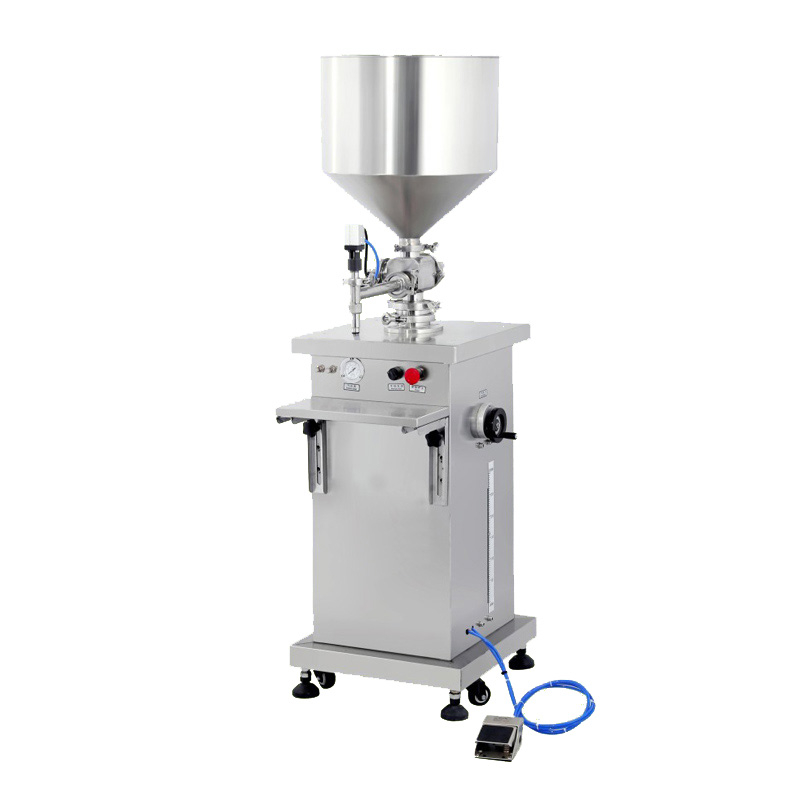

Simple operation of liquid cream filling machine
Customized And OEM Service Available
Details introduced
1.This Liquid Filling Machine unit is developed on the basis of the new design, and increase some additional function according to overseas similar products. filler is in reference and an increase of some additional features. It is more simplified and more convenient for the operation. precision adjustment. filling volume adjustment. equipment cleaning. maintenance of the products, etc.
2.This Water Filling Machine unit adopts pneumatic components to replace electrical control circuit, so it is quite suitable for the use in the request of anti-explosion environment.
3.All adopt compressed air as the control, so they are quite suitable for the use in the request of anti-explosion environment, has high safety.
4.Does not occur the phenomenon of static electricity, the leakage of electricity and no need to connect the ground wire.
5.All adopt pneumatic control besides hardware positioning, so they have high filling precision as the precision can be controlled within 0.5%.
Technical parameters
|
Name
|
Simple operation of liquid cream filling machine
|
|
Model
|
MZH-F50-500ML
|
|
Article
|
Liquid or paste
|
|
Volume
|
5-60ml 10-120ml 25ml-250ml 50-500ml 100-1000ml 250-2500ml 500-5000ml
|
|
Filling
|
Piston pump
|
|
Precision
|
±0.5%
|
|
Pneumatic
|
0.2-0.6Mpa
|
|
Caliber
|
≥5mm
|
|
Capacity
|
20-60 times/min
|
|
G.W.
|
75Kg.
|
|
Dimension
|
L1550*W450*H550mm
|
|
Function
|
Simple operation of liquid cream filling machine for liquids, cigarette,shampoo,cream or other fluidity products. Simple design and easy to operate; It can fill various liquids, paste, such as shampoo, lotion,skin care, honey, shower,body cream etc.
|
|
Remarks
|
Simple operation of liquid cream filling machinefor gel,lotion,olive oil can be autometic or manual that if you want to filling by automatioc you should adjust filling gram.when it filling at the right gram then filling .The speed can adjust.If filling by manual that you should step the pedal of the machine.steping one time is once filling.
|
