Single Arm Multi blades Stone Cutting Machine
1.Granite marble line cutting machine uses large span of four guide column structure,host rigidity, high cutting efficiency , greatly improved blade life and lower power consumption,meanwhile guide column using oil lubrication, with better lubrication, more convenient maintenance;
2.Especially according to the stone worse environment to design the multi-layer modular sealing device,with waterproof , dust-proof and anti-spill , improve the using life of the machine;quarry table using bilateral gear drive, effectively avoiding the skip deviation of the phenomenon,better slicing precision;
3.Quarry stone cutting machine is with compact structure ,easy operation,adopts high-quality materials , especially suitable for cutting domestic granite blocks.
Specification
|
Appellation
|
单位
|
SDC-1600
|
|
Max.blade diameter
|
mm
|
Φ1600
|
|
Blade Number
|
Pcs
|
22
|
|
Max.lifting stroke
|
mm
|
1000
|
|
Max.processing size(L×W×H)
|
mm
|
3500×1300×900
|
|
Water consumption
|
m3/h
|
30
|
|
Power of main motor
|
kW
|
110
|
|
Total power
|
kW
|
120
|
|
Dimension(L×W×H)
|
mm
|
8500×5500×6500
|
|
Weight
|
kg
|
10000
|

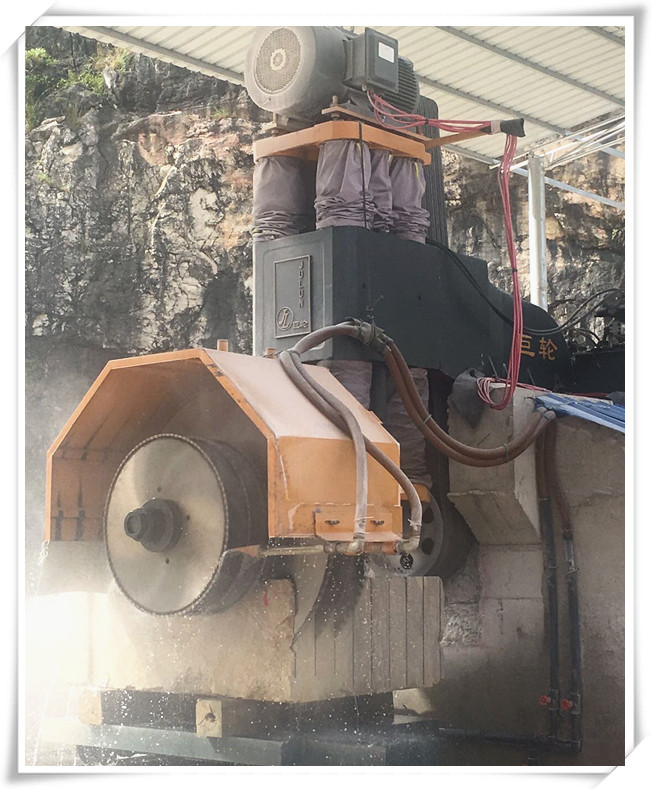

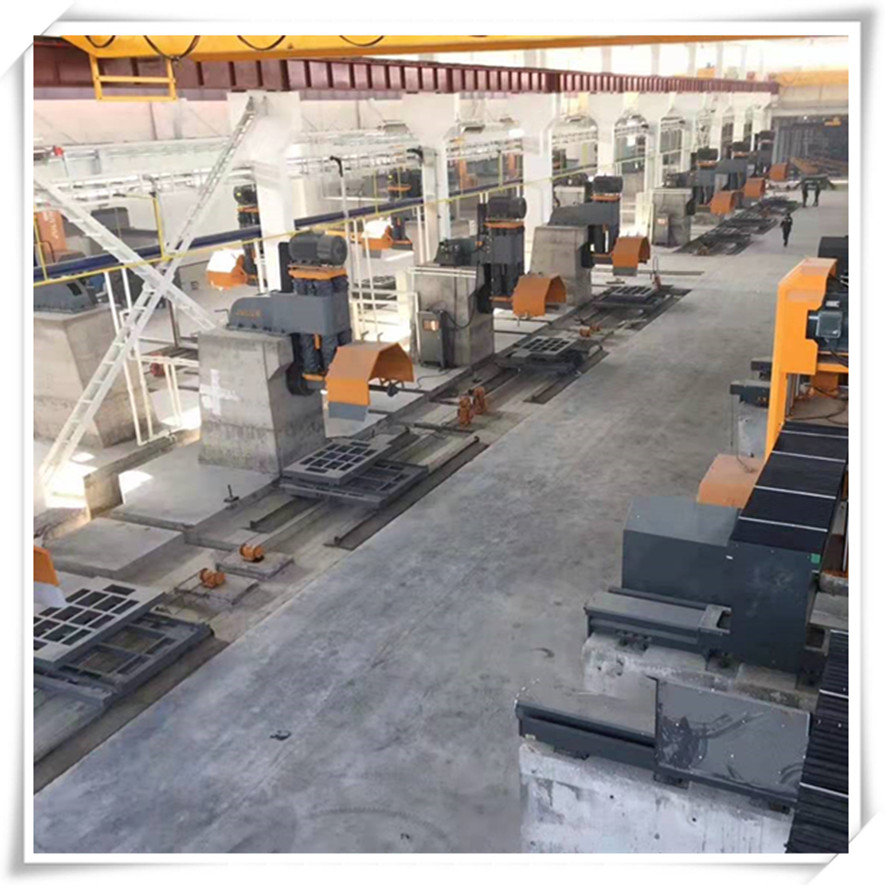

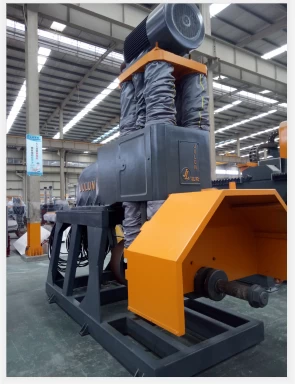

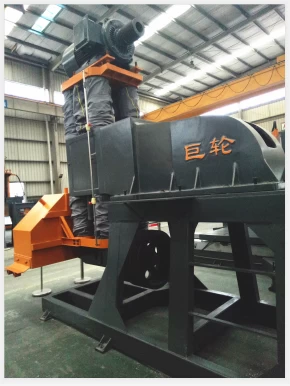

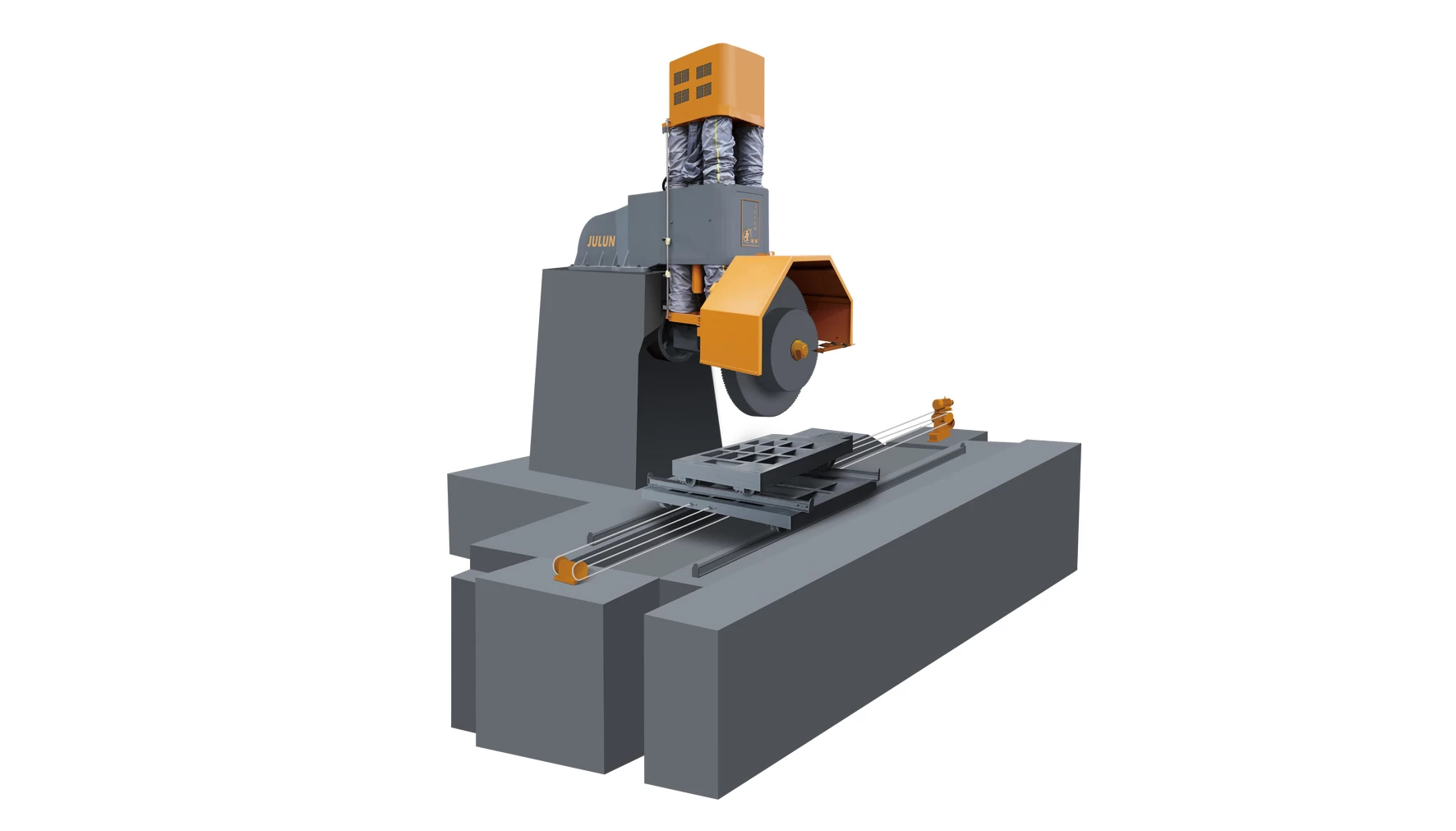

Photos
