Features

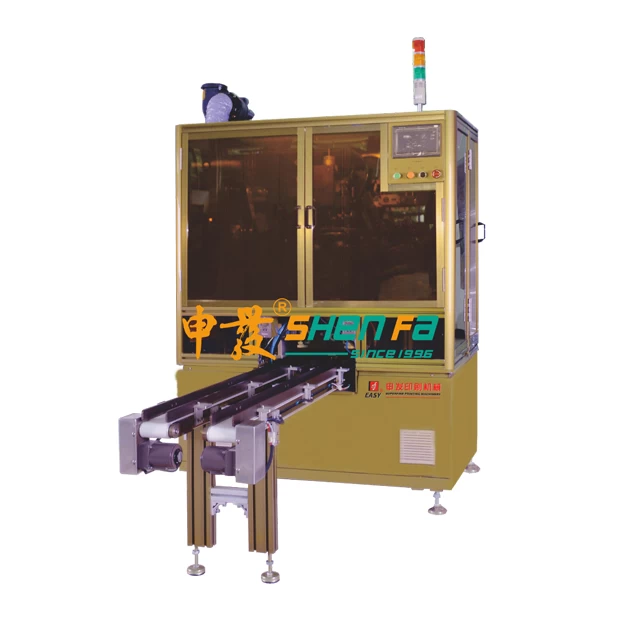

This machine can print Jars in single color(can be overprinting according to customer requirement), equipped auto loading, treatment before printing, printing and UV curing systems.

Adopt main components from Rexroth, Schneider, SMC, Mitsubishi etc. mechanical parts made by CNC directly from CAD design.

Adopted PLC control system, touch screen interface. Quick setup&quick toolings change over.

Adopted with no-object no printing system, auto counter, safety guard, out of working alarm device.

Mechanical feeder for loading&unloading units, servo registration for X-axis, and steps registration for Y-axis

Technical data

Product size:φ（25-70）x（25-70）mm

Max. speed: 50pcs/min

Air pressure:5-7bar

Power supply: AC380V 50/60Hz 5Kw

Dimensions:1400x2500x1800mm

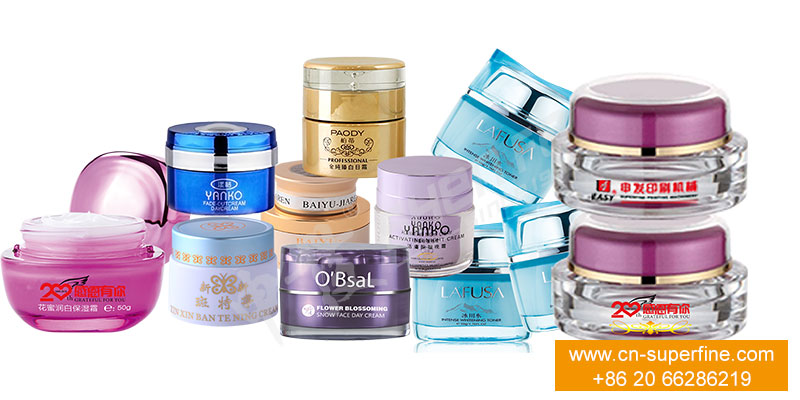

Printing sample

Machine running video
