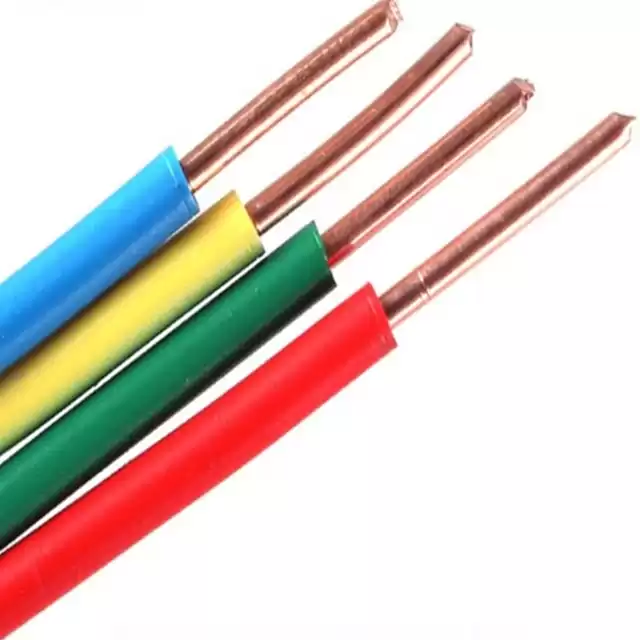

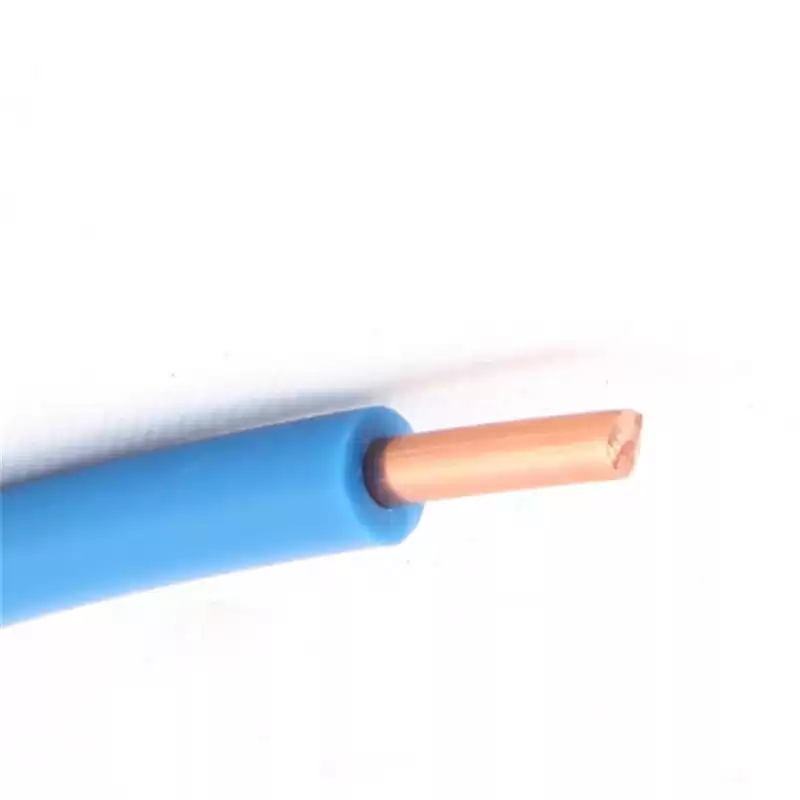

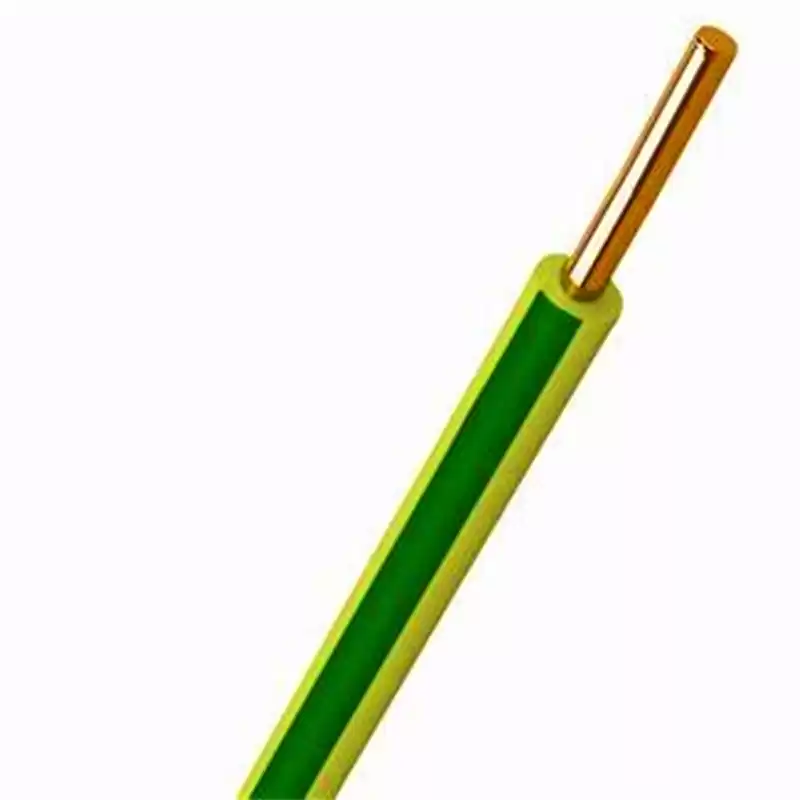

Single Core Copper Conductor PVC Insulation H07V-U Power Cable
PRODUCTS FEATURES
- Standard: EN 50563, IEC 60227
- Voltage：450/750V
- Conductor: Class 1 solid copper conductor
- Insulation: PVC (Polyvinyl Chloride)
- Temperature Rating: -15°C to +70°C

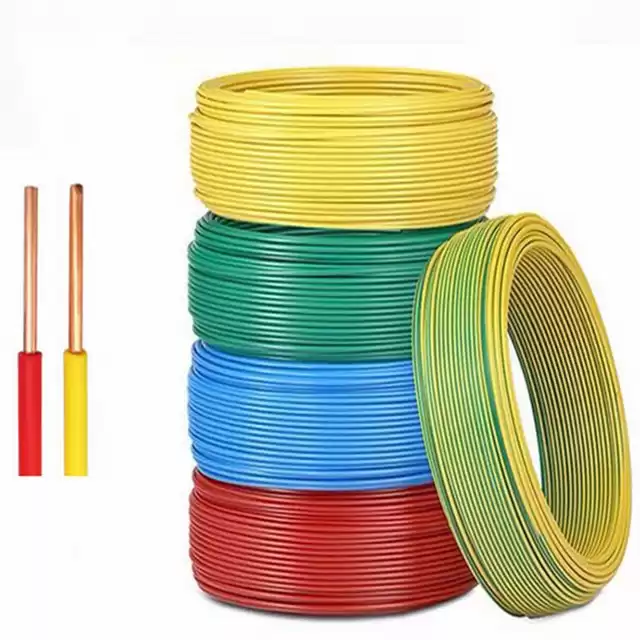

- Insulation Color: Red, Black, Blue, Orange, Yellow, White, Green/Yellow, Grey, Brown or according to your requirements
PRODUCTS APPLICATION
H07V-U 6491X BV Solid Copper Wire PVC Insulated Electrical Wire and Cables, are suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances.

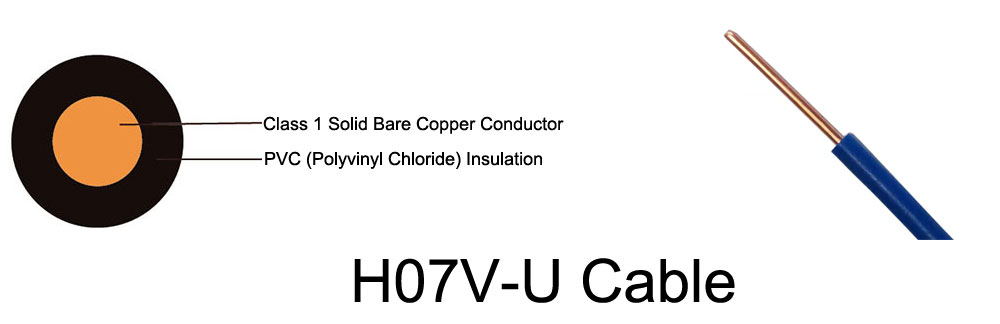

PRODUCTS STRUCTURE

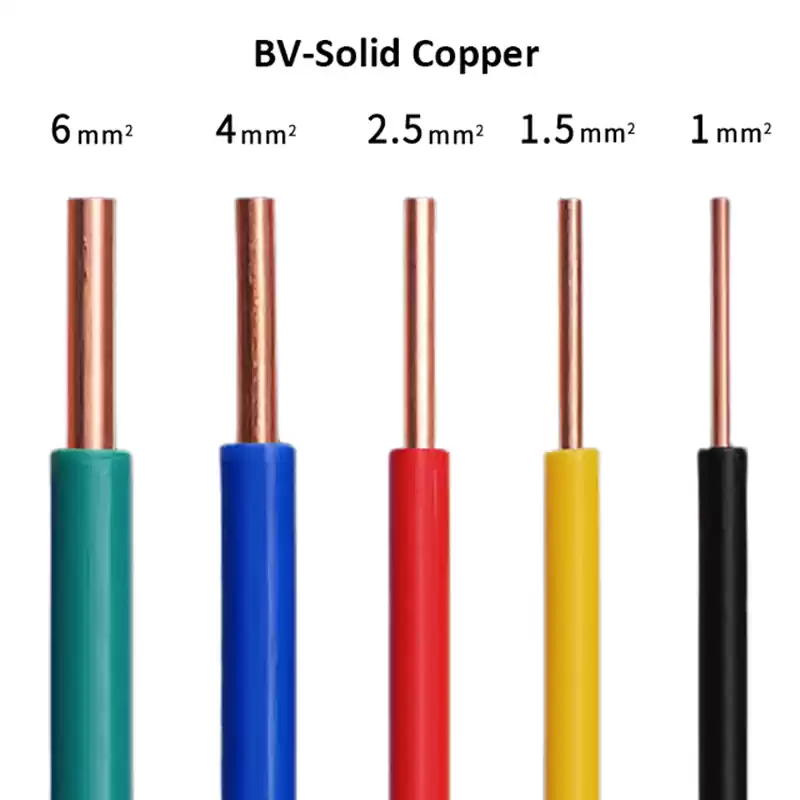

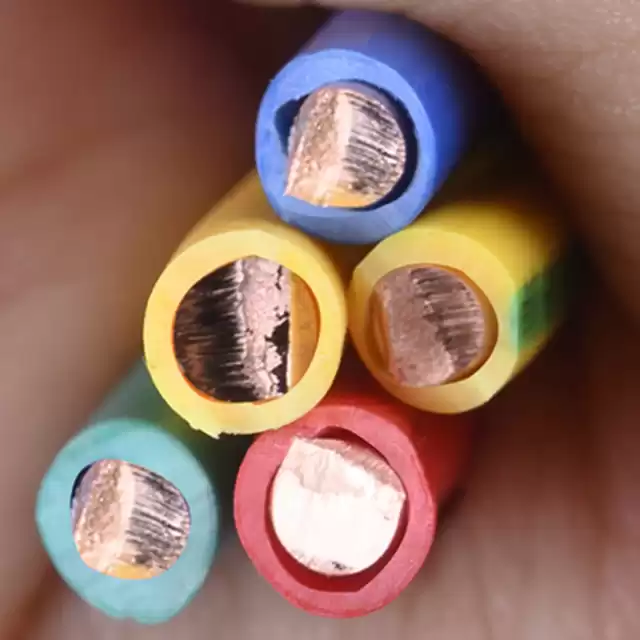

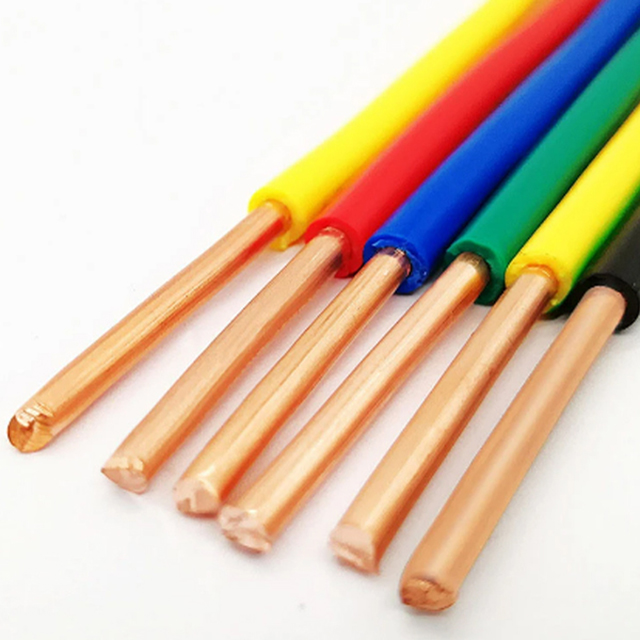

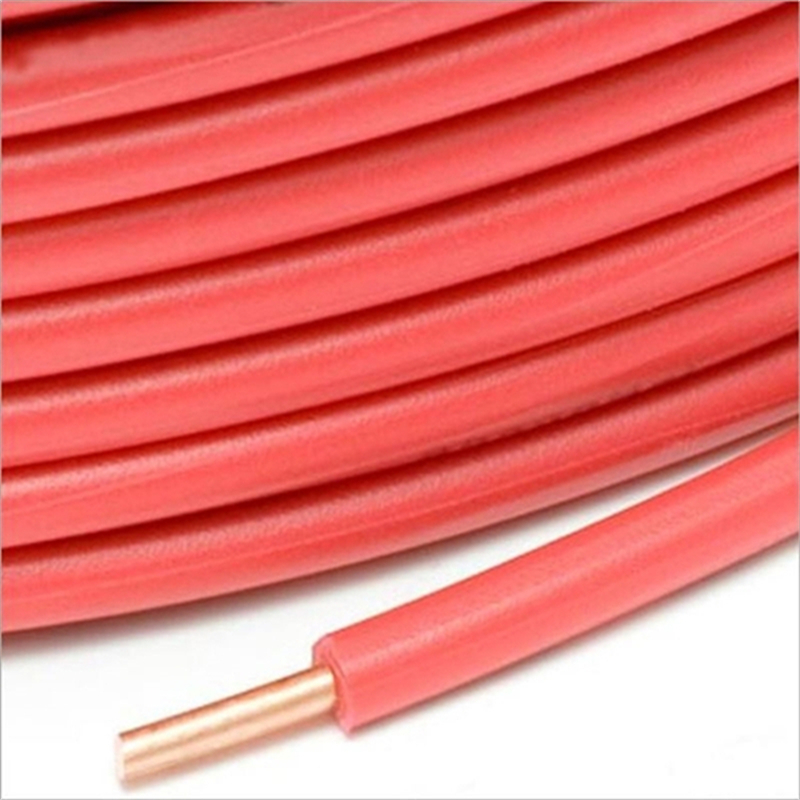

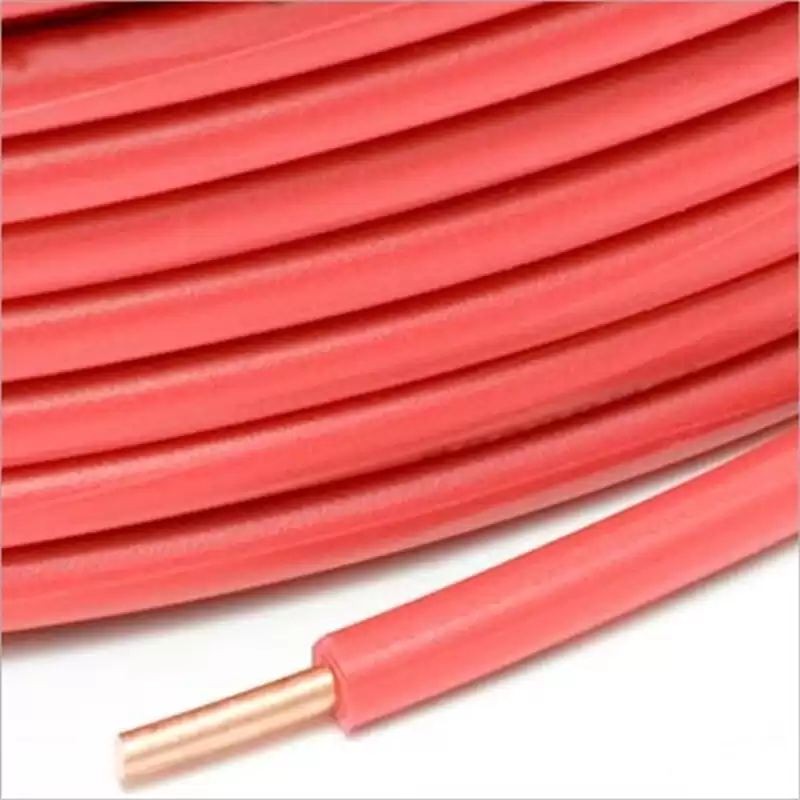

H07V-U BV Solid Copper Wire structure as below:
---Conductor Material
Plain annealed copper wire, solid Class 1.
---Insulation Material
PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
PRODUCTS SPECIFICATION
| Type |
No. Of Cores x Nominal Cross Section |
Conductor Material |
Conductor Structure |
Insulation Material |
Insulation Thickness |
Reference Max. Diameter |
Reference Weight |
Voltage Rating |
Max. DC Resistance at 20℃ |
Min. Insulation Resistance at 70℃ |
Reference Ampacity In Air |
| (mm2) |
(pcs/mm) |
(mm) |
(mm) |
(kg/km) |
(U0/U) |
(Ω/km) |
(MΩ.km) |
(A) |
| H05V-U |
1 x 0.50 |
Class 1
Solid Copper |
1/0.80 |
PVC |
0.6 |
2.4 |
9 |
300/500V |
36 |
0.015 |
13 |
|
| 1 x 0.75 |
Class 1
Solid Copper |
1/0.96 |
PVC |
0.6 |
2.6 |
11 |
300/500V |
24.5 |
0.012 |
17 |
|
| 1 x 1.0 |
Class 1
Solid Copper |
1/1.13 |
PVC |
0.6 |
2.8 |
14 |
300/500V |
18.1 |
0.011 |
20 |
|
| H07V-U |
1 x 1.5 |
Class 1
Solid Copper |
1/1.38 |
PVC |
0.7 |
3.3 |
20 |
450/750V |
12.2 |
0.011 |
21 |
|
| 1 x 2.5 |
Class 1
Solid Copper |
1/1.78 |
PVC |
0.8 |
3.9 |
31 |
450/750V |
7.41 |
0.01 |
29 |
|
| 1 x 4 |
Class 1
Solid Copper |
1/2.25 |
PVC |
0.8 |
4.4 |
46 |
450/750V |
4.61 |
0.0085 |
38 |
|
| 1 x 6 |
Class 1
Solid Copper |
1/2.76 |
PVC |
0.8 |
4.9 |
65 |
450/750V |
3.08 |
0.007 |
49 |
|
MORE INFORMATION
|
H07V-U and H07V-R
|
|
Voltage Rating
|
450/750V
|
|
Conductor
|
H07V-U: Class 1 Solid Copper
|
|
H07V-R: Class 2 Stranded Copper
|
|
Insulation
|
PVC (Polyvinyl Chloride)
|
