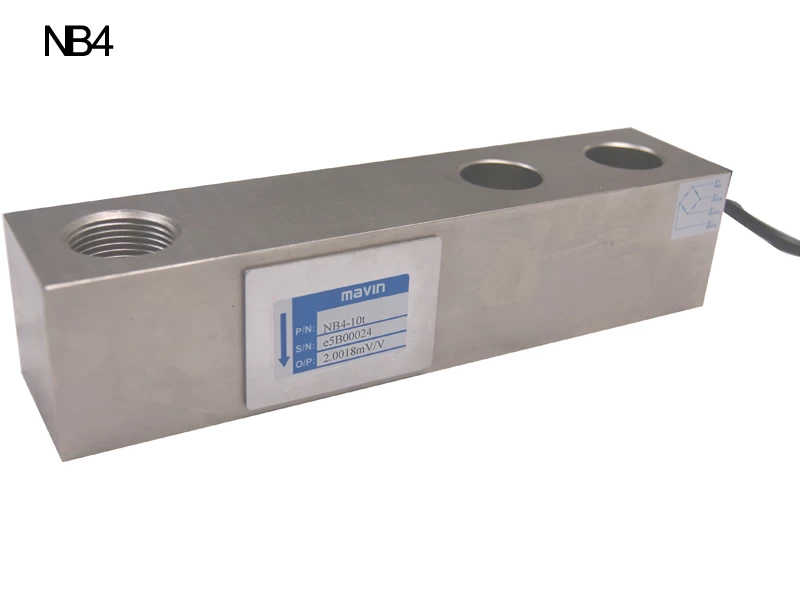

Single Ended load cell weighing sensor for hopper scales
NB4 (10 T)
Single Ended Load Cells are ideal for a wide range of applications such as hopper scales or fixed suspended weigh systems, process weighing and low profile installations. The Shear Beam load cellsare easily mounted on top with threaded hole and two through holes.
Key Features：
Alloy
steel construction with nickel plated treatment
Capacity: 10 t
Environmentally Sealed to IP67
Usage & Applications：
Hopper scales
Truck scales
Industrial weighing system

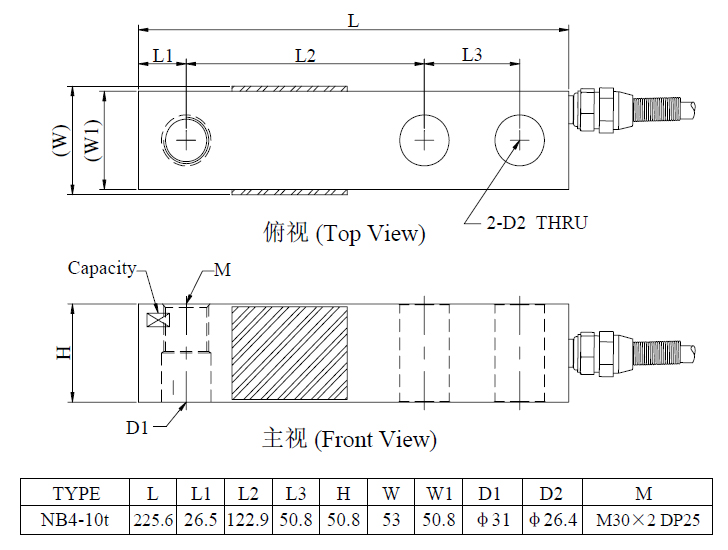

Dimension：
NB4 Specification：
|
Rated
Capacities
|
10 (t)
|
|
Rated
Output
|
2.0
mV/V±0.15%；3.0 mV/V±0.15%
|
|
Zero
Balance
|
±0.0200
mV/V
|
|
Non-linearity
|
0.03
%R.O.
|
|
Hysteresis
|
0.03
%R.O.
|
|
Repeatability
|
0.03
%R.O.
|
|
30mins
Creep
|
0.03
%R.O.
|
|
30mins
Return
|
0.03
%R.O.
|
|
Safe
Overload
|
150
%R.O.
|
|
Ultimate
Overload
|
200
%R.O.
|
|
Temperature
Effect On Output
|
0.002
%R.O./℃
|
|
Temperature
Effect On Zero
|
0.003
%R.O./℃
|
|
Input
Impedance
|
390±15
Ω
|
|
Output
Impedance
|
350±5
Ω
|
|
Insulation
Impedance
|
≥5000 MΩ/(50VDC)
|
|
Recommended
Excitation
|
5~12
VDC
|
|
Maximum
Excitation
|
15
VDC
|
|
OperatingTemperatureRange
|
-20~60 ℃
|
|
Construction
|
Steel
Alloy
|
|
Protection
Class
|
IP67
/ IP68
|
|
Cable
|
φ6×6m
|
|
Recommended
Platform Size
|
|
|
Mode
of Connection
|
Red（EXC+）,Black（EXC-）,Green（SIG+）,White（SIG-）
|
