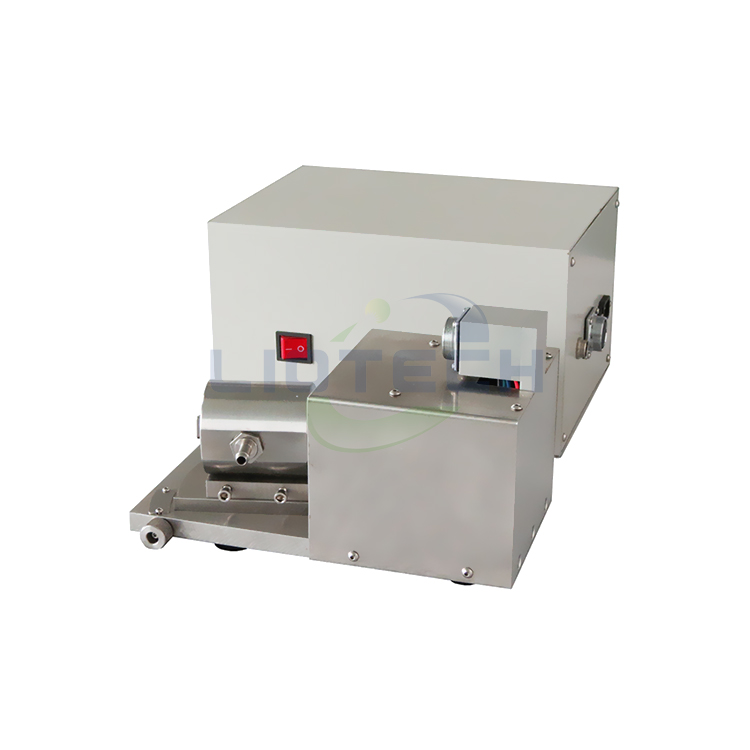

Single Head Electric Injection Pump/Injection Machine for Battery Electrolyte
Product specification
1 LIO-D1876 Single Head Electric Injection Pump is mainly used for the battery electrolyte, capacitor, acid, alkali, glue, reagents, and other industries of high precision fluid metering injection liquid
2 This ceramic pump has high safety performance with Password protection and factory restore function to ensure setting parameters can not be changed arbitrarily.
|
Model
|
Single Head Electric Injection Pump LIO-D1876
|
|
Warranty
|
One year limited and lifetime support
|
|
Type
|
Rotating reciprocating positive displacement special ceramic injection pump
|
|
Speed (r/min)
|
18-1000, According to system configuration and fluid characteristics
|
|
Stroke number
|
1-10000times, According to system configuration and fluid characteristics
|
|

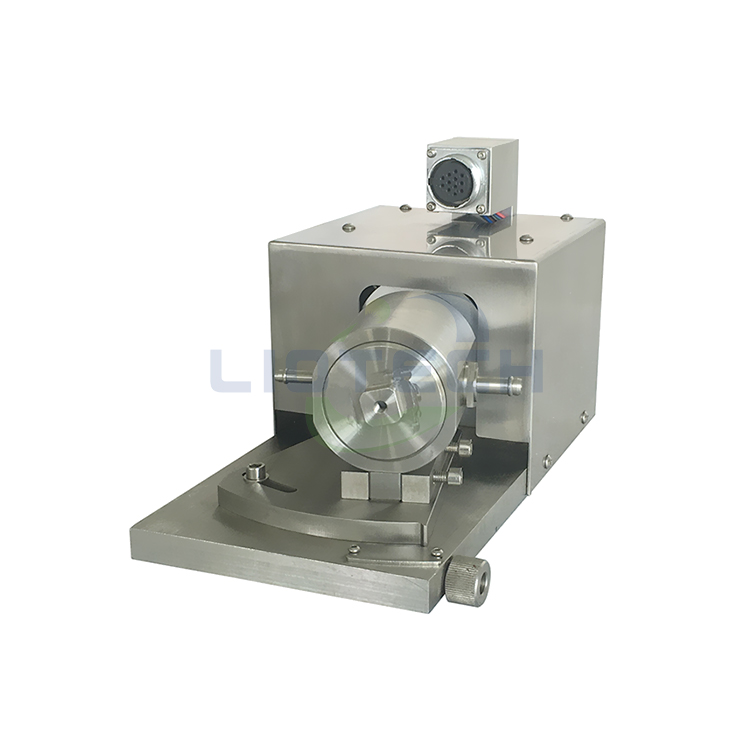

Ceramic Pump
|
|
Materials
|
Using nanotechnology and gel injection molding processing and molding technology,
the microstructure uniformity, high density
|
|
Pump core technology
|
High precision polishing processing, do not need to seal and lubricating oil
|
|
Pump core performance
|
High temperature resistance, wear resistance, acid and alkali resistance,
high hardness and low coefficient of friction
|
|
Capacity range
|
Single pump, 0-1876ul, Max0-1876 microlitre/one stroke
|
|
Ceramic pump sleeve
|
SUS316 stainless steel
|
|
Filling accuracy
|
Within 5‰
|
|
Import and export pipeline
|
Standard
(liquid into the tube diameter 6 mm, outside diameter of 8 mm,
tube inner diameter 4 mm, outside diameter 6 mm)
|
|
Dimension
|
270*120mm*145mm (L*W*H)
|
|
Weight
|
About 2.8kg
|
|

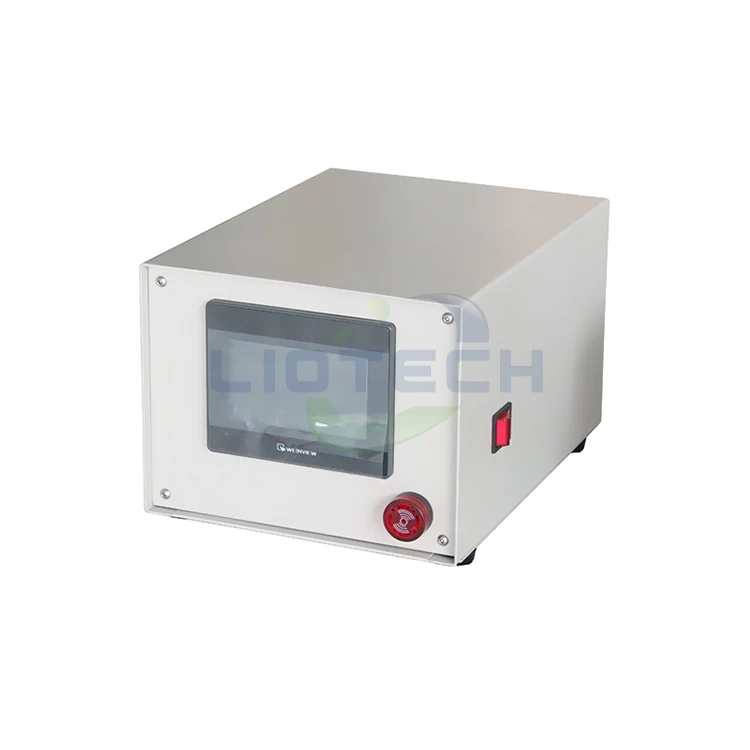

Controller Box
|
|
Source voltage
|
AC110V/220V, 50/60HZ Single phase
|
|
Power
|
200W
|
|
Dimension
|
290*210*145mm (L*W*H)
|
|
Weight
|
4.3kg
|
|
Standard interface
|
I/O, RS232, CC TRIG, AUX OUT (optional pedal)
|
|
Safety performance
|
Password protection and factory restore function
to ensure setting parameters can not be changed arbitrarily
|

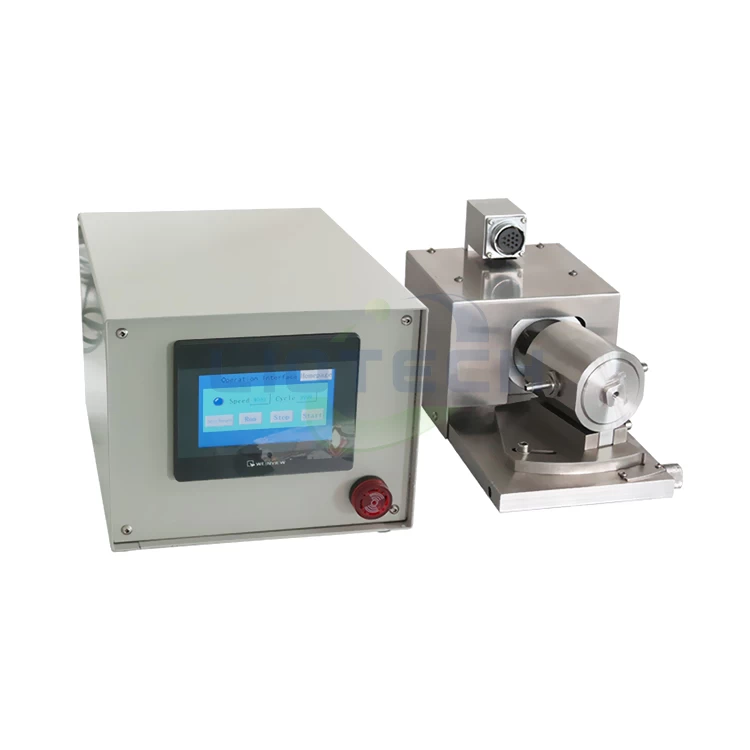

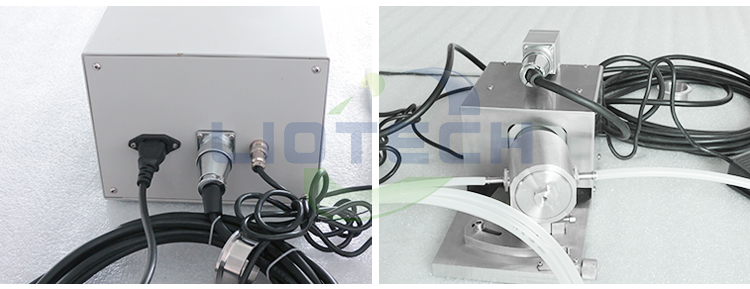

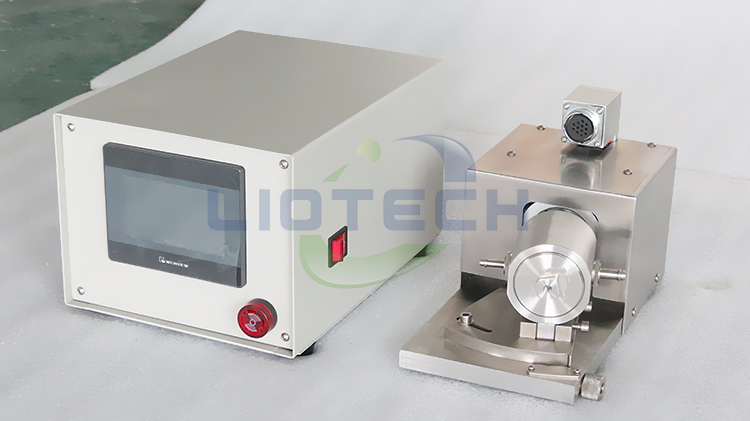

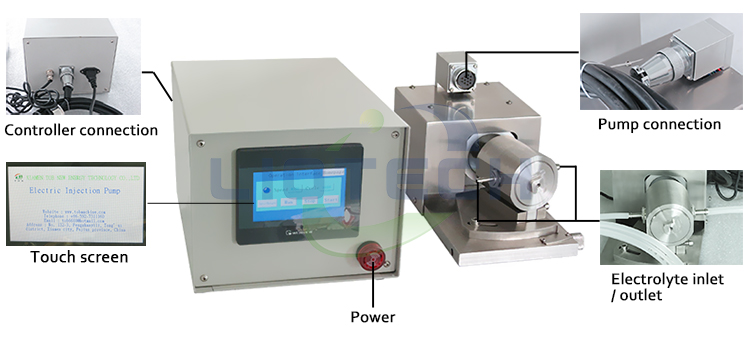

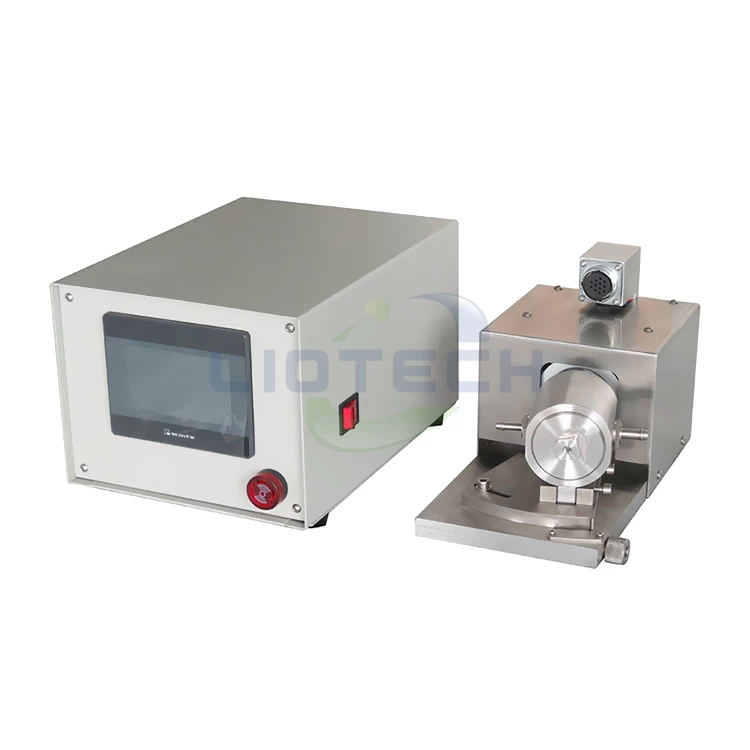

Product Images

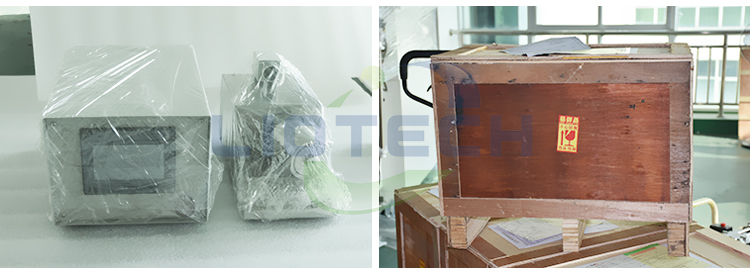

Product Packing
