Gas Discharging Pole

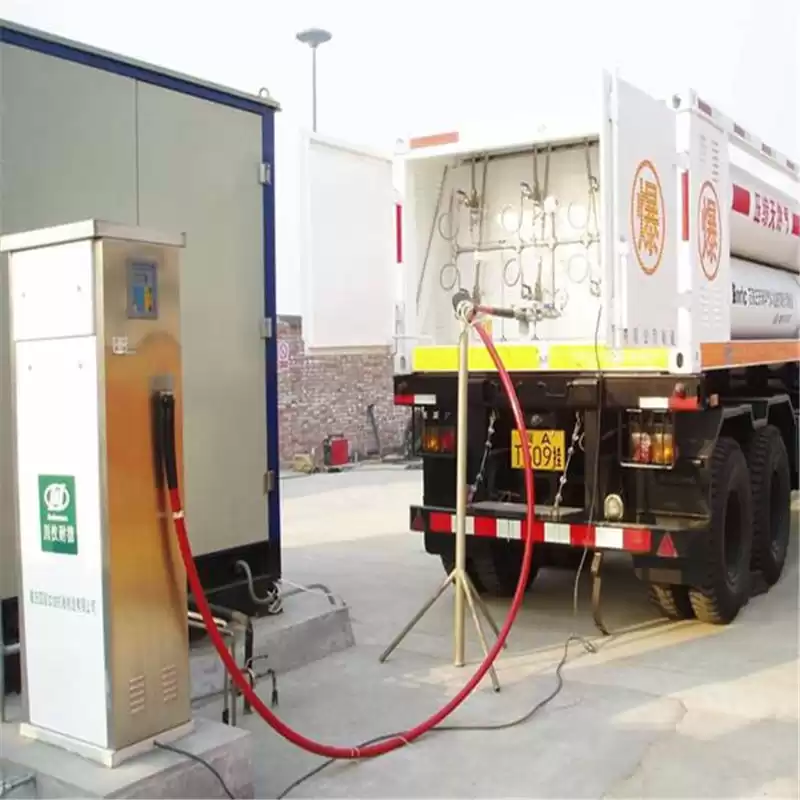

The unloading column is connected to the main control valve of the substation trailer through the high-pressure hose to unload the gas.
Features :
It is mainly consist of
intake valve, pipeline filter, break valve, unloading hose, pressure
indicator, etc. The pipe fittings and valves are the products of German
STAUFF and American Parker.
Technical parameters:
|
No
|
Item
|
Remarks
|
|
1
|
Nozzle
|
1 nozzle,
single hose
|
|
2
|
Design pressure
|
25MPa
|
|
3
|
Explosion-proof
Grade
|
ExdemibIIAT4
|
|
4
|
Max
flow
|
Q≥4000
Nm3/h
|
|
5
|
Designed
pressure
|
27.5MPa
|
|
6
|
Max working
pressure
|
25
MPa
|
|
7
|
Working
pressure
|
20MPa
|
|
8
|
Power
supply
|
240V，60Hz
|
|
9
|
Diameter of
discharging nozzle
|
1"
|
|
10
|
Height of
hose
|
≥5m
|
|
11
|
other parts
and valves
|
Germany Staff, American Parker
|
Applications:
CNG daughter station
