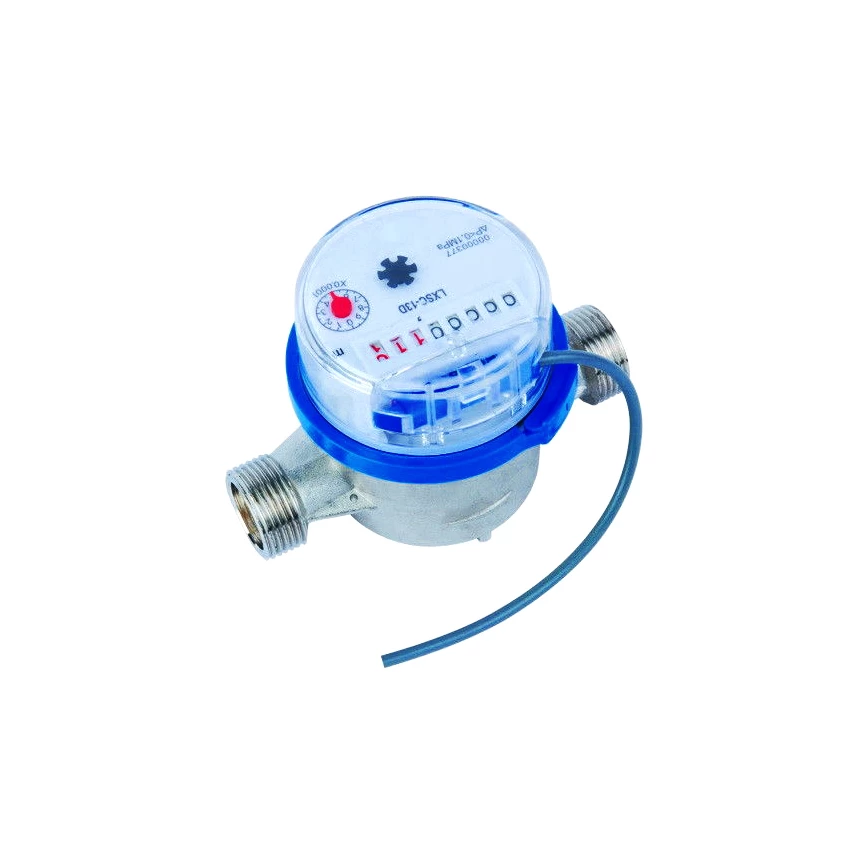

LXS-15D meters are accurate and reliable. They are produced in an ISO9001 certified production facility and conform to International Standard ISO4064.
Quick Detail:
|
Standard:
|
ISO4064|Class B
|
|
Type:
|
Velocity principle| single jet |dry dial
|
|
Cold
Water:
|
0℃-40℃
|
|
Water
pressure:
|
10bar/16bar
|
|
Mechanical
transmission:
|
Direct reading in protected rolls
|
|
Main
features:
|
Remote reading optional
|
|
Measuring
Principle:
|
Single Jet rotary vane wheel | velocity water meter
|
|
Meter Type:
|
Dry, magnetic coupling between rotor and register movement
|
|
Meter Sizes
|
1/2”, 3/4”
|
|
Max Media
Temperature:
|
T30 for Cold Water Meter
|
|
Main Casing
Material:
|
Brass
|
|
Register Box
Rings:
|
Brass
|
|
Upper Plate:
|
Polycarbonate
|
|
Bottom
Plate:
|
Polycarbonate
|
|
Measuring
Rotor:
|
Polycarbonate
|
|
Registration
Accuracy, with water
|
<27℃
|
|
Normal Test
Flow Range:
|
±2%
|
|
Pressure
Drop:
|

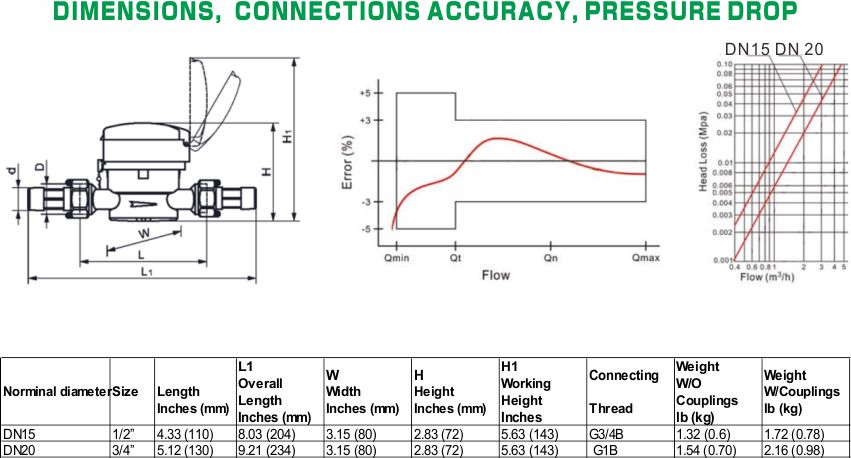

see pressure drop curves
|
|
Installation:
|
Horizontal orientation recommended
|
|
Casing Spud
Connections:
|
External straight threads
|
|
Standard
Accessories:
|
Each meter is supplied
with meter coupling (tailpiece) sets; includescouplings and gaskets
|
Optional pulse output:
The
pulse emitter consists of a plastic housing with a reed switch that is closed
when a magnet mounted on one of the meters register gears comes into its
A
1.5 meter (59”) length of 2-conductor wire 3.5 mm inch
diameter
is standard. One conductor has red insulation and one has black.
Max
Voltage: 24V AC/DC
Max
Current: 0.01 A
Output
Bounce Time: 0.01 second
