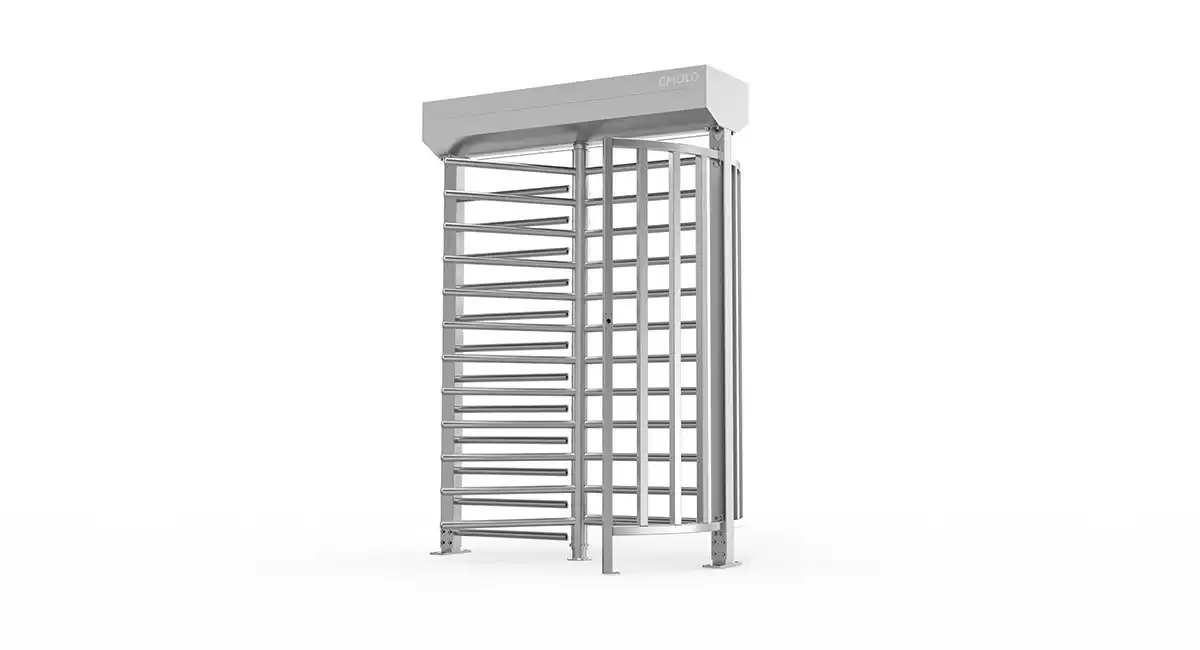

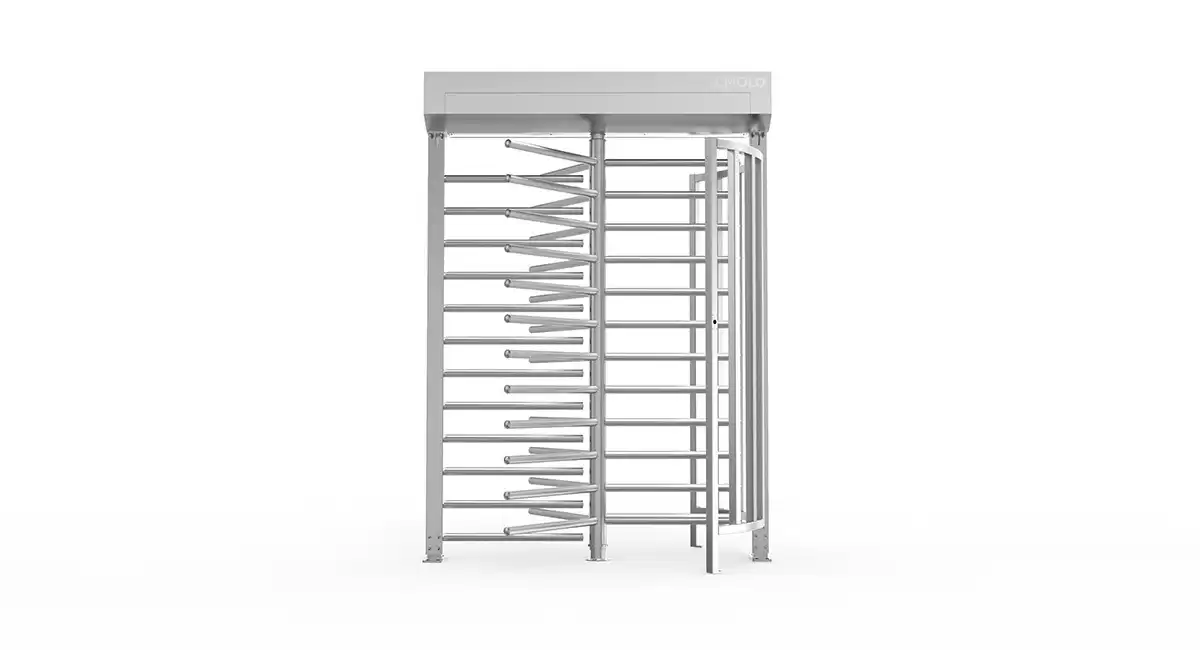

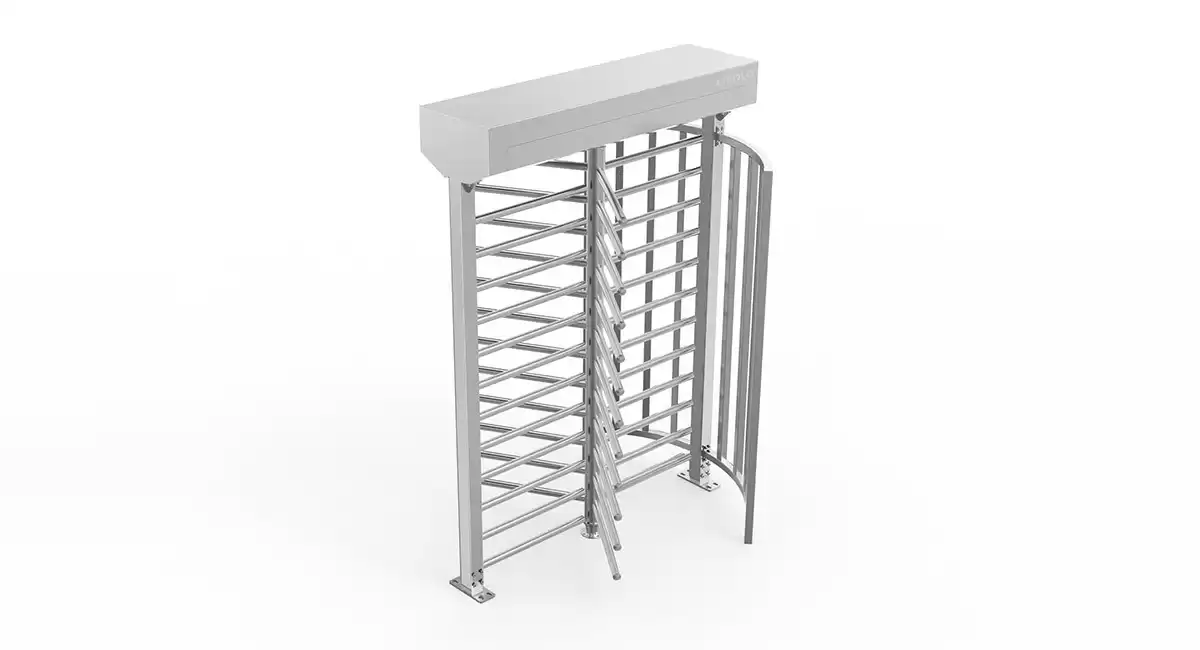

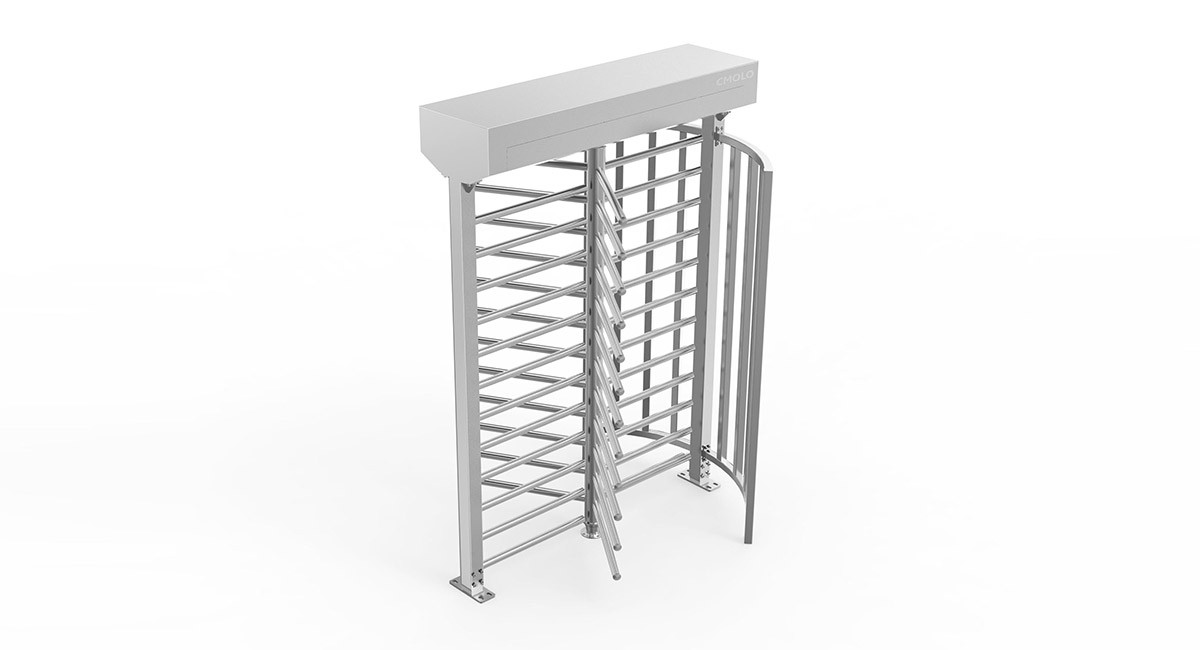

Single-lane Indoor & Outdoor Full Height Turnstile

Full height turnstile CPW-221A can be divided into fully-automatic full height turnstile and semi-automatic full height turnstile.


The mechanism module of the fully automatic full height turnstile CPW-221A adopts brushless DC motor and the accurate positioning encoder, combined with the advanced secondary transmission mechanical structure and the rotating column runs quickly, accurately, smoothly and silently.

The semi-automatic single-door full-height turnstile CPW-221A adopts an original professional-grade buffer design, which makes the operation more efficient and stable, reduces losses, and ensures the reliability of the mechanism.

Fully automatic full-height turnstile and semi-automatic full height turnstile adopt mechanicalanti-tailgating design, which can effectively realize that only one person passes at a time, with very high anti-tailgating performance. The cabinet is high and large to form a closed structure to control passage, prevent pedestrian from climbing and creeping, so as to realize unattended operation and have a very high security level.The cabinet and the rotating column are detachable for easy transportation and installation.

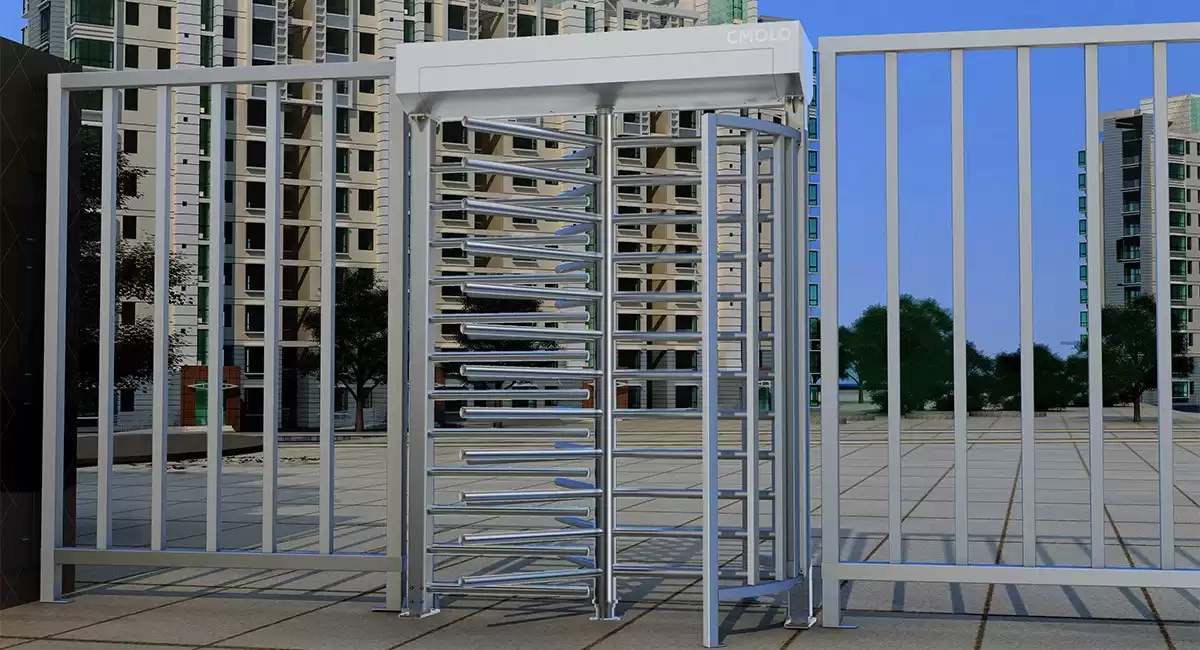

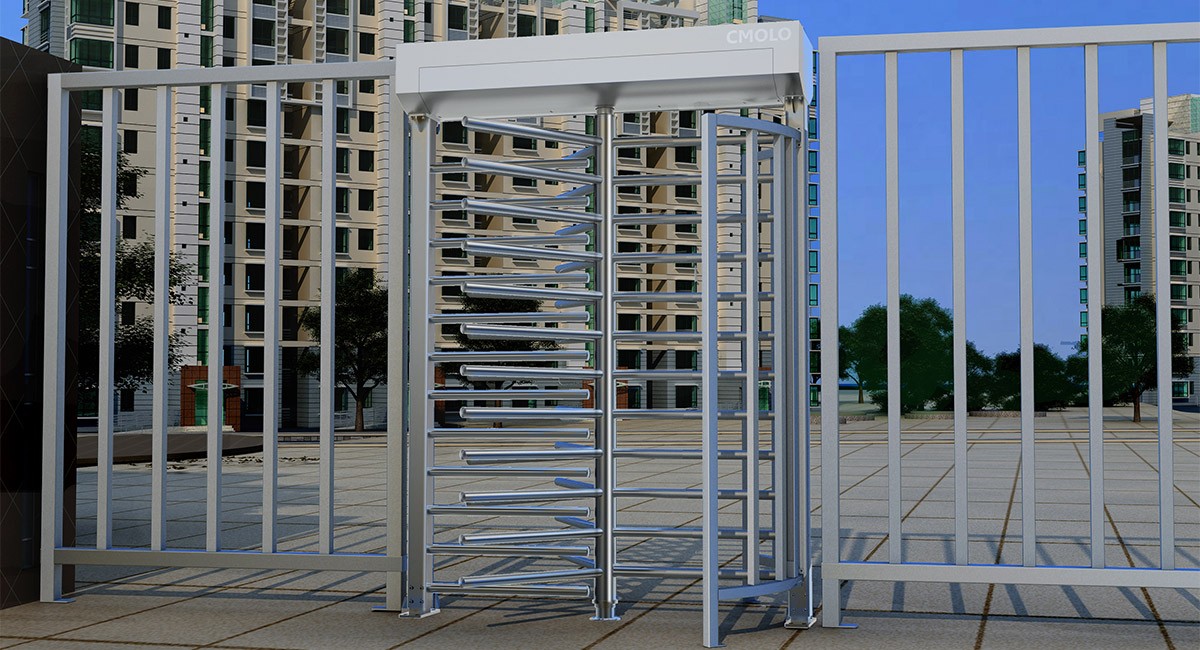

The full height turnstile CPW-221A is suitable for indoor and outdoor occasions such as scenic area, factory etc.







advanced core patented technology





high stability, optimize the mechanism structure





long life, longer than 10 million times





accurate & fast detection















IP65



high temperature resistance



low temperature resistance



condensation resistance

















modular design, easy maintenance





high compatibility, high integration





unattended













Advanced & Intelligent Full Height Turnstile Core Technology



Type Fully-auto full height turnstile Semi-auto full height turnstile
Long service life The mechanism and control system of the full height turnstile have been passed 10 million times life test.
Anti-tailgating The full height turnstile adopts a mechanical anti-tailgating design, which can realize one person passing through at a time.
Unattended guard The cabinet is high and large to form a closed structure to control passage, prevent pedestrian from climbing and creeping, so as to realize unattended operation.
Strong mechanism structure The lossless modular mechanism structure independently developed by CMOLO adopts CNC machining technology to ensure the high precision of each module of the mechanism.
The mechanism adopts the mechanical structure of secondary transmission. The gear transmission ratio is precise, efficient and stable, which can precisely control the rotation angle of the arm and reduce the loss, ensure the reliability of the mechanism and enhance the service life of the mechanism. The mechanism adopts advanced hydraulic buffer, with advanced buffer design structure, which effectively reduces the noise and mechanical vibration, makes the operation more efficient and stable, and reduces the loss, ensures the reliability of the mechanism and enhances the service life of the mechanism.
Core control algorithm Using advanced servo control system and DSP+ARM motor control technology, combined with the motor control algorithm independently developed by CMOLO, to achieve precise control and positioning of the obstacle. The main control adopts the advanced algorithm based on ARM core, with advanced photoelectric sensors and high-quality solenoids, to achieve efficient and accurate control logic.
Prevent reverse passage Mechanical electric control locking structure design, anti-illegal collision arm and reverse passage. Mechanical electric control locking structure design, anti-illegal collision arm and reverse passage.
Arms status monitoring The full-height turnstile adopts a closed-loop feedback control system to monitor the movement status of the arm, which can sensitively detect behaviors that threaten the safety of the passageway, such as illegally hitting the arm and reverse passage, and then issue warnings in the form of sound and light, and can be linked with other security systems.  --
Passing prompt of Automatic rotation After the pedestrian provides a legal door opening signal, the arm rotates at a certain angle in the opening direction, indicating that the pedestrian can pass, and then the pedestrian gently pushes the arm, and the arm automatically rotates in the opening direction. --





All-around Pedestrian Safety Protection



Type Semi-auto full height turnstile
Fully-auto full height turnstile
 Anti-electric shock All electric modules are designed to operate under the safety voltage of 24V, and configured with residual current protective device to prevent pedestrian from being injured by electric shocks.
Emergency open The full height turnstile equips with emergency escape control device, to make the system automatically open the gate to evacuate pedestrian.
Open the gate when power failure The advanced mechanical structure is independently developed by CMOLO. When the power is cut off, the arm is automatically unlocked, and pedestrians can freely push the arm to quickly evacuate the crowd.





Customization



Gate Open Button

External gate open button

Install the gate open button with wireless remote control

Direction Indicator

The installation position of direction indicator can be adjusted.

The pattern of direction indicator can be customized.

Appearance Cabinet size, material and surface treatment process etc. of turnstile can be moderately customized.
System integration

Integrate with access control system, human body temperature measurement system, ticketing system, time attendance system, visitor system etc.

Integrate with QR code, face, fingerprint, ID/IC card, passport identification system etc.

Integrate with card collection system, and customize card collection device.

Functions

Built-in or external counter

TCP / IP communication function
