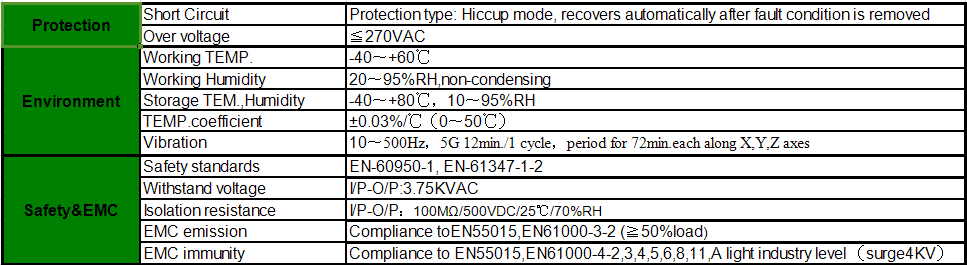

Protection & Environment& Safety & EMC

Specifications:

• Dimming mode: traic dimmable
• working mode:constant current type
• PF>0.93/110V ; PF>0.95/220V ; PF>0.94/250V
• Full Load Efficiency (Typ.): >85%
• AC Current(Typ.): 0.14A/110VAC 0.12 A/220VAC 0.01A/250VAC
• Leakage current: < 0.27mA/110VAC; < 0.25mA/220VAC
• 3 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)

Features:

• High efficiency,save energy ,protected environment
• Output constant current
• Input range :90-135VAC / 170-265VAC
• Built-in PFC function,PF >0.9
• Efficiency > 85%
• Protections:Short circuit/over Voltage
• Fully isolated plastic case
• Easy installation
• Cooling by free air convection
• Work with leading edge and trailing edge TRIAC dimmers
• Strong compatibility, flicker-free dimming
• Suitable for LED lighting and moving sign applications
• Compliance to worldwide safety regulations for lighting
• Meet to safety standard and EMC.
• 100% full load burn-in test.
• Brand electrotronic components.
• ROHS material.

Applications:

• indoor LED illuminating lights, LED Neon
• LED urban Decoration,LED Lighting Advertising
• LED Display, Safety Protection Apparatus
• Telecommunications, Networks
• Vehicle Lights, Controller Panels
