Single output 600W 36V 16.7A switching power supply open frame smps
Description:
K18C-UP600S series switching power supply is a highly reliable green open frame type power supply with 168*82*40mm miniature size;K18C-UP600S series is equipped with complete protection functions;it can meet CE certification standard and as a high price-to performance power supply solution for various industrial applications.
Features:
1, High efficiency 600W power supply, small size;
2, 600W 36VDC UPS built-in filters and PFC function, low output noise;
3, International universal full voltage input;
4, This model 36V 16.7A power supply have short circuit, overload, overvoltage,over temp.,protection;
5, 600W single output power supply,used in stage lighting and medical facility.
.
|
Parameter
|
Item NO
|
K18C-UP800S12
|
K18C-UP800S24
|
K18C-UP800S30
|
K18C-UP800S36
|
K18C-UP800S48
|
Output
|
DC Output Voltage
|
+12V
|
+24V
|
+30V
|
+36V
|
+48V
|
|
Output Rated Current
|
58.4A
|
33.4A
|
26.7A
|
22.3A
|
16.7A
|
|
Current Range（Natural Cooling ）
|
33.4A
|
20.8A
|
18.4A
|
16.7A
|
12.5A
|
|
Current Range（20CFM Fan）
|
58.4A
|
33.4A
|
26.7A
|
22.3A
|
16.7A
|
|
Rated Power（Natural Cooling）
|
400W
|
500W
|
550W
|
600W
|
600W
|
|
Rated Power（20CFM Fan）
|
700.8W
|
801.6W
|
801W
|
802.6W
|
801.6W
|
|
Ripple & Niose
|
150mVp-p
|
300mVp-p
|
350mVp-p
|
400mVp-p
|
400mVp-p
|
|
DC Adjustable range
|
11.4~12.6V
|
22.8~25.2V
|
28.5~31.5V
|
34.2~37.8V
|
45.6~50.4V
|
|
Voltage Tolerance
|
±1%
|
|
Line Regulation
|
±0.5%
|
Load Regulation
|
±1%
|
Set up,Rise,Keep up time
|
300ms,20ms,12ms
|
|
Input
|
Voltage Range
|
100-240V AC
|
|
AC Current
|
3.8A@230Vac,7.6A@115Vac
|
|
Input Frequency
|
50-60Hz
|
|
Efficiency
|
91.5%
|
92%
|
93%
|
93%
|
94%
|
|
Power Factor
|
＞0.98@115V;＞0.95@230V
|
|
Inrush Current
|
Cold Start 60A/230V
|
Leakage Current
|
＜0.5mA@240V AC
|
Protection
|
Over Load Protection
|
105~150% Hiccup protection，automatic recovery
|
|
Over Voltage Protection
|
＞120% Shut down，Locked protection, return to normal after restart
|
|
Over Temp. Protection
|
TS1 position＞105℃ it will be protection, then automatic recovery
|
|
Function
|
Fan Supply
|
12V@0.3A for driving a fan ,tolerance±15%
|
Environment
|
Working Temp., Humidity
|
-20~70℃，10~90% RH，No condensation
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety & EMC
|
Safety Standards
|
GB4943 EN60950
|
Withstand Voltage
|
I/P-O/P:3KV AC; I/P-FG:1.8KV AC;O/P-FG:0.6KV AC 1min
|
|
Insulation resistance
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC Standards
|
EN55015
|
Others
|
Dimension
|
168*82*40mm(L*W*H)
|
|
Weight
|
0.8KG
|
|
MTBF
|
＞50K hrs
|
|
Notes
|
1. All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4.Line regulation：at rated load conditions, the input voltage change from low to high measured;
5. Load regulation：the measured output from 0-100% load changes measured;
6.The load is more than 400W, need to add at least 10CFM to heat dissipation.
|

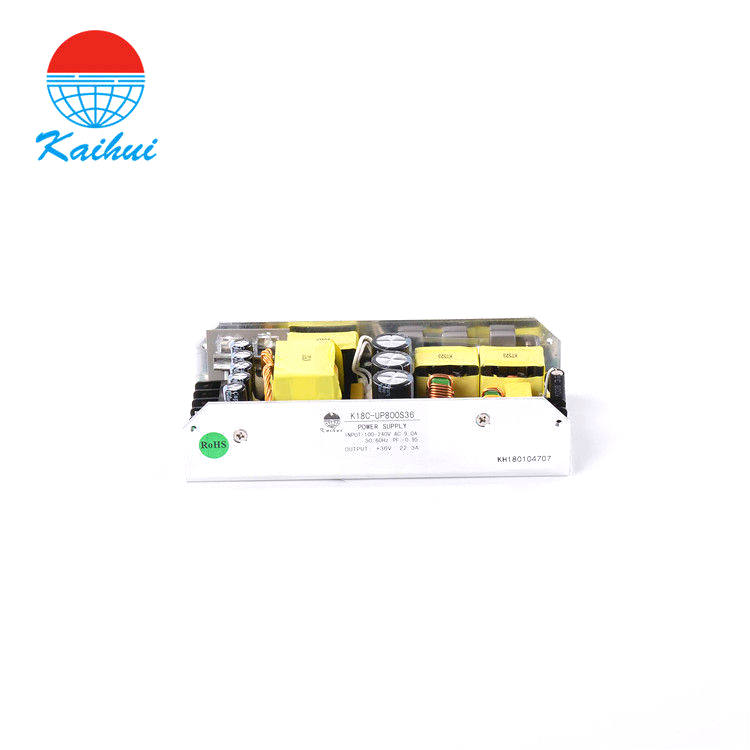

Product picture:
