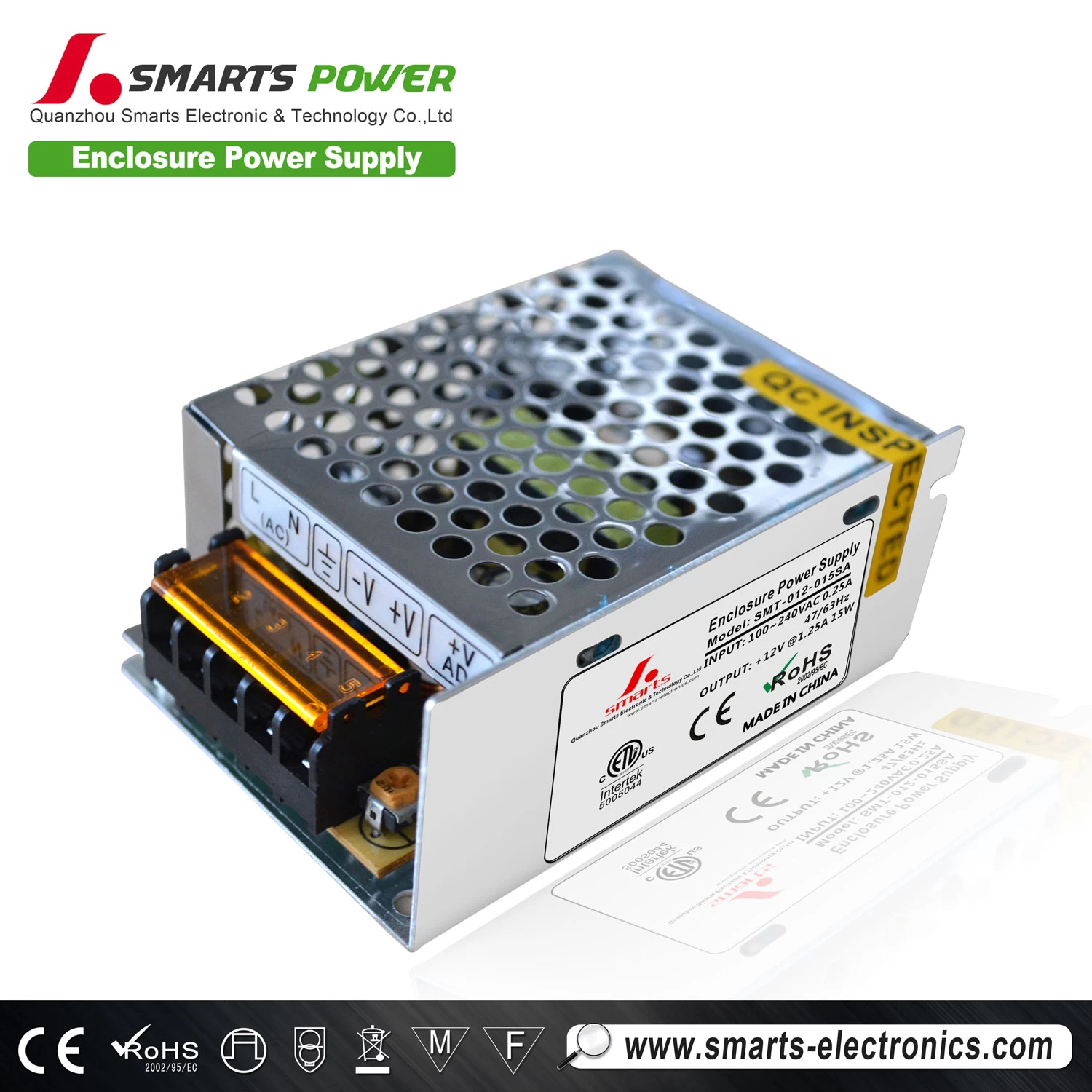

single output DC 12V 15W enclosure Power supply 1.5Amp

single output DC 12V 15W enclosure Power supply 1.5Amp



Specifications:
Product size: 78*48*22mm
Case material:aluminum
Net weight/pc: 75g
Input voltage: 100-240v
output voltage: 12v 24V
Frequency: 47-63Hz
Output power: 15W
output current: 1.25A , 0.625A

Features:
Competitived price and high reliability
105 °C Output capacitor
AC input power suitable for the world
High efficiency and low operation temperature
Soft-start current can reduce the AC input impact effect
With short-circuit and overload protection
Compact size, light weight
100% full-load burn-in test
Installed with EMI filter, minimum wave
2 years warranty

Environment:
Working temp,humidity: -25°C~+50°C,20%~90%RH
storage temp,humidity:  -20°C~+85°C,10%~95%RH non-condensing
Withstand vibration:  10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

Safety:
Withstand voltage:  I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
Isolated resistance:  I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
EMC standard: Comply with EN55022,CLASSA

parameter:

Model



SMT-012-015SA

SMT-024-015SA

SMT-036-015SA

SMT-048-015SA







output

DC voltage



12V

24V

36V

48V

Voltage tolerance



±1%

±1%

±1%

±1%

Rated current



1.25A

0.625A

0.416A

0.312A

Current range



0~1.25A

0~0.625A

0~0.416A

0~0.312A

Rated power



15W

15W

15W

25W

Ripple&noise



150mvp-p

150mvp-p

150mvp-p

150mvp-p

DCvoltage ADJ.range



±10%

±10%

±10%

±10%





input

Voltage range

100~240Vdc

frequency

47~63HZ

AC current

2.7A/115VAC,1.2A/230VAC

efficiency



>83%

>83%

>83%

>83%

Inrush current

Cold start current 18A/115VAC,36A/230VAC

Leakage current

< 1mA/240VAC



protection

overload

Rated output power115%~150% start over load protection

protection type:cutoff output,recovery after restart power

Over voltage



15.6~17.8V

18.6~20.8V

30.6~33.2V

33.2~35.6V

protection type:hiccup mode,auto-recovery after fault condition is removed

Short circuit

protection

protection type:hiccup mode,auto-recovery after fault condition is removed

environment

Working temp,humidity

-10°C~+60°C,20%~90%RH

Storagetemp,humidity

-20°C~+85°C,10%~95%RH non-condensing

Withstand vibration

10~500HZ,2G 10min/1cycle,period for 60 minutes,each axes

safety

Withstand voltage

I/P-O/P:2.0KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

Isolated resistance

I/P-O/P,I/P-FG,O/P-FG:100M ohms/500VDC
