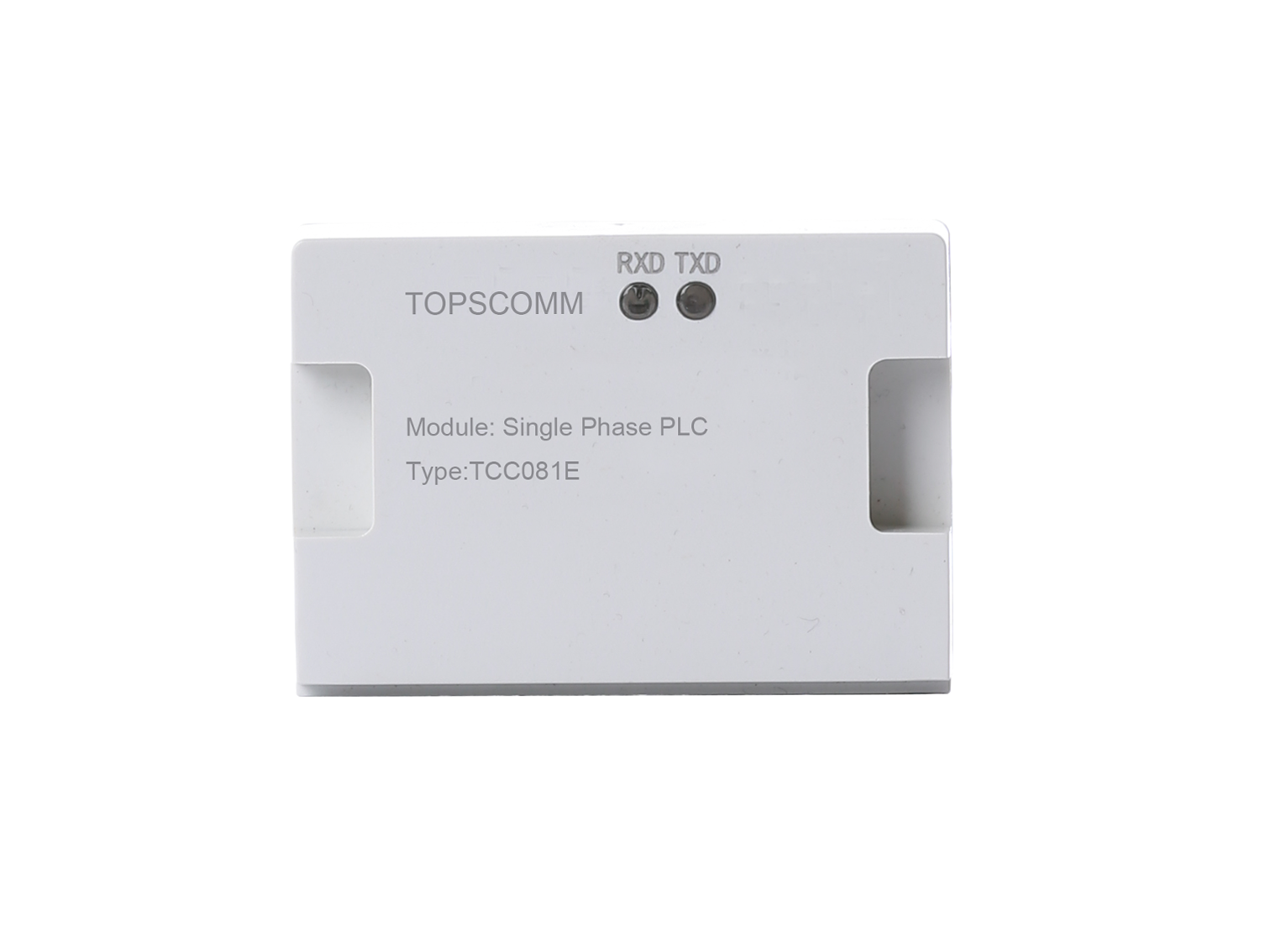

Single Phase PLC Communication Module

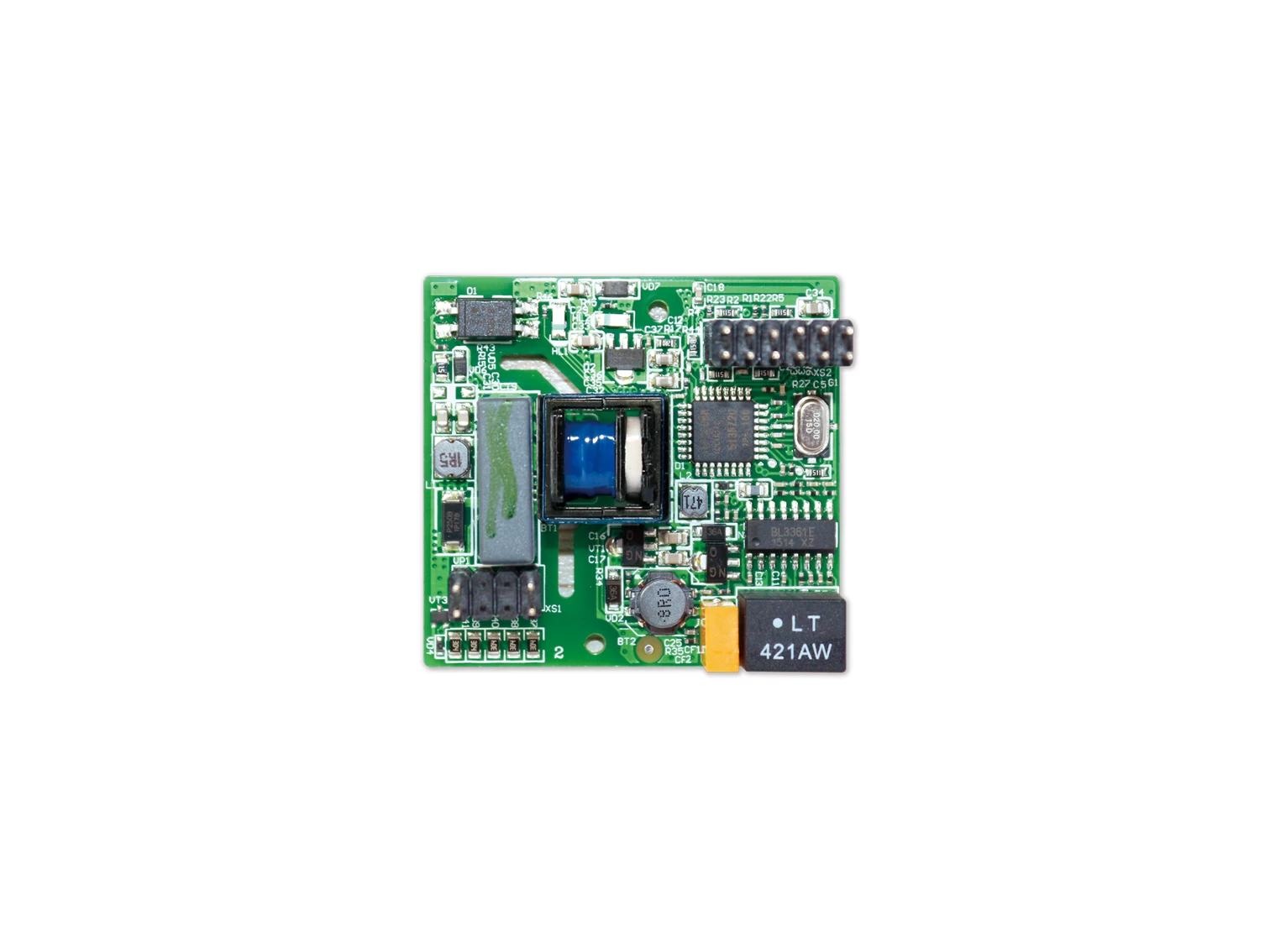

Topscomm single phase power line carrier (PLC) communication module is developed on TCC081 series of PLC chips.



Main technical parameters for Single phase PLC module

Serial port rate 1200bps, 2400bps, 4800bps, 9600bps
Carrier communication rate 50bps, 100bps, 600bps, 1200bps
Frequency 45Hz~54Hz, 56Hz~64Hz
Operating voltage Strong electric power interface: Un=220VAC
Feeder return circuit power source:DC+12V, Udc=6.5V~24V
Operating voltage:DC+5V, Udc=5V±0.25V
Operating temperature -40℃~﹢85℃
Relative humidity ≤95%
Power consumption
On communication <1.4W
Communication range The whole transformer area
