Specification for single phase 5kw Grid tied solar power systems
|
5kw Grid tied solar power systems
|
|
Components Name
|
Description
|
Quantity(PCS)
|
|

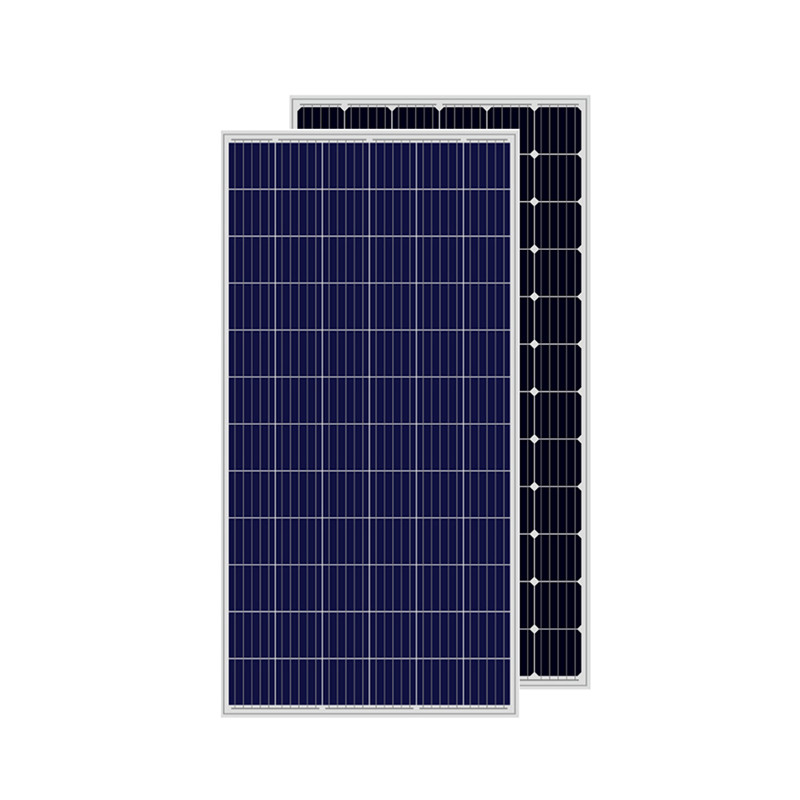

GSP350-72, poly 350W
|
Voltage:36V Size: 1960*990*40mm
|
16
|
|

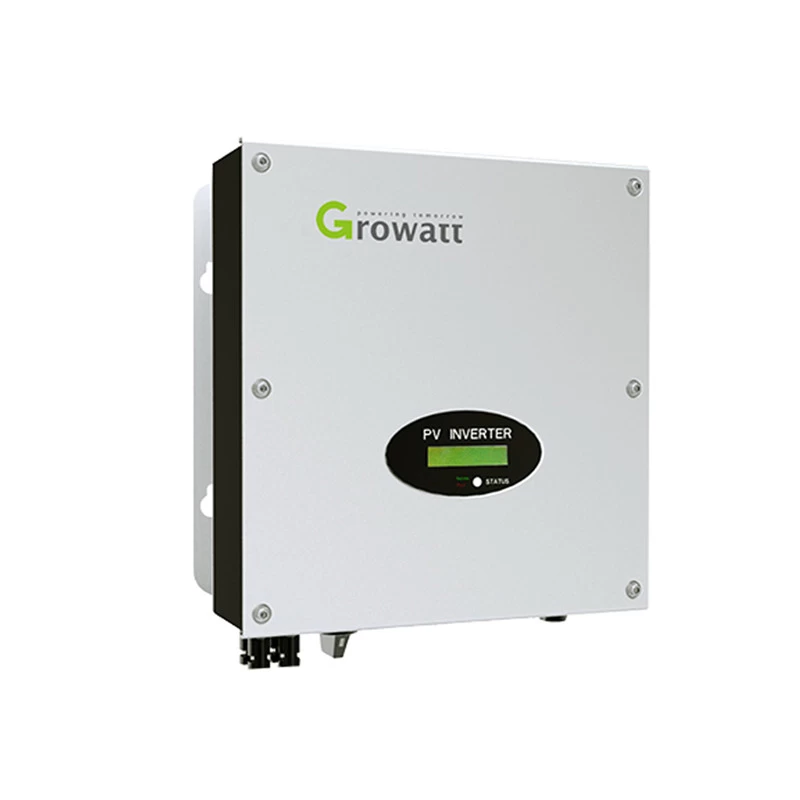

Grid tie Inverter 5KW
|
Single phase EU Standard or USA Standard
|
1
|
|

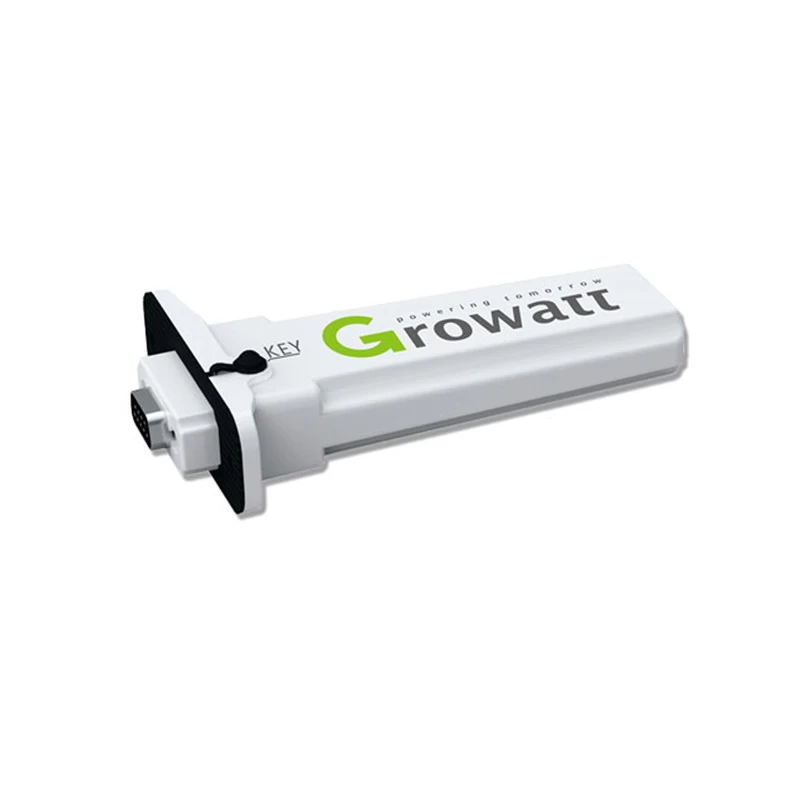

Monitoring device
|
Monitor the whole solar system
|
Wifi or shine box
|
|
PV Combiner Box
|
customized, 2input 2output
|
1
|
|
PV Cable
|
4mm2
|
200
|
|
MC4 Connector
|
DC 1500V
|
12
|
|
Mounting bracket
|
roof and ground type; Aluminum/
Galvanized steel;Customized
|
1set
|

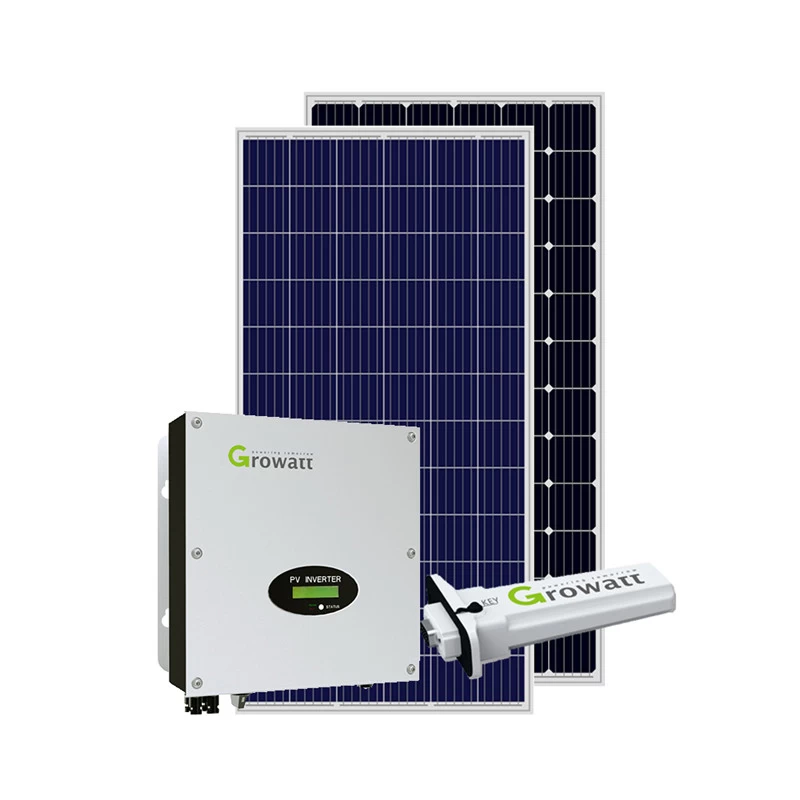

Package for 5kw Grid tied solar power systems
Projects made by greensun solar
Grid tie solar system connects to grid, self consumption first, excess power can be sold to the grid.
Grid tie solar system mainly consists of solar panels, grid tie inverter, brackets, etc.
Hybrid solar system can connect to grid, self consumption first, excess power can be stored in the battery
Hyrid solar system mainly consists of pv modules, hybrid inverter, mounting system, battery,etc.
Off grid solar system works alone without city power
Off grid solar system mainly consists of solar panels, off grid inverter, charge controller, solar battery, etc
