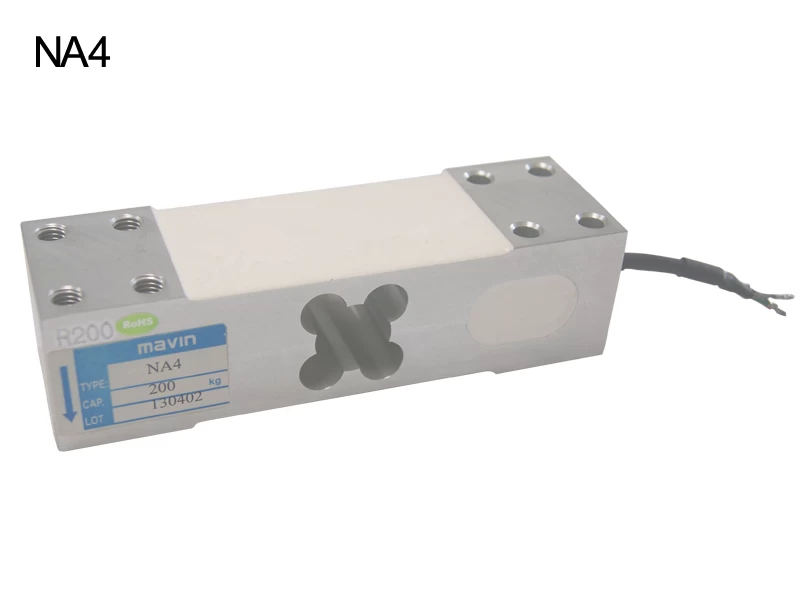

Single point load cell aluminum alloy weighing sensor 60-800kg NA4

Single point load cell NA4 delivers highly precise and reliable measuring results even in long-term use. The parallel beam Load Cell can be used individually in smaller bench scales and retail scales.


  • Rated Output2.0mV/V
  • Dimension150*45*40mm
  • Protection ClassPI66/PI67
  • MaterialAluminum Alloy
  • Capacities60-800kg

Single Point Load Cell NA4 (60-800kg)

Single point load cell NA4 delivers highly precise and reliable measuring results even in long-term use. The parallel beam Load Cell can be used individually in smaller bench scales and retail scales.


Key Features

High accuracy OIML approved

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install

Long term, reliable operation


Usage & Applications
Platform scales

Bench scales

Retail scales
Pricing scales
Counting scales

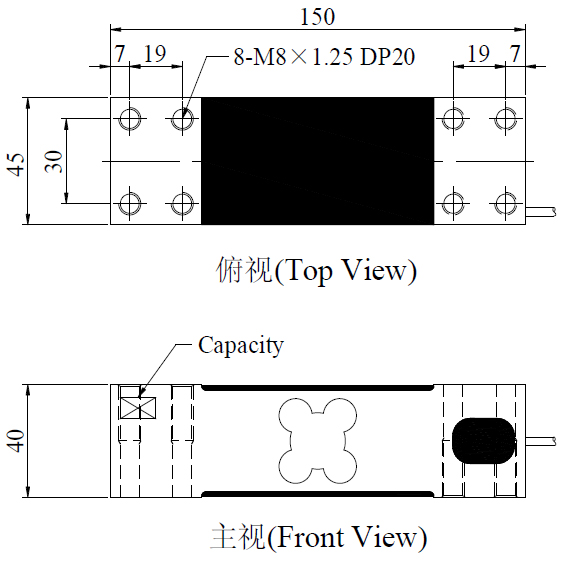

Dimension

load cell mavin NA4

NA4 Specification

Rated Capacities

60~800(kg)

Rated Output

2.0 mV/V±5%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ5×2m

Recommended Platform Size

600×600 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
