Single point load cell Aluminum weight sensor NA1/H

NA1/H is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales.



  • Protection ClassPI66/PI67
  • Dimension100*30*22mm
  • Rated Output2.0mV/V
  • MaterialAluminum Alloy
  • Capacities10-40kg

Single Point Load Cell NA1/H (10-40kg)

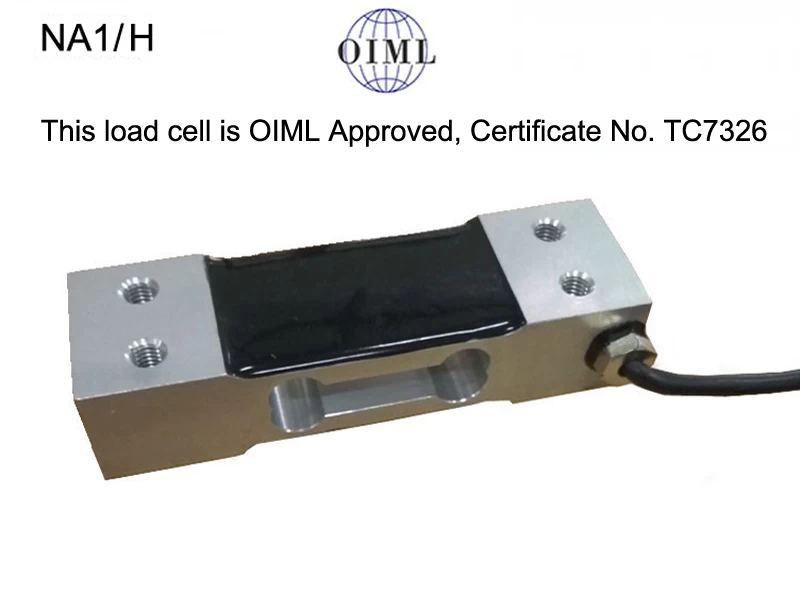

NA1/H is a low profile single point load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This load cell is OIML Approved with Certificate No. TC7326.


Key Features

Aluminum alloy construction

Compact Design

Easy to install

Long term, reliable operation


Usage & Applications
price computing scales
counting scales
weighing scales
retail scales

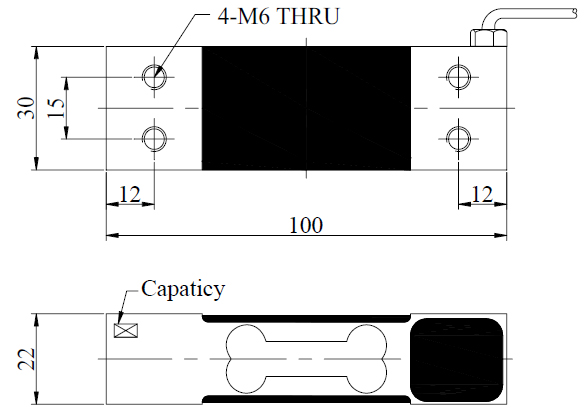

Dimension

NA1/H Specification

Rated Capacities

10~40 (kg)

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.002 %R.O./

Temperature Effect On Zero

0.003 %R.O./

Input Impedance

410±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP66 / IP67

Cable

φ4×0.5m

Recommended Platform Size

350×350 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
