Specification:

• Size: 253x60x45 cm
• N.W: 77 kgs
• G.W: 85 kgs

• Weight capacity: 130 kgs

Technologies:

• Main frame material: the middle guide rail adopts the factory's self opening elliptical machine guide rail, with a size of 2070 * 208 * 106mm and a weight of about 24kg.
• The cushion group adopts PU leather, high-density sponge and glued wood structure;
• Pulley: 58mm diameter embedded aluminum sleeve and bearing high-strength silent pulley;
• Pull rope: adopt Φ 10 rock climbing rope, bearing 1.47 tons;
• Handle: Inner Ring + outer ring cotton fiber cloth + gourd hook;
•  feet can be adjusted 4 angles (65 degrees, 90 degrees, 115 degrees, 180 degrees).
• The folding mode is that the rear frame can be folded down through the rotating structure and aligned with  the front frame to achieve as small storage space as possible;
• Screw: stainless steel;
• Bearing screw: grade 10.9 high-strength screw;
• Baking powder: epoxy powder coating process with high protection and rust prevention, and baking powder assembly line operation of German equipment (frame spraying baking powder underwriting for three years);

Warranty:

• 3 years frame/365 days parts

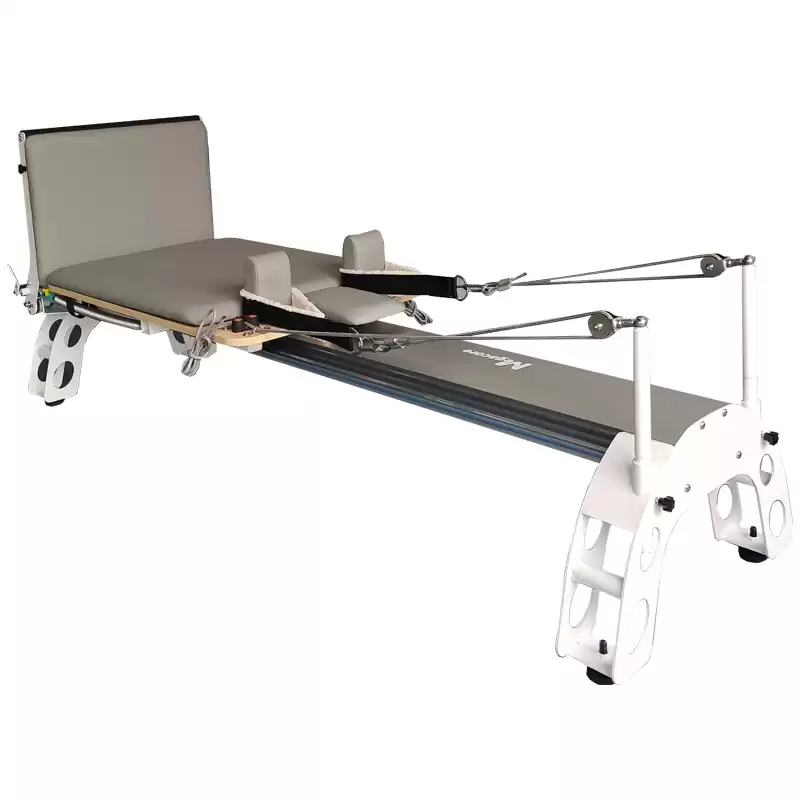

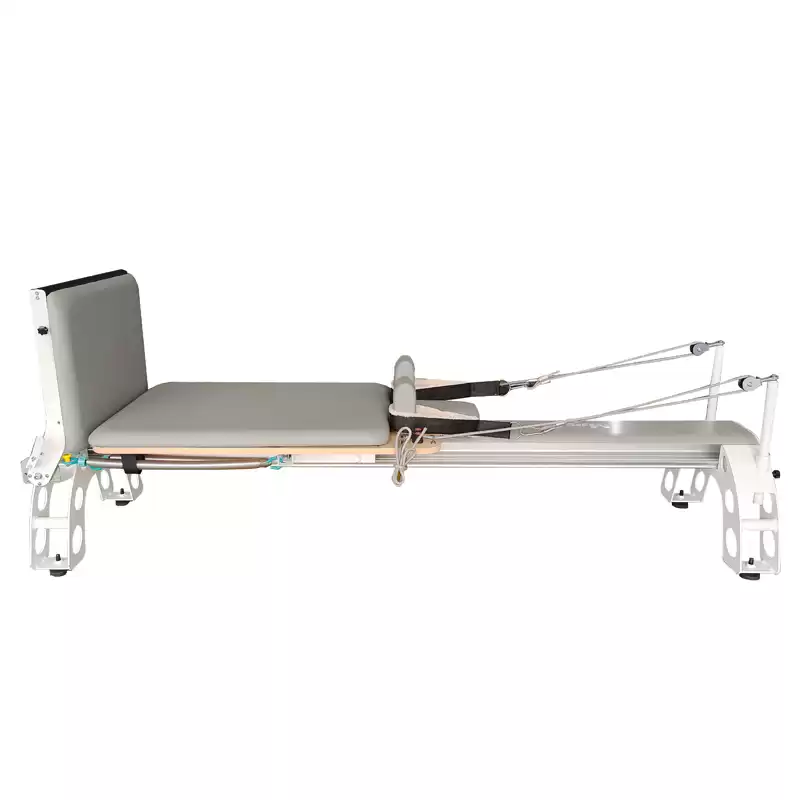

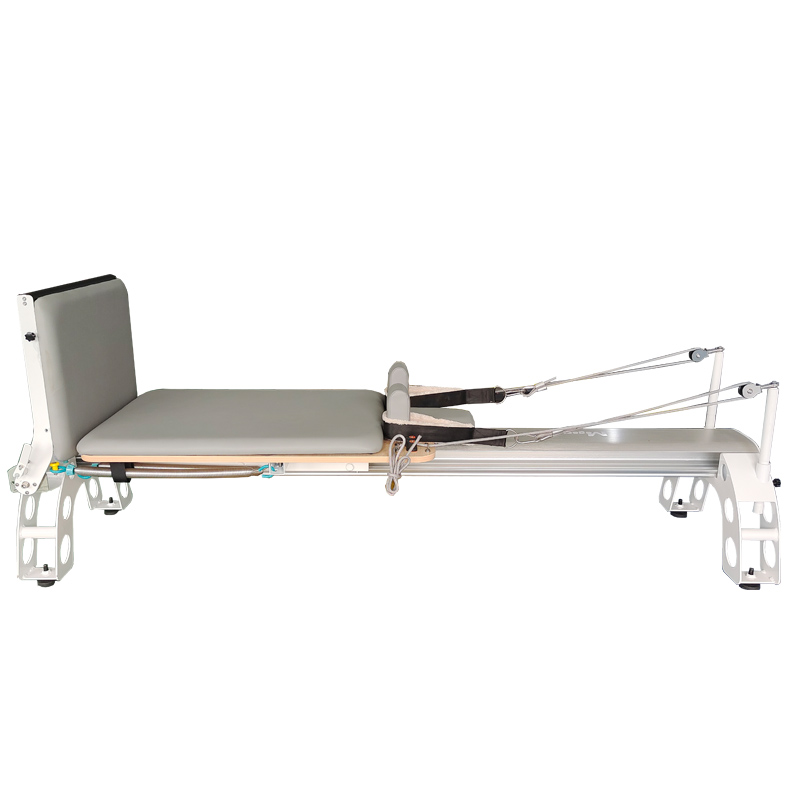

Product Display:
