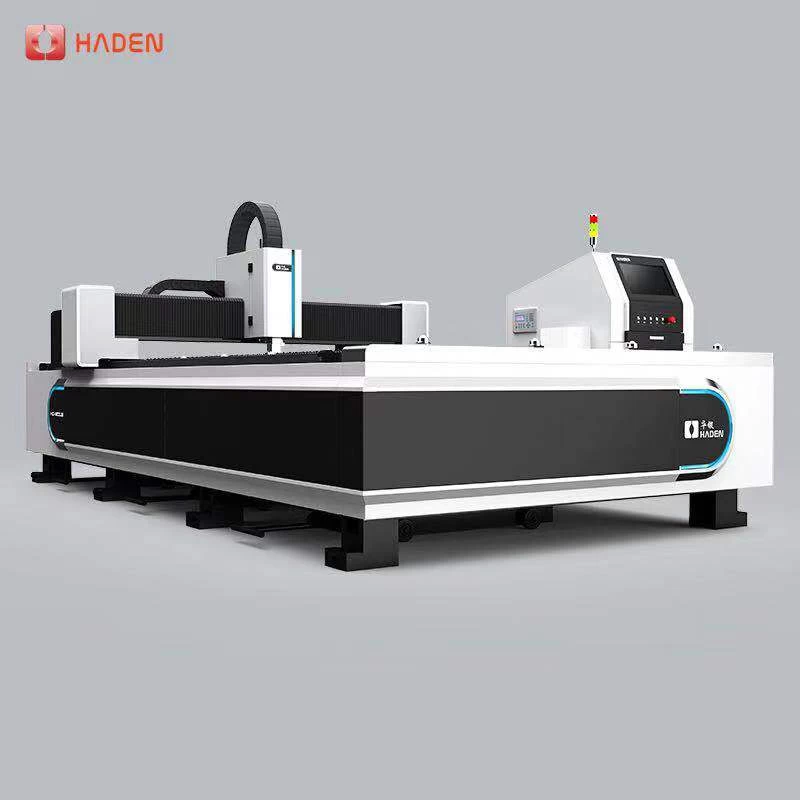

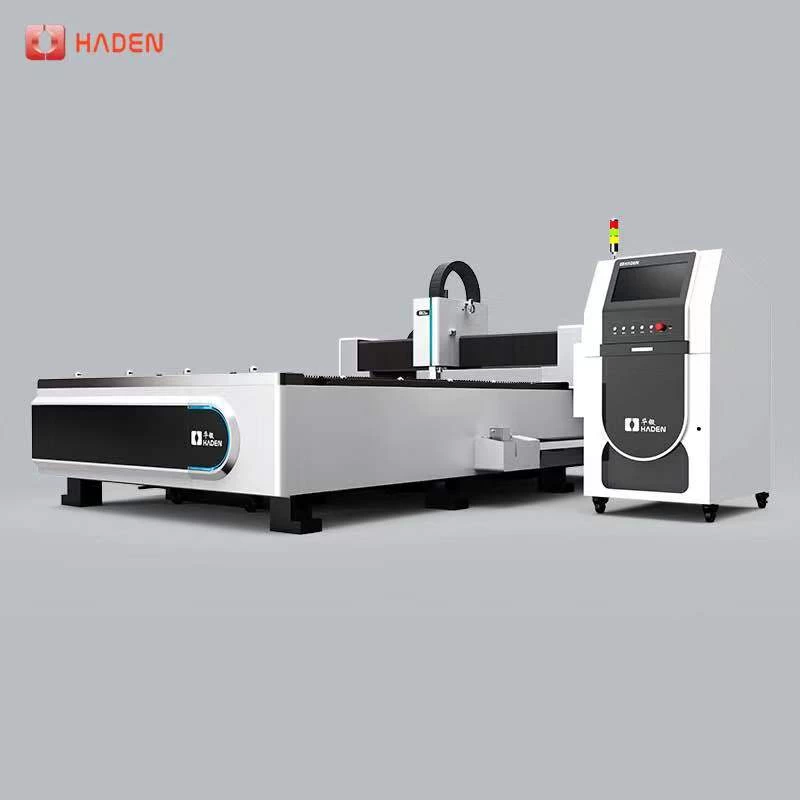

Haden CNC Fiber Laser Cutting Machine is focusing laser beam on the material, localized heating until over the melting point. Then blow the dross away by nozzle's high pressure gas or metal steam pressure. Accompany with the linear moving of beam and materials, making holes into narrow kerf. Metal like carbon steel, stainless steel should choose tthis fiber laser cutting machine
|
Characteristic
-
High Electrical-optical Conversion Efficiency
-
Optional Air Cooling or Water Cooling
-
Wide Modulation Frequency Range
-
Maintenance-free Operation
-
Customized Output Fiber Length
-
Sheet Cutting Efficiency
-
Anti-reflection Capacity
|

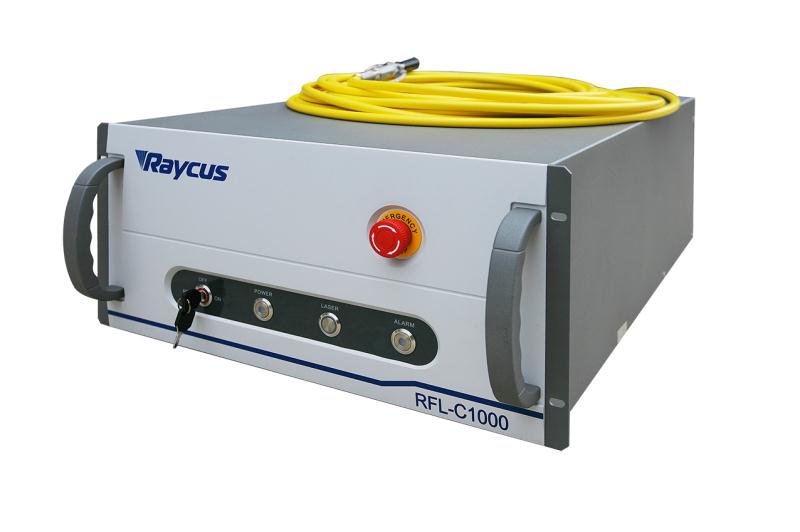

Haden cnc laser cutting machine use the third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 2000W, the new lasers has higher electrical-optical conversion efficiency,
higher and more stable optical quality, stronger anti-reflection capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding,holding,medical device processing etc, with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
The single module CW fiber lasers products is completely researched,developed and produced by Raycus independently. The single module CW fiber laser series not only can meet diversified demands of customers to greatest extent, but also provide personal customization service. Raycus is first independent research and development of fiber laser high-tech enterprise. More and more CNC fiber laser metal cutting machine manufacturer choose Raycus fiber laser.
|
Technical Parameters
|
|
Model
|
RFL-C300L
|
RFL-C500
|
RFL-C750
|
RFL-C1000
|
RFL-C1500S
|
RFL-C2000S
|
|
Optical Properties
|
|
Average Output Power
|
250
|
500
|
750
|
1000
|
11500
|
2000
|
|
Wavelength(nm)
|
1080±5
|
|
Operation Mode
|
CW/Modulate
|
|
Max.Modulation Frequency
|
50
|
|
Output Power Stability
|
±1.5%
|
|
Red Laser
|
Yes,Red Laser Power 0.3mW to 1mW
|
|
Output Characteristics
|
|
Terminal Type
|
Customization
|
|
Beam Quality (M²)
|
M²＜1.2
|
M²＜1.3
|
BPP＜2.3mm X mrad
|
|
Polarization State
|
Random
|
|
Delivery Cable Length (m)
|
15
|
20
|
|
Electrial Characteristics
|
Power Supply
(VAC@50Hz/60Hz)
|
AC200V-AC240V
single-phase
|
AC340V-AC420V
Three phase-Four wire Connect
|
|
Control Mode
|
RS232/AD/Ethernet
|
|
Power Range (%)
|
10 to 100
|
|
Power Consumption (W)
|
1000
|
2000
|
3000
|
3500
|
5000
|
6500
|
|
Other Characteristics
|
|
Dimensions(mm)
|
485x240x680
Handle Included
|
485x240x765
Handle Included
|
520x620x986
Handle Included
|
|
Weight(KG)
|
40
|
45
|
50
|
80
|
|
Cooling
|
Water Cooling
|
|
Operating Temperature (℃)
|
10-40
|
