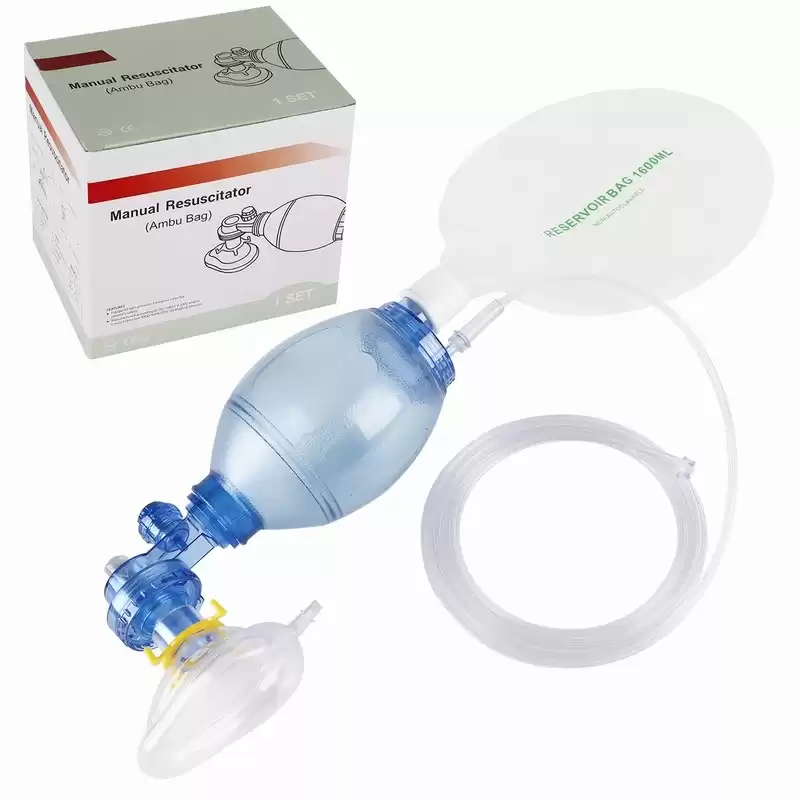

PVC resuscitator ambo bag set
This product is intended for pulmonary resuscitation for child/pediatric.
The accessories include PVC mask, Oxygen Tubing, Reservoir Bag.
For Single use only, 100% Latex Free.
Designed in accordance with the original double wall principle, the latex-free Ambu bags are more robust and provide users with exceptional visual and tactile lung condition feedback during manual resuscitation, making operation safer and more secure. Built-in pressure limitation prevents compression if there is any resistance in the patient’s airways.
Pediatric Size Specifications
PVC child disposable manual resuscitator standard configuration including,

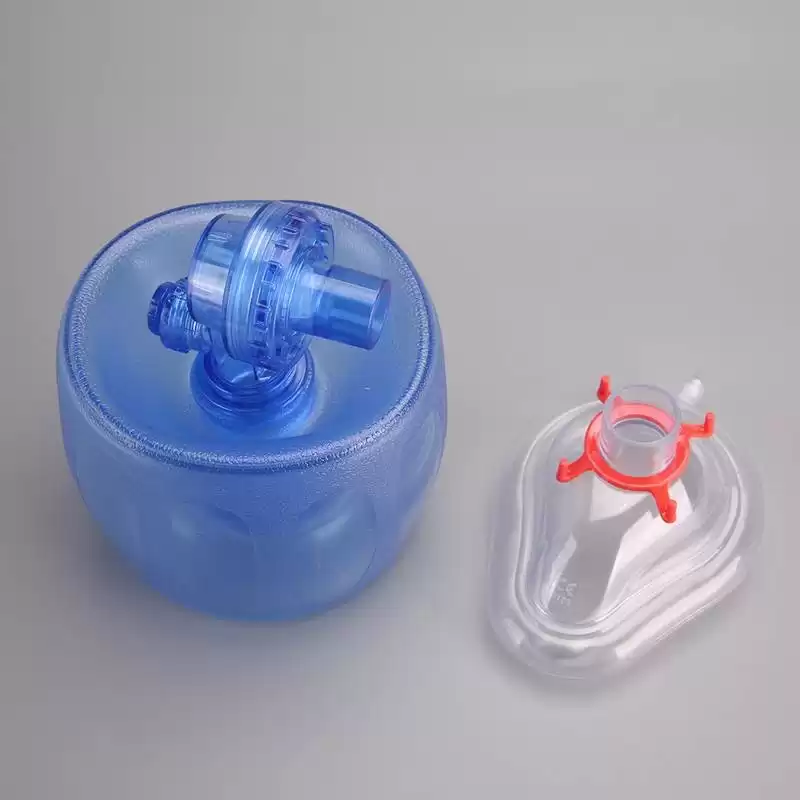

- Resuscitation bag
-PVC face mask size pediatric
-Reservoir bag 1600ml
-2.1 meters oxygen tube
-In gift box
-24pcs/CTN, carton size: 58X37.5X52cm
Optional accessory: airway, mouth opener, PEEP valve
Datasheet
|
|
Infant
|
Pediatric
|
Adult
|
|
Body weight
|
≤10 kg
|
10kg～33kg
|
≥33kg
|
|
Stroke volume
|
150 ml
|
350 ml
|
800 ml
|
|
Resuscitator volume
|
340ml
|
680ml
|
1630ml
|
|
Dimensions
(Lenght×Diameter )
|
225×85mm
|
262×105mm
|
325×132mm
|
|
Resuscitator weight
|
350 g
|
410 g
|
600 g
|
|
Pressure limiting valve
|
40 cmH2O
|
40 cmH2O
|
60 cmH2O
|
|
Dead space
(patient valve)
|
7 ml
|
7ml
|
7 ml
|
|
Inspiratory resistance
|
＜5 cmH2O (at 50 L/min)
|
|
Expiratory resistance
|
＜5 cmH2O (at 50 L/min)
|
|
Bag reservoir volume
|
1600 ml
|
1600 ml
|
2000 ml
|
|
Patient connector
|
ISO Ø22/15 mm
|
|
Recommended Operating temperature: -18 ℃～ +50 ℃
|
|
Storage
|
-40 ℃～ +60 ℃
|
Company Information
Xiamen Winner is a professional supplier of first-aid & anesthesia products like manual resuscitator, face masks, air splints, CPR mask and extrication collar.We have our own factory in Xiamen and it operates under ISO 13485:2003-, ISO 9001:2000- and ISO 10993-4:2002- certified management systems and all of our products carry CE marks.
Why you choose to cooperate with Xiamen Winner?
When You Work with Winner Medical, You Work Directly with a Real Quality Factory Supplier in China. We never take our role as market leader for granted. Instead, we constantly innovate and improve to remain number one.
How do you know it is time to use an Ambu bag/Manual resuscitator?
Manual ventilation most often occurs when the patient's respiratory effort is inadequate. When a patient is not breathing or needs assistance to breathe fully, the Ambu bag is used in place of mouth-to-mouth resuscitation. This might happen in situations such as drowning, cardiac arrest, or a drug overdose. Therefore Ambu bag is very important rescue tool for lifesaver.
What is the function of PEEP?
PEEP-prevents the lung from collapsing at end‐exhalation.
PEEP makes oxygen saturation (SpO2) increase and reduces lung damage.
