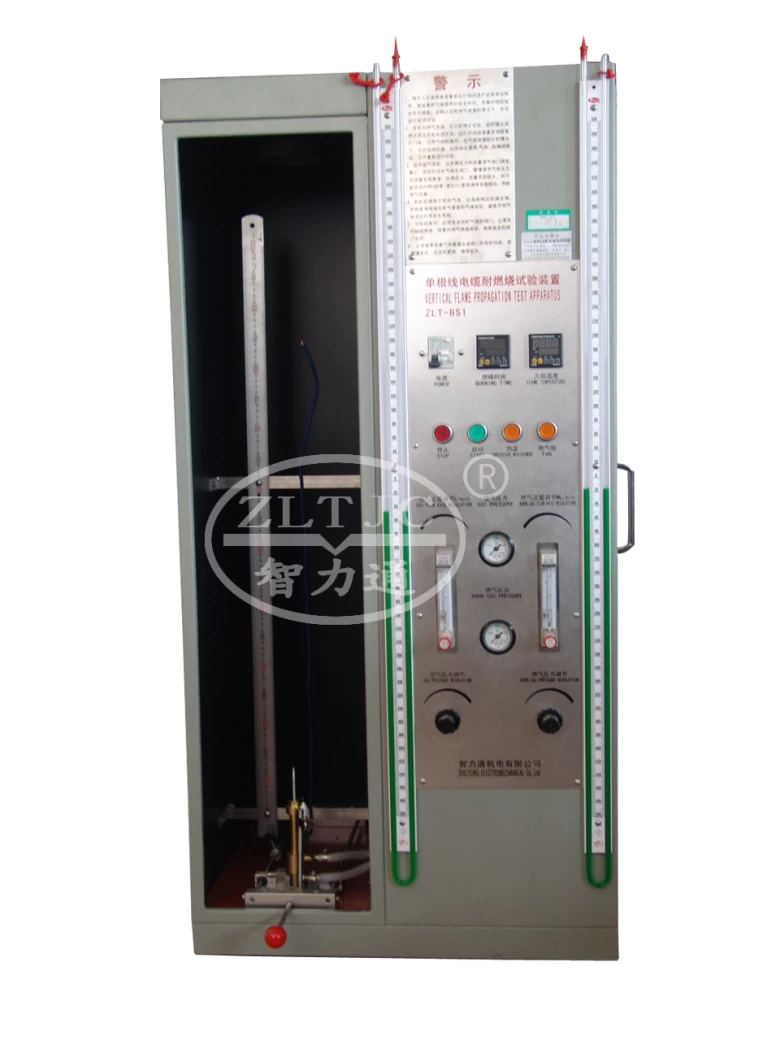

Single Vertical Insulated Wire Flame Chamber Tester
Product details: Model ZLT-BS1
This apparatus is for testing the resistance to vertical flame propagation for a single vertical electrical insulated conductor or cable, or optical fiber cable.
SPECIFICATIONS
| Flame Standard |
IEC60695-11-2, 1 kw nominal pre-mixedflame |
| Burner Tube |
IEC60695-11-2 Figure A |
| Burning Angle |
45° |
| Thermocouple |
Type K (Ni/Cr-Ni/AI),200°-1050° |
| Thermocouple Size O/D |
0.5mm |
| Thermocouple Resolution |
1° C |
| Standard Copper Block |
Weight: 10±0.05g before drilling .Cu-ETP |
| Gas Supply ( don't provide ) |
propane ,min.95% purity |
| Input Power |
220V 50HZ 3A or 115V 60HZ Optional |
| Inner Diemention |
W*D*H=30cm*45cm*120cm |
| Conform to standard |
IEC60332-1-1,IEC 60332-1-2 |
Time for flame application
| Overall diameter of test piece mm |
Time for flame application S |
| D ≤25 |
60±2 |
| 25＜D ≤50 |
120±2 |
| 50＜D ≤75 |
240±2 |
| D ＞75 |
480±2 |
Includes: Flame height gauge and 100% absorbent cotton.
