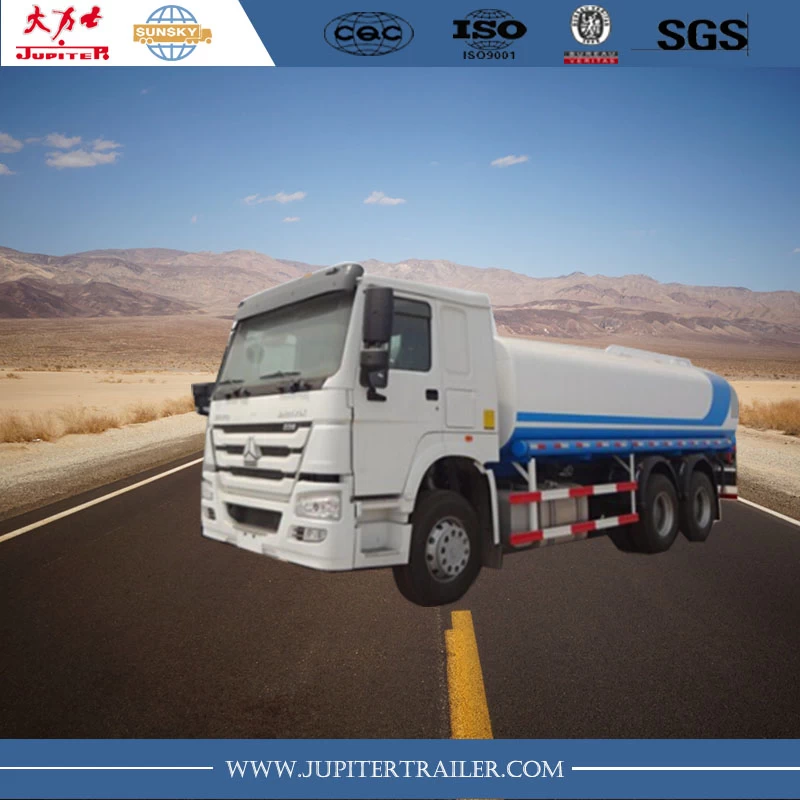

SINOTRUK HOWO 6x4 oil truck tanker truck fuel tank truck

SINOTRUK HOWO 6x4 oil truck tanker truck fuel tank truck



SINOTRUK HOWO 6x4 oil truck tanker truck fuel tank truck

HOWO  Tanker Trucks are widely used in transportation of Fuel ,Oil,petroleum,water etc.

With European design and advance welding technology,HOWO TANKER TRUCK ensure a better quality but keep a cheaper price.Can be designed as your requirement,6X4 Fuel Tanker capacity can be designed from 20 m³ to 25 m³



Features:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1) HOWO is one of the best brand truck in China,and received the good comment from our customers.
2) Export more than 30,000 Units all over the world per year,compare to European trucks can be in a cheaper price but reliable quality for your oil transportation.

3) One year warranty freely,some easily broken parts will be delivered with the trucks.
4) Provide after-sales service around 80 countries,you can buy the spare parts of howo trucks in your country easily.

5) We have strict quality control system to ensure that the quality of each products is qualified! SGS,ISO certificates approved.



Specification:




Truck Type

6*4 Oil Tank Truck

Truck Model

ZZ1257M5247C

Truck Brand

SINOTRUK—HOWO

Driving Type

Left OR Right Hand Driving

Dimension(Lx W x H)(mm)

11184x2500x3050

Approaching angle/Departure angle(°)

 16/10

Overhang(front/rear) (mm)

1500/3109

Tank capacity( m3 )

16 m³

Gear oil pump

Model

76YCB-40(F)

flux     m3/h

40

In /out cabiber   mm

76

RPM   r/min

960

Remarks: oil pump model with F, represent relief valve, used for oil tanker truck with oil gun.

Wheel base (mm)

5225+1350

Max speed(km/h)

90

Curb weight(kg)

11670

Total weight(kg)

25000

Engine

Model

WD615.97C,water-cooled,four strokes,

6 cylinders in line with

water cooling,turbocharged and

inter-cooling, directly injection

Fuel type

Diesel

Horse Power

300hp

Emission

EURO III

Fuel tanker capacity(L)

300

Transmission

Model

HW13710

10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating

 on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098,hydraulic steering with power

Assistance Ratio:22.2-26.2

Front axle

HF7 disc brake, Steering with double T-cross section beam

Loading capacity: 7000kg

Rear axle

HW1279, Pressed axle housing, central double

reduction with differential locks between axles and wheels

Loading capacity: 12000kg

Color

Optional

Chassis

Frame: U-profile parallel ladder frame with section of

 300*80*8mm and reinforced sub frame all cold riveted

 cross member Front suspension: semi-elliptic leaf springs,

hydraulic telescopic double-action shock absorbers and stabilizer

Rear suspension: semi –elliptic leaf spring and bogie springs

Tire

12.00-20, Bias tire

Tire quantity

10+1 spare

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HW76 cab, with one sleeper and air-conditioner,

all-steel forward control,55ºhydraulically tiltable to the front,

2- arm windscreen wiper system with three speeds,

laminated windscreen with casted-in radio aerial,

hydraulically damped adjustable driver’s seat and

rigid adjustable co-driver’s seat, with heating and

ventilating system, outer sun visor, adjustable roof flap,

with stereo radio/cassette recorder, safety belts and

adjustable steering wheel, air horn, with 4-point

support fully floating suspension and shock absorbers




Production detail:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑






Producing process:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Loading and Packing:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




Our advantage and ability:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑




What others we can supply:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑





FAQ:

‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑‑

1. Who are we?


Answer: We are a group company; we have three semi-trailer factories in china, one trading company in china and one company inHong Kong. We are focus on semi-trailer, trucks and parts.

2. Why choose us

Answer: 1) We have more than 30years experience in the trailer manufacturing. Our brand”SUNSKY” and”JUPITER” had got high reputation in china and overseas countries.

2) We have more than 20 engineers to design the kinds of trailers according to the requirement from you.

3) We had exported thousands of trailers to Africa, Middle East, Asia,Australia,South America and so on since 2006.

4) We are one of the biggest dealers of SINOTRUK HOWO truck in china, we can supply kinds of HOWO brand truck with competitive price.
