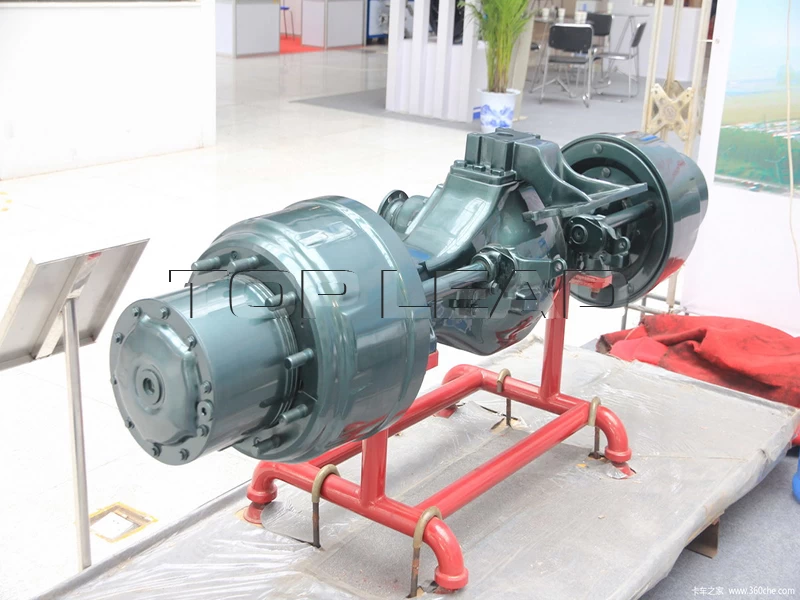

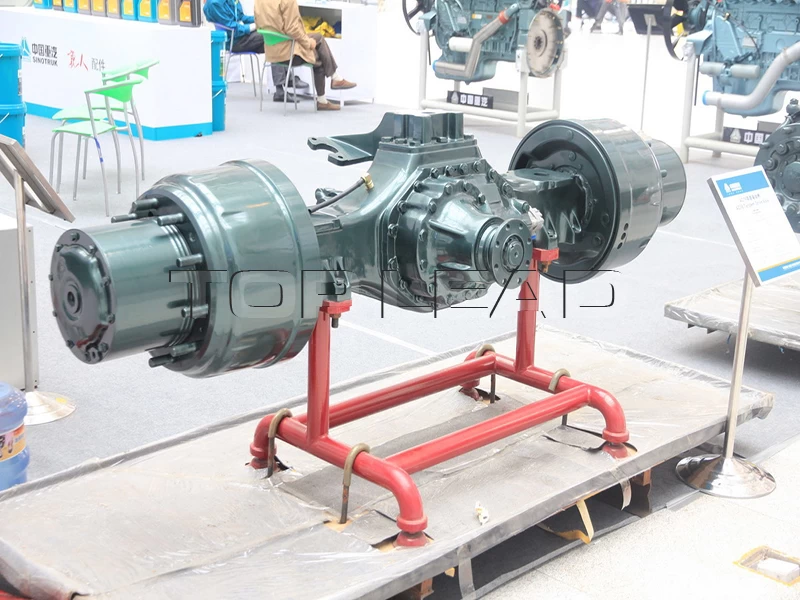

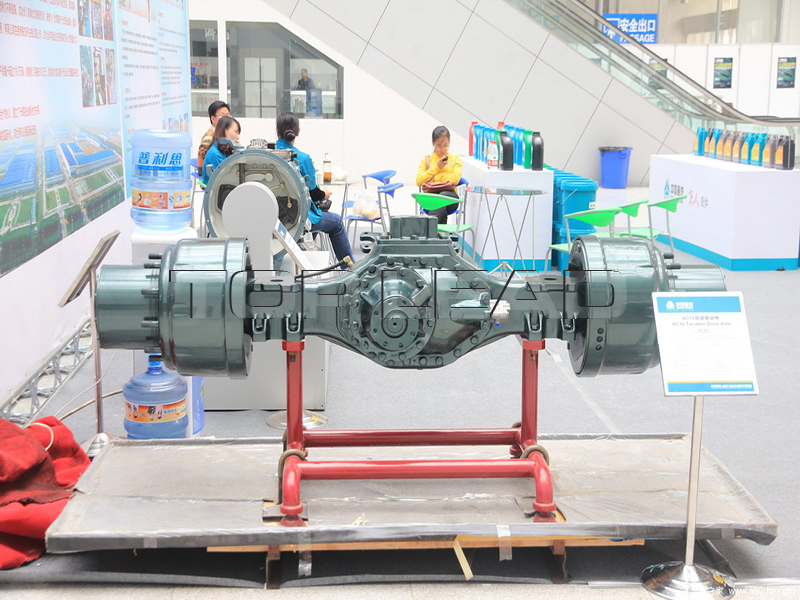

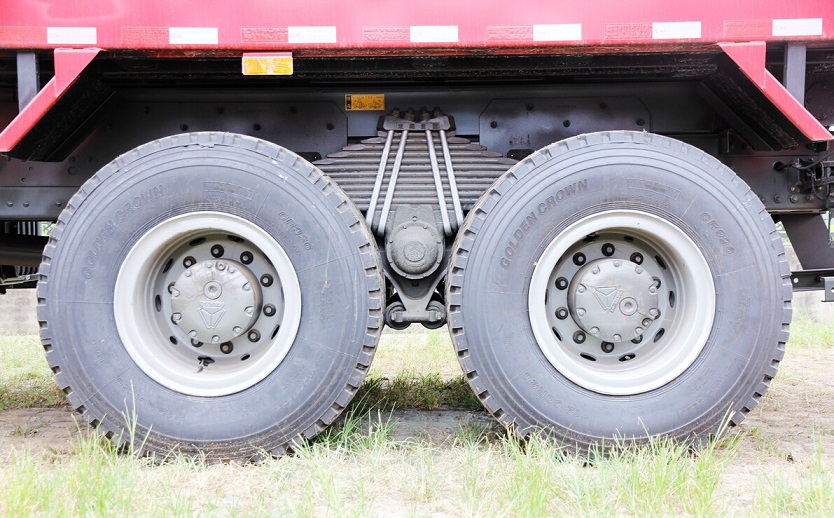

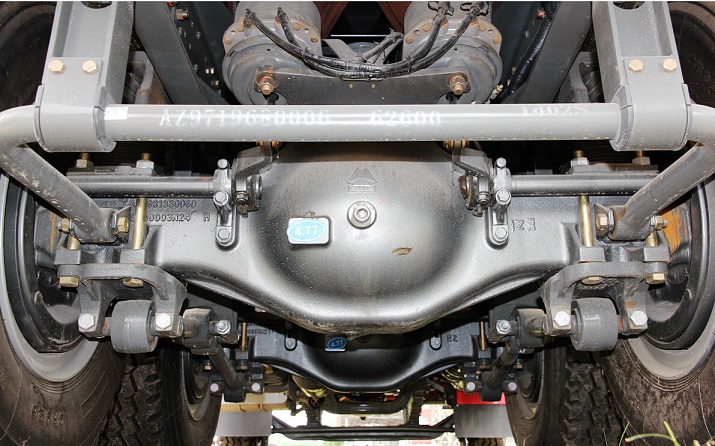

SINOTRUK HOWO HC16 Axle 16T axle 3.93 / 4.42 /5.73

16Ton axle,Rate: 3.93/4.42/5.73 ABS 1850, XS 180



Quick Details:

Model HC16(Single axle) HC16(Tandem axle)
Type Central single reduction + hub reduction, casting axle housing.
Rated load(kg) 13000 2×13000
Ratio 3.93/4.42/4.80/5.73/6.72/9.49
Spring gage(mm) 1010 1020
Wheel tread(mm) 1850 1850
Input flange 180 180
Differential device Inter-wheel Inter-wheel and inter-axle
Brake Drum 420×220 Drum 420×220
Weight(Without lubricants)(kg) 815 1st axle:895/2nd axle:815
Wheel bolt(mm) 335-10×M22×1.5
Min rim size(inch) 20 20
Lubricants(L)

GL5 85W-90

Specification

HOWO HC16 Axle By SINOTRUK® GENUINE

 16Ton axle,Rate: 3.93/4.42/5.73 ABS 1850, XS 180

SINOTRUCK parts SINO TRUCK PARTS

Standard Accessories

 HOWO ST16 AXLE

D NO. Part NO. Part Name Quantity
0 AZ9231320003 First rear axle 1
0/A AZ9231320814 First rear axle 1
0/B AZ9231320714 First rear axle 1
1 199014320165 Diff.housing 1
1/A WG9231320072 Diff.housing 1
1/B AZ9231320272 Diff.housing 1
2 199014320091 Diff.spider 1
2/A WG9231320051 Diff.spider 1
2/B AZ9231320150 Diff.spider 1
2A WG9231320159 Bush 4
2B WG9231320160 Snap ring for bush 4
3 199012320010 Bevel pinion 4
3/A WG9231320052 Bevel pinion 4
3/B WG9231320152 Bevel pinion 4
4 199012320009 Bevel pinion 2
4/A WG9012320009 Bevel pinion 2
4/B WG9231320151 Bevel pinion 2
5 199012320150 Intermed sheet 4
5/A WG9231320053 Intermed sheet 4
5/B WG9231320153 Intermed sheet 4
6 11800 320012 Shim nb
6/A WG9231320054 Shim nb
6/B AZ9231320154 Shim nb
6 199012320129 Shim nb
6/A WG9231320055 Shim nb
6/B AZ9231320155 Shim nb
6 11800 320131 Shim nb
6/A WG9231320056 Shim nb
6/B AZ9231320156 Shim nb
6 11800 320132 Shim nb
6/A WG9231320057 Shim nb
6/B AZ9231320157 Shim nb
6 13809 320169 Shim nb
6/A WG9231320058 Shim nb
D NO. Part NO. Part Name Quantity
6/B AZ9231320158 Shim nb
7 WG9114320251 Pinion and crown wheel 1
8 Q151B1635TF2 Screw 16
8a WG9114320003 Locking sheet 1
9 190003326148 Roller bearing 2
10 Q151B1480TF2 Screw 8
10/A WG9231320169 Screw 8
11 WG3809320159 Screwed ring 2
12 WG79000320027 Safety clip 2
13 Q150B0816 Screw 2
14 Q40308 Spring washer 2
15 WG3809320155 Shifting dog 1
16 WG3809320157 Nut 1
17 WG3809320158 Locking sheet 1
18 199114320002 Drive gear 1
18/A WG9214320002 Drive gear 1
19 WG9114320001 Driven gear 1
20 WG9014320257 Roller bearing 1
20A WG9014320256 Snap ring 1
21 190003326333 Roller bearing 2
22 190003311543 Ball bearing 2
23 190003310239 Ball bearing 1
24 WG9014320174 Plate 1
25 WG9014320140 Ring 1
26 WG780  320088 Plate 1
26a WG9114320002 Locking sheet 1
27 WG9014320129 Bearing bush 1
28 WG9014320128 Plate 1
29 WG9014320131 Shim nb
29 WG9014320132 Shim nb
29 WG9014320133 Shim nb
29 WG9014320134 Shim nb
30 Q150B1430TF2 Screw 3
31 190003813543 Screw 8
32 Q33210 Nut 8
33 WG9014320135 Hollow shaft 1
D NO. Part NO. Part Name Quantity
34 WG9012250031 Nut 1
35 Q433130 Snap ring 2
36 190003933580 Circlip 1
37 199014320166 Dift.housing 1
37/A WG9231320071 Dift.housing 1
37/B AZ9231320271 Dift.housing 1
38 199014320091 Dift.spider 1
38/A WG9231320051 Dift.spider 1
38/B AZ9231320223 Dift.spider 1
39 WG9014320059 Bevel pinion(rear) 1
39/A WG9231320226 Bevel pinion(rear) 1
40 WG9114320032 Bevel pinion(front) 1
40/A WG9231320225 Bevel pinion(front) 1
41 199012320010 Bevel pinion 4
41/A WG9231320052 Bevel pinion 4
41/B WG9231320227 Bevel pinion 4
42 199012320150 Intermed washer 4
42/A WG9231320053 Intermed.sheet 4
42/B WG9231320224 Intermed.sheet 4
43 199014320067 Shim for drive shaft gear nb
43/A WG9231320081 Shim for drive shaft gear 1
43/B AZ9231320091 Shim for drive shaft gear 1
43 199014320068 Front shim for drive shaft gear nb
43/A WG9231320082 Front shim for drive shaft gear 1
43/B AZ9231320092 Shim for drive shaft gear 1
43 199014320211 Front shim for drive shaft gear nb
43/A WG9231320083 Front shim for drive shaft gear 1
43/B AZ9231320093 Shim for drive shaft gear 1
43 199014320069 Front shim for drive shaft gear nb
43/A WG9231320084 Front shim for drive shaft gear 1
43/B AZ9231320094 Shim for drive shaft gear 1
43 199014320070 Front shim for drive shaft gear nb
43/A AZ9132310085 Shim for drive shaft gear 1
43/B AZ9231320095 Shim for drive shaft gear 1
44 199014320071 Rear shim for drive shaft gear nb
44/A WG9231320086 Rear shim for drive shaft gear 1
D NO. Part NO. Part Name Quantity
43/B AZ9231320096 Shim for drive shaft gear 1
44 199014320072 Rear shim for drive shaft gear nb
44/A WG9231320087 Rear shim for drive shaft gear 1
43/B AZ9231320097 Shim for drive shaft gear 1
44 199014320210 Rear shim for drive shaft gear nb
44/A WG9231320088 Rear shim for drive shaft gear 1
43/B AZ9231320098 Shim for drive shaft gear 1
44 199014320073 Rear shim for drive shaft gear nb
44/A WG9231320089 Rear shim for drive shaft gear 1
43/B AZ9231320099 Shim for drive shaft gear 1
44 199014320074 Rear shim for drive shaft gear nb
44/A WG9231320090 Rear shim for drive shaft gear 1
43/B AZ9231320100 Shim for drive shaft gear 1
45 Q151B1480TF2 Screw 8
46 WG288  320105 Locking ring 1
47 WG288  320106 Pin 10
48 WG9014320061 Washer for diff.housing 1
49 AZ9128320014 φ180 Toothed flange 1
49/A AZ9231320014 φ180 Toothed flange 1
50 WG79000320013 Nut 1
51 Q5005055 Split pin 1
52 190003078722 Gasket 1
52 190003070026 Gasket 1
53 WG9014320053 Shifting fork 1
54 WG1800 320077 Tappet 2
55 WG3809320156 Gear shift sleeve 1
56 WG9012320014 Shifting fork 1
57 WG1800 320077 Tappet 2
58 Q2800825 Screw 1
59 Q340B08 Nut 1
60 WG9012320023 Lashing 1
61 WG9114320031 Driving shaft 1
62 WG9014320205 φ165 Plane flange 1
62/A WG9231320205 φ165 Toothed flange 1
63 WG79000320013 Nut 1
D NO. Part NO. Part Name Quantity
64 190003311036 Ball bearing 1
65 Q5005055 Split pin 1
66 190003078772 Gasket 1
67 WG9231340224 Drive shaft(right) 1
68 WG9231340223 Drive shaft(left) 1
69 190003074340 gasket 2
