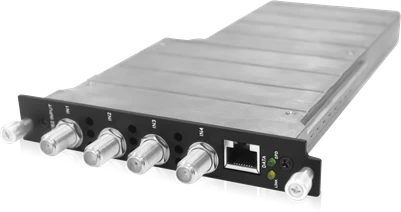

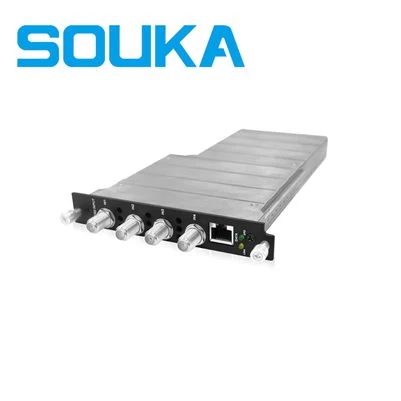

SKD3050 is 4 Channel DVBS/S2 to IP encode Modulator.
The device supports 4 channels satellite signal input,
Gigabit IP output. Its signal source is satellite TV signal, and its IP output
supports UDP/RTP protocol.
The device can be used in public places, such as, subways, market halls, theaters, hotels, Advertising systems, like resorts. It
can also be used for monitoring, training and education companies, schools,
hospitals, etc.. In addition, high-definition sports channels and VIP
entertainment channels are available in places, such as, bars.
Features:
1. Supports 4 channels of DVBS/S2 input and 1 channel of IP output;
2. IP output supports UDP/RTP protocol;

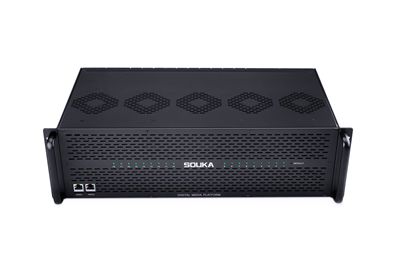

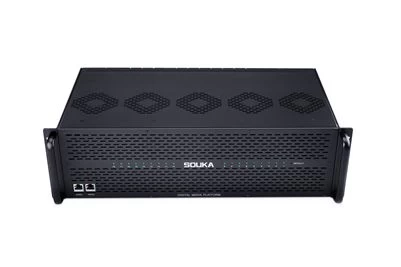

3. Used with SKD3000M chassis, it does not require complicated system settings, simplifying system adjustment
4. The operation interface includes: mobile APP, PC network management and panel buttons.
The scope of application:
1. Cable digital TV front end
2. Satellite digital TV
3. Terrestrial digital TV
4. Image monitoring
5. Distance learning
|
Physical
parameters
|
|
Size:
|
132.5*201.7*21.05mm
|
|
Working temperature, humidity:
|
-10℃-45℃、40%-70%
|
|
Storage temperature, humidity:
|
-40℃-70℃、40%-95%
|
|
Satellite receive part
|
|
Receive IF frequency:
|
950～2150MHz
|
|
Receive sensitivity:
|
-80dBm
|
|
IP output part
|
|
Output network bandwidth:
|
Gigabit
|
|
Protocol:
|
UDP, RTP multicast
or unicast protocol
|
|
IP stream:
|
SPTS, MPTS
|
