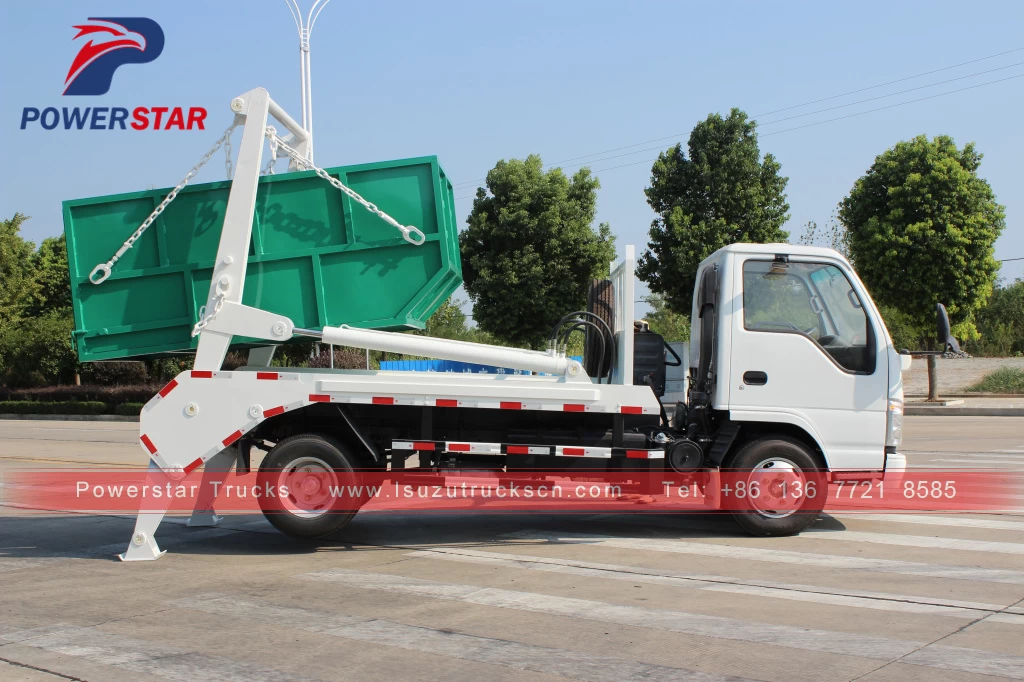

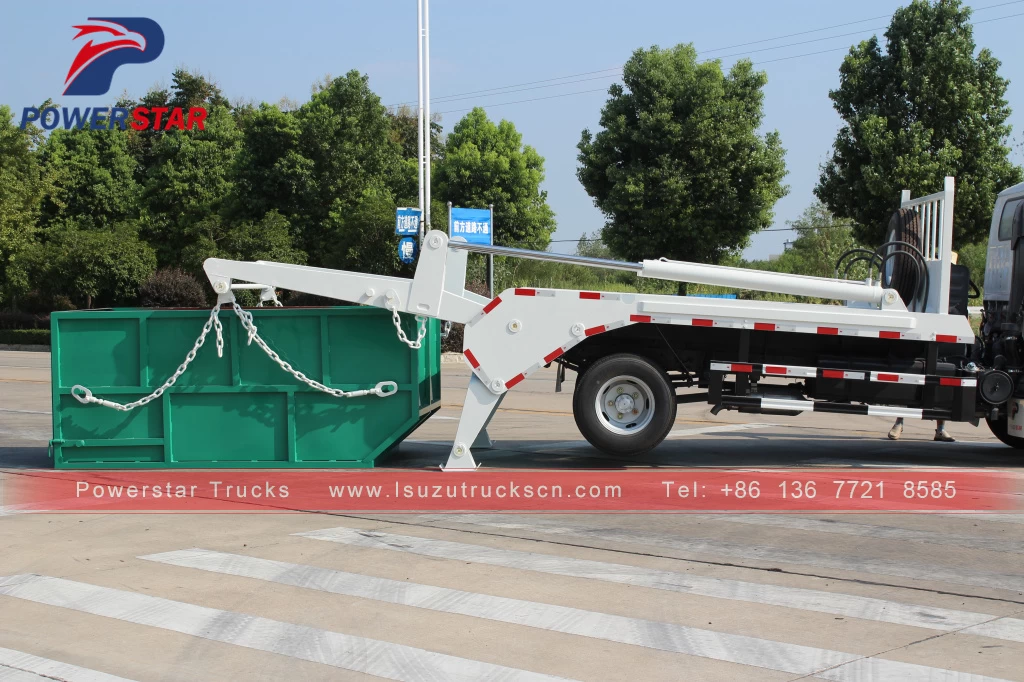

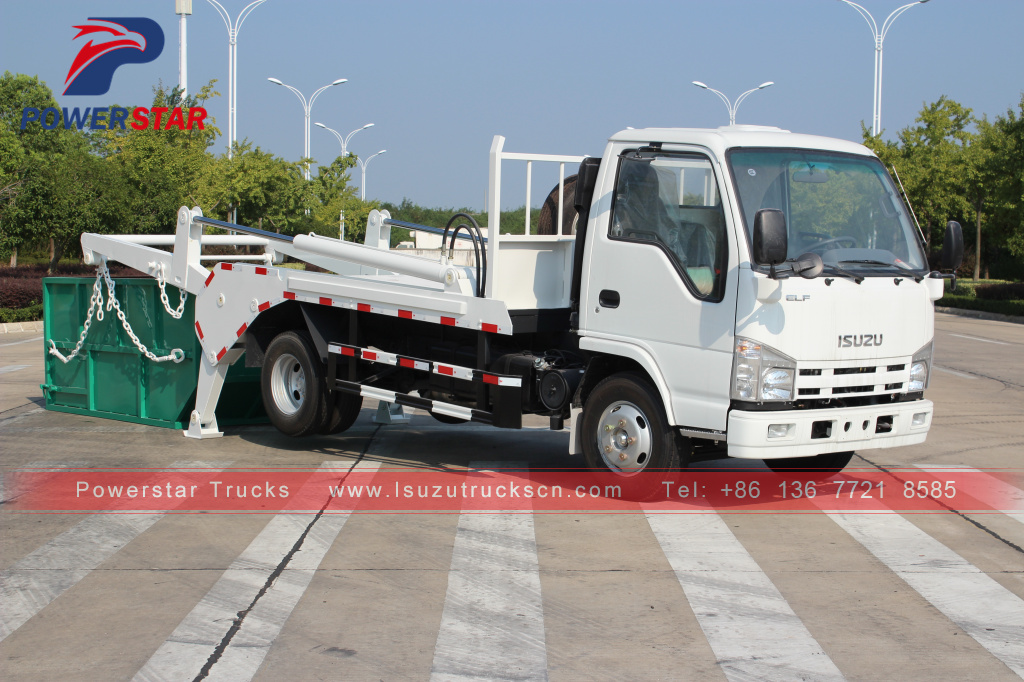

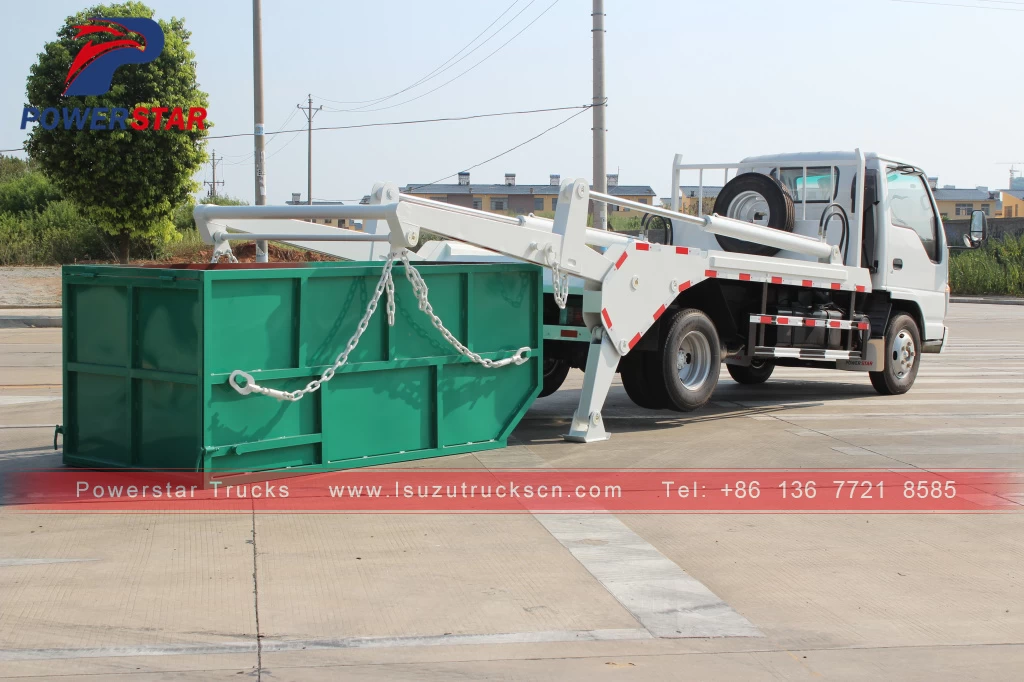

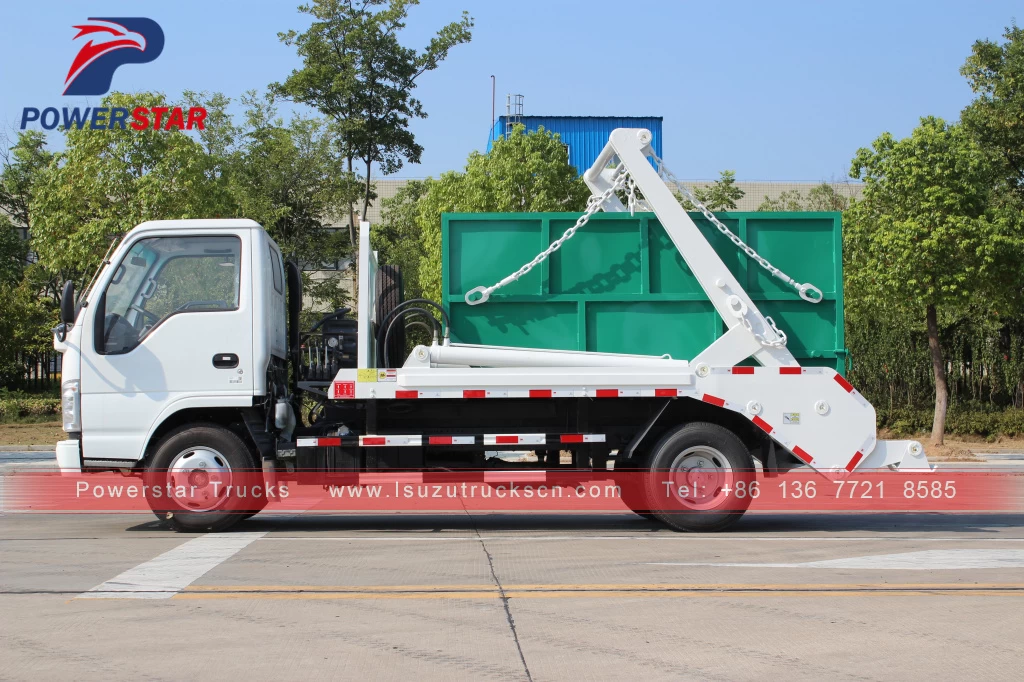

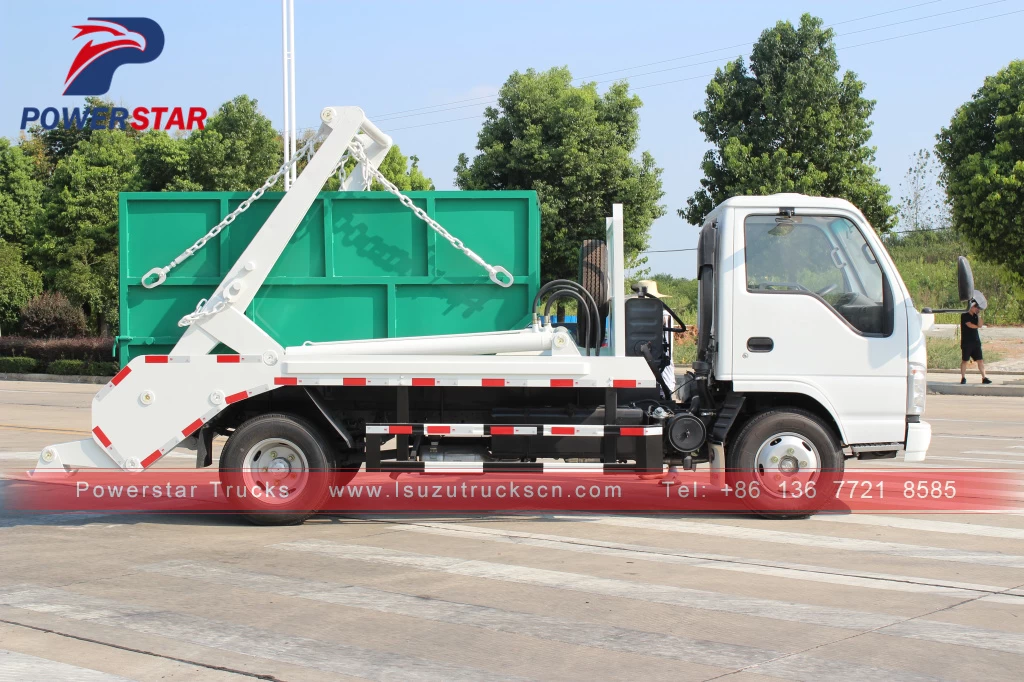

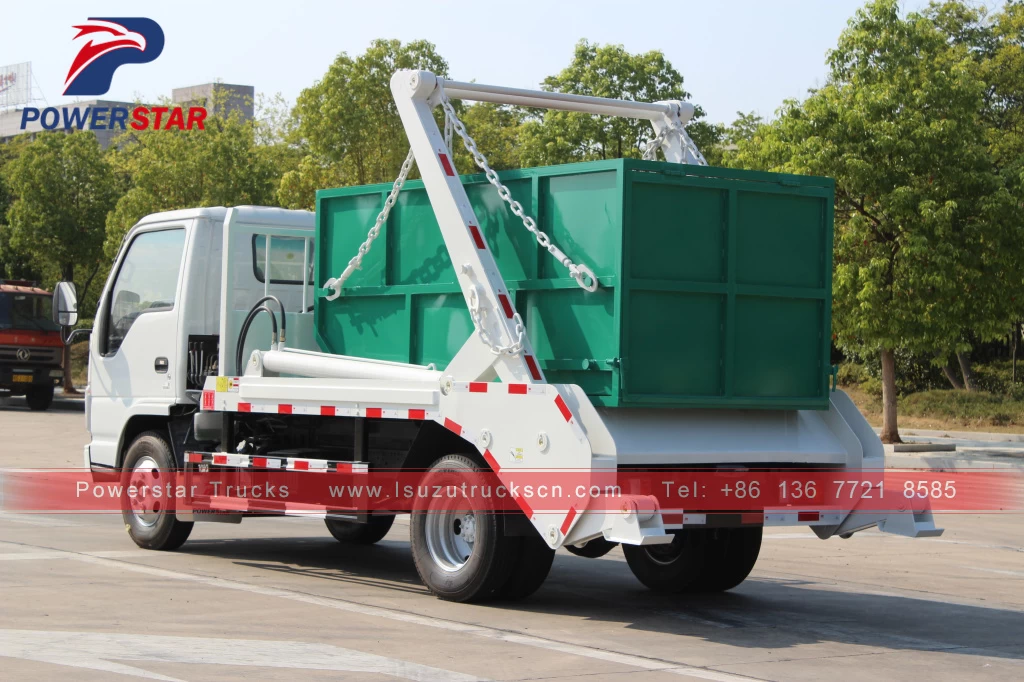

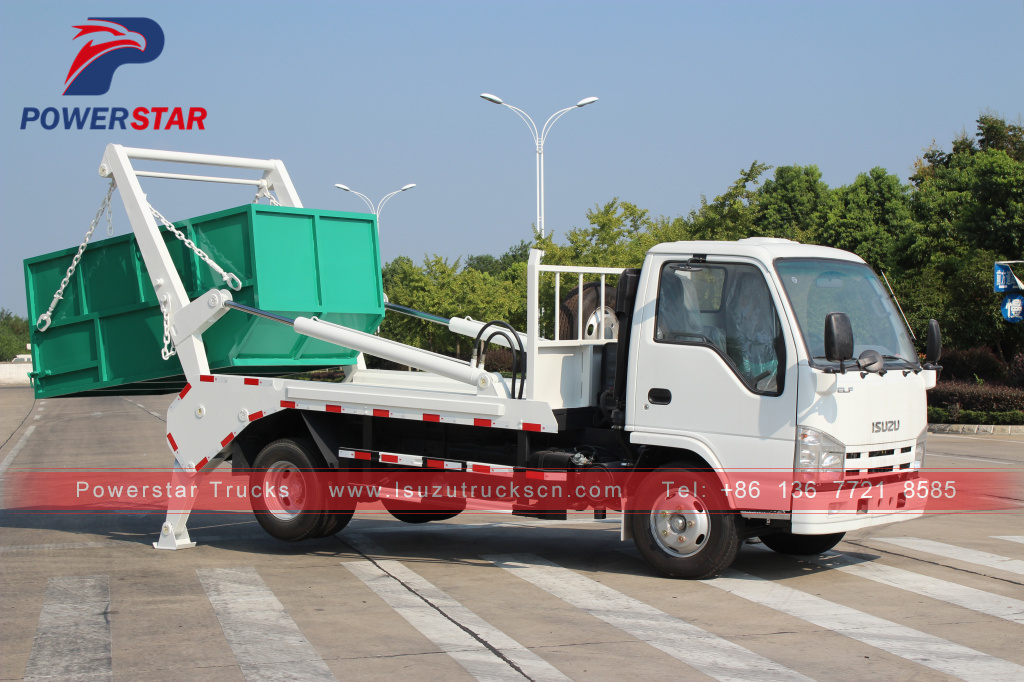

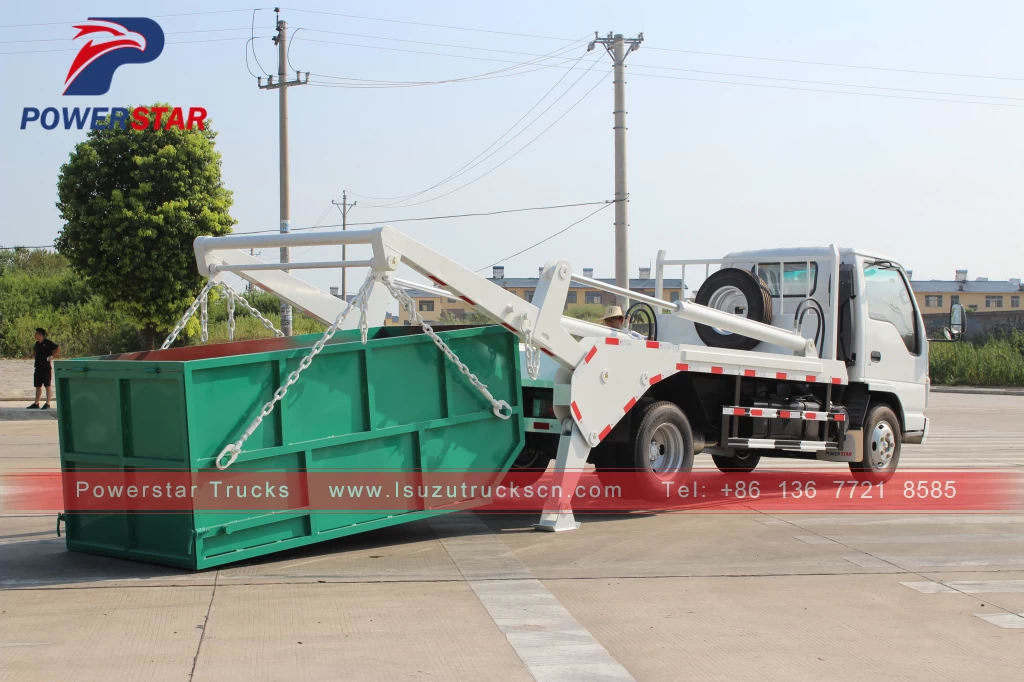

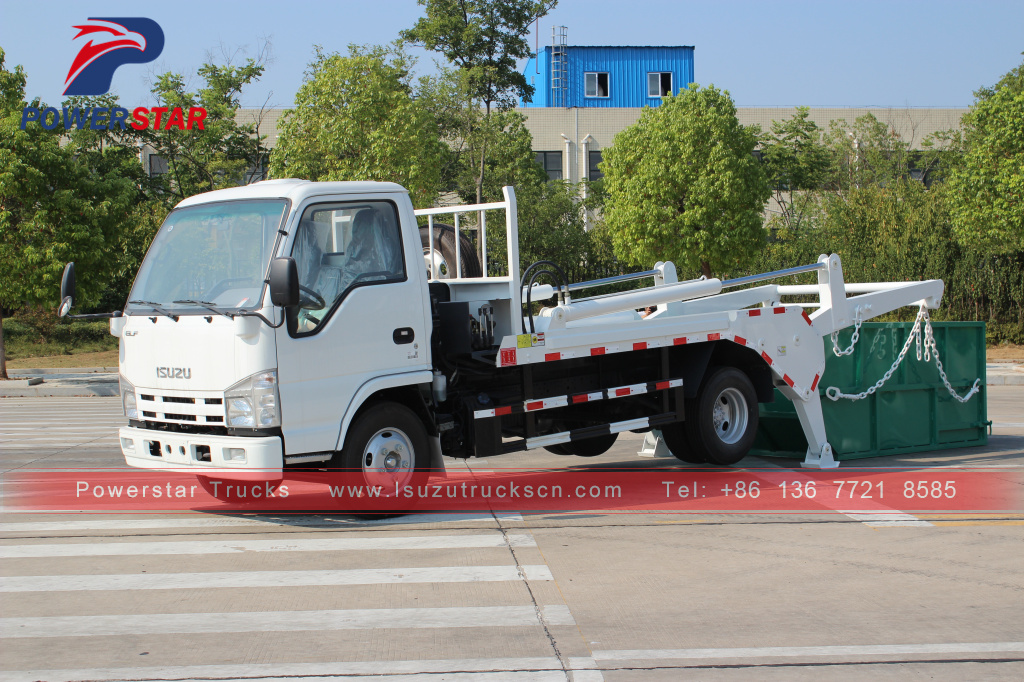

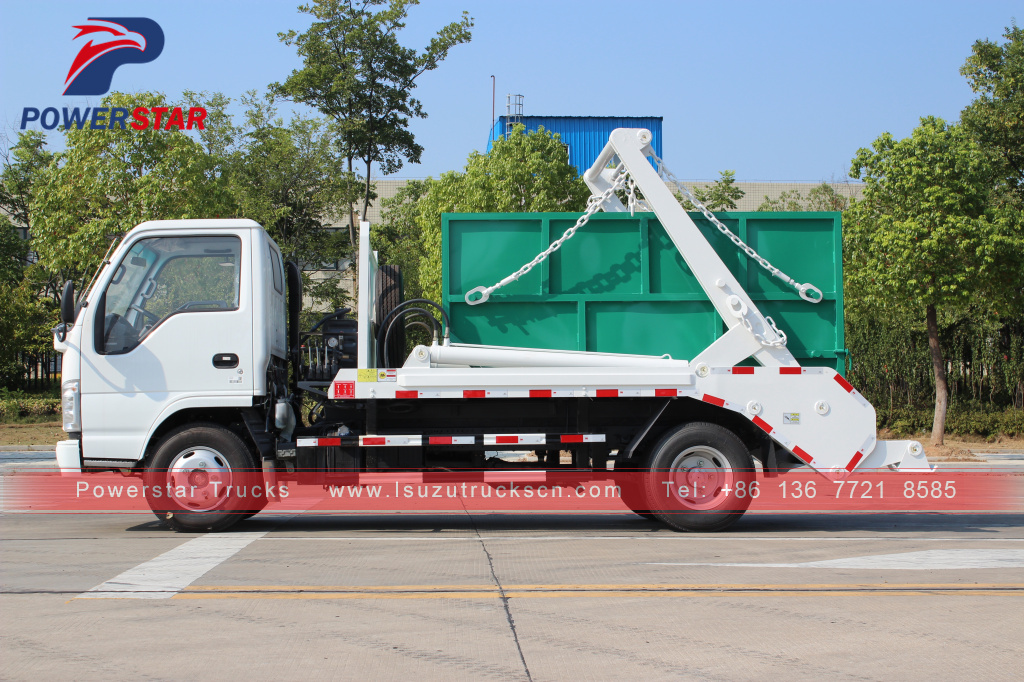

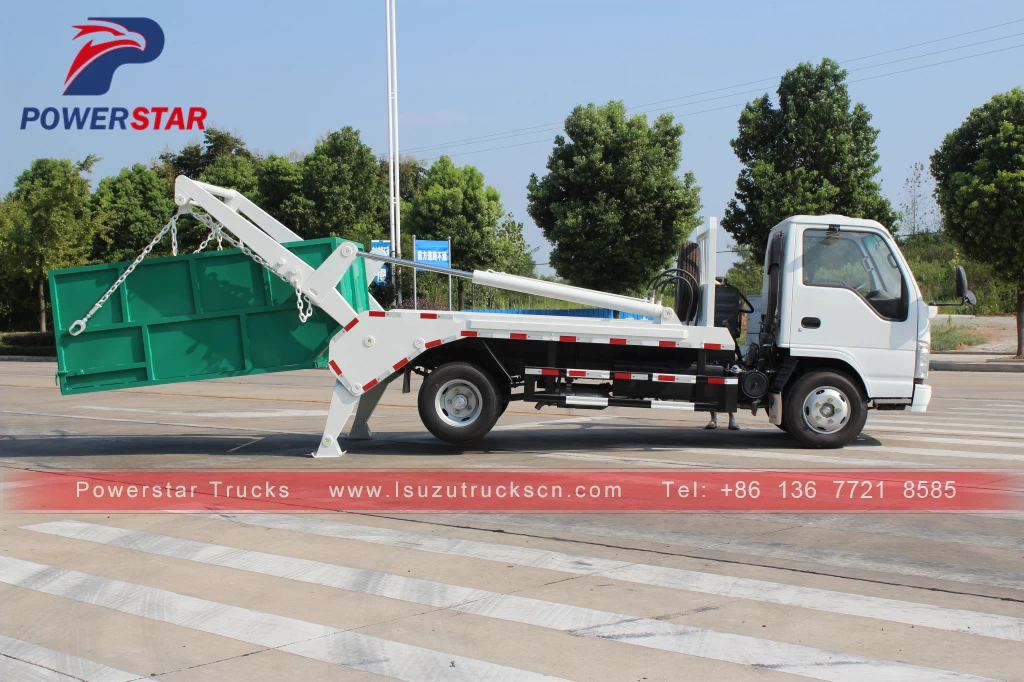

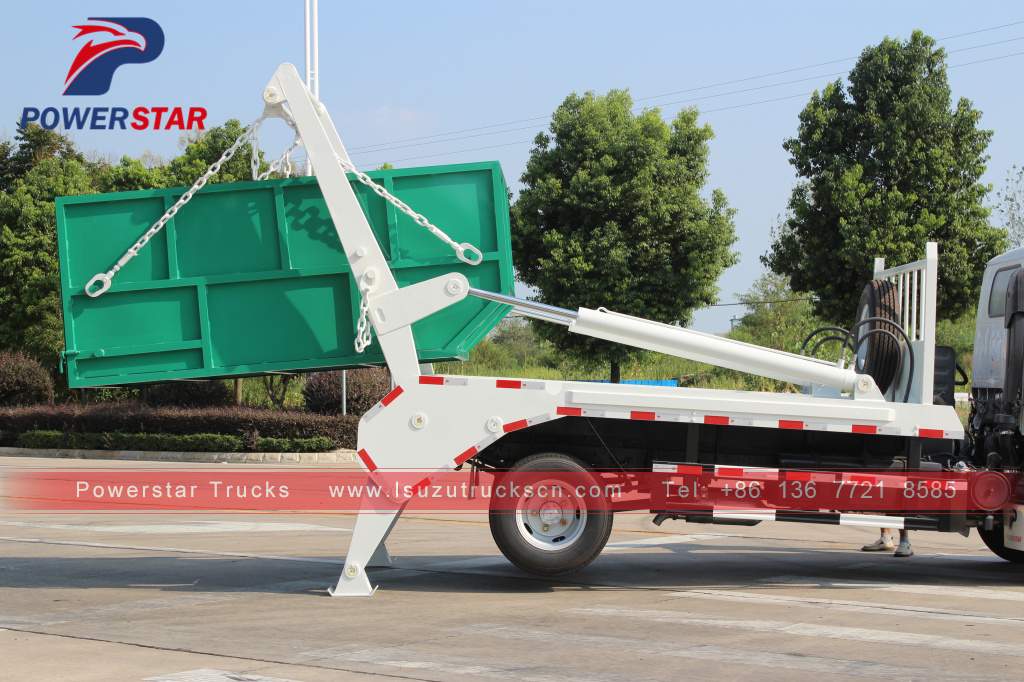

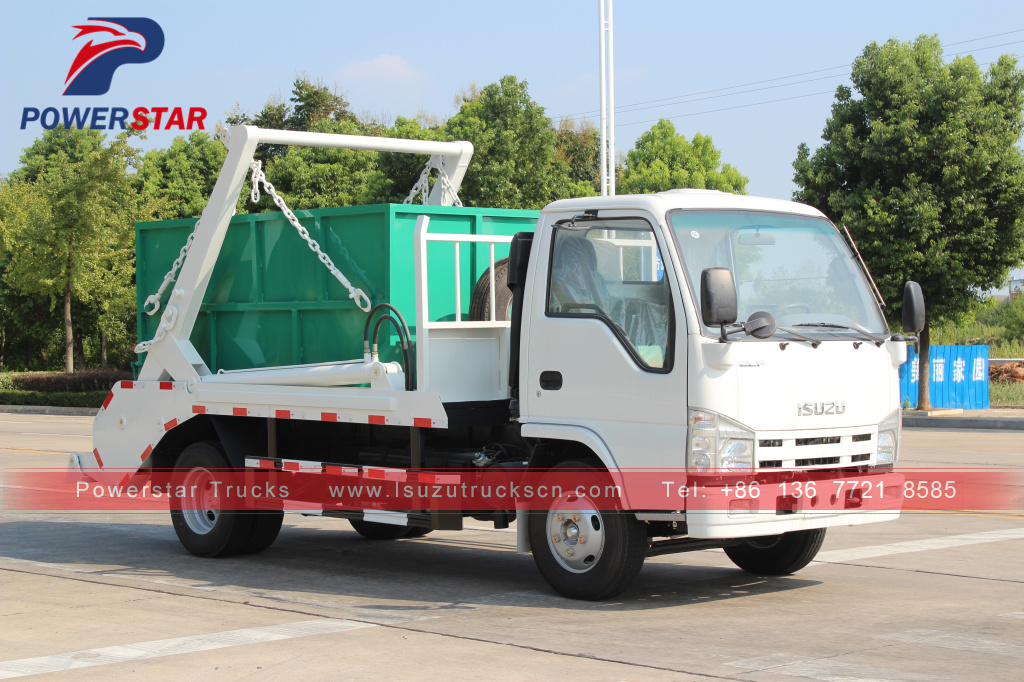

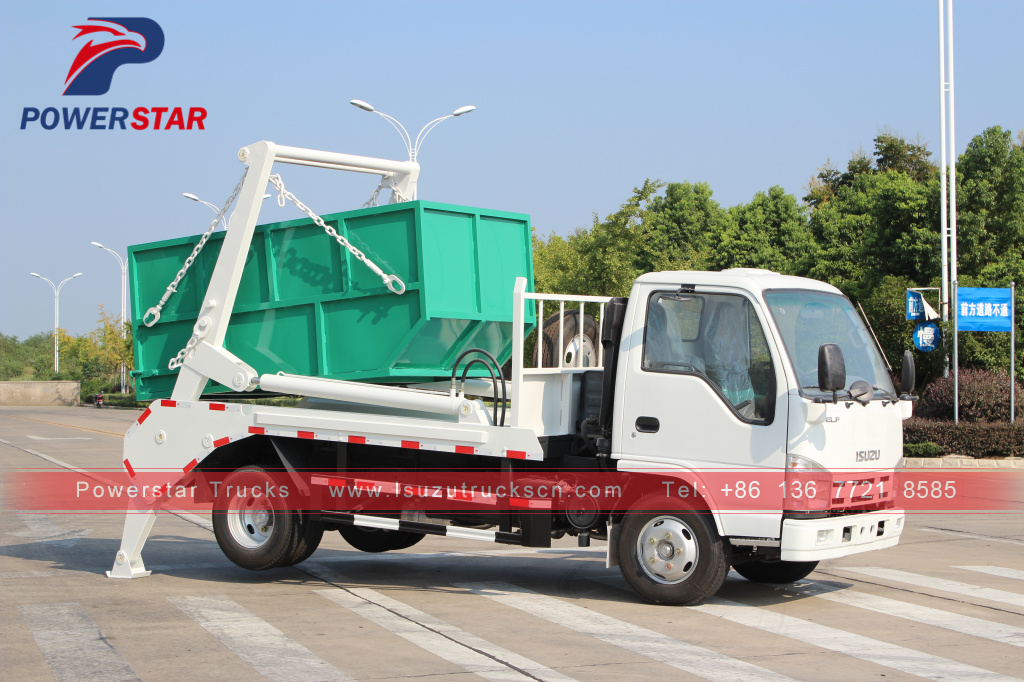

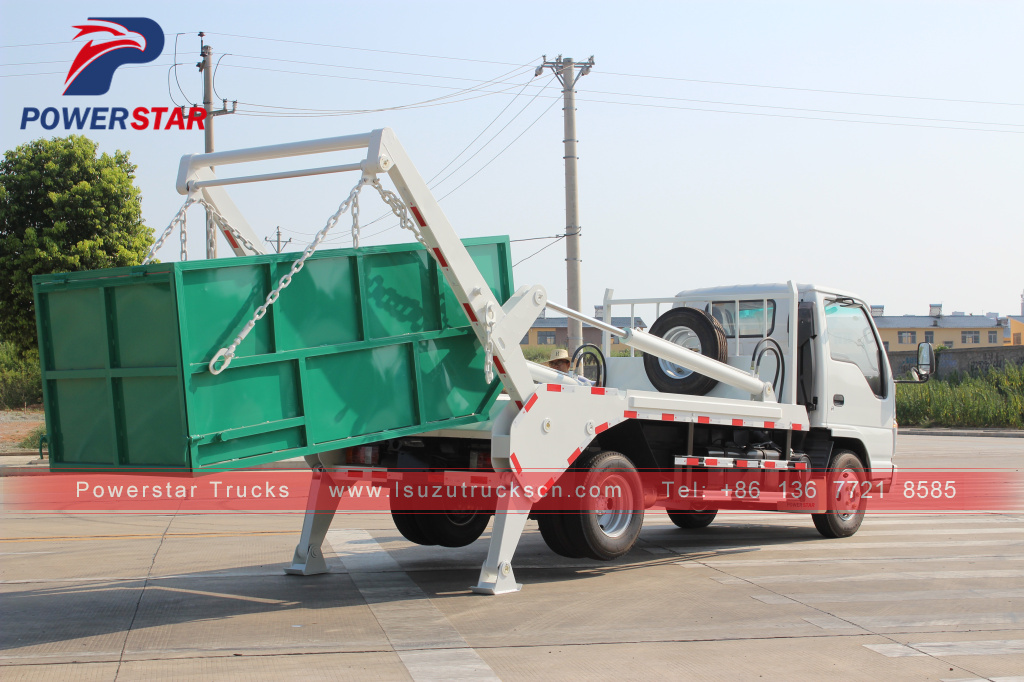

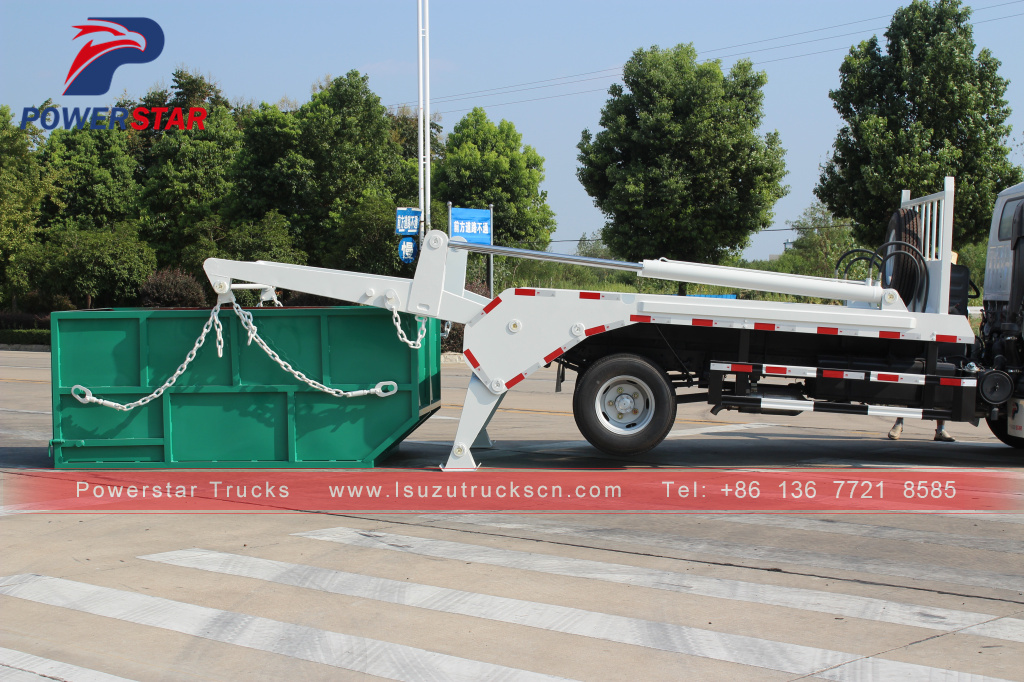

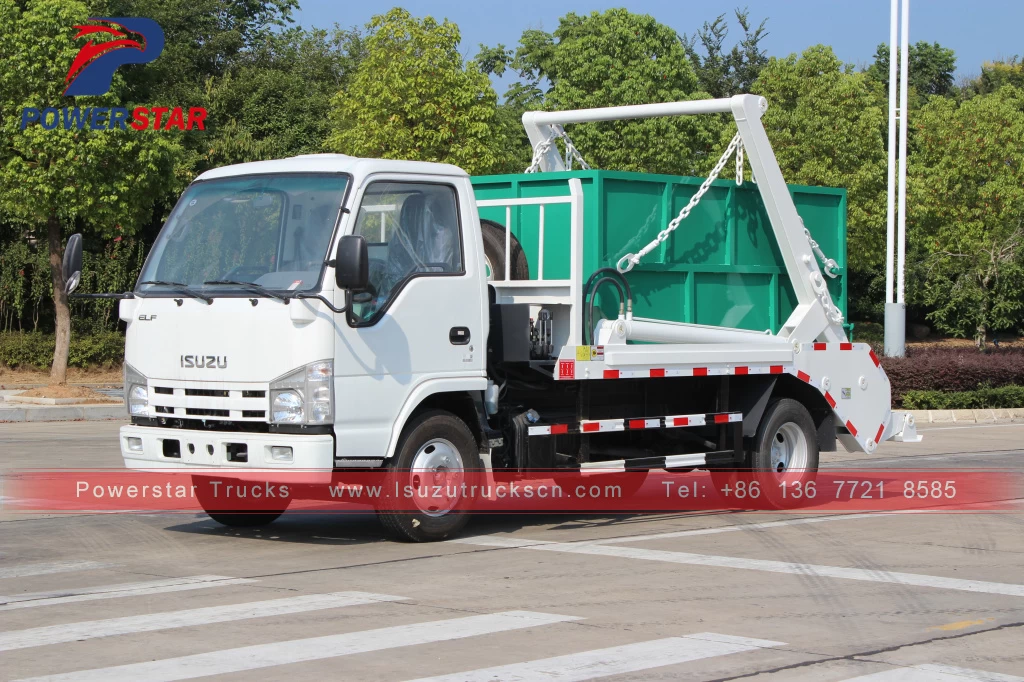

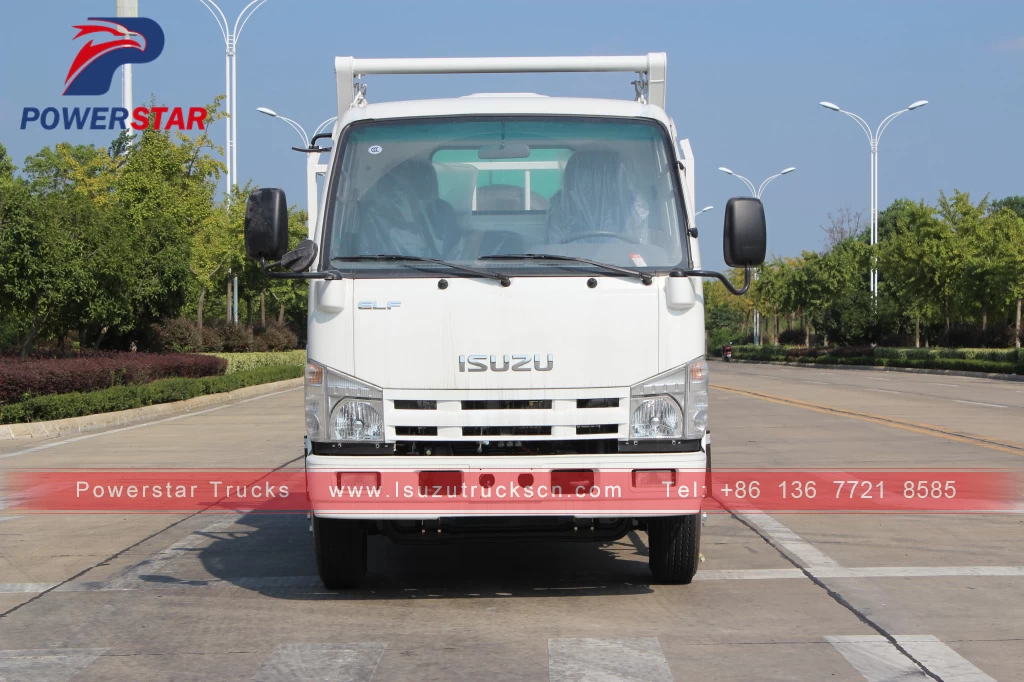

Arm Roll Truck Isuzu Mini Skip Loader Vehicle
Applications:
Skip Loader Trucks ISUZU (also called Hook skip loader, Hydraulic lift skip loader, Arm roll truck, Skip lorry with extending arms, mini skip truck, Pull arm garbage truck) is applicable for craneing and transporting garbage bin. It is featured with large capacity garbage box, high quality hydraulic parts, easy operation, maintenance and anti-secondary pollution. Then mechanization of cleaing and transporting garbage can be achieved.

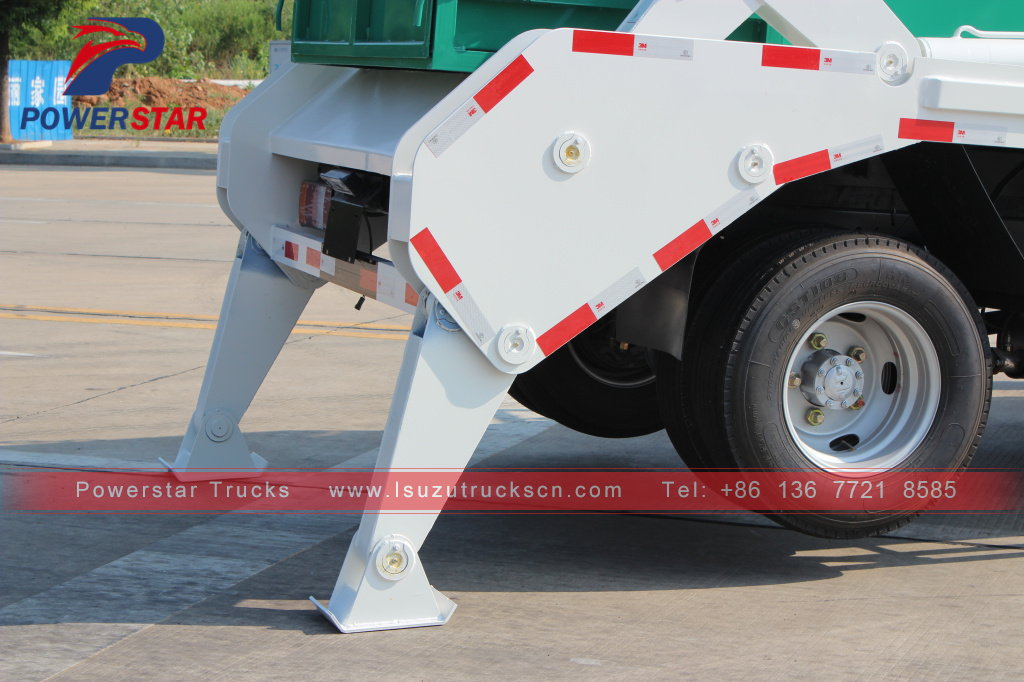

Skip loader garbage truck can transport dust, sand, stone and soil, even can work in mine and colliery for transport coal. The truck use high performance hydraulic cylinder drive arms, install hydraulic landing gear to ensure stabaility and security in the process of operation.
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Cycle time on 60s per time.
---- Main hydraulic coomponents of our hooklift truck are imported from well-known company.
---- Strong, durable, perfect performance
Specifications:
ISUZU truck hook loader (4 cbm)
|
General
|
Vehicle Brand
|
POWERSTAR
|
Chassis Brand
|
ISUZU ELF
|

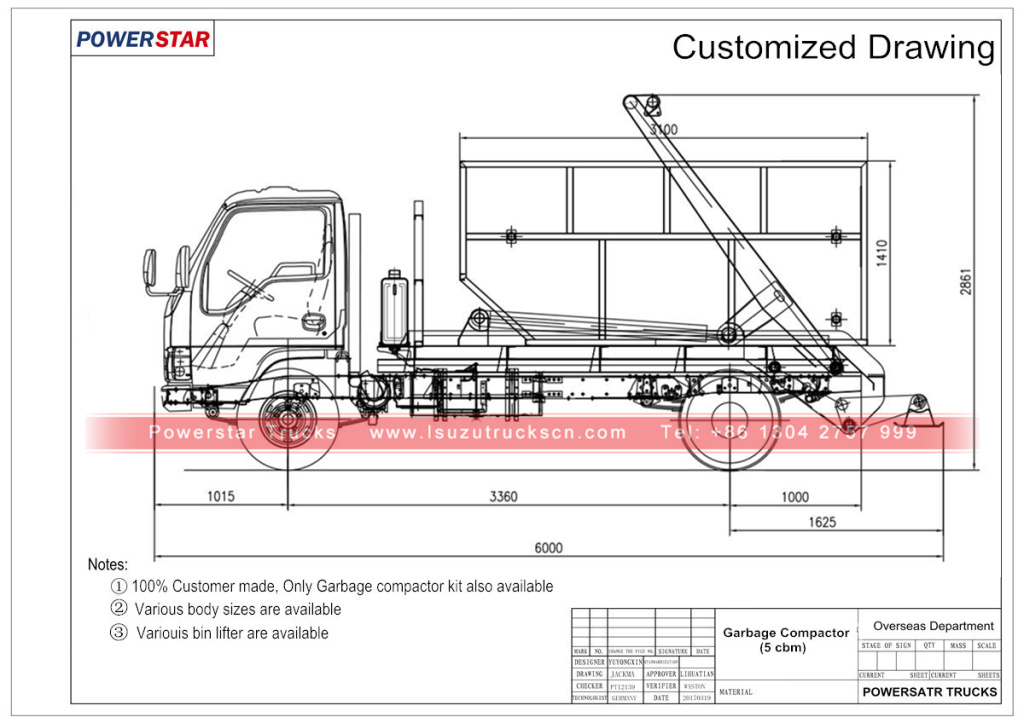

Overall Dimension
|
5180 * 2000 * 2470 mm
|
GVW / Kerb Weight
|
7,000kg / 2,520kg
|
Cab
|
Cab Capacity
|
3 persons allowed
|
Air Conditioner
|
Heating/cooling air conditioner
|
Engine
|
Fuel Type
|
Diesel
|
Engine Brand
|
ISUZU
|
Power
|
98 HP (72 KW)
|
Displacement
|
2777 ml
|
Emission Standard
|
Euro 4 or 5
|
Chassis
|
Drive Type
|
4X2, (left hand drive)
|
Transmission
|
5 speed levers with 1 reverse
|
Wheelbase/No. of axle
|
3360 mm / 2
|
Tire Specification
|
7.00-15
|
Tire Number
|
6 tires and 1 spare tire
|
Max Speed
|
90 km/h
|
Paint
|
Metallic paint
|
Superstructure
|
Lift Capacity
|
4 cbm
|
Useable Loading capacity
|
4,500 kg
|
Pick up time
|
40 s
|
Unloading time
|
22 s
|
Garbage bin material
|
Carbon steel
|

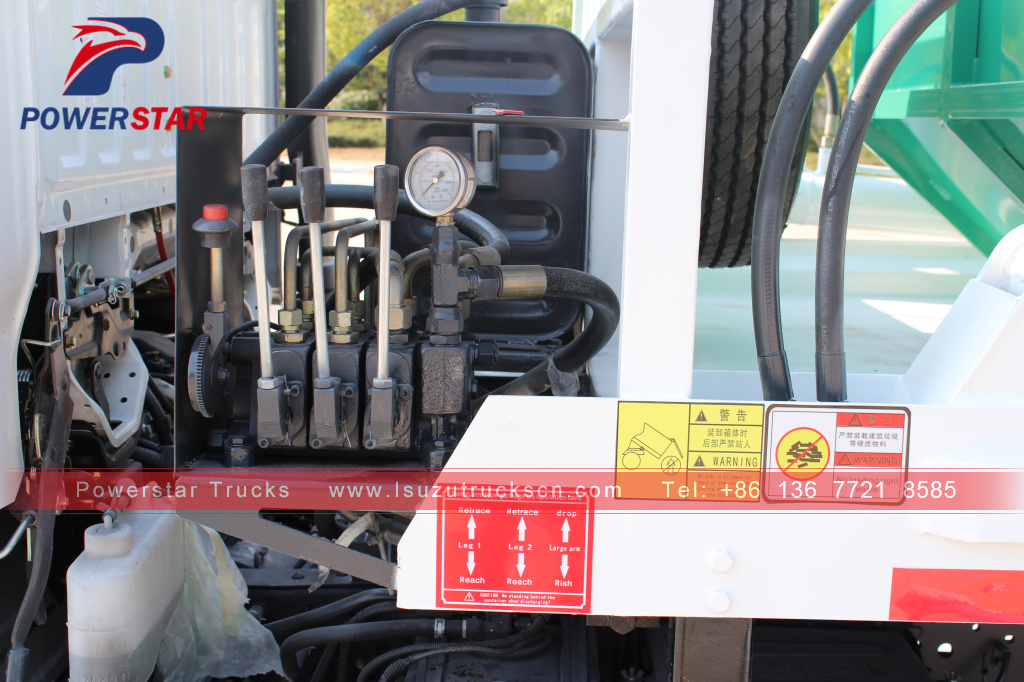

Control
|
Hydraulic Manual
|
Discharge method
|
Rear dumping
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual……
|
Optional
|
** Backup alarm can be equipped.
** Other vacuum pump can be equipped.
** Operation language can be English or Appointed language.
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual |
Chassis parts |
Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
