Slate Hook

MRac Tile Roof Hook Solar PV Mounting System is applied tile roof residential and commercial solar projects.



Overview

MRac Tile Roof Hook Solar PV Mounting System is applied tile roof residential and commercial solar projects. The system can achieve stable and strong connection between the roof support structure and solar modules with modular Patented design. Pre-assembled kits save the installation time and cost onsite.


Features

1.Applicable for Different Metal Roofs

Design project by project, selecting configuration of mounting system components flexibly

2.Save Installation Time and Cost

Pre-assembled components and clear installation manuals are supplied to save the onsite installation time and cost, lead to better RoI.

3.Compatible to Different Types of Solar Modules

Compatible to most kinds of framed 60-cell, 72-cell, half-cut cells modules and frameless modules.



Solar panel brackets tile roof




Technical Parameter

Installation Site

  Pitched roof

Foundation

  Rammed Post, Concrete Foundation or Ground Screw

Tilt Angle

  5-45°

Wind Load

  60m/s

Snow Load

  1.6KN/㎡

Ground Clearance

  200-2000mm

Applicable Solar Module

  Framed or Frameless

Panel Layout

  Portrait or Landscape

Design Standard

  AS/NZS 1170 , DIN 1055 , JIS C 8955:2017,


  International Building Code IBC 2009,


  California  Building Code CBC 2010

Material

  Q235B(Hot-Dip Galvanized), Al6005-T5(Anodized)

Fastener

  SUS304 &Zinc-Nickel Alloy Electroplated Steel & Hot Dip Galvanized

Small Components

  Al6005-T5(Anodized)

Color

  Silver or Customized

Warranty

  10-Year Warranty


Technology Certification



Packaging & Delivery

Selling Units:
Single item
Single package size:
10X10X5 cm
Single gross weight:
5.000 kg
Package Type:
Mibet packing design engineer team care the safety of workers, both for hand-carrying and forklift processing.

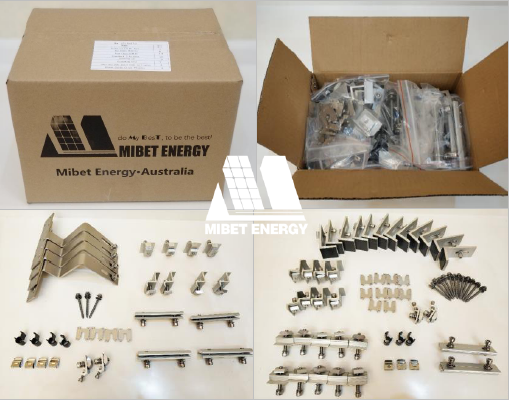

The small accessories of Ground Solar PV Mounting Systems are packed with 3 standard kinds of paper cartons, weight range from 5-25kg per box, 0.5-1.5tons per pallet. Longer components of MRac Ground solar PV racking system, like solar rail, solar structure beams are loaded on pallets with 2 to 8 pieces per bundle. The sizes of cartons and pallets are always calculated according to 20ft and 40ft containers to ship by sea and by truck inland.

Optionally, bulk bundles of longer components like solar rails to be loaded in containers can save some space and logistic freight.
Picture Example:
package-img
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 7 To be negotiated
