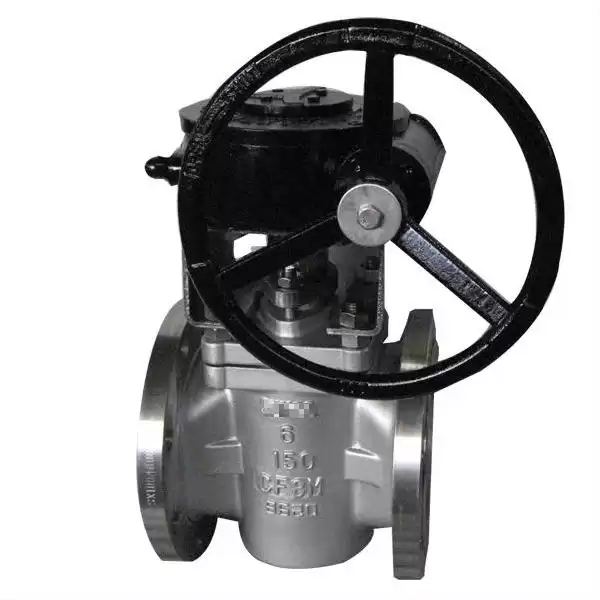

Sleeved Plug Valve 6Inch 150LB CF8M

API6D Sleeved Plug Valve

6Inch,150LB,CF8M,CF8M+PTFE, Gear Box

Manufacture STAVAL Factory Offers.

BoreFull Bore, Reduce Bore
ConstructionLubricated, Sleeved, Multi Way
Material RangeCarbon Steel, Stainless Steel, Alloy Steel, Bronze, Specialize Material
Pressure Range150LB ~ 2500LB (PN16 ~ PN420)
Size Range2Inch ~ 60Inch (DN50 ~ DN1000)
End ConnectionBW, Flange
SeatSoft Seat, Metal Seat
Working Temp. -196°C to +600°C

Key Specification

Type	Plug Valve
Size	6Inch
Pressure	150LB
Construction	Non Lubricated, Sleeved, Full Bore
Connection	RF End
Body/Bonnet Material	A351 CF8M
Plug Material	A351 CF8M
Stem Material	A182 F316
Seat Material	PTFE
Bolt/Nut	B8M/8M
Design Standard	API6D
Face to Face Dimension	ASME B16.10
End Connection	DIN2543-2545
Inspection & Test Std.	API598
Temperature Range	-29℃~+150℃
Medium	Oil, Water, Gas

EN10204 3.1 Certificate Issued By STAVAL

Inspection Report Issued By STAVAL
