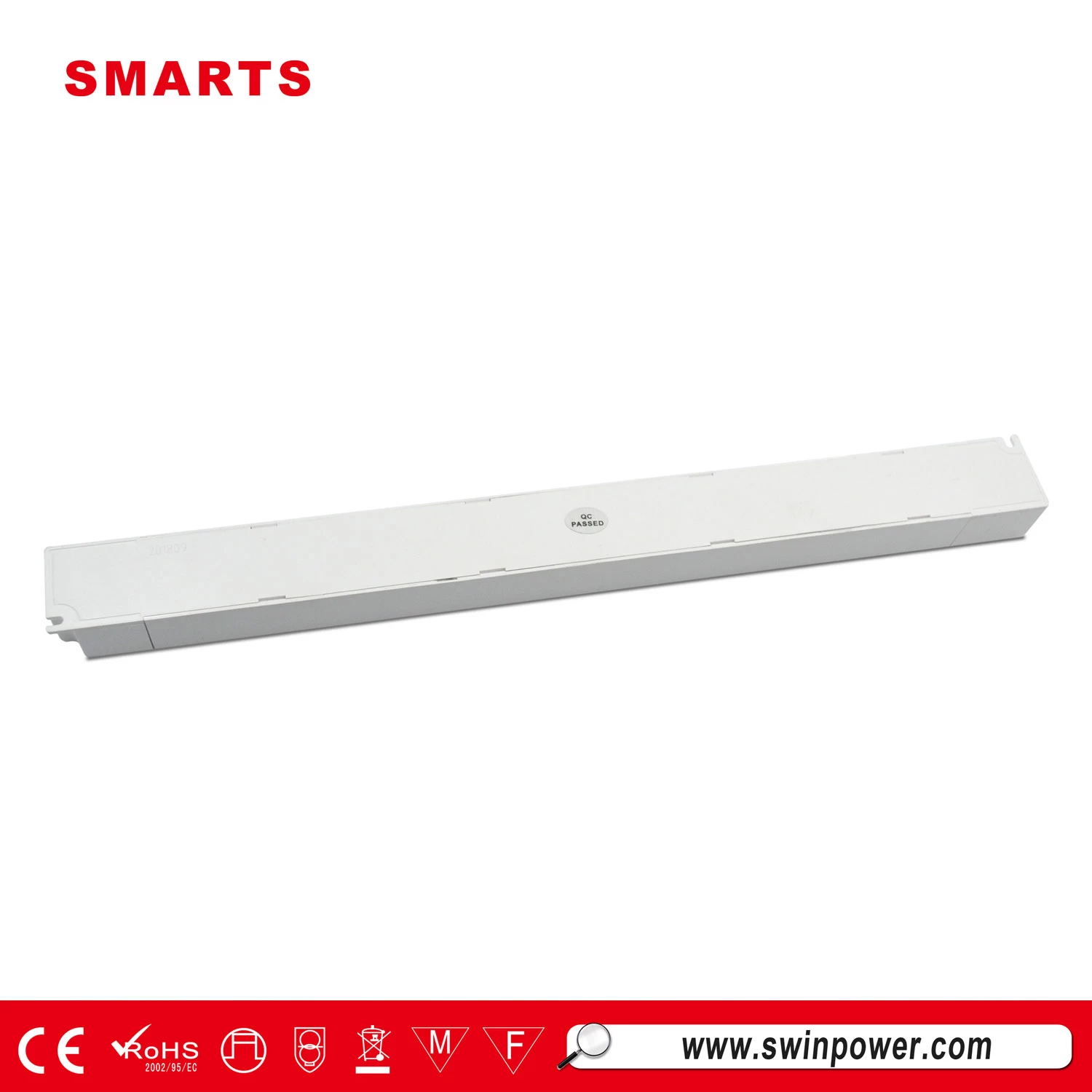

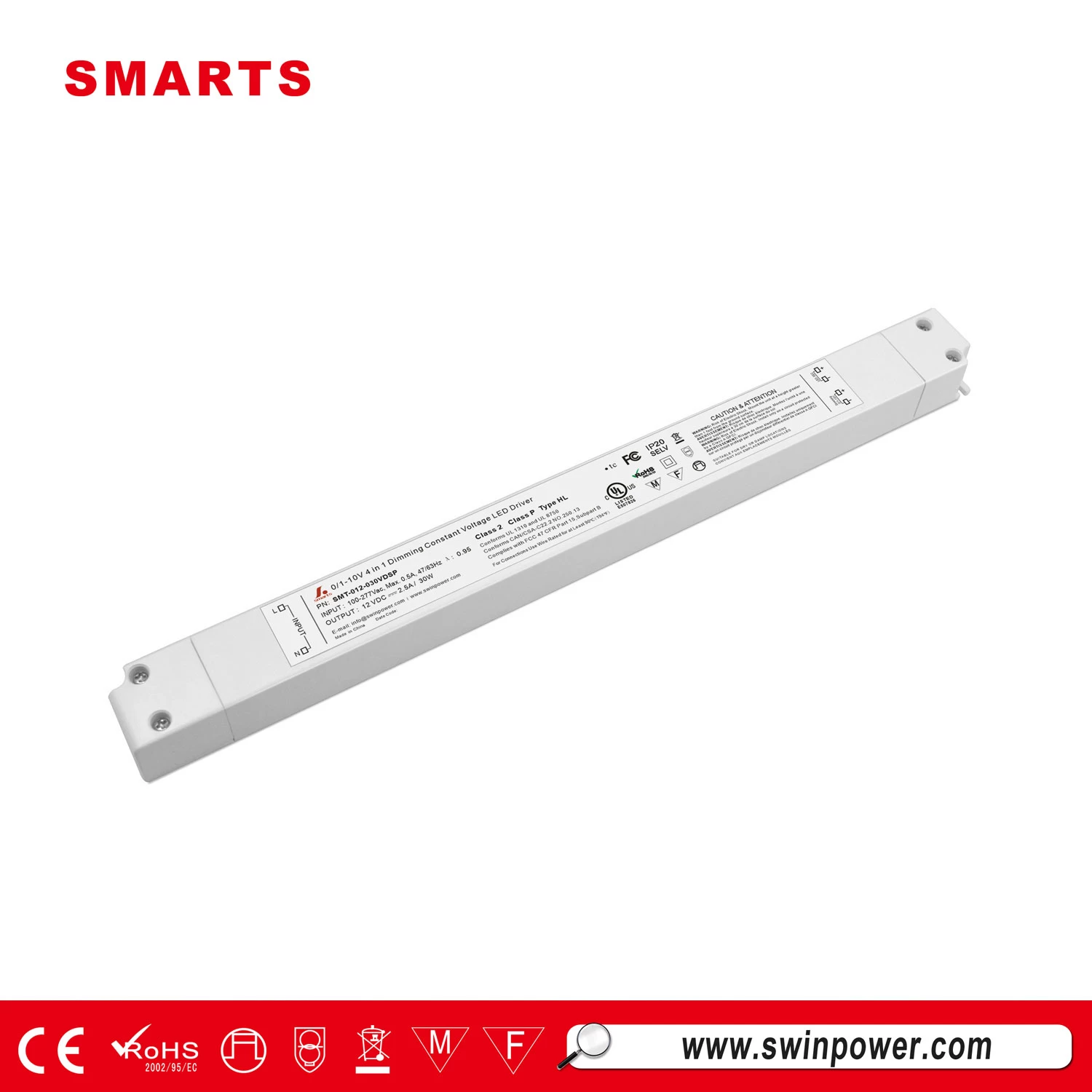

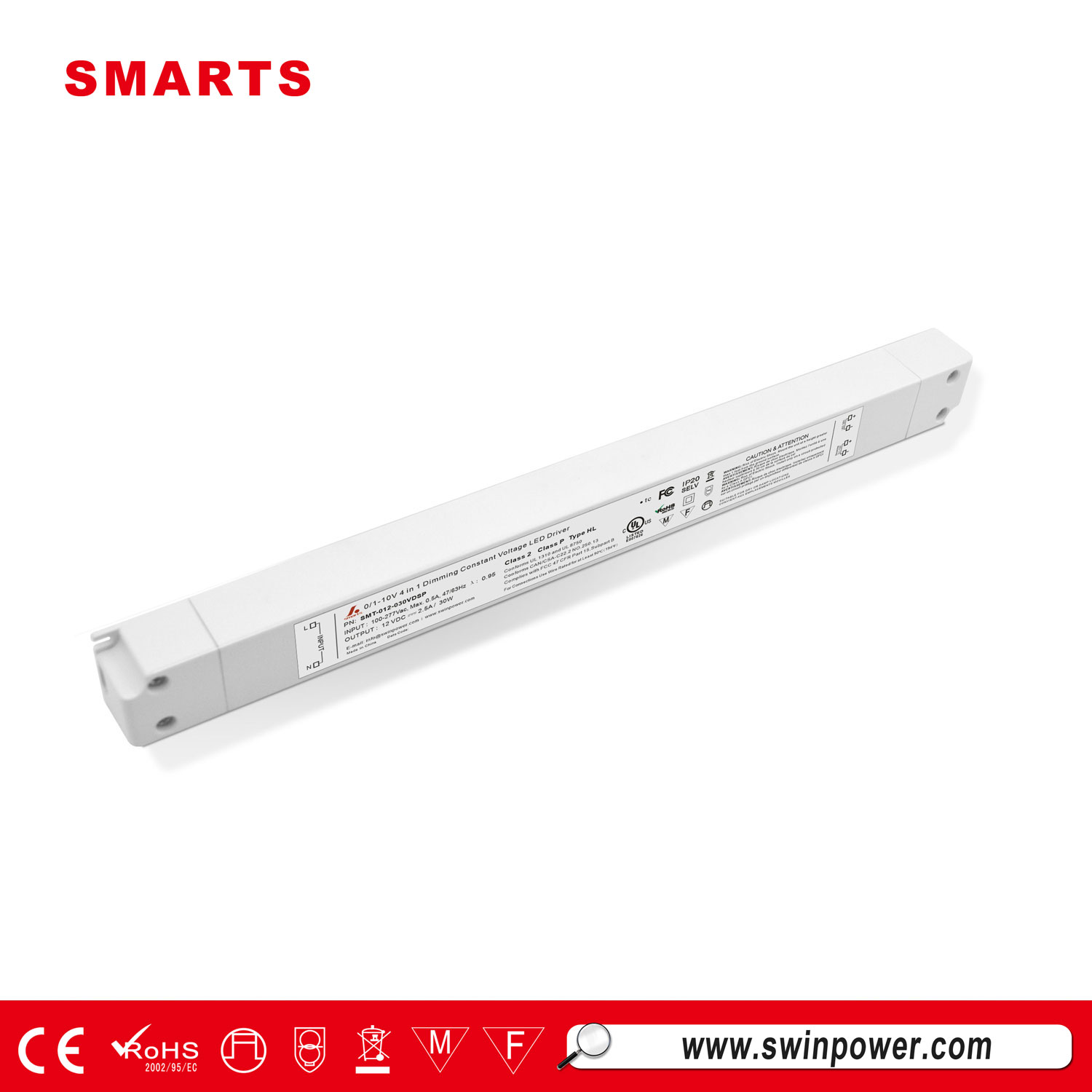

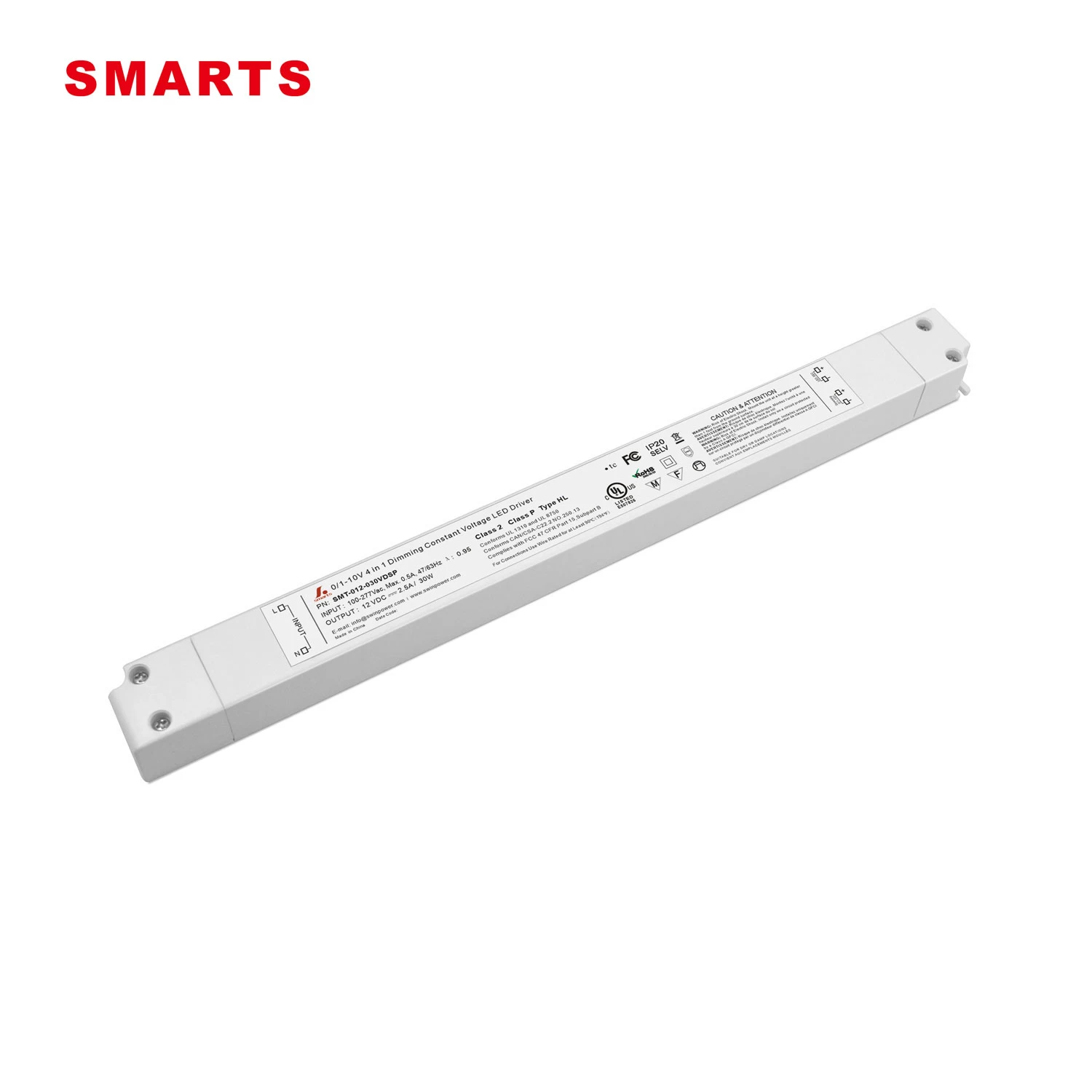

slimline 277v 120v to 12v high efficiency UL led driver 0-10v dimming 30w
SMT-012-030VDSP is 0-10V/1-10V/Potentiometer/10V PWM 4 in 1 Dimmable slimline led driver 12v 30w, a 3cm width and 2cm height makes drivers able to work with strict size limited , like led display, led mirrors. 7 years warranty period, compatiable with 0-10v pwm dimmer dimming system.
Datasheet
|
model
|
SMT-012-030VDSP
|
SMT-024-030VDSP
|
|
Output
|
DC Voltage
|
12VDC
|
24VDC
|
|
Voltage Accuracy
|
±5%
|
±5%
|
|
Rated current
|
2.5Amp
|
1.25Amp
|
|
Rated power
|
30W
|
30W
|
|
Voltage Regulation
|
±0.5%
|
|
Load Regulation
|
±1%
±1%
|
|
Input
|
Voltage Range
|
100-277 VAC
|
|
Frequency Range
|
47～63HZ
|
|
Power Factor ( Typ.）
|
PF≧0.99/110V ; PF≧0.98/277V
|
|
Full Load Efficiency（Typ.）
|
>79%
|
>81%
|
|
THD(Typ. ) @ full load
|
<10%@120VAC <15%@277VAC
|
|
AC Current（Typ.）
|
0.5A
|
|
Inrush Current（Typ.）
|
5A, 50%, 960us @120VAC; 13A, 50% , 1ms @277VAC
|
|
Leakage current
|
﹤0.5mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition
is removed.
|
|
Over Loading
|
≤120% shut down o/p voltage, re-power on to recover
|
|
Over temperature
|
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment
|
Working TEMP.
|
-40～+60℃
|
|
Working Humidity
|
20～95%RH,non-condensing
|
|
Storage TEM.,Humidity
|
-40～+80℃，10～95%RH
|
|
TEMP.coefficient
|
±0.03%/℃（0～50℃）
|
|
Vibration
|
10～500Hz, 2G 10min./1 cycle,period for 60min. each along X,Y,Z axes
|
|
Safety&EMC
|
Safety standards
|
UL8750 +UL 1310, CAN/CSA-C22.2 No.250.13
|
|
Withstand voltage
|
I/P-O/P:1.88KVac
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC 47 CFR Part 15 ,Subpart B
|
|
EMC IMMUNITY
|
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
|
|
Others
|
Weight
|
0.20Kg
|
|
Size
|
260*32*20mm (L*W*H)
|
|
packing
|
290*270*160mm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance: includes set up tolerance, line regulation and load regulation .
The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
|

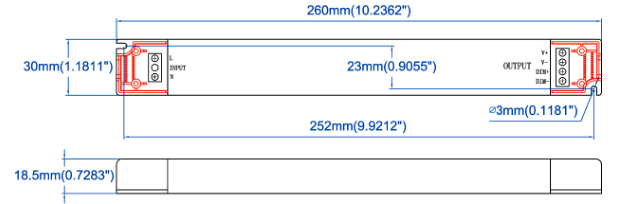

Dimension
Input terminals "Black" and "White" to connect to AC L and N.
-
Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
-
Output terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
-
Please DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
-
Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.

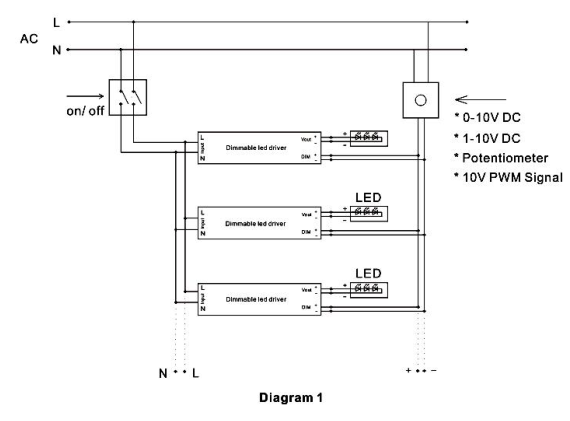

Connecting diagram for 0-10v dimmable led driver

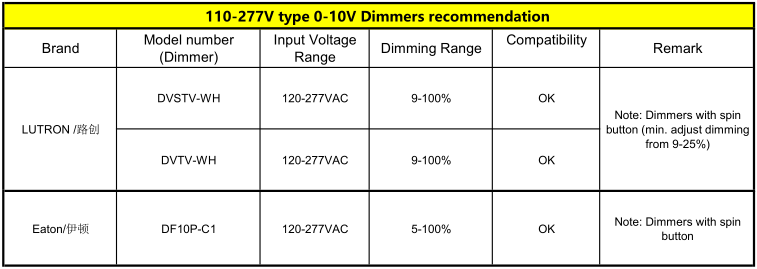

Recommend dimmer list for 0-10v dimmable led driver
