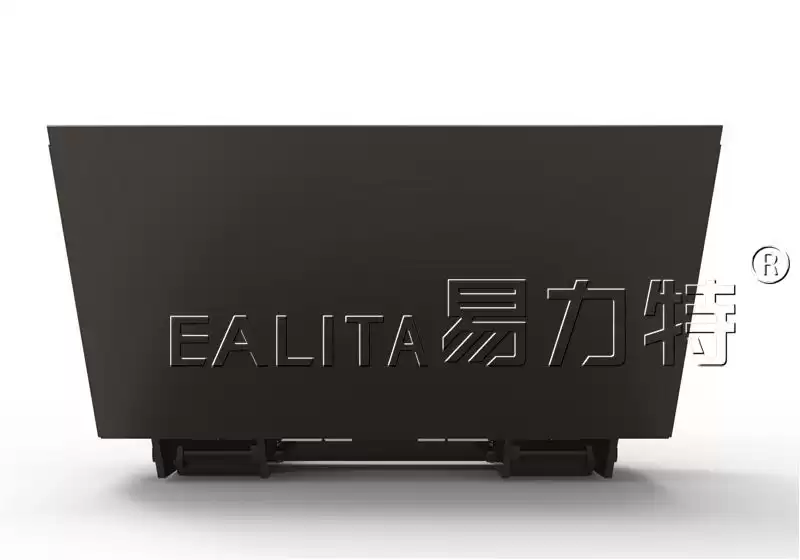

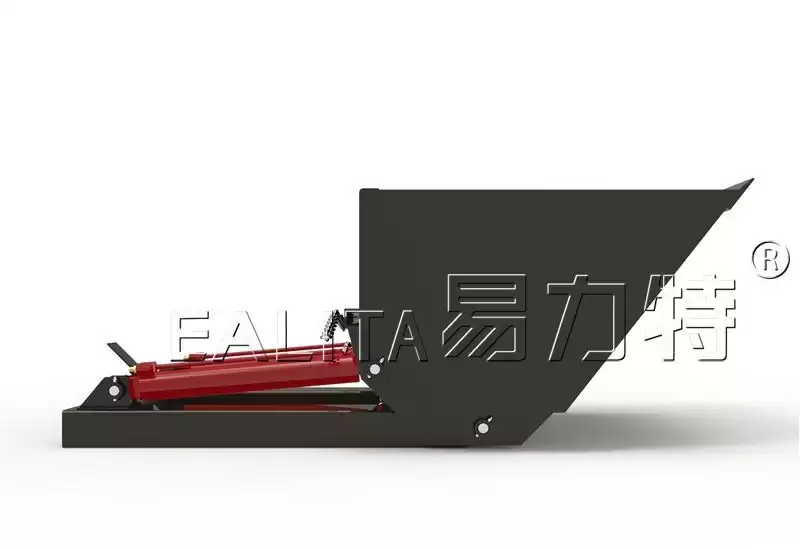

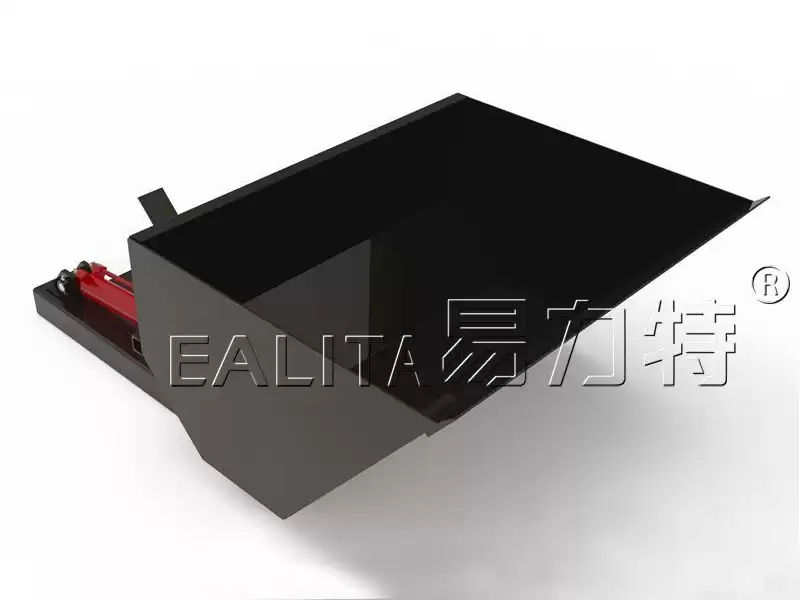

The DBHS Hydraulic Dirt Bucket is a slip on attachment allowing quick connection to the forklift with the use of “Quick Connect” hydraulic couplings.
- The hydraulic operation allows for full backwards tilt making the bucket suitable for liquid products.
- This bucket is manufactured with a hardened steel wear edge. Zinc plated finish.
Specifications
• Pocket size 185 x 65mm
• Pocket Centres 750mm
• Bucket Widths 1200mm & 1800mm
• Safe Working Load 1000kg
|
Type
|
Code
|
Volume
|
Bucket Width
|
Weight
|
|
F-DBHS2-12
|
03.01.30.0004
|
0.5cu.m
|
1200mm
|
315kg
|
|
F-DBHS2-18
|
03.01.30.0003
|
0.9cu.m
|
1800mm
|
390kg
|
