Slope Ground Solar Mounting System
Overview
Tilting the gantry makes it easy to set up solar power at a tilt. It is not necessary to greatly modify the land, because the adjustment of the bracket itself can be used to achieve the angle adjustment of the east-south direction. The gantry is simple in construction, high in safety and easy to install.

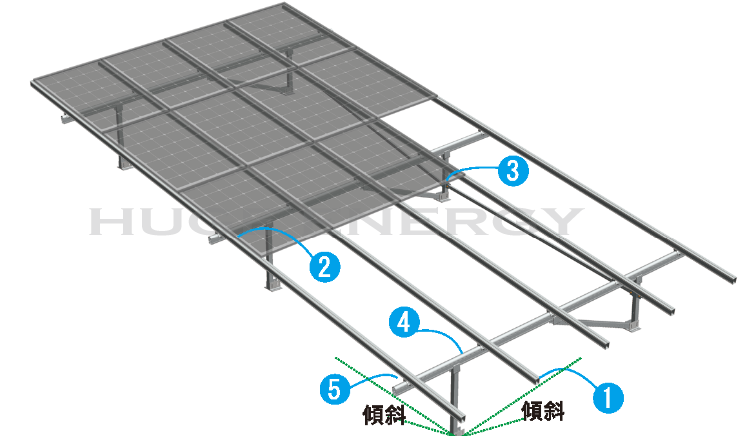

Parameter
1. Horizontal Rail
Because it is the design of the back lock of the board, the installer does not need to climb to the board to install, which will not cause load on the board, and can also ensure the safety of the construction personnel. Not easy to snow, good power generation, easy cleaning and post-maintenance.
2. Back Lock Clamp
It can be fixed from the back of the board and is easier to install than the surface lock of the board.
3. Reinforced Pipe fixture
It can be slid up and down, so you can make fine adjustments depending on the situation at the scene. Easy to construct.
4. Support rod
Semi-circular, so the force is average and the strength is high. Good engagement with the adapter allows the rail to be well secured. Wind resistance is very good.
5. Adapter
It can flexibly adjust the tilt of 0~25 degrees in the east-west direction. The small number of parts can save construction time.
6. Support rod combination
The front and rear feet are pre-assembled on the support bar and shipped directly to the site for installation. Can save a lot of installation time and drastically cut costs.

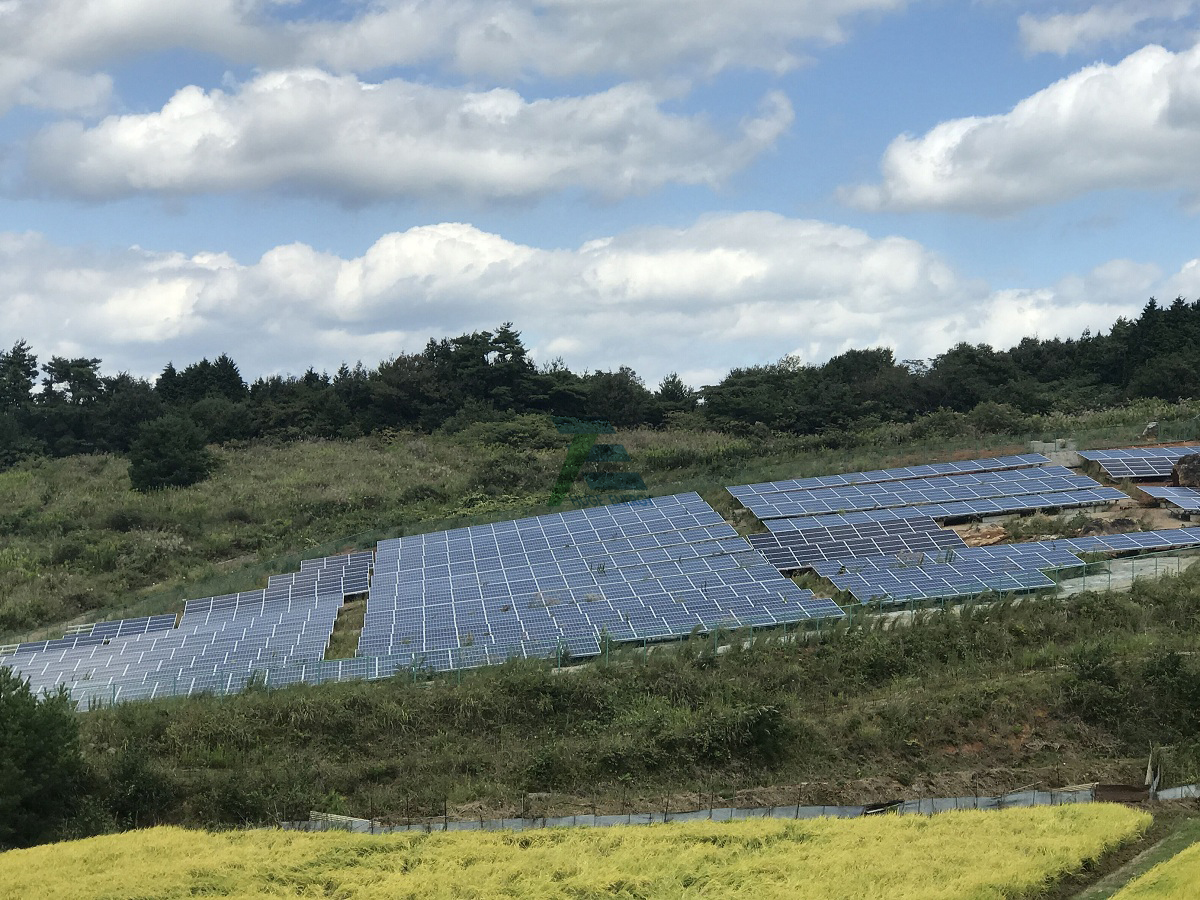

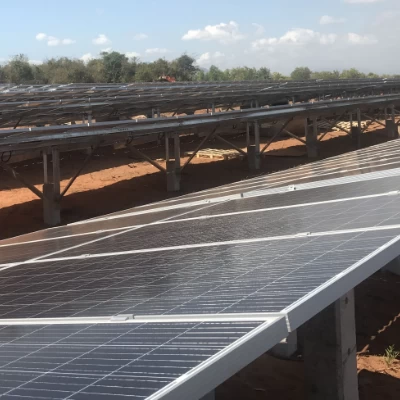

Project
Why Huge Energy
Reliability
Huge Energy is a manufacturer specializing in successful solar installation solutions, to deliver reliable products to customers. We firmly support the design and production in accordance with international standards. We can guarantee the reliability of our products. Even under extreme installation conditions such as heavy snow, storms and heavy salt damage areas, Huge Energy's products can be used for 25 years.
Quality Control
With the automation production line, you can control the material and quality of the product strictly. At the same time, the factory thoroughly manages each production process with the ISO quality control system.
Quality Assurance
Huge Energy's solar system is made on the domestic advanced production line and is strictly produced based on quality standards. Achieve huge compliance with our customers through the strictest quality assurance system of the solar product manufacturer.
We have a 15 year quality guarantee on Huge products.
After-sales Service
Today's Huge Energy has completed thousands of projects worldwide, with a total installed capacity exceeding 2 GW. Along the way, Huge Energy's products have responded to the design and product installation challenges successfully during various challenging natural conditions, and have accumulated a large amount of production and manufacturing experience and project installation experience.
Became a supplier of reliable plan offerings worldwide. We will provide after-sales service so that your project can be operated efficiently even after the project is installed.
