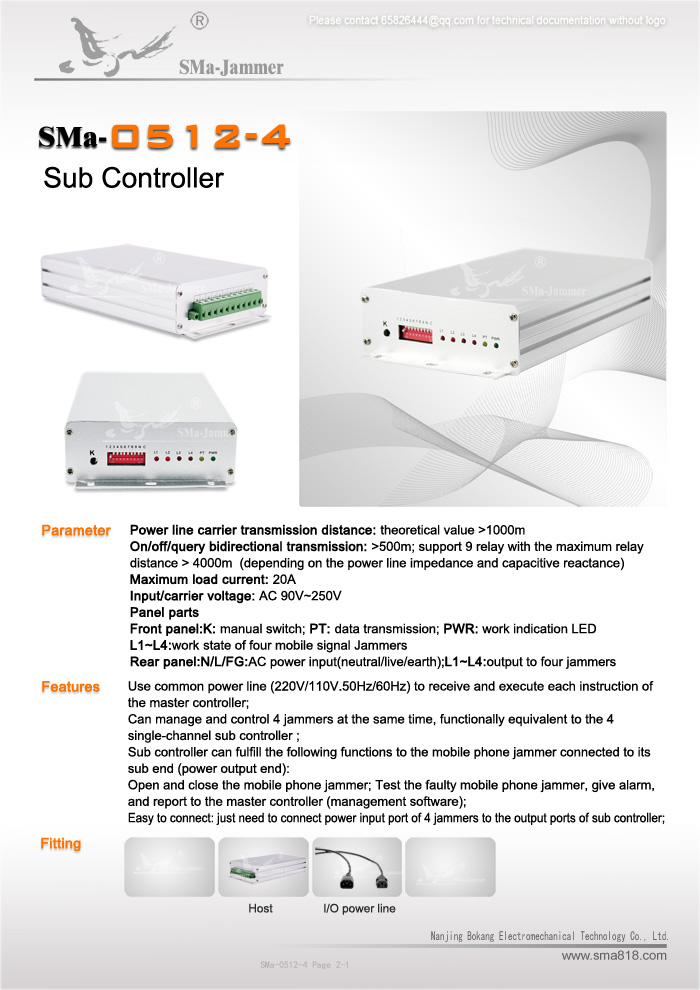

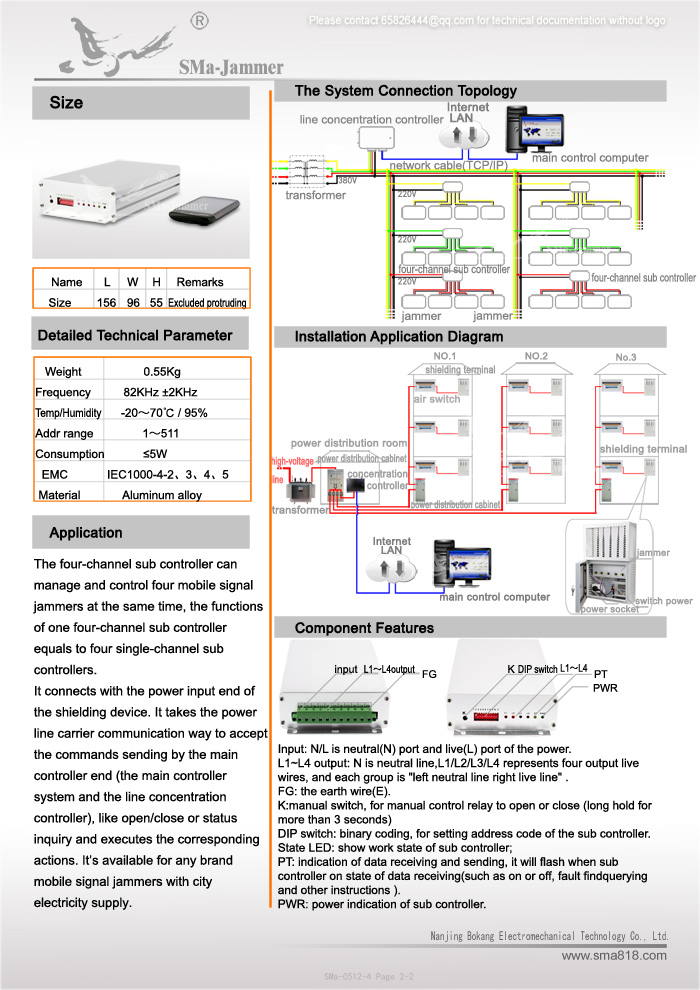

SMa-0512-4 Four-Channel Sub Controller PDF clear version download
SMa-0512-4 Four-Channel Sub Controller PDF clear version download
SMa-0512-4 Four-Channel Sub Controller
Application
The four-channel sub controller can manage and control four mobile signal jammers at the same time, the functions of one four-channel sub controller equals to four single-channel sub controllers.
It connects with the power input end of the shielding device. It takes the power line carrier communication way to accept the commands sending by the main controller end (the main controller system and the line concentration controller), like open/close or status inquiry and executes the corresponding actions. It’s available for any brand mobile signal jammers with city electricity supply.
Technical Parameters
A:Power line carrier transmission distance: theoretical value >1000m
On/off/query bidirectional transmission: 500m; support 9 relay with the maximum relay distance > 4000m (depending on the power line impedance and capacitive reactance)
B:Maximum load current: 20A
C:Input/carrier voltage: AC 90V~250V

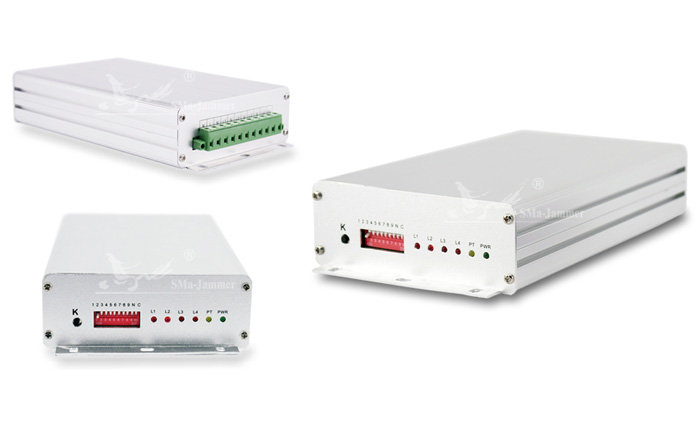

D:Panel parts

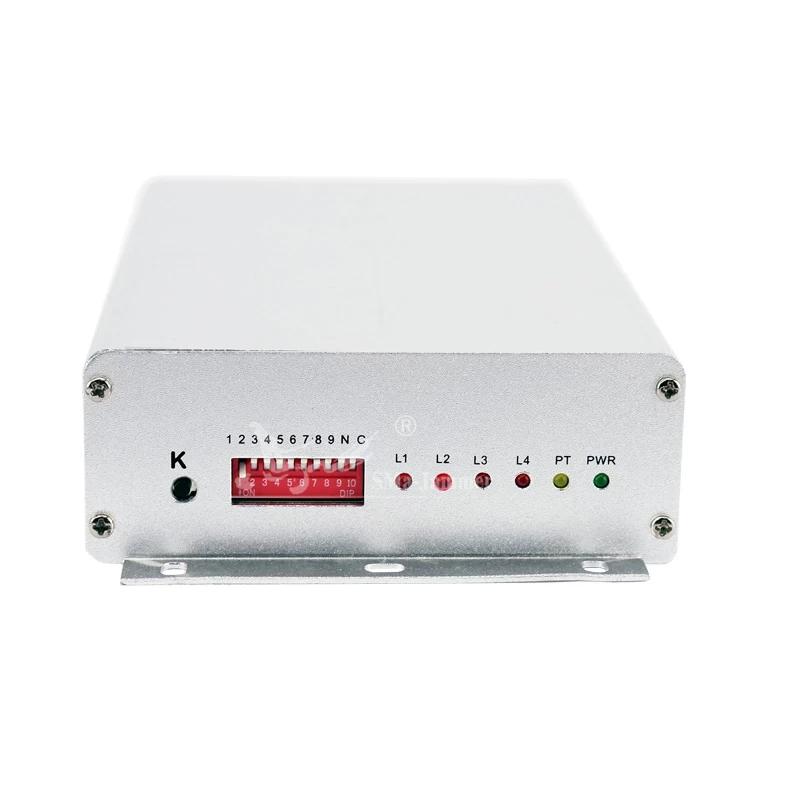

Front panel
K: manual switch; PT: data transmission; PWR: work indication LED;
L1~L4: work state of four mobile signal Jammers

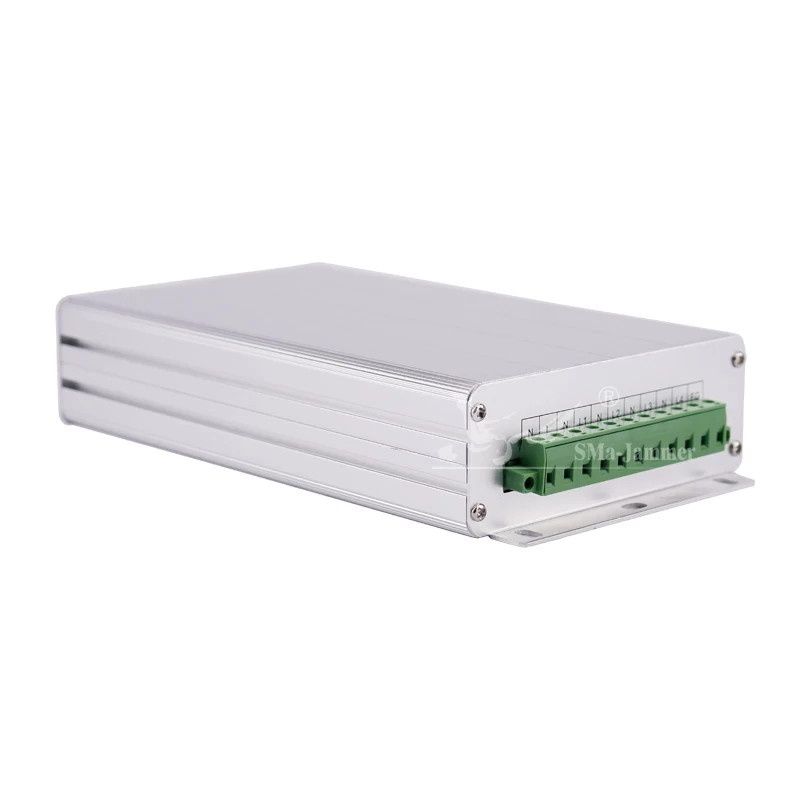

Rear panel
N/L/FG: AC power input (neutral/live/earth);
L1~L4: output to four jammers
Features
Use common power line (220V/110V.50Hz/60Hz) to receive and execute each instruction of the master controller;
Can manage and control 4 jammers simultaneously, function equivalent to the 4 single-channel sub controller ;
Sub controller can fulfill the following functions to the mobile phone jammer connected to its sub end (power output end):
Open and close the mobile phone jammer;
Test the faulty mobile phone jammer, give alarm, and report to the master controller (management software);
Easy to connect: just need to connect power input port of 4 jammers to the output ports of sub controller

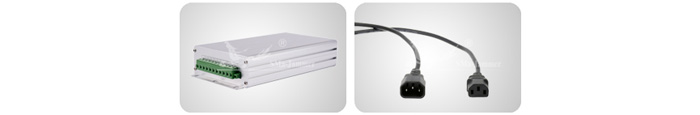

Main Parts
Sub Controller Input/Output Power Line
Detailed Technical Parameters
|

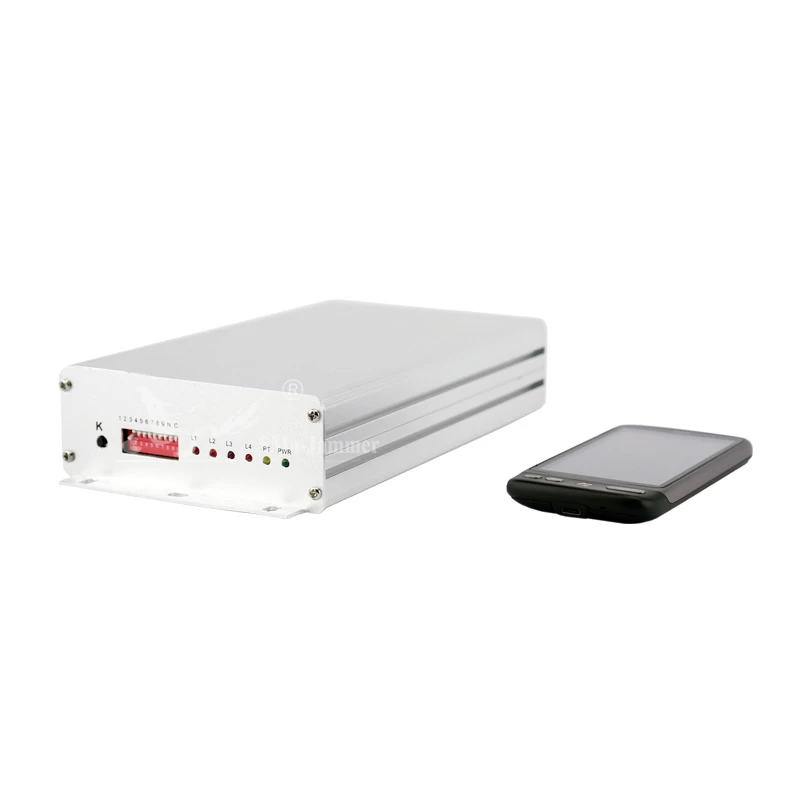

Host size
|
156*96*55(protruding excluded)
|
|
Total weight
|
0.55Kg
|
|
Carrier frequency
|
82KHz ± 2KHz
|
|
Temp/Humidity
|
－20℃～70℃ / ≤95%
|
|
Address code range
|
1～511
|
|
Static power consumption
|
≤5W
|
|
EMC
|
IEC1000-4-2、3、4、5
|
|
Enclosure material
|
Aluminum alloy
|
Component Features
Input: N/L is neutral (N) port and live (L) port of power.
L1~L4 output: N is neutral line, L1/L2/L3/L4 represents four output live wires, and each group is "left neutral line right live line".
FG: the earth wire (E).
K:manual switch, for manual control relay to open or close (long hold for more than 3 seconds).
DIP switch: binary coding, for setting address code of the sub controller.
State LED: show work state of sub controller;
L1/L2/L3/L4: indicate work state of jammers under each channel. Light bright shows jammers under status of four channels work normal, if the light is flashing, there is exception under current channel, if light is off, show the channel no power output, jammer has no power supply.
PT: indication of data receiving and sending, it will flash when sub controller on state of data receiving (such as on or off, fault finding and other instructions).
PWR: power indication of sub controller.

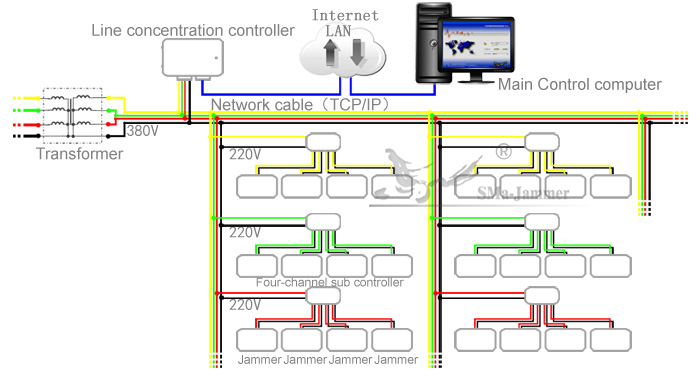

The System Connection Topology
Installation Application Diagram
OEM Customized Service
Silkscreen can be offered for 10 or above.
Neutral can be provided.
