SMa-0512-B Sub Controller
Application
It connects with the power input end of the shielding device. It takes the power line carrier communication and wireless communication way to accept the commands sending by the main controller end (the main controller system and the line concentration controller), like open/close or status inquiry and executes the corresponding actions. It’s available for any brand mobile signal jammers with city electricity supply.
Technical Parameters
A:Power line carrier transmission distance: theoretical value >1000m
On/off/query bidirectional transmission: 500m; support 9 relay with the maximum relay distance > 4000m (depending on the power line impedance and capacitive reactance)
B:433MHz wireless transmission distance: theoretical value >1500m(without barrier), support 9 relay
C:Maximum load current: 20A
D:Input/output voltage: AC 90V~250V
E:Panel parts
Front panel

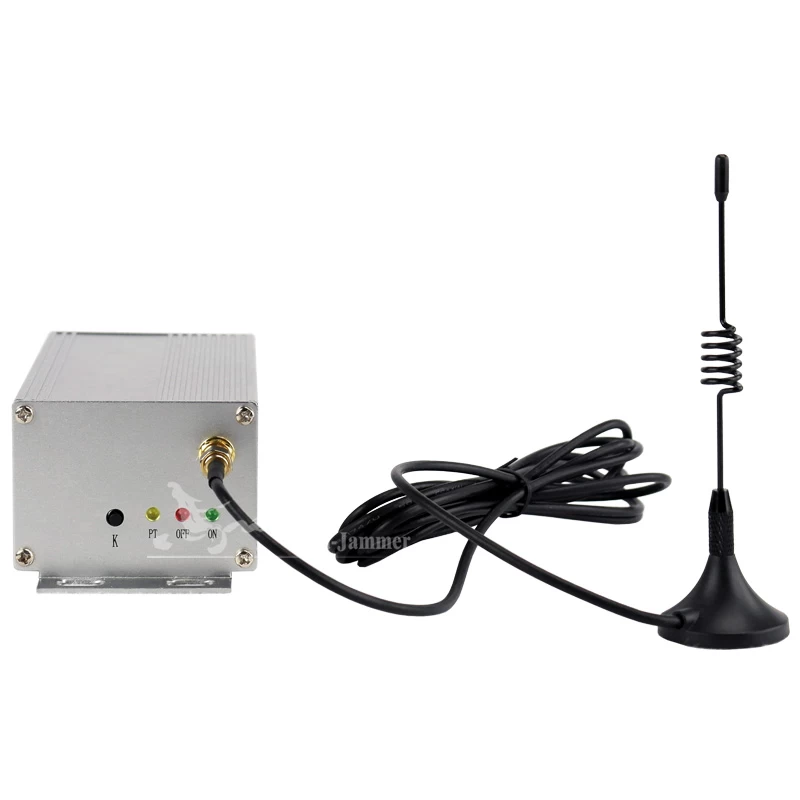

K: manual switch; PT: data transmission; OFF: switch off the jammer; ON: switch on the jammer.

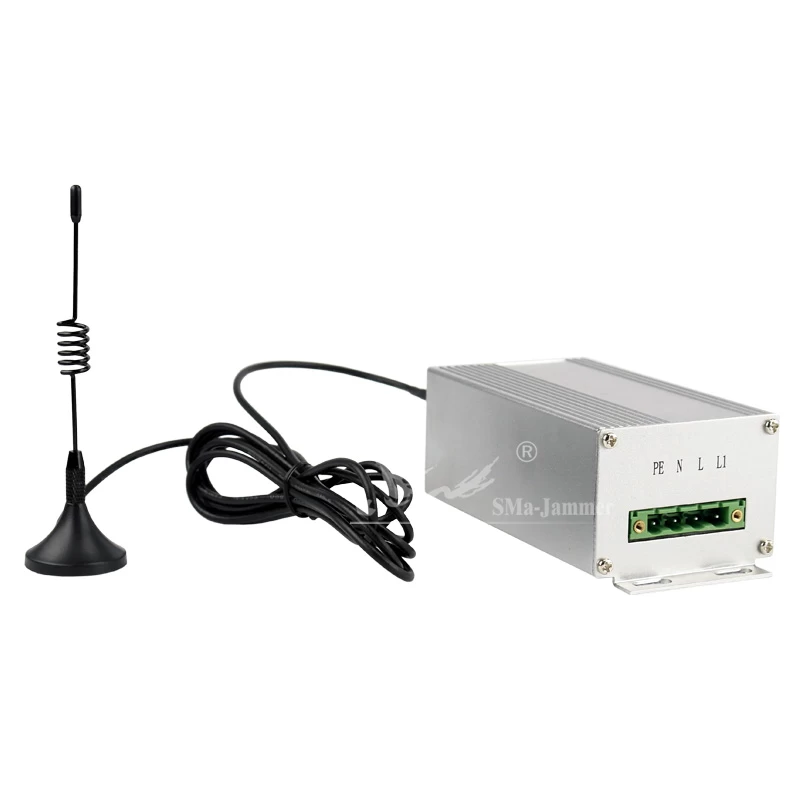

Rear panel: AC input/output
Features
Control signals have two output ways: power carrier +wireless transmission, practical application, execute the two ways simultaneously, first receive, first execute, ensures reliability and stability of the control instructions transmission;
Use common power line (220V/110V.50Hz/60Hz) to receive and execute each instruction of the master controller. Wireless transmission complete the control instructions air receiving and sending through 433MHz free application band;
Sub controller can fulfill the following functions to the mobile phone jammer connected to its sub end (power output end):
Open and close the mobile phone jammer;
Test the faulty mobile phone jammer, give alarm, and report to the master controller (management software).
Easy to connect: just need to connect the sub controller to the jammer’s power input end;

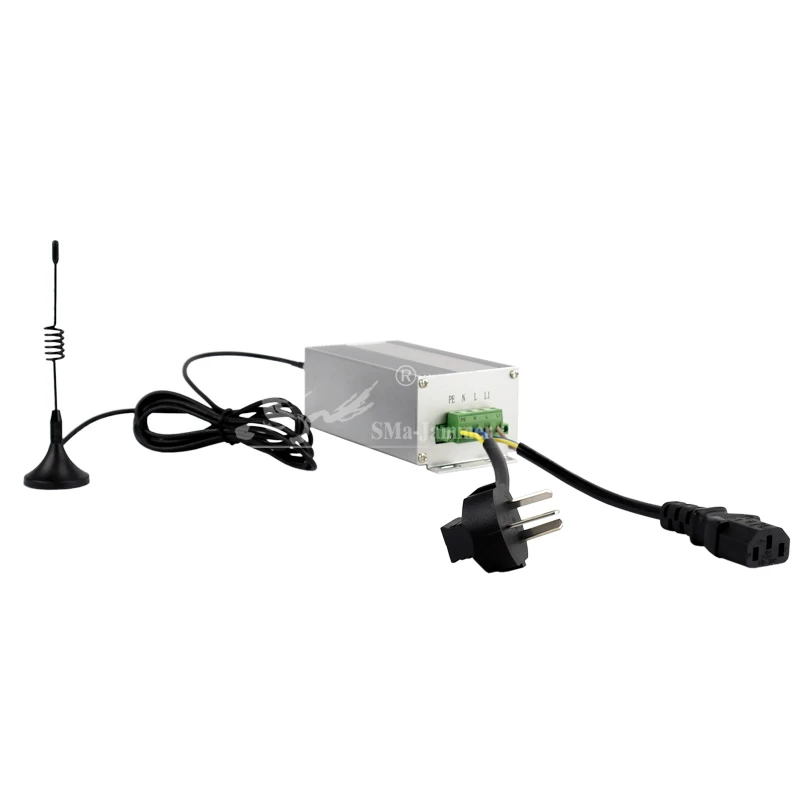

Main Parts

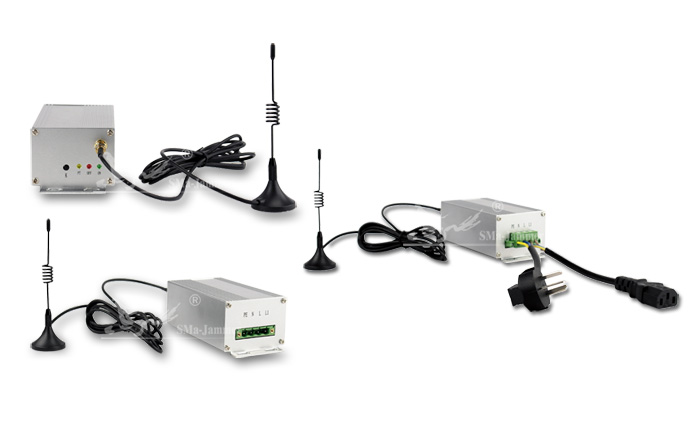

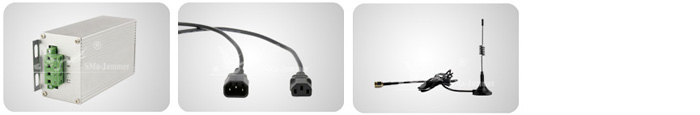

Sub Controller Input/Output Power Line Antenna
Detailed Technical Parameters
|
Size
|
120*65*45(excluded protruding)
|
|
Total weight
|
0.4Kg
|
|
Power carrier frequency
|
120KHz±2KHz
|
|
Wireless communication frequency
|
433MHz
|
|
Address code range
|
1~1023
|
|
Static power consumption
|
≤5W
|
|
EMC
|
IEC1000-4-2、3、4、5 compliant
|
|
Enclosure material
|
Aluminum alloy
|

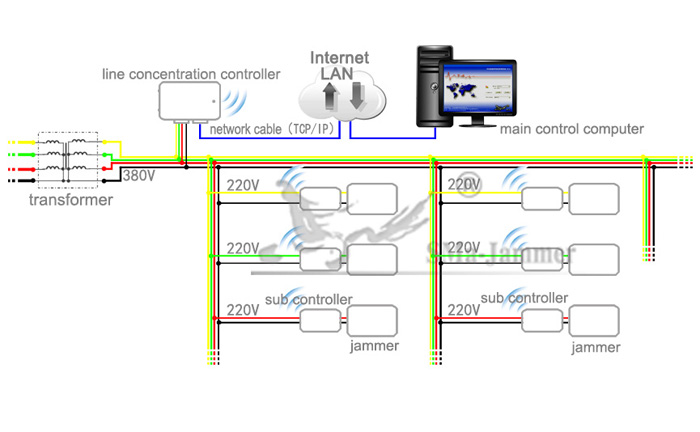

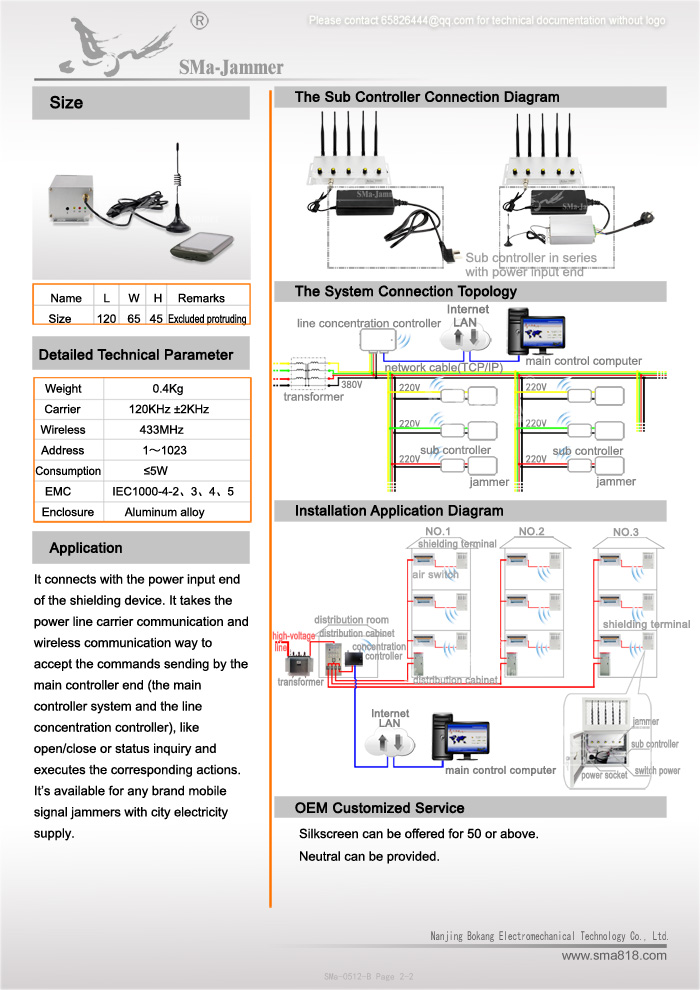

The System Connection Topology

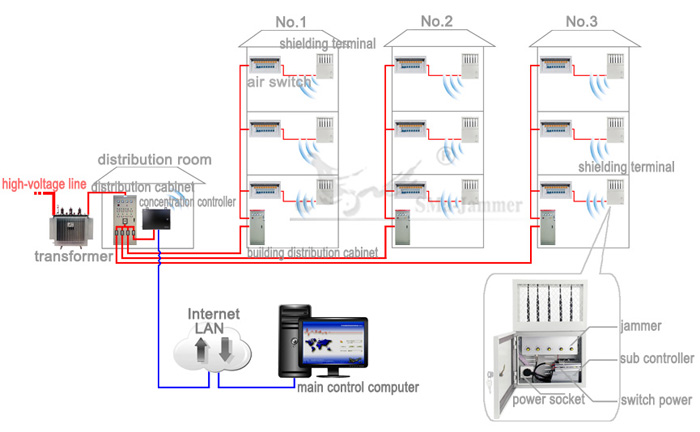

Installation Application Diagram
OEM Customized Service
Silkscreen can be offered for 50 or above.
Neutral can be provided.
