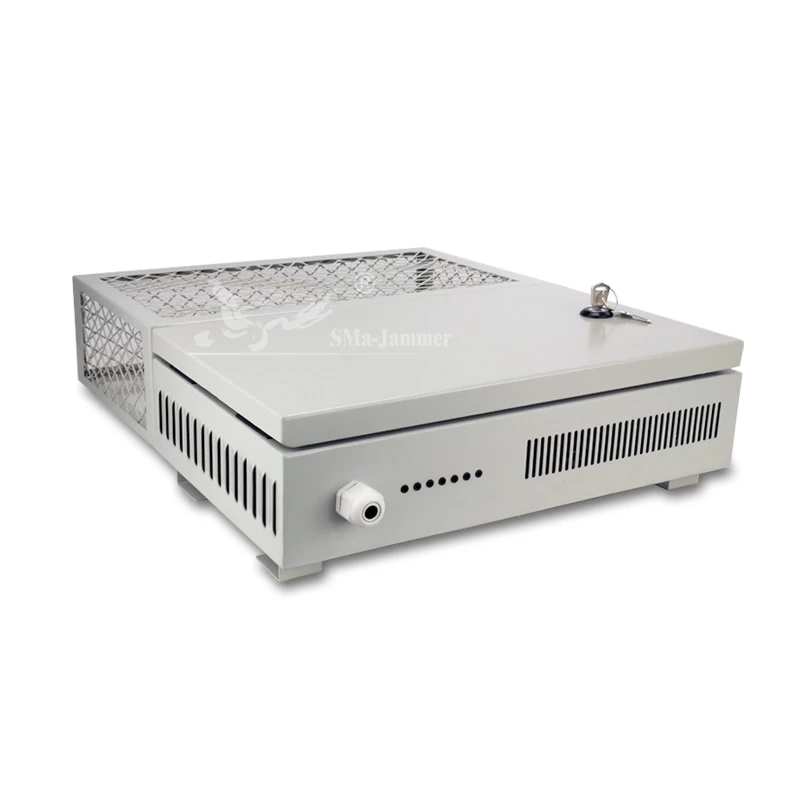

SMa-0608 Jammer Special Installation Box
Technical Parameters
A:Vandal resistant: prevent interfere with the jammer’s work or sabotage the antenna
B:Ventilation & heat dissipation: excellent cooling performance ensures the stability of the jammer and power supply
C:Water-proof: the inner installation box can’t have water, available in outdoor environment
D:Easy to install: wall mounting, stability
E:Good looking: the enclosure’s color is similar to the environment
Features

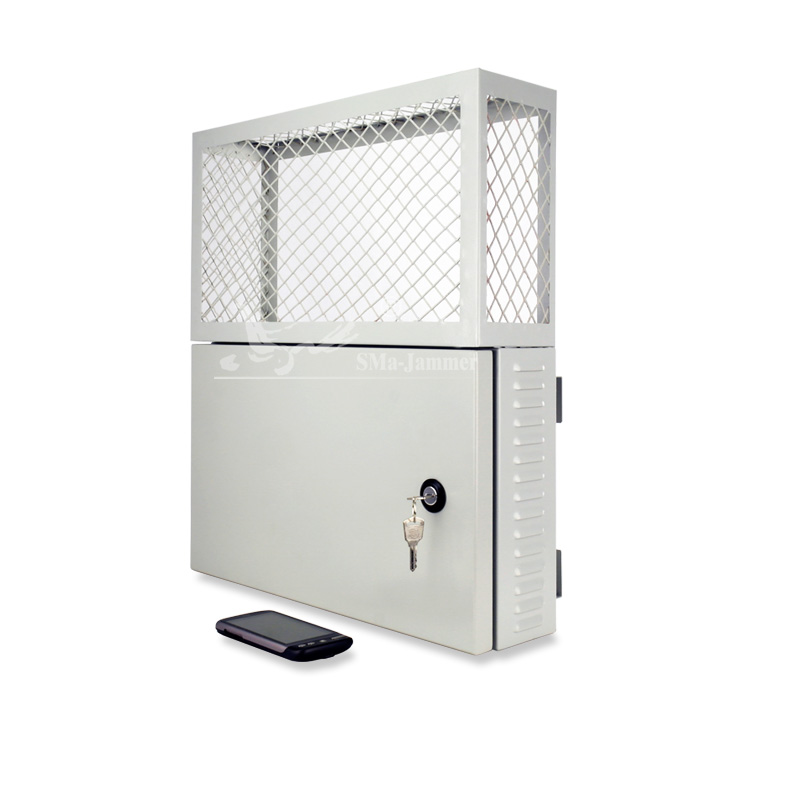

Protective nets to protect the antenna from human damage;

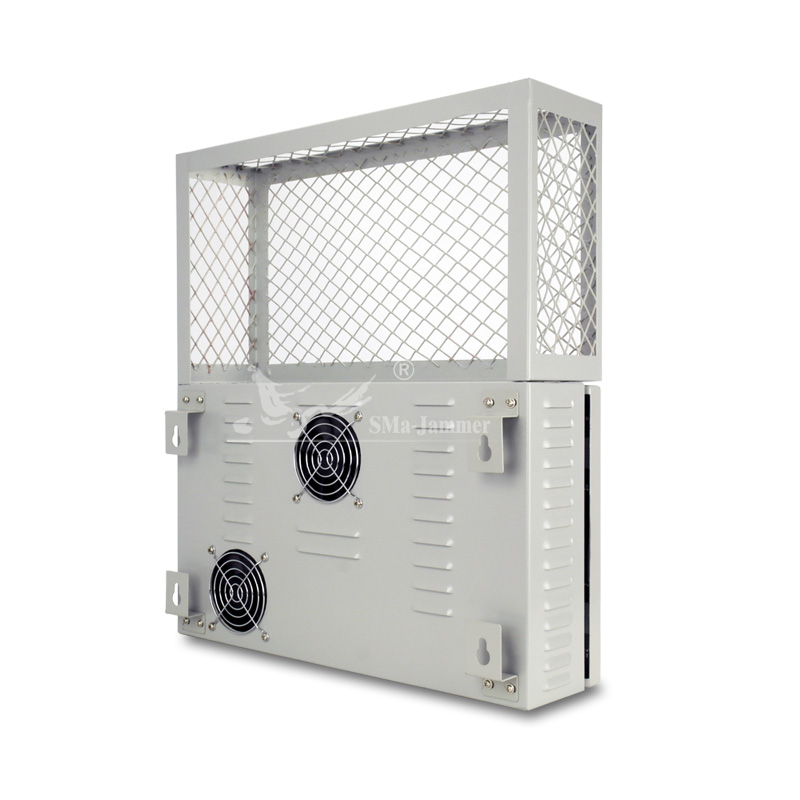

Two big blades fans are good at ventilation;
The shell temperature of the host and power chassis will keep below 40℃ after continuous work for a long time;
Hole-shaped hangers, convenient to fixed and wall mounting;
Water-proof: available to outdoor environment;
The enclosure is durable, and the color can be customized;
Main Parts

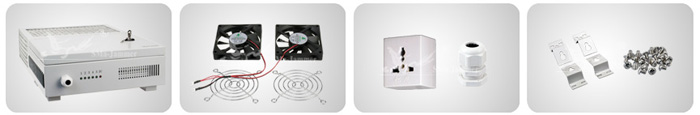

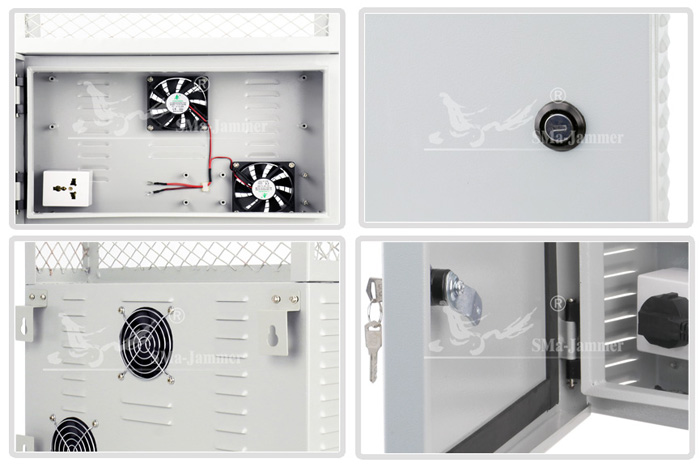

Box Fan/Protective Net Socket/Sealing Head Accessories

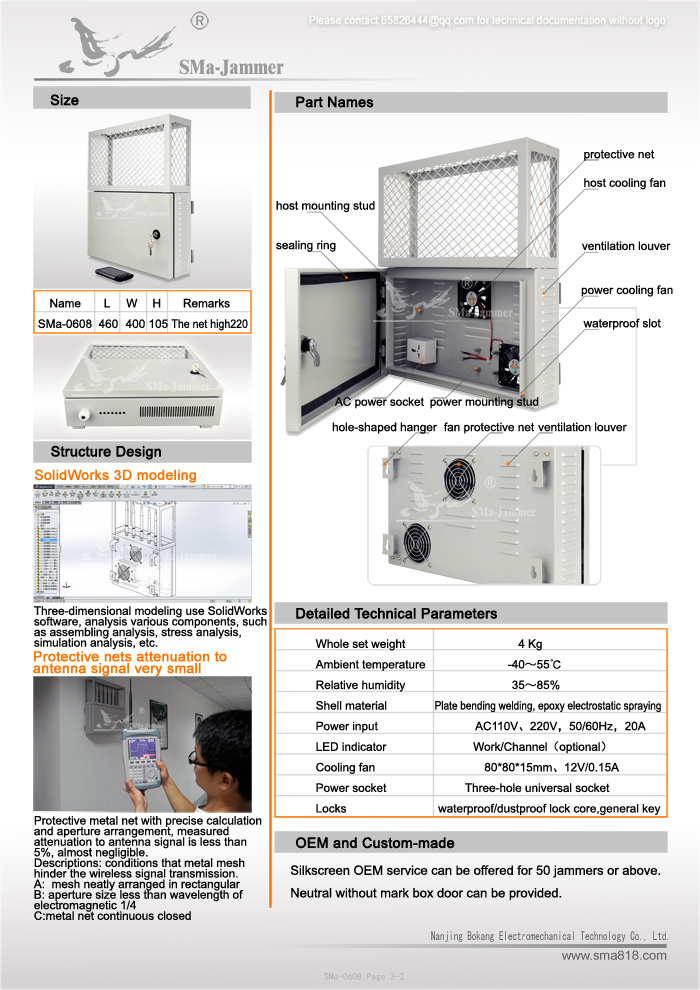

Detailed Technical Parameters
|
Chassis size
|
460*400*105(protective net high220)
|
|
Total weight
|
4Kg
|
|
Ambient temperature
|
－40℃～55℃
|
|
Relative humidity
|
35～85%
|
|
Cooling fan
|
80*80*15mm、12V/0.15A
|
|
Power socket
|
Three-hole universal socket( general)
|
|
Power input
|
AC110V、220V，50/60Hz，20A
|
|
LED indicator
|
Work/Channel LED(optional)
|
|
Locks
|
Waterproof/dustproof lock core、general key
|
|
Box material
|
Plate bending welding, epoxy electrostatic spraying
|
Product Details
Structure Design

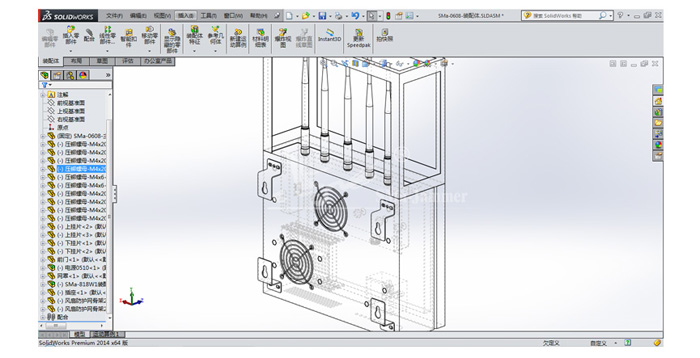

Solidworks 3D Modeling
Three-dimensional modeling use SolidWorks software, analysis various components, such as assembling analysis, stress analysis, simulation analysis, etc.
Protective nets attenuation to antenna signal very small

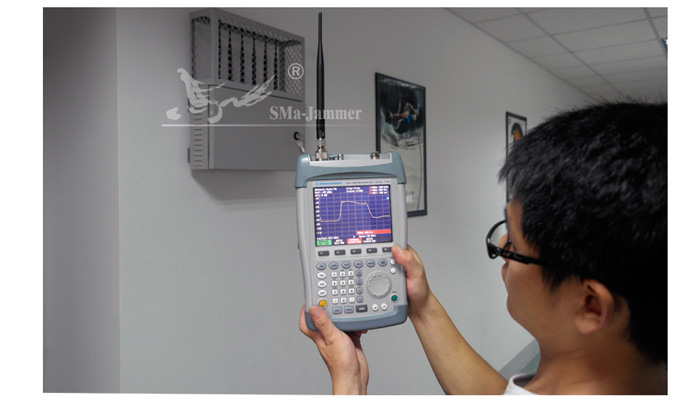

Protective metal net with precise calculation and aperture arrangement, measured attenuation to antenna signal is less than 5%, almost negligible. Descriptions: conditions that metal mesh hinder the wireless signal transmission.
A: mesh neatly arranged in rectangular
B: aperture size less than wavelength of electromagnetic 1/4
C: metal net continuous closed
Considerations
If delivery the installation box and jammer together, we would install the jammer into the installation box directly;
We would assemble all accessories, such as ventilation fan, fan protective net, socket, switch power, antenna and so on, and carry out no less than 24 hours power aging test before delivery;
Dealers/agents/clients received assembled jammer and installation box, do as the followed
(1)、drilling: Hit the mounting hole on preloaded wall;
(2)、hang box: Mount the installation box on the wall;
(3)、power supply: Connect 110V/220V AC power with socket on the box;
Dealers/agents/clients received the equipment, check all parts, to prevent components loosening during transit;
The standard key is general, for single open, please note before ordering;
OEM Customized Service
Silkscreen OEM service can be offered for 50 jammers or above.
Neutral without mark box door can be provided.

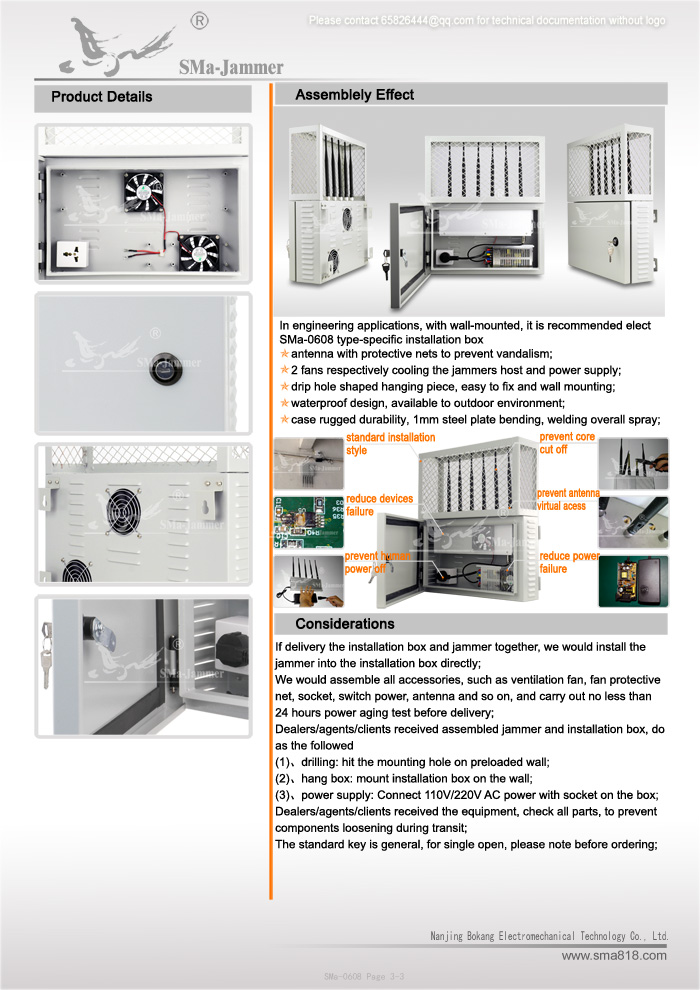

Assembly Effect

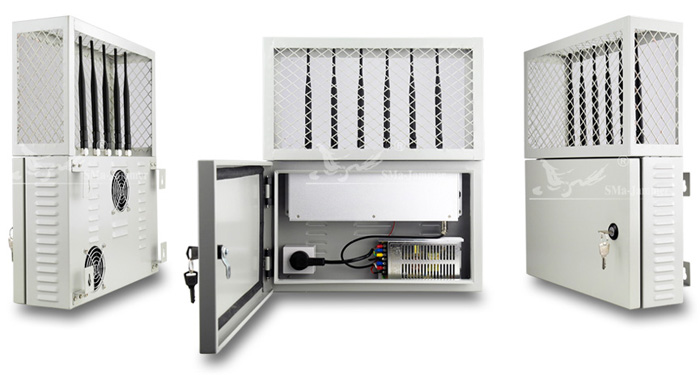

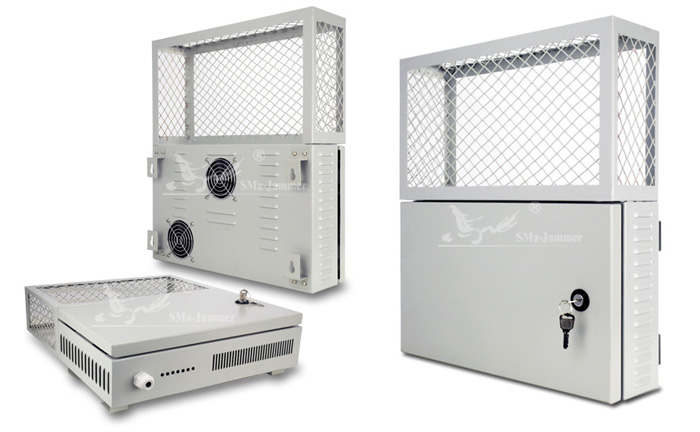

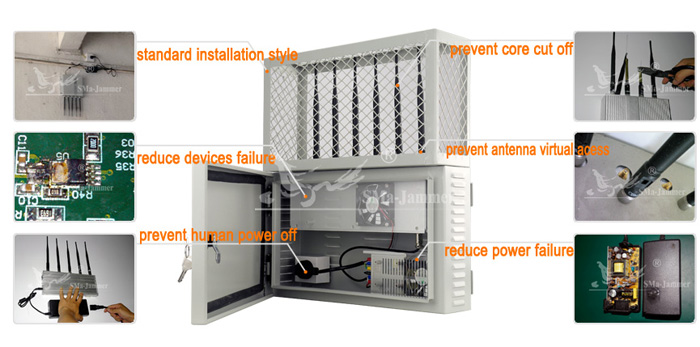

In engineering applications, with wall-mounted, it is recommended elect SMa-0608 type-specific installation box
antenna with protective nets to prevent vandalism;
2 fans respectively cooling the host and the power;
drip hole shaped hanging piece, easy to fix and wall mounting;
waterproof design, available to outdoor environment;
case rugged durability, 1mm steel plate bending, welding overall spray;
