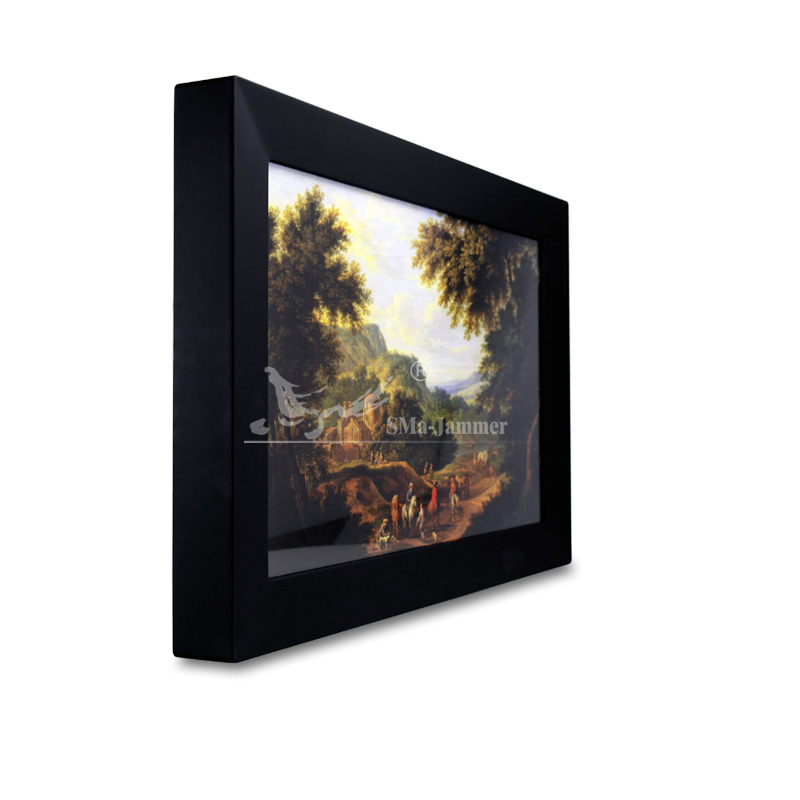

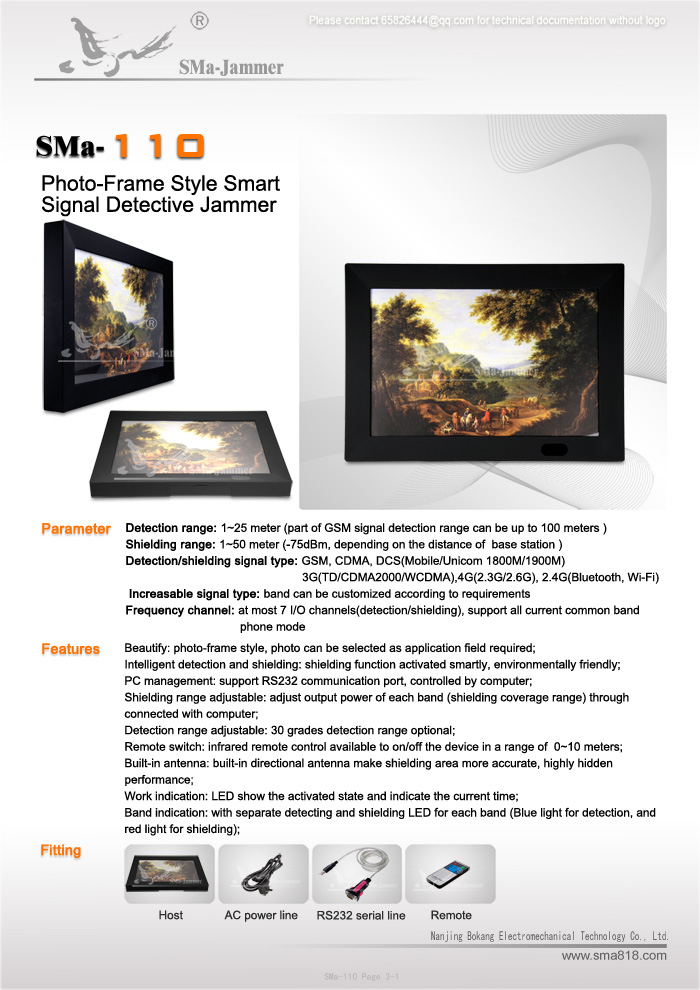

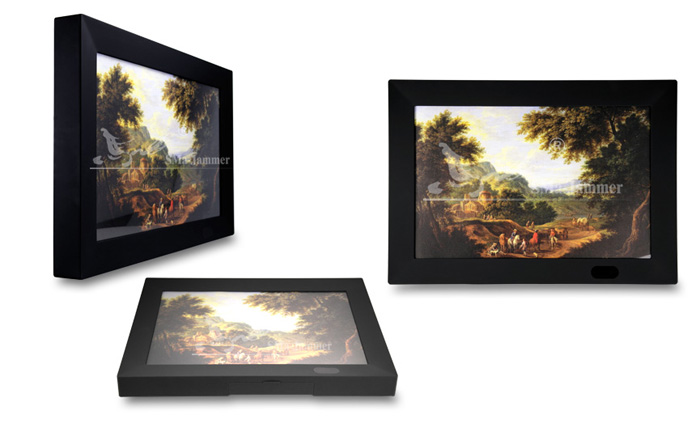

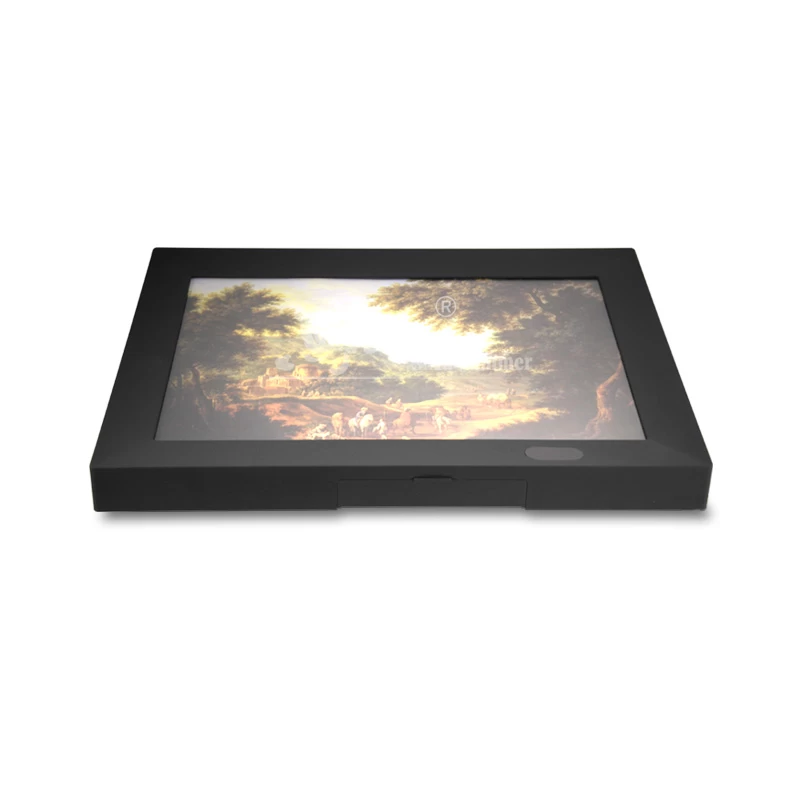

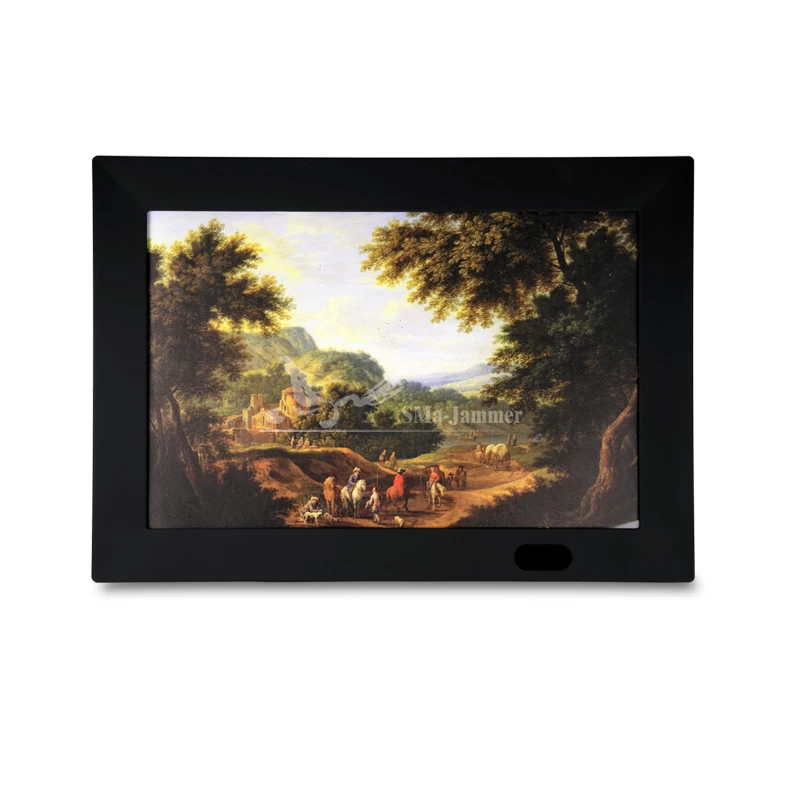

SMa-110 Photo-Frame Style Smart Signal Detective Jammer
Application
Mainly used for indoor mobile signal detection and shielding, such as: meeting rooms, border control units, Border Patrol and Drug Enforcement, Customs, Church, Courts, cinemas, Theaters, Offices, Border Checkpoints, Classrooms, hospitals, recording studios, banks, contract biding room, testing center, security establishments, military units, the secret service, the press conference scene, libraries, museums, prisons.
Technical Parameter
A:Detection range: 1~25 meter (part of GSM signal detection range can be up to 100 meters )
B:Shielding range:1~50 meter (-75dBm, depending on the distance of base station in an open air)
C:Detection/shielding signal type: GSM(Mobile/Unicom 2G), CDMA(Telecom), DCS(Mobile/Unicom 1800M/1900M), 3G(Mobile TD/Telecom CDMA2000/Unicom WCDMA), 4G(2.3G/2.6G), 2.4G(Bluetooth, Wi-Fi)
D:Increasable signal type: band can be customized according to requirements
E:Frequency channel: at most 7 I/O channel(detection/shielding), support all current common band phone mode
Features
Beautify: photo-frame style, photo can be selected as application field required;
Intelligent detection and shielding: shielding function activated smartly, environmentally friendly;
PC management: support RS232 communication port, controlled by the computer;
Shielding range adjustable: adjust output power of each band(shielding coverage band) through connected with computer;
Detection range adjustable: 30 grades detection range optional;
Remote switch: infrared remote control available to on/off the device in a range of 0~10 meters;
Built-in antenna: built-in directional antenna make shielding area more accurate, highly hidden performance; Work indication: LED show the activated state and indicate the current time;
Band indication: with seperate detecting and shielding LED for each band(blue light for detection, and red light for shielding );
If you need Smart Signal Detective Jammer, more signal jammers waiting for you. Search it now!

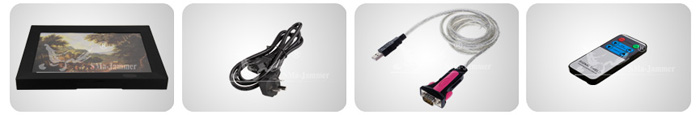

Main Parts
Host Power Line RS232 Serial Line Remote Controller

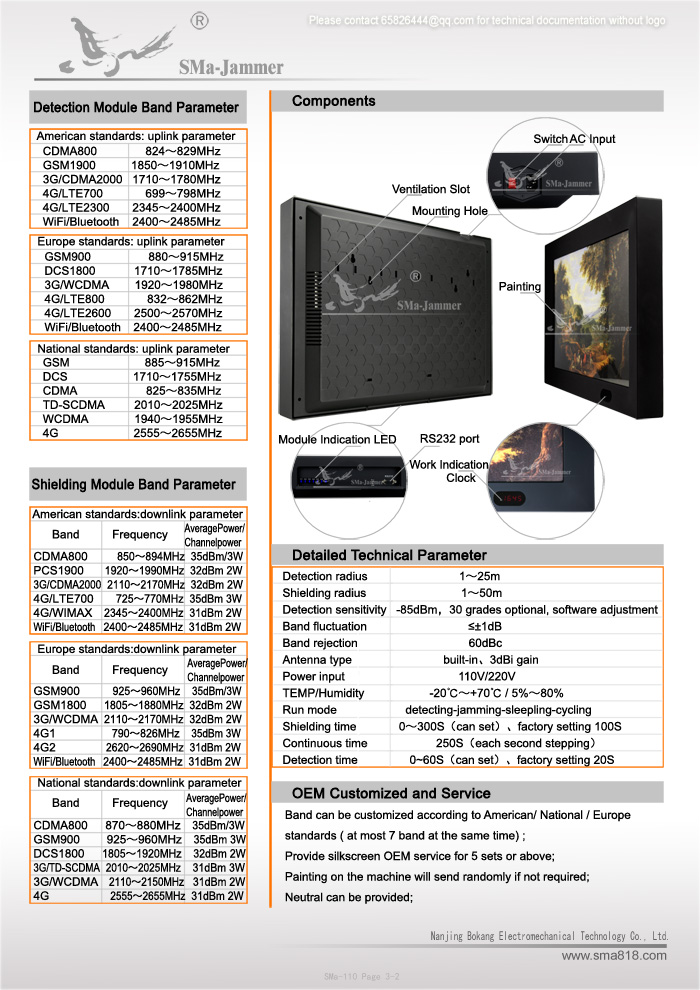

Detection Module Band Parameter
|
Standards
|
Band
|
Frequency
|
|
American standards:detection uplink band parameter
|
CDMA800
|
824~829MHz
|
|
GSM1900
|
1850~1910MHz
|
|
3G/CDMA2000
|
1710~1780MHz
|
|
4G/LTE700
|
699~798MHz
|
|
4G/LTE2300
|
2345~2400MHz
|
|
WIFI/Bluetooth
|
2400~2485MHz
|
|
European standards：detection uplink band parameter
|
GSM900
|
880~915MHz
|
|
DCS1800
|
1710~1785MHz
|
|
3G/WCDMA
|
1920~1980MHz
|
|
4G/LTE800
|
832~862MHz
|
|
4G/LTE2600
|
2500~2570MHz
|
|
WIFI/Bluetooth
|
2400~2485MHz
|
|
National standards：detection uplink band parameter
|
GSM
|
885~915MHz
|
|
DCS
|
1710~1755MHz
|
|
CDMA
|
825~835MHz
|
|
TD-SCDMA
|
2010~2025MHz
|
|
WCDMA
|
1940~1955MHz
|
|
4G
|
2555~2655MHz
|
Shielding Module Band Parameter
|
Standards
|
Band
|
Frequency
|
Average /channel power
|
|
American standards：shielding downlink band parameter
|
CDMA800
|
850~894MHz
|
35dBm/3W
|
|
PCS1900
|
1920~1990MHz
|
32dBm/2W
|
|
3G/CDMA2000
|
2110~2170MHz
|
32dBm/2W
|
|
4G/LTE700
|
725~770MHz
|
35dBm/3W
|
|
4G/WIMAX
|
2345~2400MHz
|
31dBm/2W
|
|
WIFI/Bluetooth
|
2400~2485MHz
|
31dBm/2W
|
|
European standards:shielding downlink band parameter
|
GSM900
|
925~960MHz
|
35dBm/3W
|
|
DCS1800
|
1805~1880MHz
|
32dBm/2W
|
|
3G/WCDMA
|
2110~2170MHz
|
32dBm/2W
|
|
4G1
|
790~826MHz
|
35dBm/3W
|
|
4G2
|
2620~2690MHz
|
31dBm/2W
|
|
WIFI/Bluetooth
|
2400~2485MHz
|
31dBm/2W
|
|
National standards:shielding downlink band parameter
|
CDMA800
|
870~880MHz
|
35dBm/3W
|
|
GSM900
|
925~960MHz
|
35dBm/3W
|
|
DCS1800
|
1805~1920MHz
|
32dBm/2W
|
|
3G/TD-SCDMA
|
2010~2025MHz
|
31dBm/2W
|
|
3G/WCDMA
|
2110~2150MHz
|
31dBm/2W
|
|
4G
|
2555~2655MHz
|
31dBm/2W
|

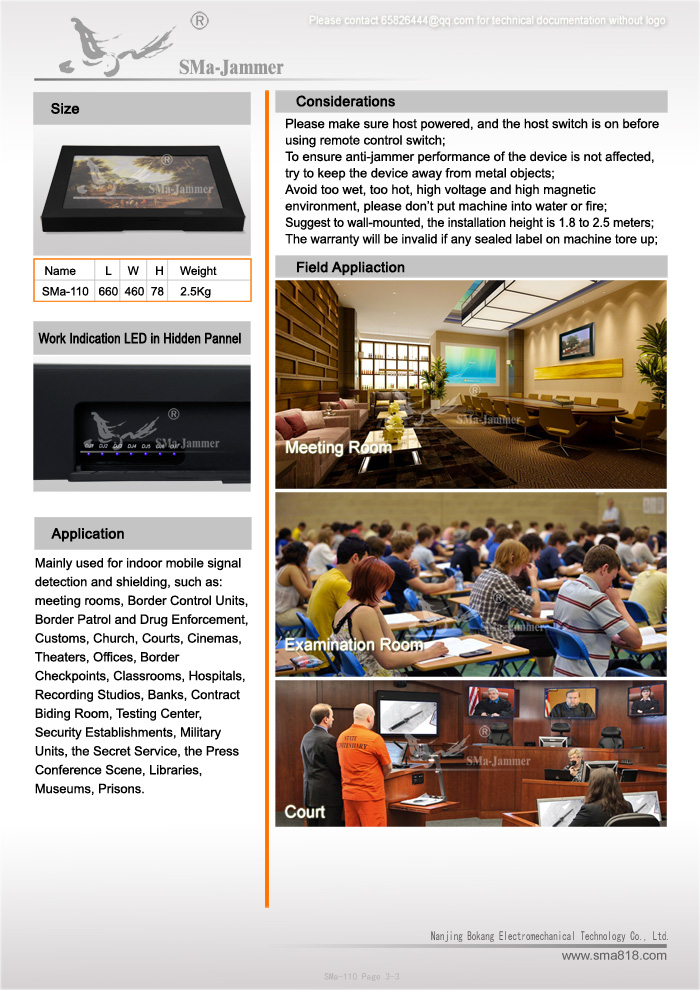

Considerations
Please make sure host powered, and the host switch is on before using remote control switch;
To ensure anti-jammer performance of the device, try to keep the device away from metal objects;
Avoid too wet, too hot, high voltage and high magnetic environment, please don’t put machine into water or fire;
Suggest to use wall-mounted, the recommended installation height is 1.8 to 2.5 meters;
The warranty will be invalid if any sealed label on the machine tore up;
Detailed Technical Parameter
|
Weight
|
2.5Kg
|
|
Size
|
660x460x78
|
|
Detection radius
|
1~25m(part of phone system up to 100m）
|
|
Shielding radius
|
1~50m
|
|
Detection sensitivity
|
-85dBm，30 grades optional, support software adjustment
|
|
Ripple in band
|
≤±1dB
|
|
Outband rejection
|
60dBc
|
|
Antenna type
|
Built-in、3dBi
|
|
Power input
|
110V/220V
|
|
Humidity/Temperature
|
5%~80%/-20℃~+70℃
|
|
Run mode
|
detecting-jamming-sleeping-cycling
|
|
Shielding time
|
0~300S(can set)、factory setting 100S
|
|
Continuous shielding time
|
250S(each second stepping
|
|
Detection time
|
0~60S(can set)、factory setting 20S
|
OEM Customized Service
Band can be customized according to American standards, National standards, or European standards (at most 7 bands simultaneously);
Provide Silkscreen OEM service for 5 sets or above;
Painting on the machine will send randomly if not required;
Neutral can be provided;
