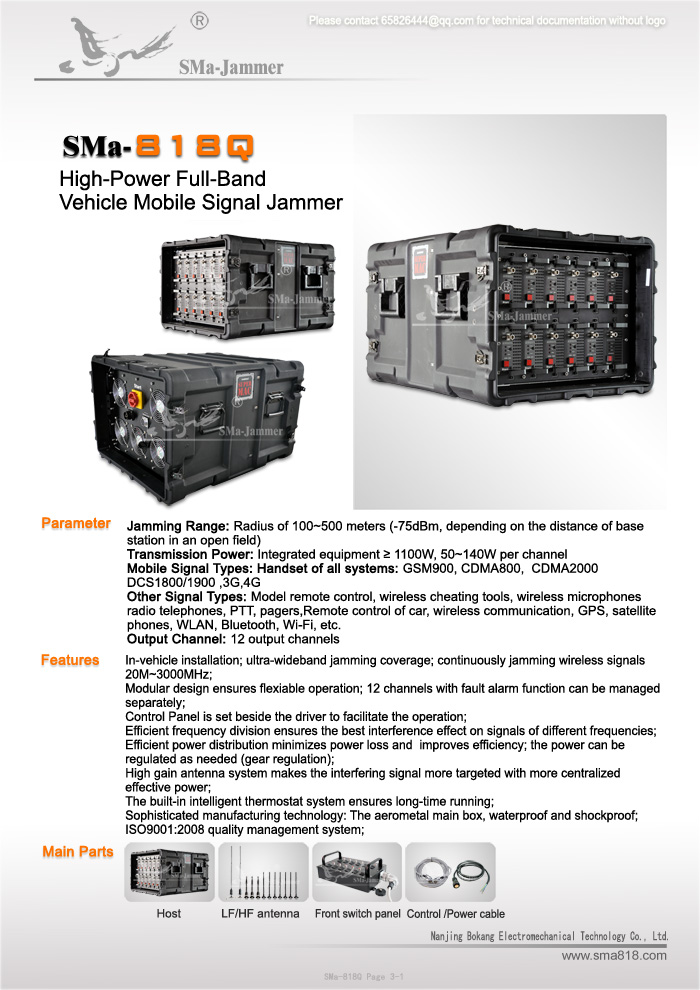

SMa-818Q High-Power Full-Band Vehicle Mobile Signal Jammer
Application
This high-power full-band vehicle mobile signal jammer is suitable to protect important area / VIP motorcades / anti-terrorism / EOD places.
Technical Parameter
A:Jamming Range: Radius of 100~500 meters (-75dBm, depending on the distance of base station in an open field)
B:Transmission Power: Integrated equipment ≥ 1100W, 50~140W per channel
C:Mobile Signal Types: Handset of all systems:GSM900,CDMA800,CDMA2000, DCS1800/1900,3G,4G
D:Other Signal Types: Model remote control, wireless cheating tools, wireless microphones, radio telephones, PTT, Pagers, Remote control of car, wireless communication, GPS, Satellite phones, WLAN, Bluetooth, Wi-Fi, etc.
E:Output Channel: 12 output channels
Features
In-vehicle installation; ultra-wideband jamming coverage; continuously jamming wireless signals 20M~3000MHz;
Modular design ensures flexible operation; 12 channels with fault alarm function can be managed separately;
Control Panel is set beside the driver to facilitate the operation;
Efficient frequency division ensures the best interference effect on signals of different frequencies;
Efficient power distribution minimizes power loss and improves efficiency; the power can be regulated as needed (gear regulation);
High gain antenna system makes the interfering signal more targeted with more centralized effective power;
The built-in intelligent thermostat system ensures long-time running;
Sophisticated manufacturing technology: The aerometal main box, waterproof and shockproof;
ISO9001:2008 quality management system certification;

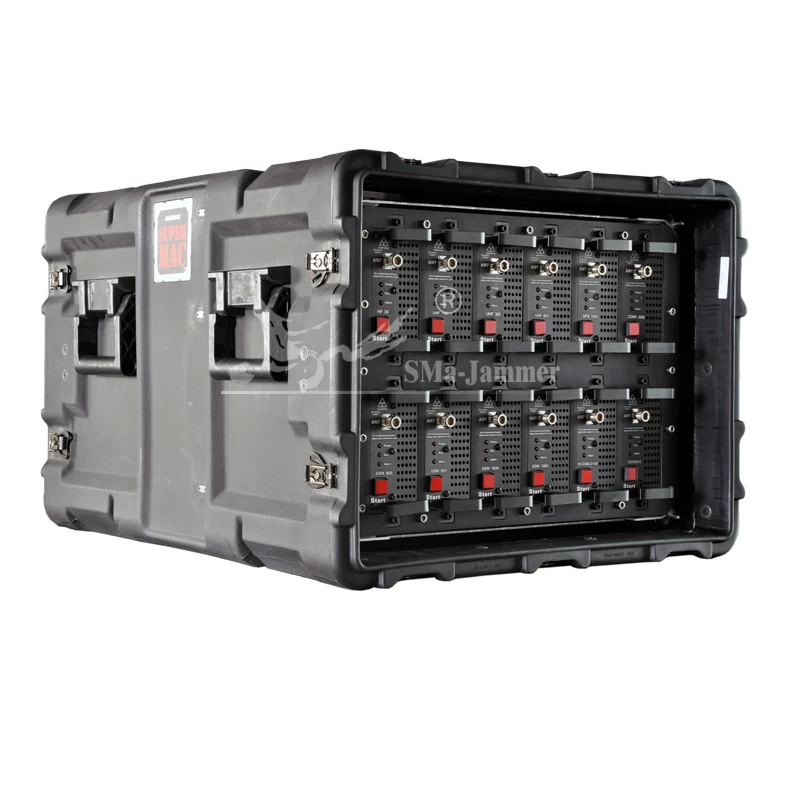

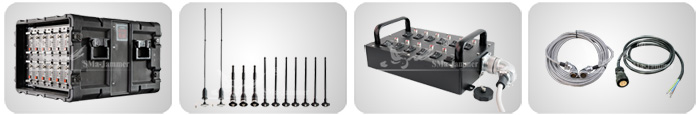

Main Parts
Host LF/HF Antenna Front Switch Panel Control/Power Cable

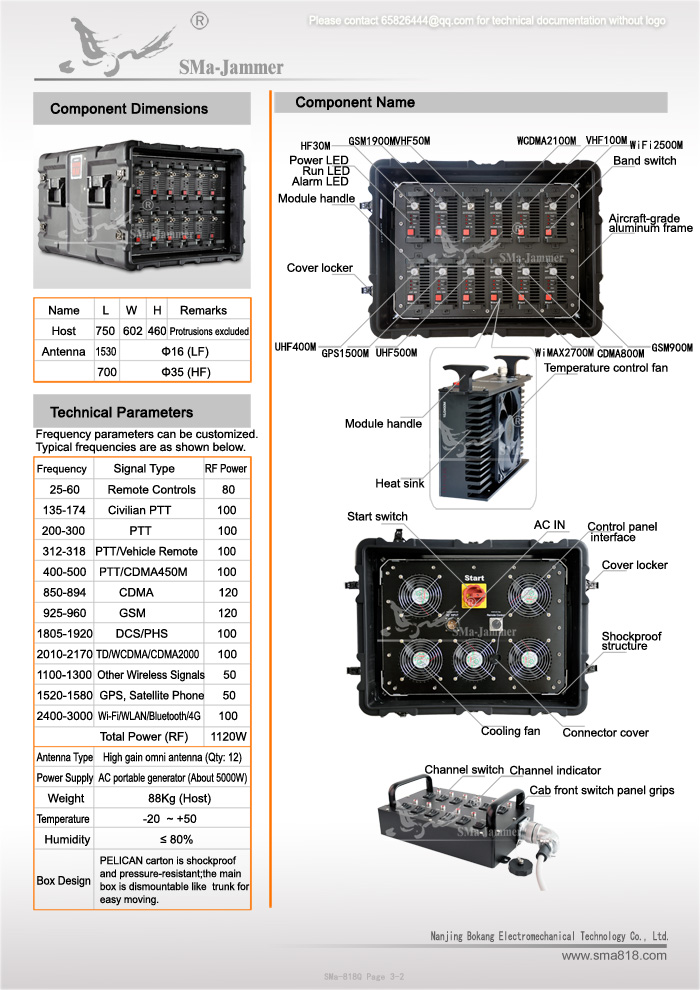

Detailed Parameters
Frequency parameters can be customized. Typical frequencies are as shown below
|
Band parameters
|
Channel
|
Frequency
|
RF Power
|
|
Remote Controls
|
25-60 MHz
|
80W
|
|
Civilian PTT
|
135-174 MHz
|
100W
|
|
PTT
|
200-300 MHz
|
100W
|
|
PTT/Vehicle Remote
|
312-318 MHz
|
100W
|
|
PTT/CDMA450M
|
400-500 MHz
|
100W
|
|
CDMA
|
850-894 MHz
|
120W
|
|
GSM
|
925-960 MHz
|
120W
|
|
DCS/PHS
|
1805-1920MHz
|
100W
|
|
TD /WCDMA/CDMA2000
|
2010-2170MHz
|
100W
|
|
Other Wireless Signals
|
1100-1300MHz
|
50W
|
|
GPS/Satellite Phone
|
1520-1580 MHz
|
50W
|
|
Wi-Fi/WLAN/Bluetooth/4G
|
2400-3000MHz
|
100W
|
|
Total Power (RF)
|
1120W
|
|
Total Weight
|
88Kg
|
|
Host size
|
750*602*460(Protrusions excluded)
|
|
Antenna size
|
Qty: 12 LF:1530 Φ16 HF:700 Φ35
|
|
Power Supply
|
AC portable generator (About 5000W)
|
|
Ambient Temperature
|
-20℃～50℃
|
|
Relative Humidity
|
≤80%
|
|
Antenna parameters
|
Omni antenna, gain: 7dBi
|
|

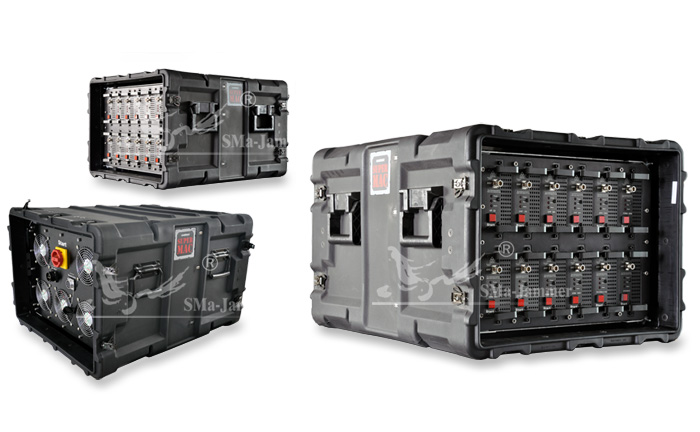

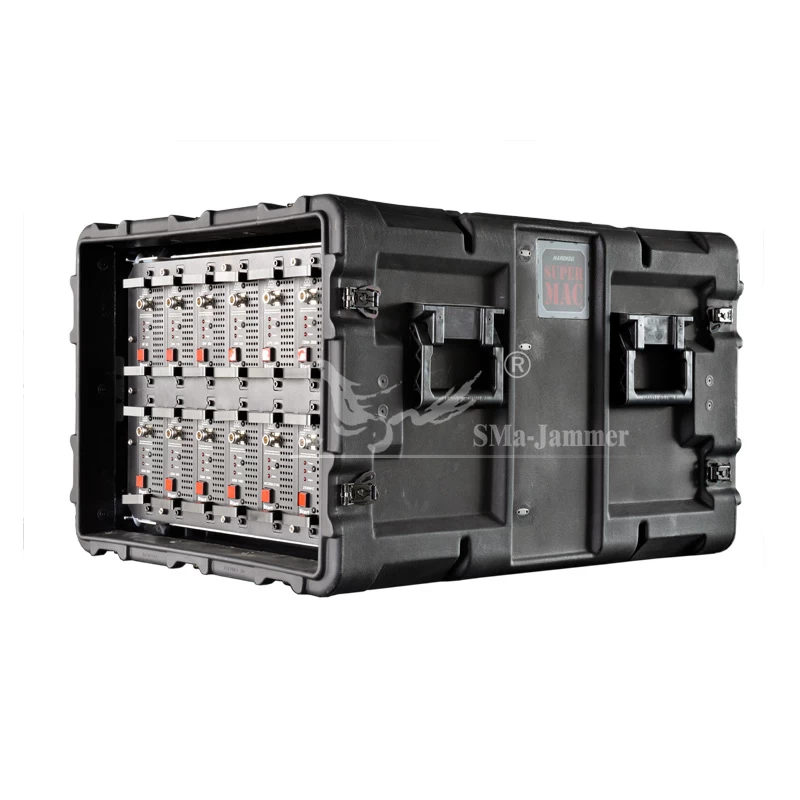

Box Design
|
PELICAN carton is shockproof and pressure-resistant;the main box is dismountable like trunk for easy moving.
|

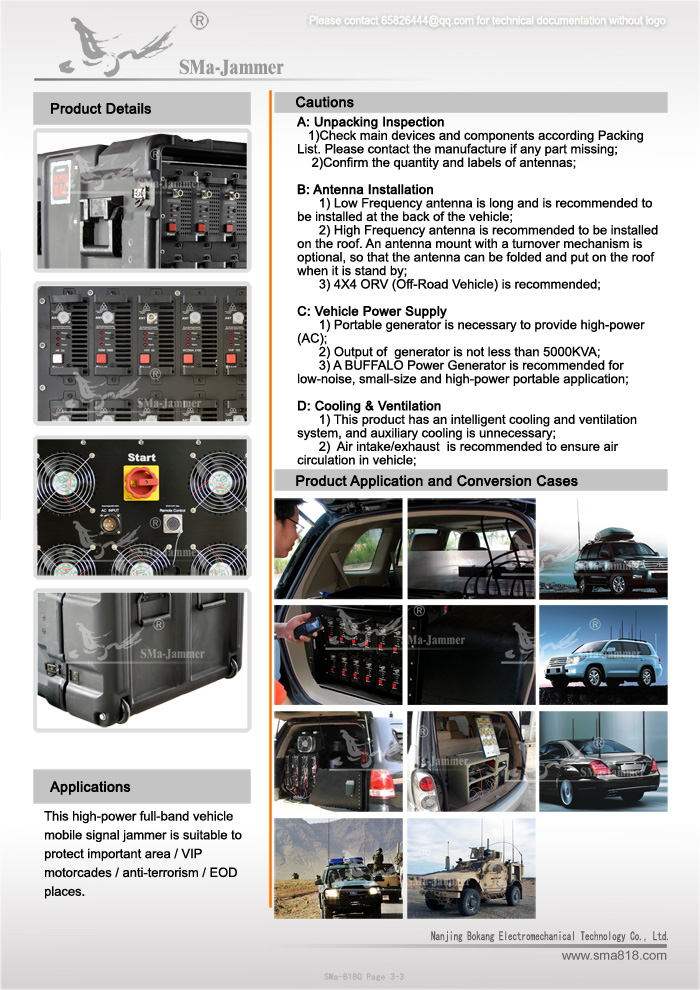

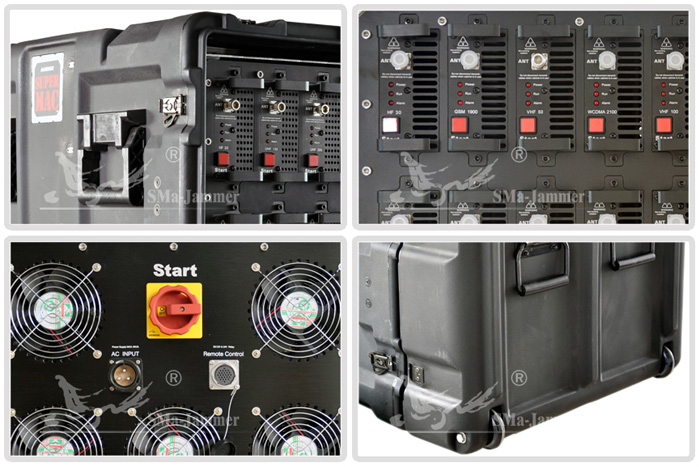

Product Details
Cautions
A: Unpacking Inspection
1） Check main devices and components according Packing List. Please contact the manufacture if any part missing.
2） Confirm the quantity and labels of antennas
B: Antenna Installation

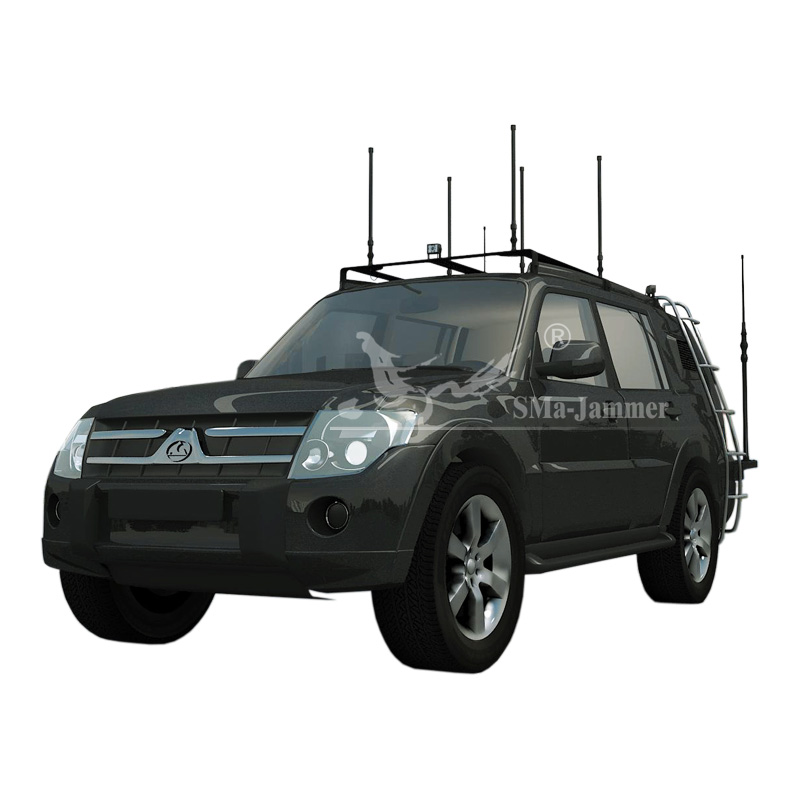

1） Low Frequency antenna is long and is recommended to be installed at the back of the vehicle.
2） High Frequency antenna is recommended to be installed on the roof. An antenna mount with a turnover mechanism is optional, so that the antenna can be folded and put on the roof when it is stand by.
3） 4X4 ORV (Off-Road Vehicle) is recommended.
C: Vehicle Power Supply
1） Portable generator is necessary to provide high-power (AC).
2） Output of generator is not less than 5000KVA.
3） A BUFFALO Power Generator is recommended for low-noise, small-size and high-power portable application.
D: Cooling & Ventilation
1） This product has an intelligent cooling and ventilation system, and auxiliary cooling is unnecessary.
2） Air intake/exhaust is recommended to ensure air circulation in vehicle.
OEM Customized Service
Silkscreen OEM service can be offered for five jammers or above.
Neutral jammers can be provided.
