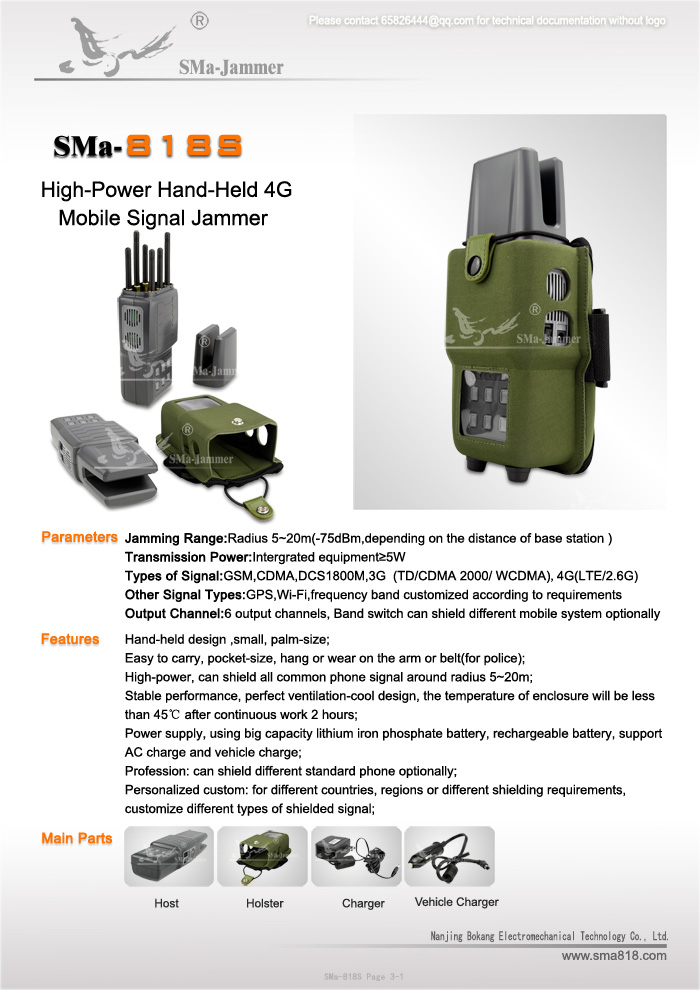

SMa-818S High-Power Hand-Held 4G Mobile Signal Jammer PDF clear version download
SMa-818S High-Power Hand-Held 4G Mobile Signal Jammer PDF clear version download
SMa-818S High-Power Hand-Held 4G Mobile Signal Jammer
Application
The high-power hand-held (2G/3G/4G full-band)mobile signal jammer, with characteristics of easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, Police, the Bomb Squad, the important protective task, S.W.A.T, military security forces, anti-terrorist units, anti-drug units, border control units, checkpoints, etc.
Want to possess the newest HandHeld Signal Jammer device to block the signals of the cell phone, WIFI and GPS? You can get more details about phone Signal Jammer from Bokang.
Technical Parameters
A:Jamming Range：Radius 5~20m(-75dBm,depending on the distance of base station in an open air)
B:Transmission Power: Integrated equipment≥5W
C:Types of Signal: GSM(Mobile/Unicom 2G),CDMA(Telecom),DCS (Mobile/Unicom1800M), 3G (Mobile TD/Telecom CDMA 2000/Unicom WCDMA), 4G (LTE/2.6G)
D:Other Signal Types: GPS, Wi-Fi, frequency band customized according to national standard/American standard/Europe standard
E:Output Channel:6 output channel, with band switch, can shield different mobile system optionally
Features
Hand-held design ,small, palm-size;
Easy to carry, pocket-size, hang or wear on the arm or belt(for police);
High-power, can shield all common phone signal around radius 5~20m;
Stable performance, perfect ventilation-cool design, the temperature of enclosure will be less than 45℃ after continuous work 2 hours;
Power supply, using big capacity lithium iron phosphate battery, rechargeable battery, support AC charge and vehicle charge;
Profession: can shield different standard phone optionally;
Personalized custom: for different countries, regions or different shielding requirements, customize different types of shielded signal;

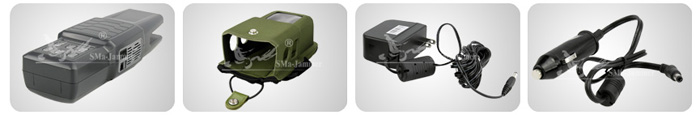

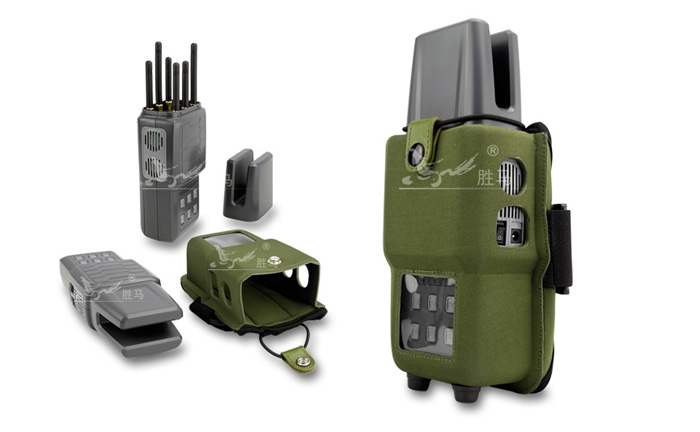

Main Parts
Host Holster Charger Vehicle Charger

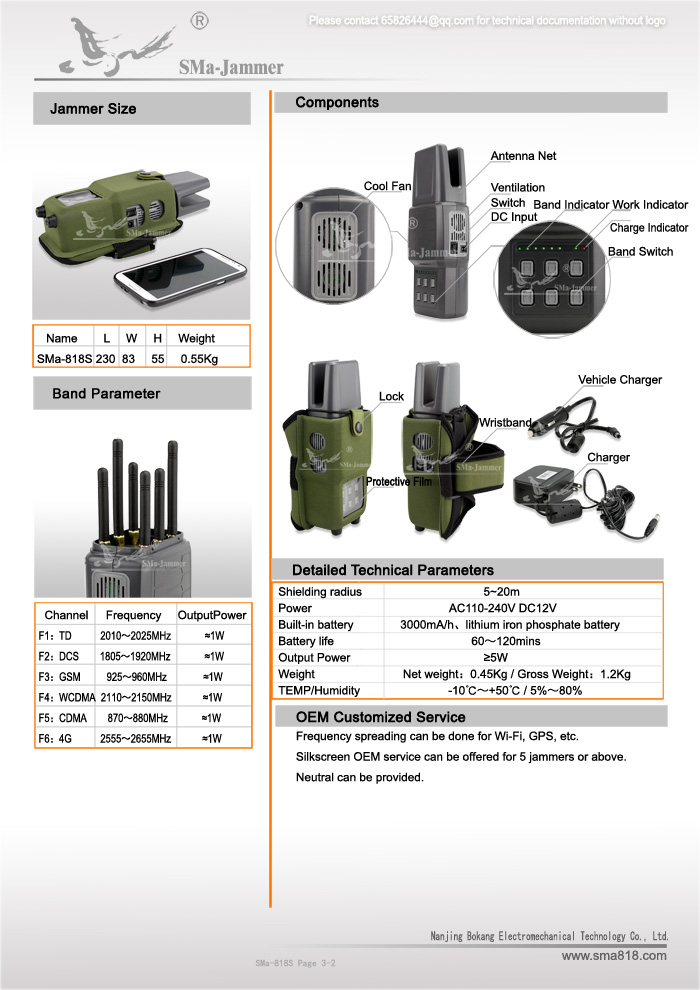

Detailed Technical Parameters
|
Band Parameter
|
Channel
|
Frequency
|
Average output power
|
|
F1:TD
|
2010~2025MHz
|
≈1W
|
|
F2:DCS
|
1805~1920MHz
|
≈1W
|
|
F3:GSM
|
925~960MHz
|
≈1W
|
|
F4:WCDMA
|
2110~2150MHz
|
≈1W
|
|
F5:CDMA
|
870~880MHz
|
≈1W
|
|
F6:4G
|
2555~2655MHz
|
≈1W
|
|
Size
|
230*83*55
|
|
Weight
|
Net weight：0.45Kg/gross weight：1.2Kg
|
|
Shielding radius
|
5~20m（-75dBm、depending on the distance of base station in an open air）
|
|
Power
|
AC 110-240V，DC 12V
|
|
Built-in battery
|
3000mA/h, lithium iron phosphate battery
|
|
Battery life
|
60~120mins
|
|
Output power
|
≥5W
|
|
Temperature
|
-10℃~+50℃
|
|
Humidity
|
5%~80%
|

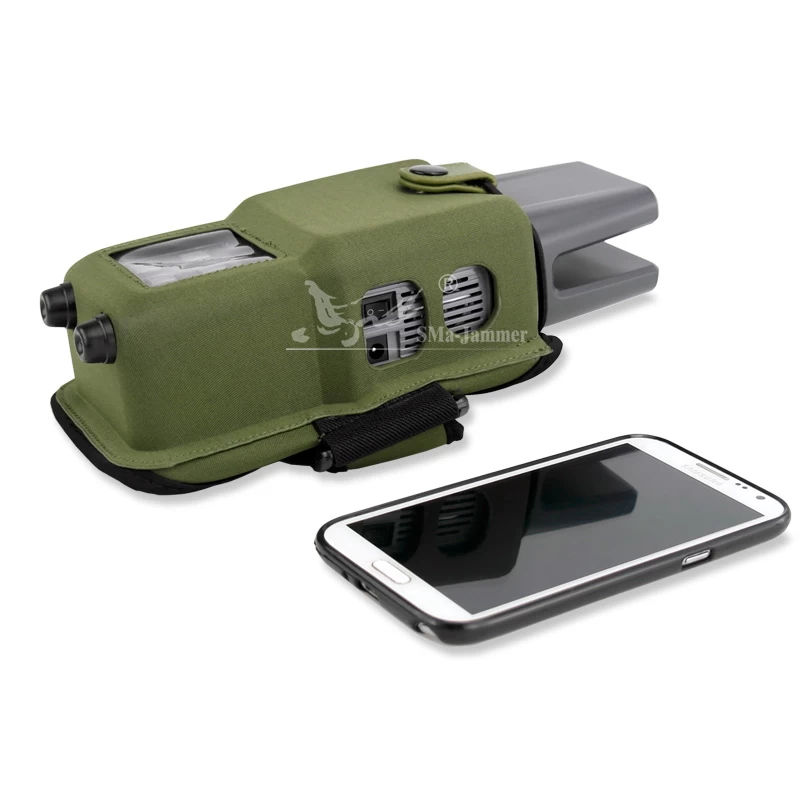

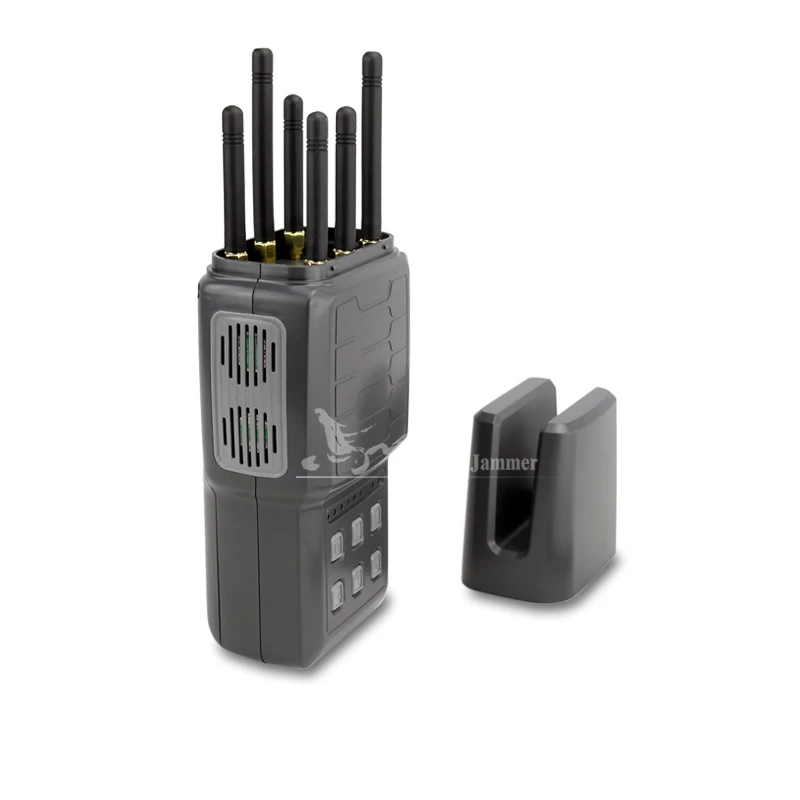

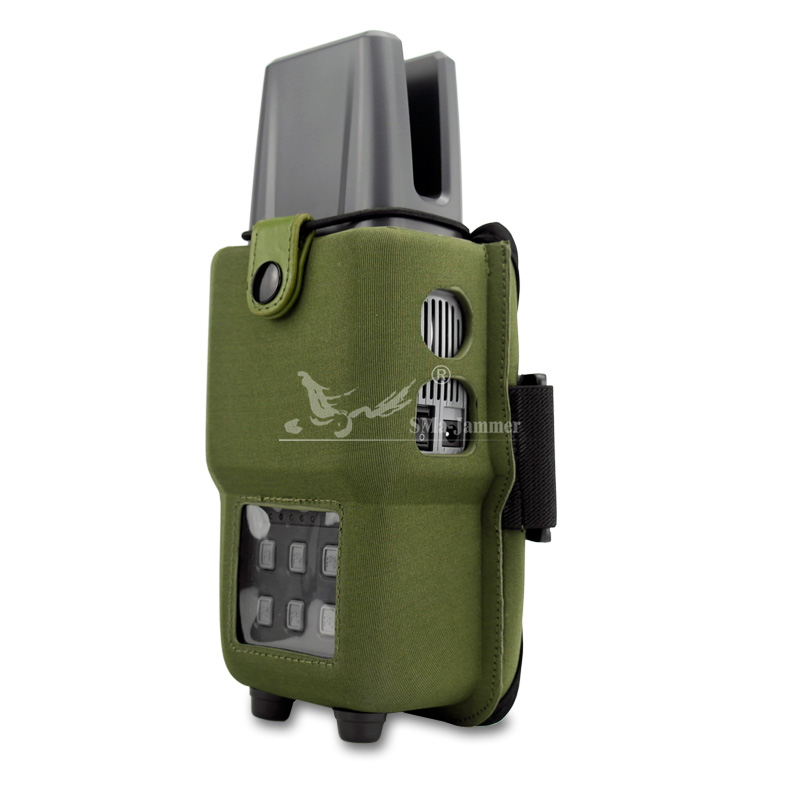

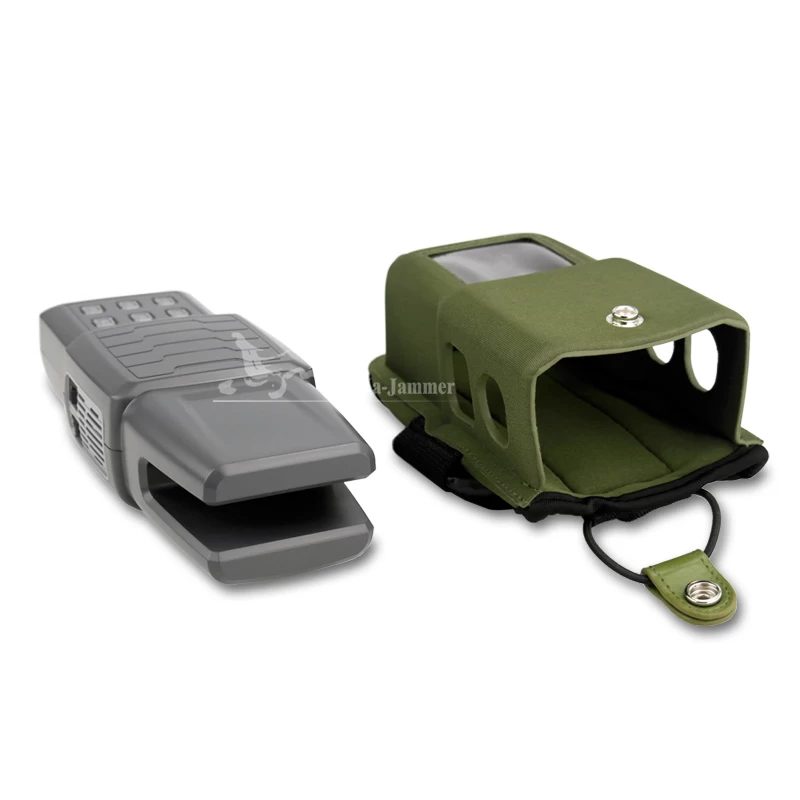

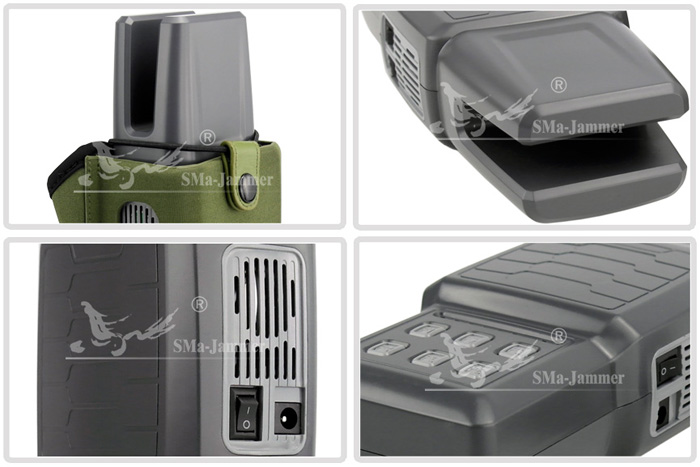

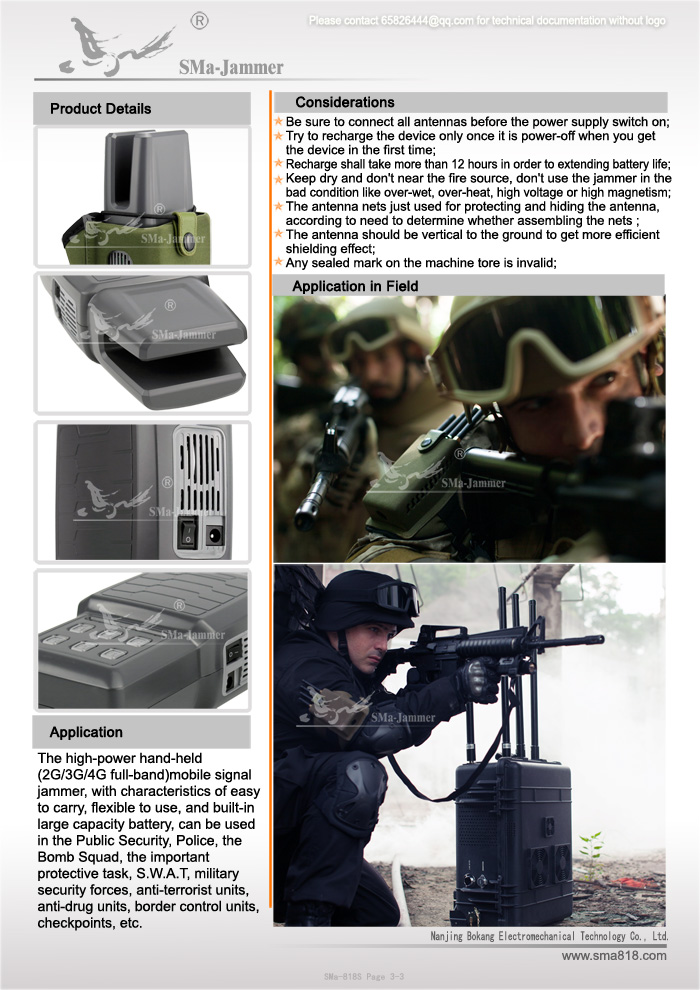

Product Details
Considerations of using signal detective jammer;
Be sure to connect all antennas before the power supply switch on;
Try to recharge the device only once it is power-off when you get the device in the first time;
Recharge shall take no less than 12 hours in order to extending battery life;
Keep dry and don't near the fire source, don't use the jammer in the bad condition of wet, heat, high voltage or high magnetism;
The antenna nets just used for protecting and hiding the antenna, according to need to determine whether assembling the nets;
The antenna should be vertical to the ground to get more efficient shielding effect;
Any sealed mark on the machine tore is valid;
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, or customized for special frequency band, etc.
Silkscreen OEM service can be offered for 5 jammers or above.
Neutral can be provided.
Application in Field
