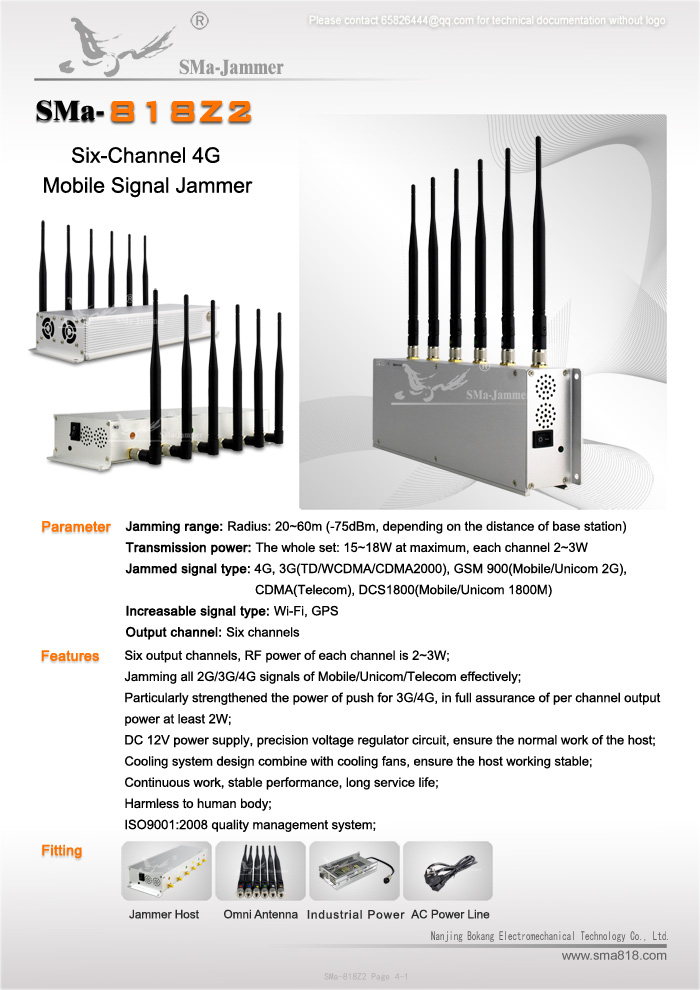

SMa-818Z2 Six-Channel 4G Mobile Signal Jammer
Application
Widely used in the Justice Sector(Prisons, detention centers, labor camp, police, courts, prosecutors);the Education Industry(School examination room, classrooms, dormitories, various social test sites, education and training institutions); Government agencies, administrative institutions meeting rooms; Factories and enterprises warehouses, workshops, production lines; Forces and confidential units, theaters, concert halls, memorial halls ,etc.
Technical Parameters
A:Jamming range: Radius: 20~60m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 15~18W at maximum, each channel 2~3W
C:Jammed signal type: 4G, 3G(TD/WCDMA/CDMA2000), GSM 900(Mobile/Unicom 2G), CDMA(Telecom), DCS1800(Mobile/Unicom 1800M)
D:Increasable signal type: Wi-Fi, GPS
E:Output channel: Six channels
Features
Six output channels, RF power of each channel is 2~3W;
Jamming all 2G/3G/4G signals of Mobile/Unicom/Telecom effectively;
Particularly strengthened the power of push for 3G/4G, in full assurance of per channel output power at least 2W;
DC 12V power supply, precision voltage regulator circuit, ensure the normal work of the host;
Cooling system design combine with cooling fans, ensure the host working stable;
Continuous work, stable performance, long service life;
Harmless to human body;
ISO9001:2008 quality management system;

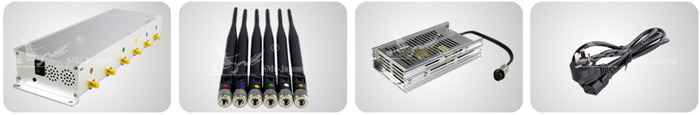

Main Parts
Jammer Host Omni Antenna Industrial Power Switch AC Power Line

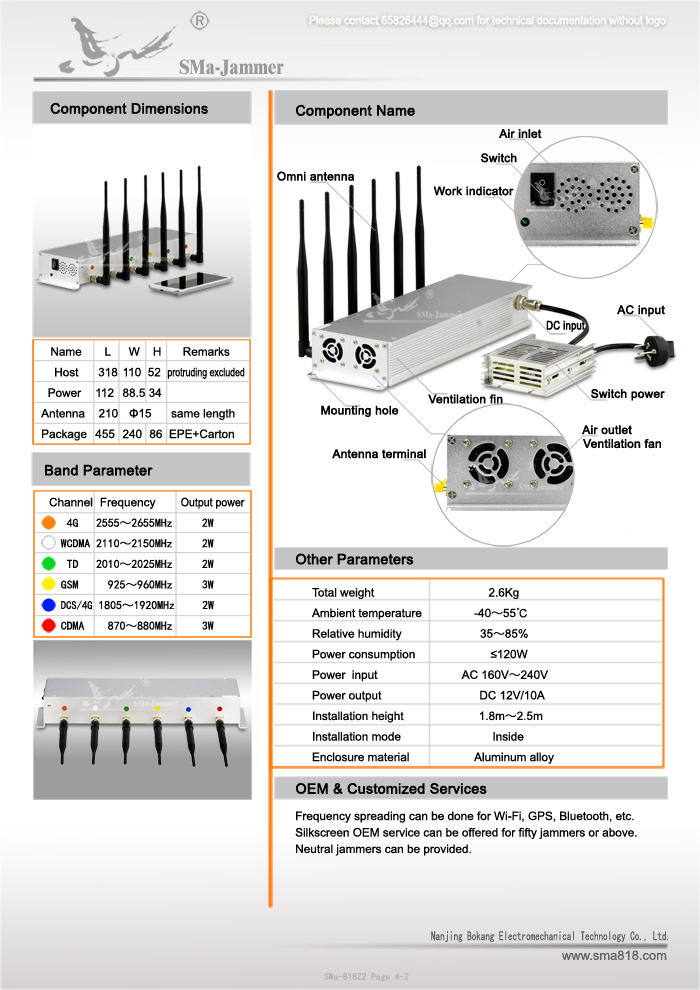

Detailed Technical Parameter
|
Band parameter
|
Channel
|
Operating frequency
|
Average output power
|
|
4G
|
2555~2655MHz
|
2W
|
|
WCDMA
|
2110~2150MHz
|
2W
|
|
TD
|
2010~2025MHz
|
2W
|
|
GSM
|
925~960MHz
|
3W
|
|
DCS/4G
|
1805~1920MHz
|
2W
|
|
CDMA
|
870~880MHz
|
3W
|
|
Host size
|
318*110*52(protruding excluded)
|
|
Power size
|
112*88.5*34
|
|
Antenna size
|
210*Ф15(same length)
|
|
Package size
|
455*240*86(EPE+Carton)
|
|
Whole weight
|
2.6Kg
|
|
Ambient temperature
|
-40℃~55℃
|
|
Relative humidity
|
35~85%
|
|
Power consumption
|
≤120W
|
|
Power input
|
AC 160V~240V
|
|
Power output
|
DC 12V/10A
|
|
Installation height
|
1.8m~2.5m
|
|
Installation mode
|
Inside
|
|
Enclosure material
|
Aluminum alloy
|

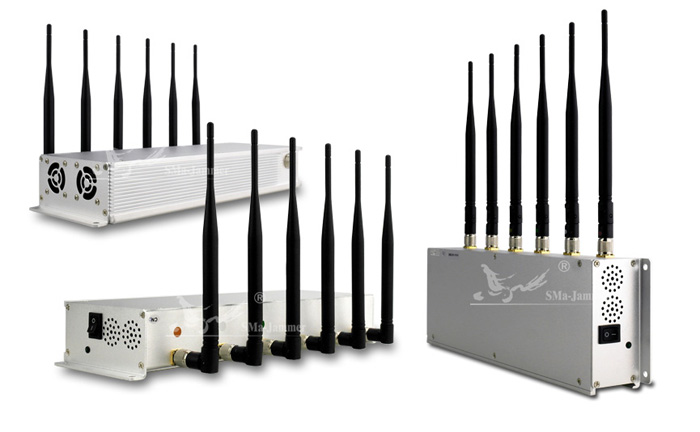

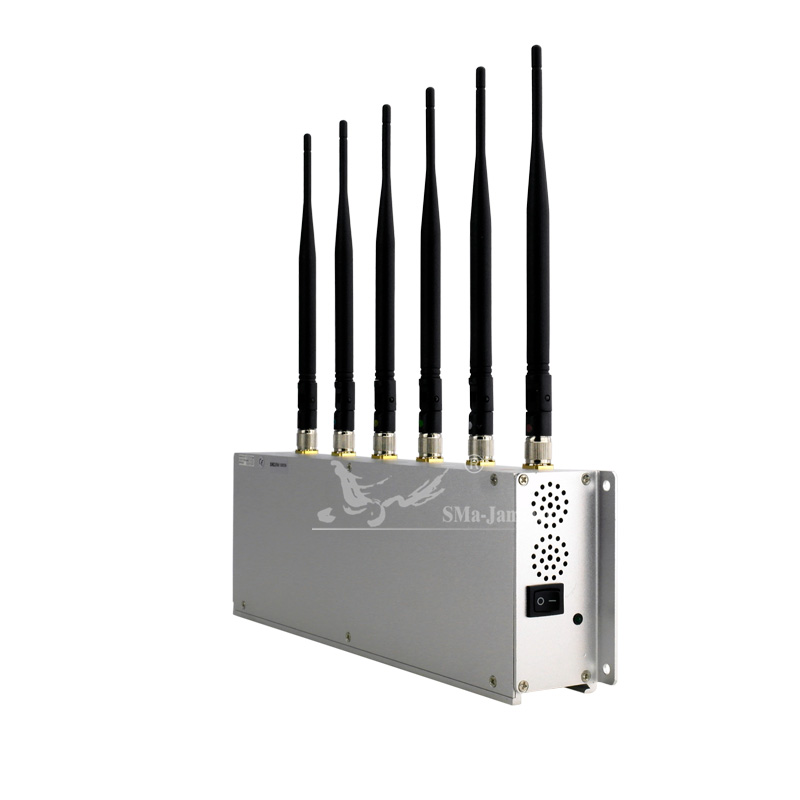

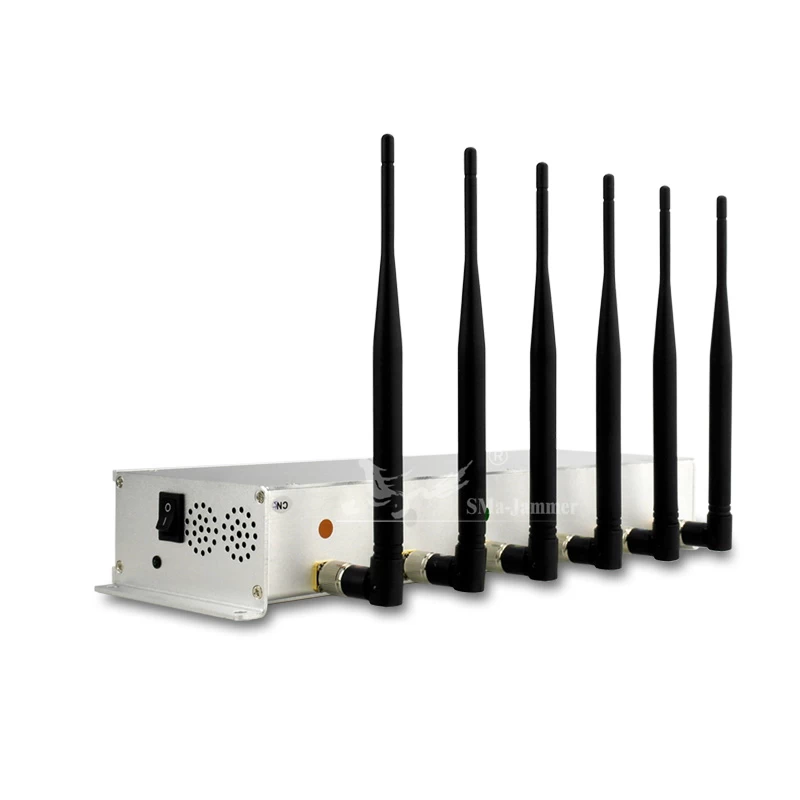

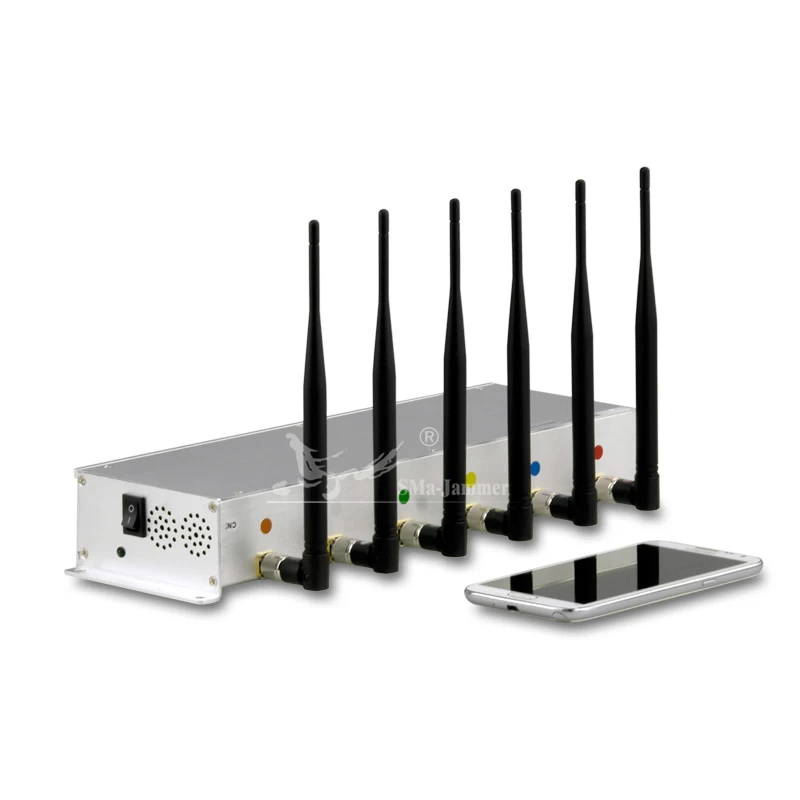

Product Details
Considerations
Jamming range is closely related to the signal strength in the field and may be affected by the system of mobile phone;
Factors that affect jamming range include but not limited to: distance of base station, jammer’s orientation, obstacles, wall’s material quality, jammer’s installation height and mode, etc;
The surface temperature is about 40-50℃ after working a long time. If it is too high, turn the power off, and try to contact your local distributor or dealer;
Band label on each antenna must match those on the jammer. Antennas must be connected before starting up the jammer;
Installation height is recommended to be 1.8 to 2.5 meters. Install in areas with no obstructions between the target positions. Antenna must be vertical, or antenna is vertical upright on the desktop after breaking off 90 degree, make sure no AC power lines or other audio and video line around antenna in range of 0.2 meters;
In order to avoid possible interference with some electronic devices during use, keep the following common device away from 1 to 2 meters: audio, wireless microphones, radios, computers, TV, Wi-Fi routers, etc.;

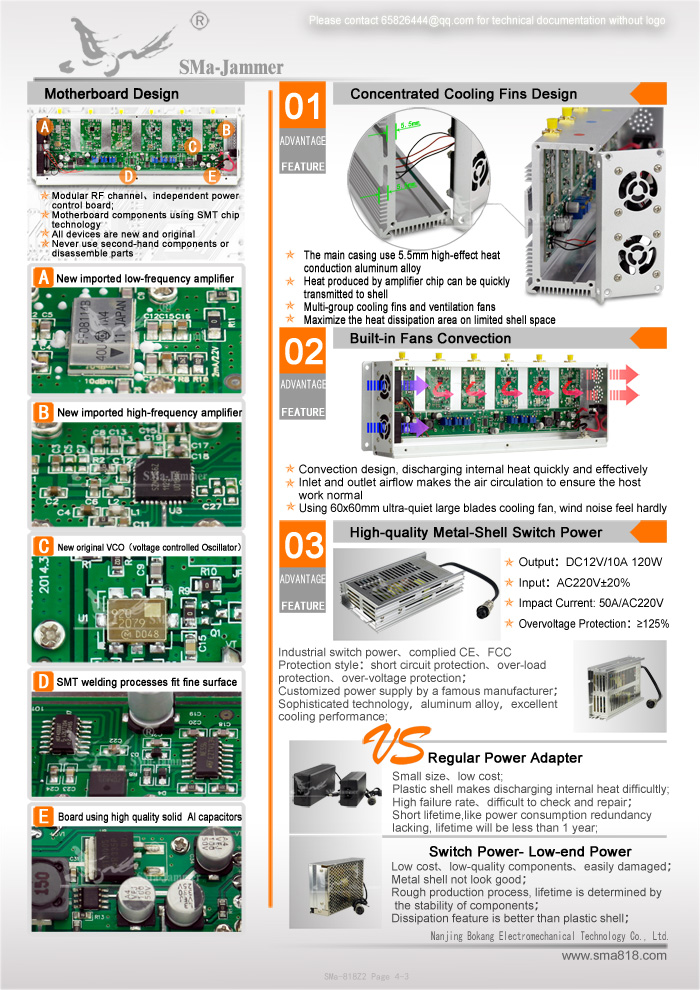

Advantages

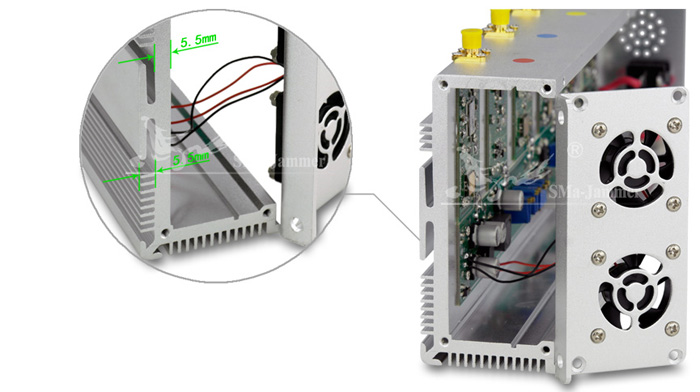

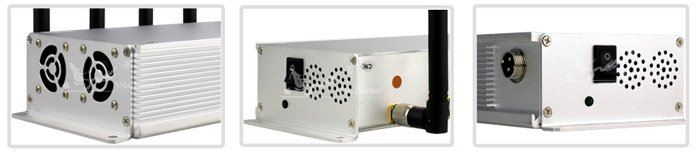

1、 Thick casing, concentrated cooling fins structure design
The main casing use 5.5mm high-effect heat conduction aluminum alloy
Heat produced by amplifier chip can be quickly transmitted to shell
Multi-group cooling fins and ventilation fans
Maximize the heat dissipation area on limited shell space

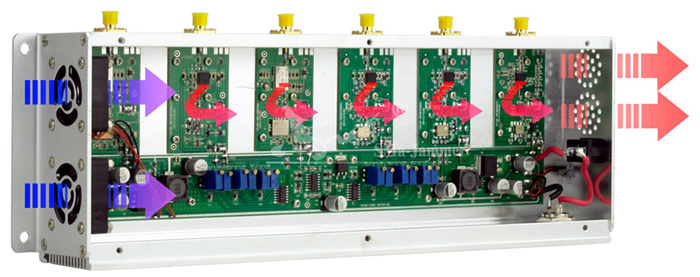

2、 Built-in fan convection
3、High-quality metal shell switch power
|
|
Industrial switch power、complied CE、FCC
Protection style:short circuit protection、over-load protection、voltage protection;
Customized power supply by a famous power production manufacturer;Sophisticated technology,aluminum alloy,excellent cooling performance;
Power input：AC 220V±20%;
Power output：120W；
Impact current：50A/AC220V;
Over-voltage protection：≥125%>;
|
|
|
|
|
Regular power adapter:
Small size、low cost;
Plastic shell overall package、discharging internal heat difficultly;
High failure rate、difficult to check and repair;
Short lifetime、like power consumption redundancy lacking, lifetime will be less than 1 year;
|
|
|
Switch power- low-end power supply:
Low cost、low-quality components、easily damaged;
Metal shell not look good;
Rough production process, lifetime is determined by the stability of components
Dissipation feature is better than plastic shell;
|

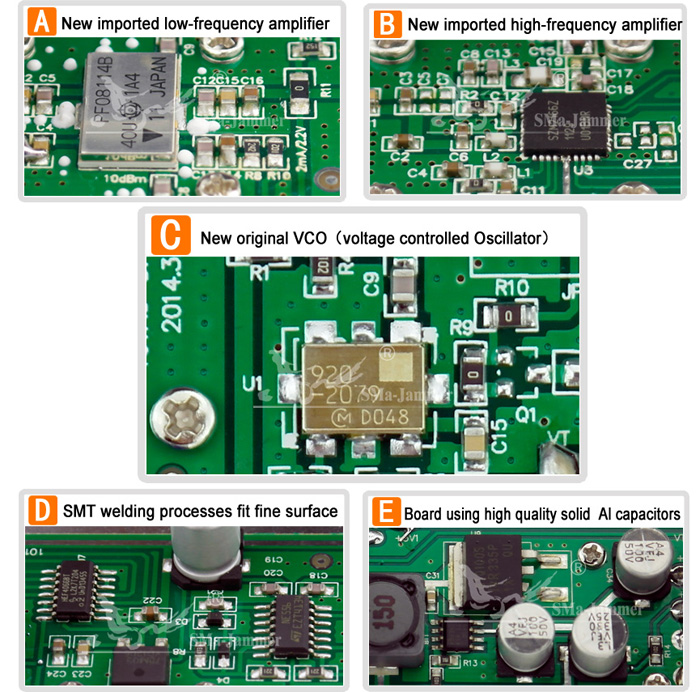

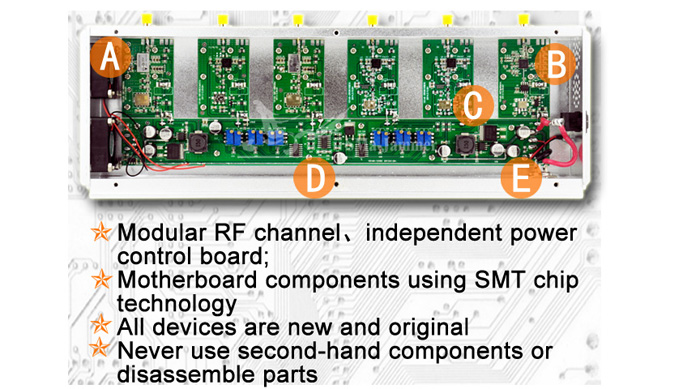

Motherboard Design
OEM Customized Service
Frequency spreading can be done for Wi-Fi, GPS, Bluetooth, etc.
More than 50 units can provide screen printing OEM service.
Can provide neutral device.

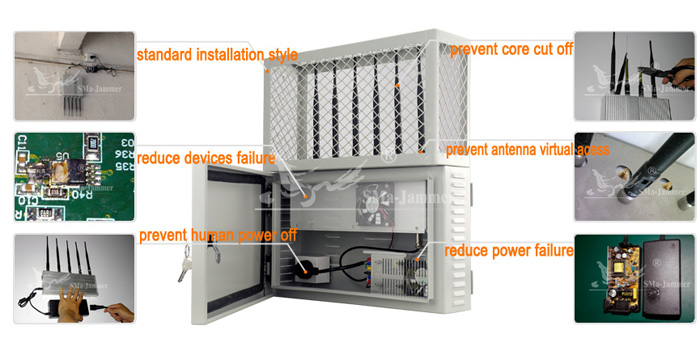

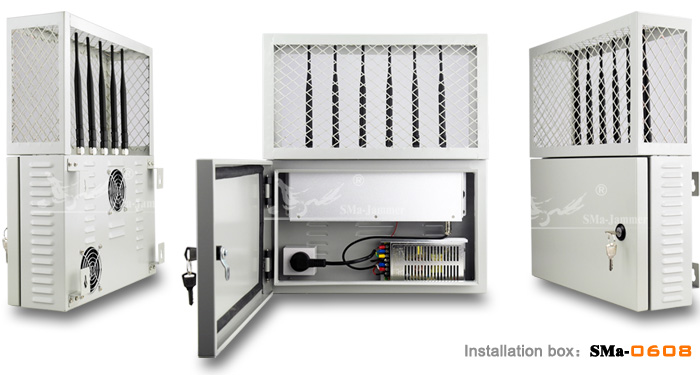

Recommended Installation Box
In engineering applications, with wall-mounted, it is recommended elect SMa-0608-type-specific installation box
antenna with protective nets to prevent vandalism;
2 fans respectively cooling the host and the power;
drip hole shaped hanging piece, easy to fix and wall mounting;
waterproof design, available to outdoor environment;
case rugged durability, 1mm steel plate bending, welding overall spray;

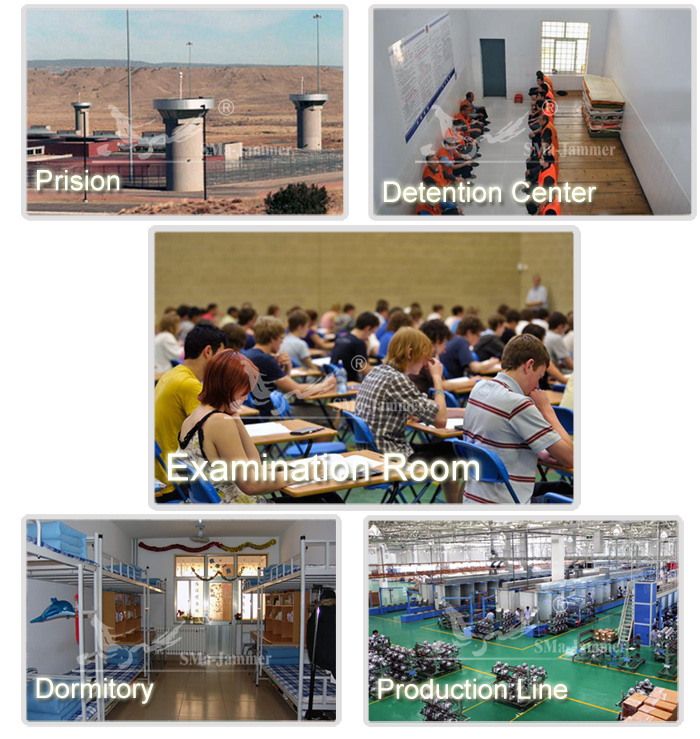

Field Application

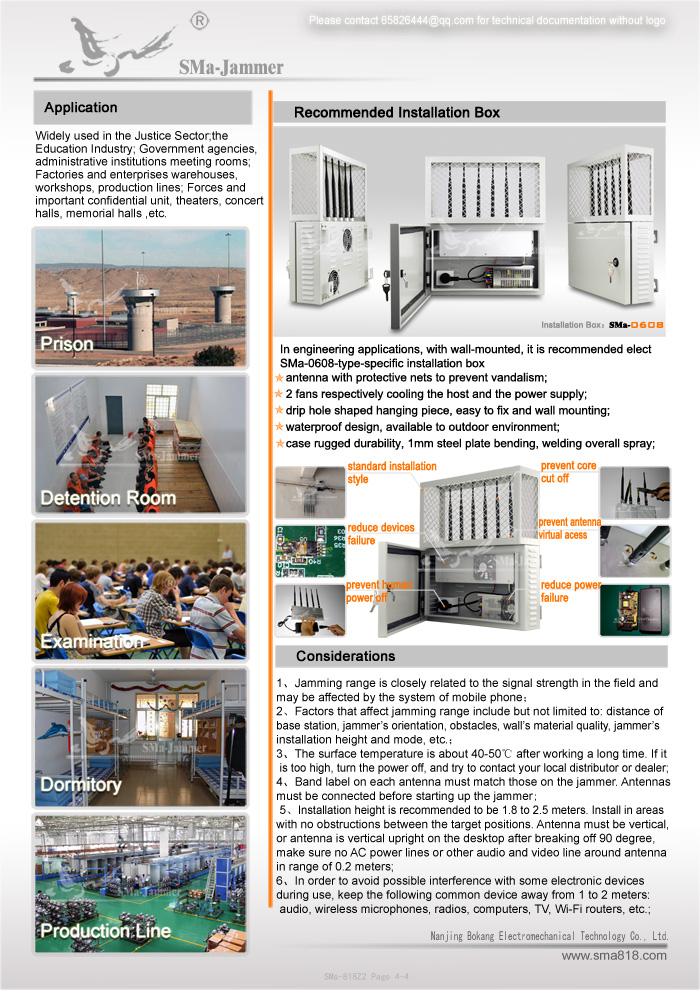

SMa-818Z2 Six-Channel 4G Mobile Signal Jammer PDF clear version download
And we also can supply Inside Mobile Jammer services for you, wish to pleasant cooperation.
