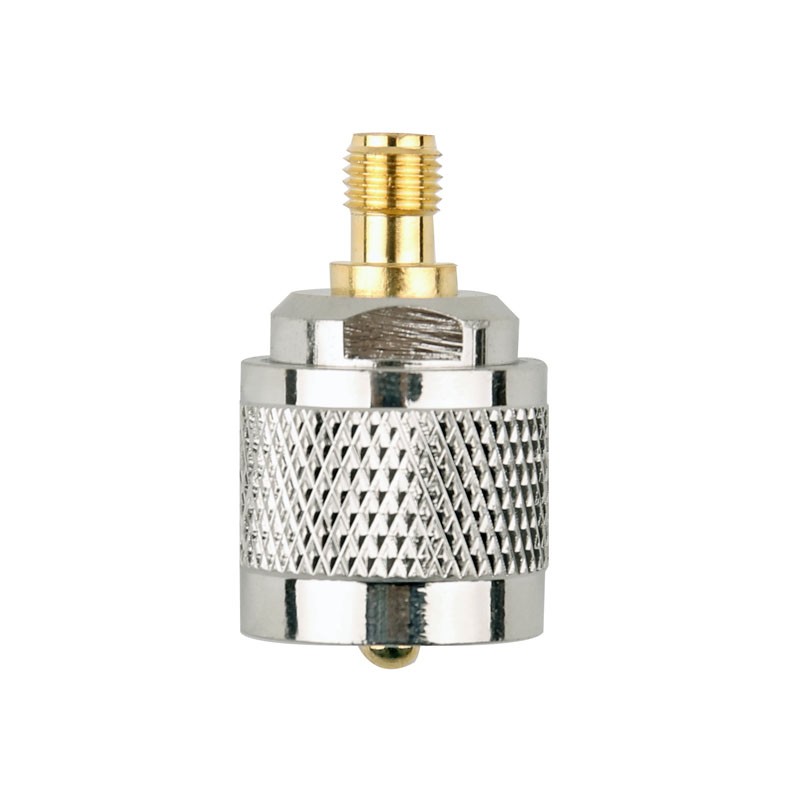

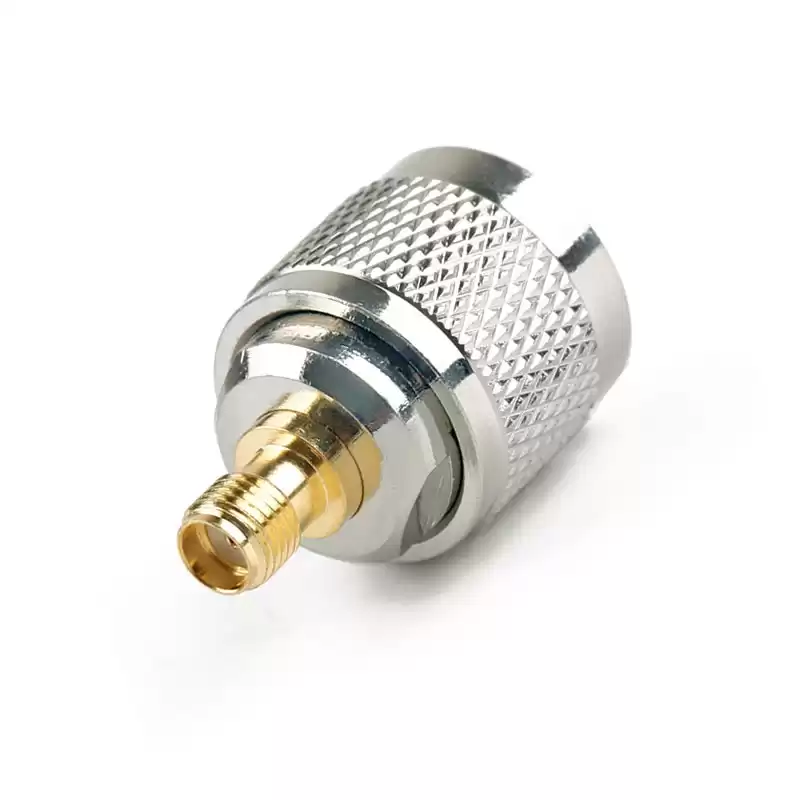

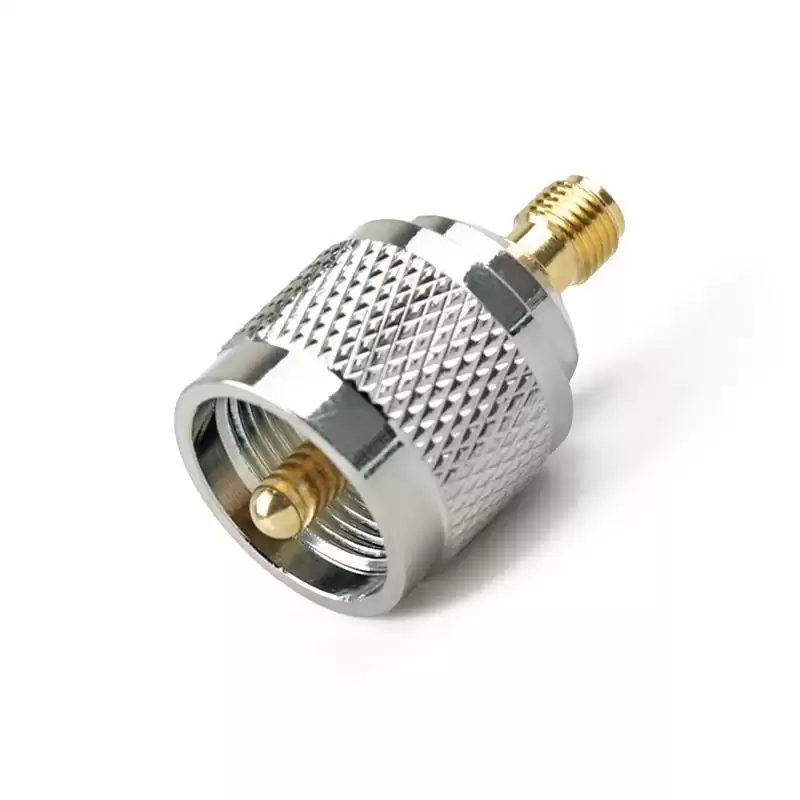

SMA Female to UHF Male PL259 Straight RF Connector Adapter
The SMA Adapter has different SMA to UHF adapter gender. that is between a series coaxial adapter, The SMA to UHF adapters has female to female, male to female or male to male gender. This SMA female to UHF male adapter has a maximum frequency of 300MHz, and is a straight body adapter.
Specifications
| ELECTRICAL DATA |
|
| Adapter Side 1 Series |
SMA |
| Adapter Side 1 Style |
Female |
| Adapter Side 2 Series |
UHF |
| Adapter Side 2 Style |
Male |
| Frequency (Max MHz) |
300 |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Orientation |
Straight |
| Temp (Max Degrees Celsius) |
165 |
| Temp (Min Degrees Celsius) |
-65 |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- 5G Solutions
- Measurement Systems
- Civil & Military Aeronautics
- Microwave Systems Telecommunications
- Mobile Telephone WiFi Antennas Systems
- Military Equipment, Space
