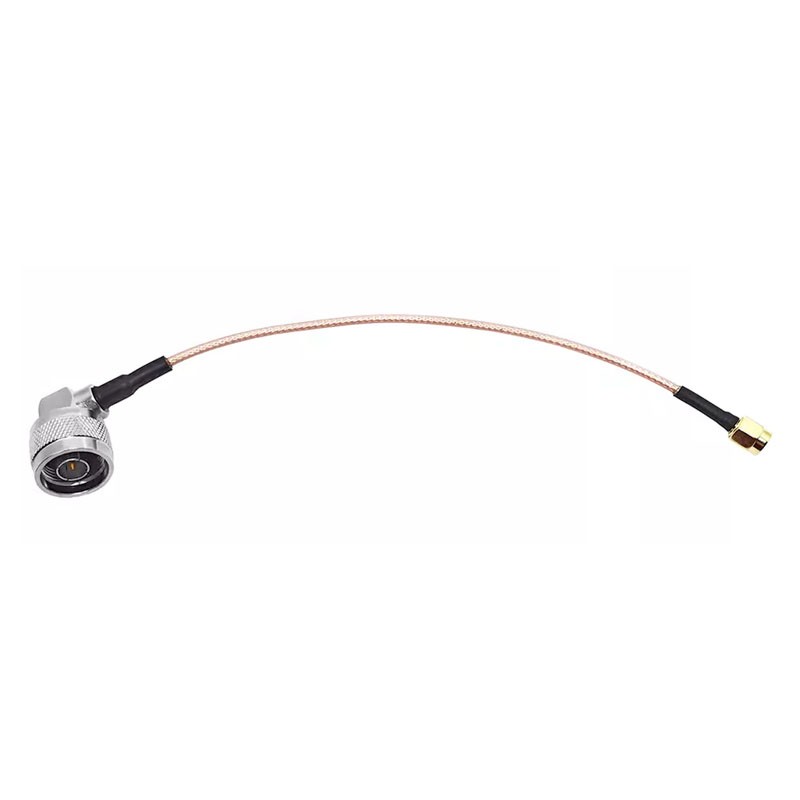

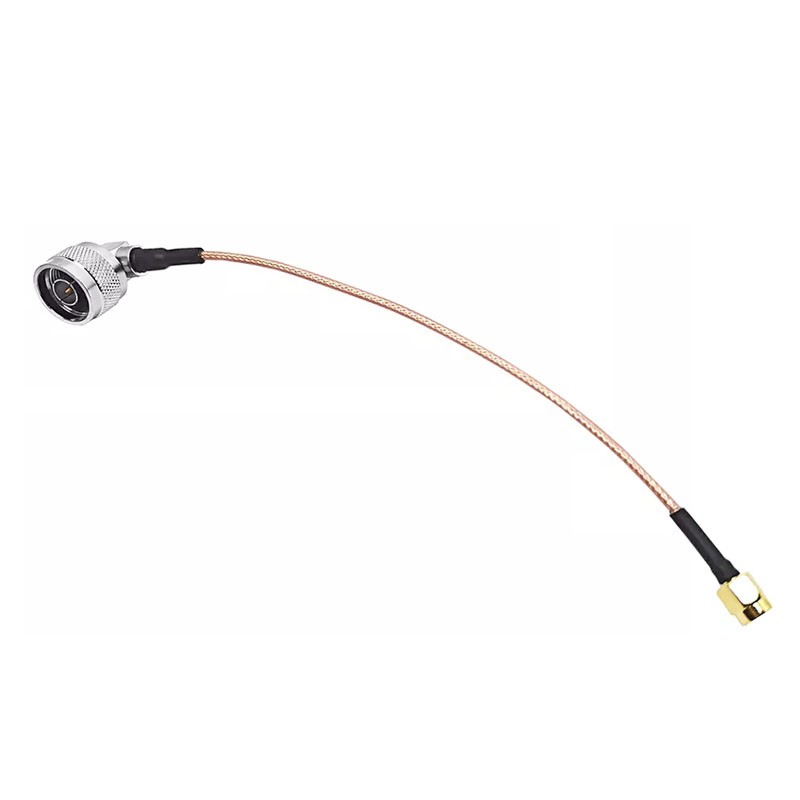

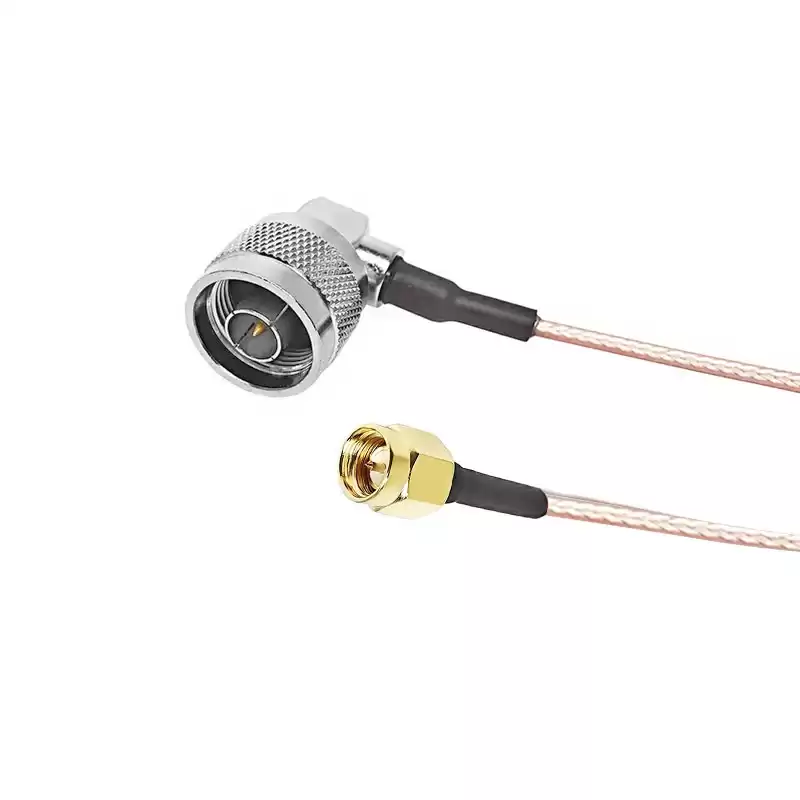

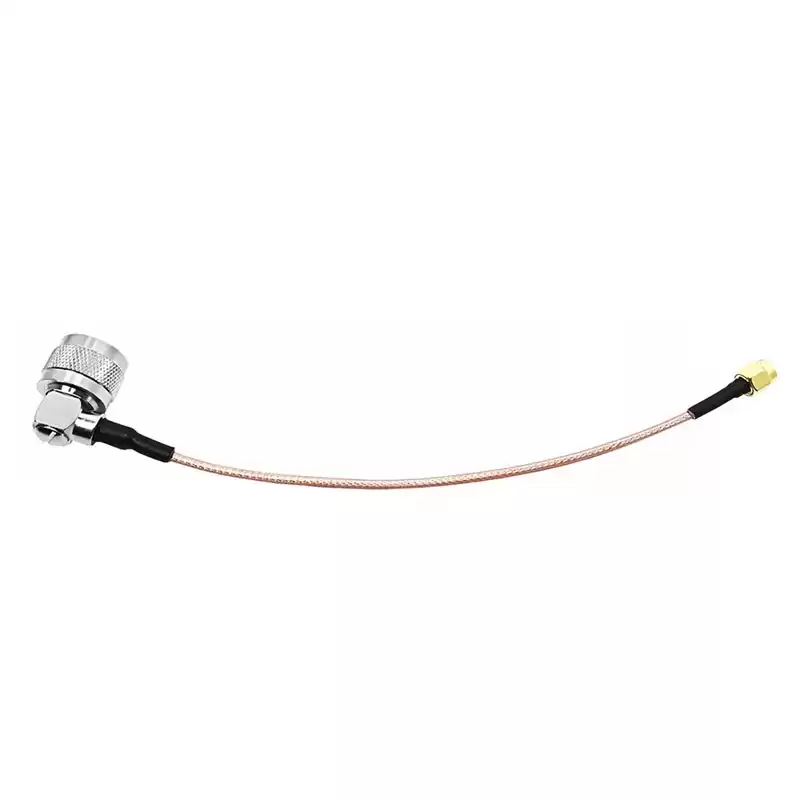

SMA Male to N Male Right Angle Coaxial Connector Cable Assembly with RG142 Cable
The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to N cable assembly is right angle or straight connectors which is female to female, male to to female, female to to male or male to male gender. This SMA male to N male cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight N type for connector 2, Cable is 50ohm RG142.
Specifications
| ELECTRICAL DATA |
|
| Connector 1 Series |
SMA |
| Connector 1 Style |
Str Male |
| Cable Type |
RG142 |
| Connector 2 Series |
N Type |
| Connector 2 Style |
Str Male |
| Contact Termination |
Solder |
| Shield Termination |
Crimp |
| Impedance (Ohms) |
50 |
| Low PIM |
No |
| Max Frequency |
6GHz |
| Working Temperature |
-65°C to +165°C |
| MATERIAL DATA |
|
Body Material
|
Brass |
Body Finish
|
Nickel/Ternary alloy |
Contact Material
|
Phosphor Bronze/Beryllium Copper |
Contact Finish
|
Gold/Silver |
| Insulator Material |
PTFE |
Applications
- Used as an RF Test Probe to 6 GHz
- RF PCB board measurements
- Signal injection
