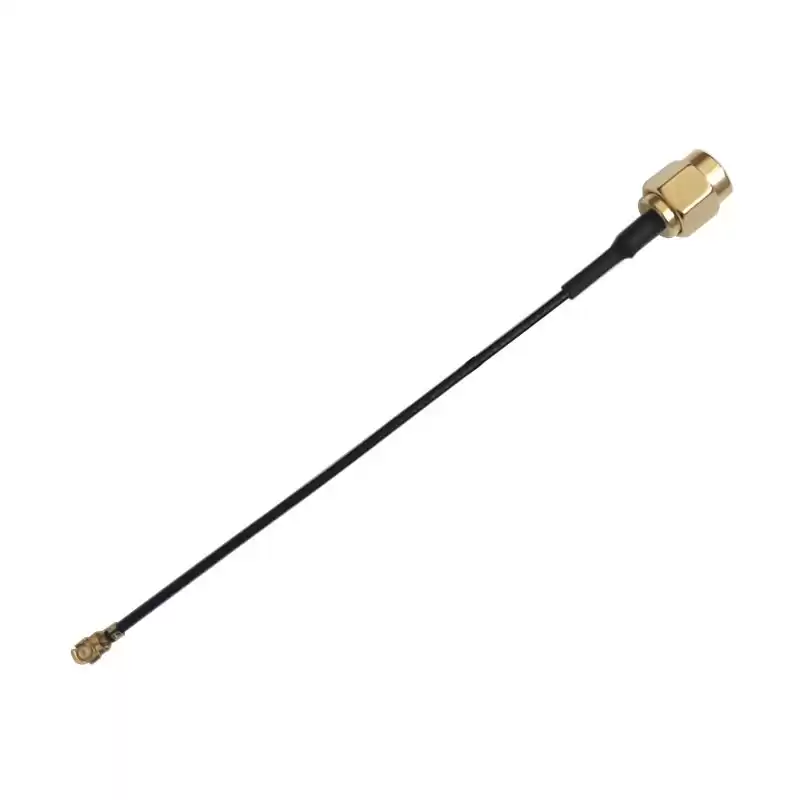

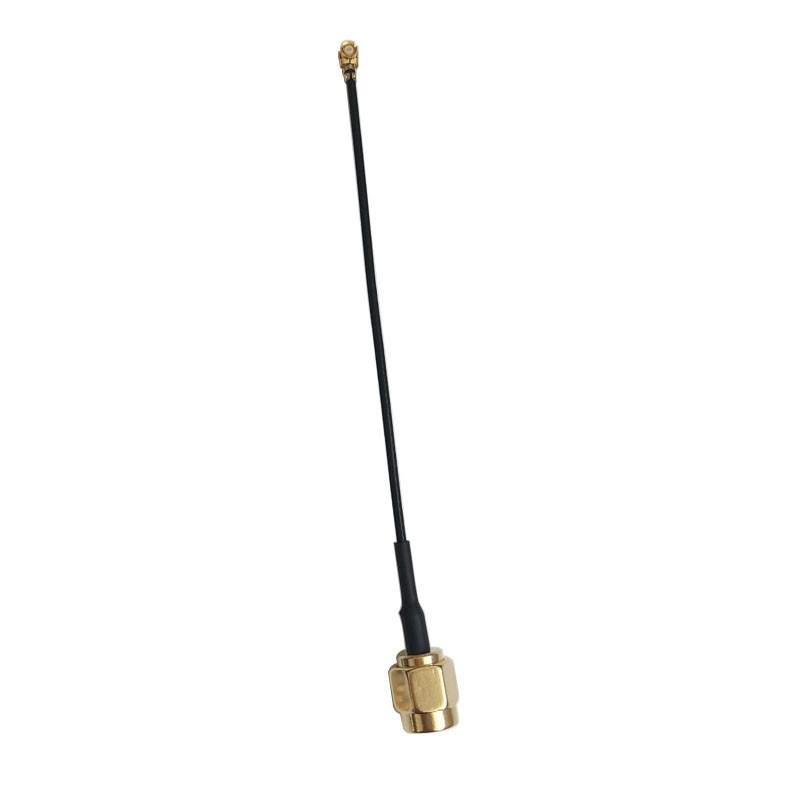

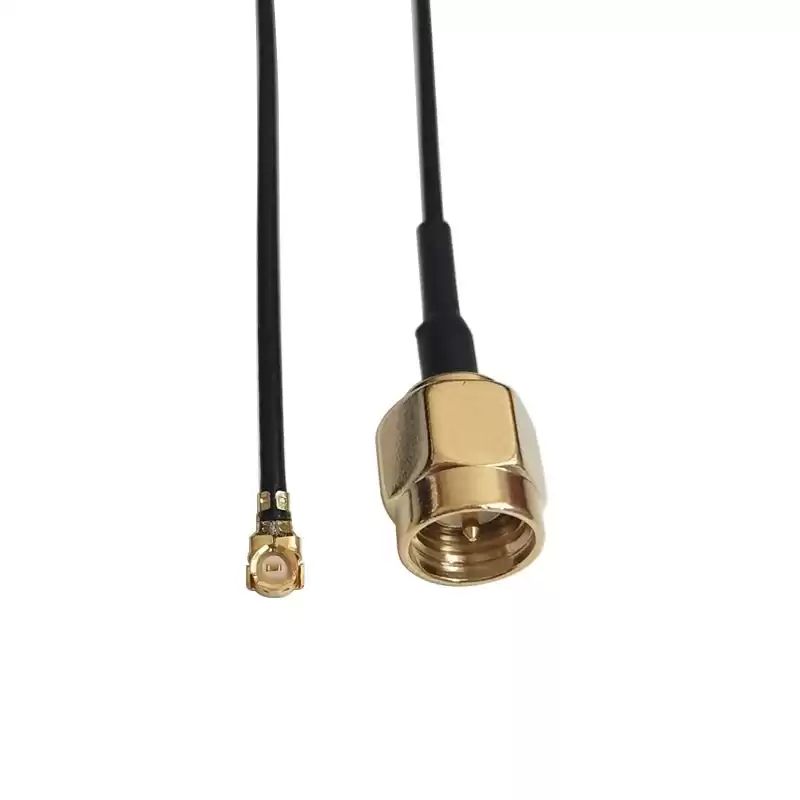

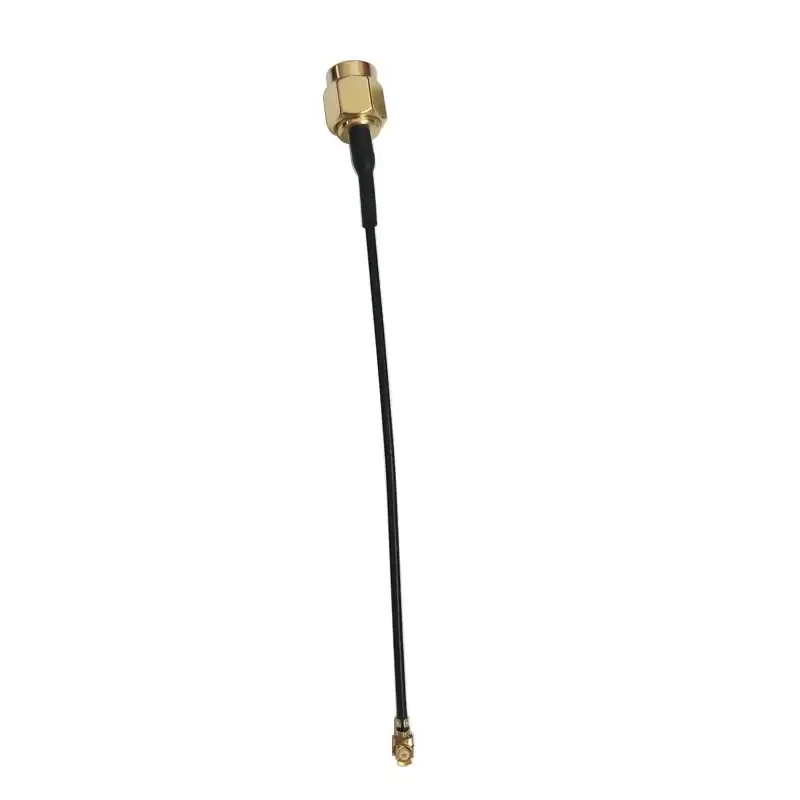

SMA Male to UFL IPEX RF Coaxial Connector with 1.37mm Pigtail Cable Assembly

SMA Cable assembly Features:

  • Can be combined with 1.85mm, 2.4mm, 2.92mm, 3.5mm, 4.3-10, 7-16 DIN, BNC, FAKRA, MCX, MMCX, N, NEX10, QMA, QN, SMA, SMB, SMP, TNC, Trimmed Lead or U.FL connectors;
  • Body Can be 2 hole panel, 4 hole panel, bulkhead or standard mount connectors;
  • Body Can be right angle or straight connectors;
  • Cable Can use corrugated, flexible, formable or semirigid cable.



SMA Male to UFL IPEX RF Coaxial Connector with 1.37mm Pigtail Cable Assembly



The SMA cable assembly can use corrugated, flexible, formable or semirigid coaxial cablesuch as 0.81mm, 1.13mm, 1.37mm, 1/4" Superflexible, LMR100, LMR-195, LMR200, LMR-240, LMR400, RG141, RG142, RG174, RG178, RG179, RG180, RG187, RG188, RG196, RG213, RG214, RG223, RG303, RG316, RG393, RG400, RG401, RG402, RG405, RG55, RG58, RG59, RG62, RG8, TFT-402 or Tinned 047 cable; the body of SMA to UFL cable assembly is right angle or straight connectors which is female to jack, female to plug, male to jack or male to plug gender. This SMA male to UFL plug cable assembly uses a 50ohm straight SMA for connector 1 and a 50ohm straight UFL for connector 2, Cable is 50ohm 1.37mm.



Specifications

ELECTRICAL DATA
Connector 1 Series SMA
Connector 1 Style Str Male
Cable Type 1.37mm
Connector 2 Series UFL / IPEX
Connector 2 Style Str Plug
Contact Termination Solder
Shield Termination Crimp
Impedance (Ohms) 50
Low PIM No
Max Frequency 6GHz
Working Temperature -65°C  to +165°C
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • Used as an RF Test Probe to 6 GHz
  • RF PCB board measurements
  • Signal injection
