SMA Male to UHF Male PL259 Straight RF Connector Adapter

SMA adapters Features:

  • Allow to interface SMA connectors with 1.0-2.3, 1.85mm, 2.4mm, 3.5mm, 7-16 DIN, BNC, F, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, TNC, UHF or U.FL connectors;
  • Has female to female, female to jack, female to male, female to plug, female to receptacle, female to sexless, male to female, male to jack, male to male, male to plug, male to receptacle or male to sexless gender designs;
  • Has standard polarity or reverse polarity SMA (RP-SMA) options;
  • Has bulkhead, 4 hole panel or mountless configurations;
  • Has quick disconnect (QD) or standard interfaces.

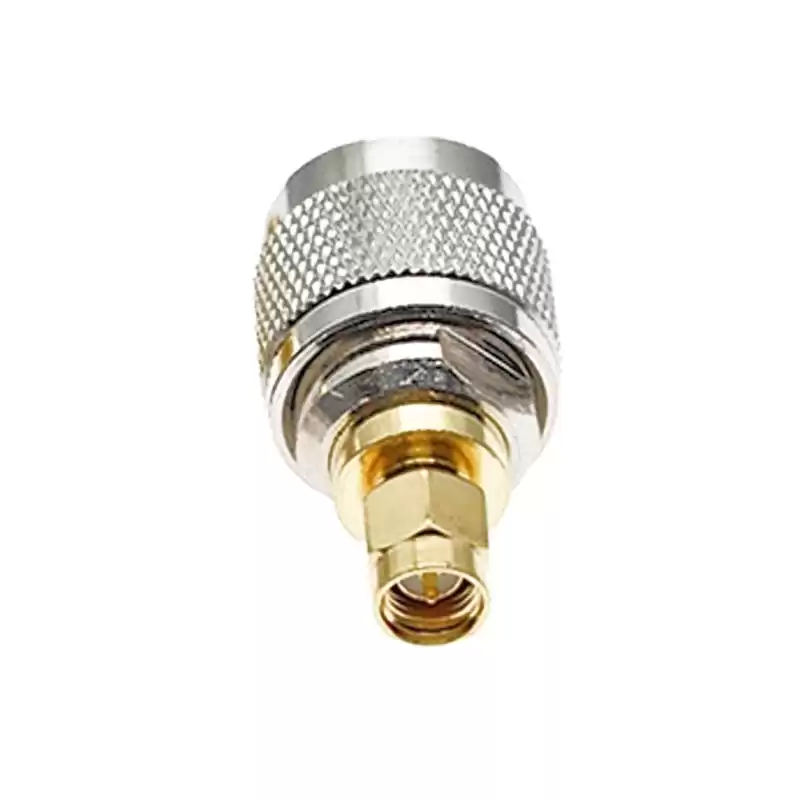

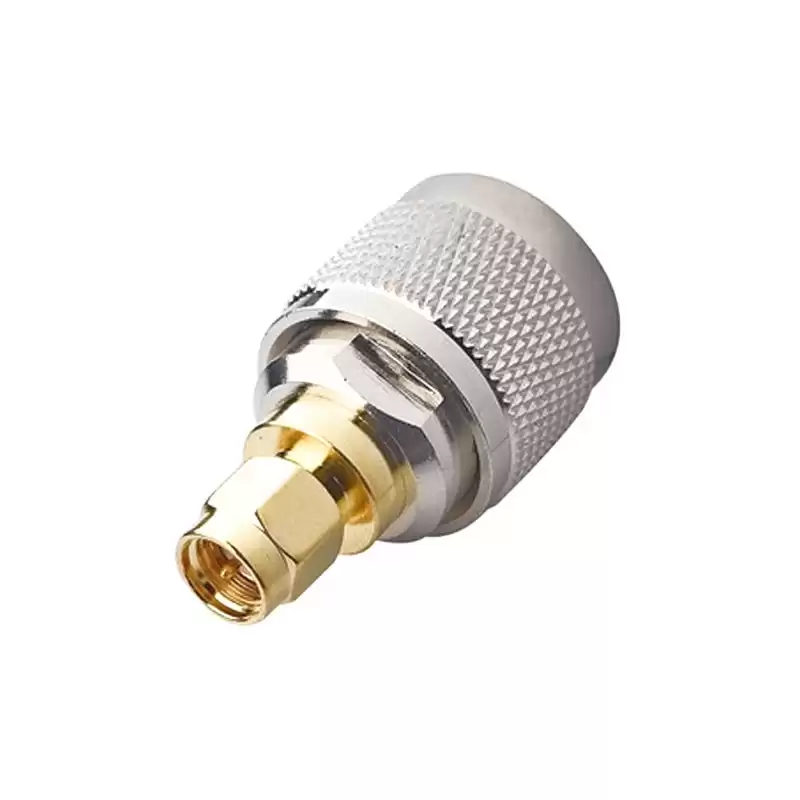

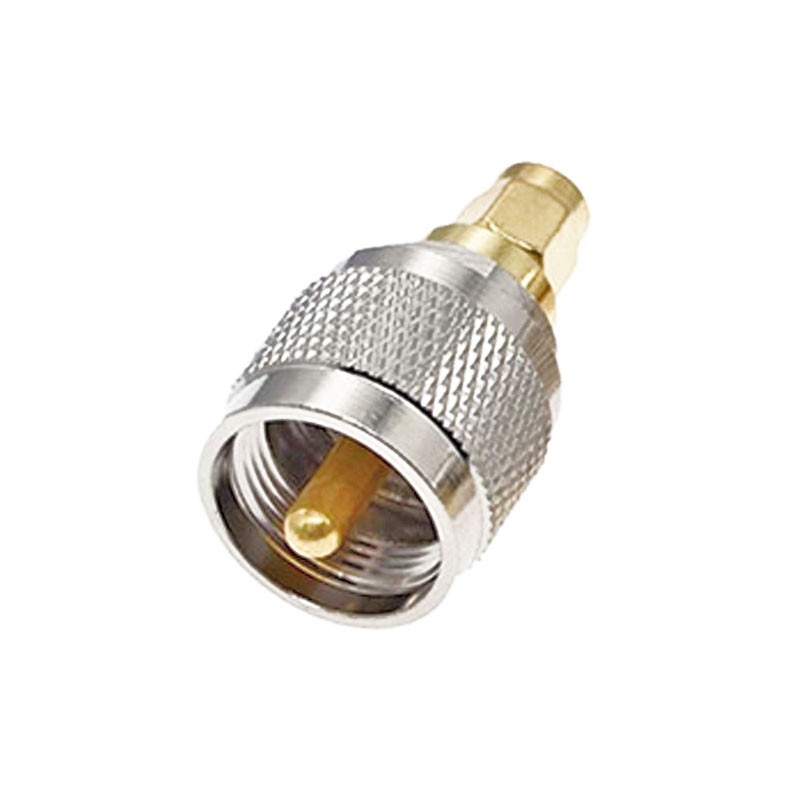

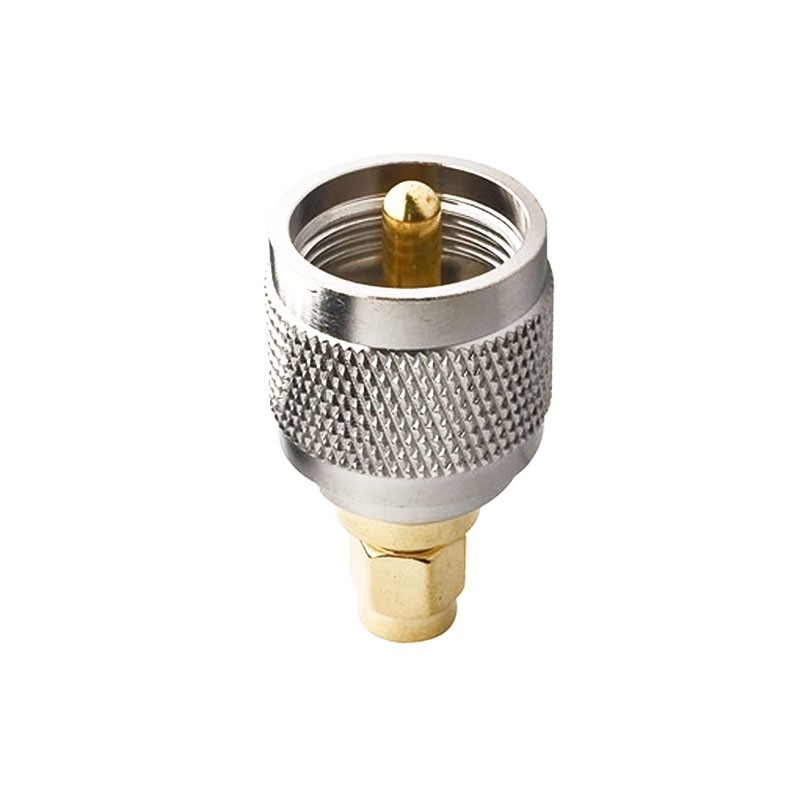

SMA Male to UHF Male PL259 Straight RF Connector Adapter



The SMA Adapter has different SMA to UHF adapter gender. that is between a series coaxial adapter, The SMA to UHF adapters has female to female, male to female or male to male gender. This SMA male to UHF male adapter has a maximum frequency of 300MHz, and is a straight body adapter.



Specifications

ELECTRICAL DATA
Adapter Side 1 Series SMA
Adapter Side 1 Style Male
Adapter Side 2 Series UHF
Adapter Side 2 Style Male
Frequency (Max MHz) 300
Impedance (Ohms) 50
Low PIM No
Orientation Straight
Temp (Max Degrees Celsius) 165
Temp (Min Degrees Celsius) -65
MATERIAL DATA
Body Material
Brass
Body Finish
Nickel/Ternary alloy
Contact Material
Phosphor Bronze/Beryllium Copper
Contact Finish
Gold/Silver
Insulator Material PTFE



Applications

  • 5G Solutions
  • Measurement Systems
  • Civil & Military Aeronautics
  •  Microwave Systems  Telecommunications
  • Mobile Telephone WiFi Antennas Systems
  • Military Equipment, Space




Product Tags SMA to UHF RF Adaptor          SMA Male to UHF Male Adapter          SMA Male to UHF Male RF Adapter          SMA Male to UHF Adapter          SMA to UHF RF Connector Adapter          SMA to UHF RF Coaxial Adapter
