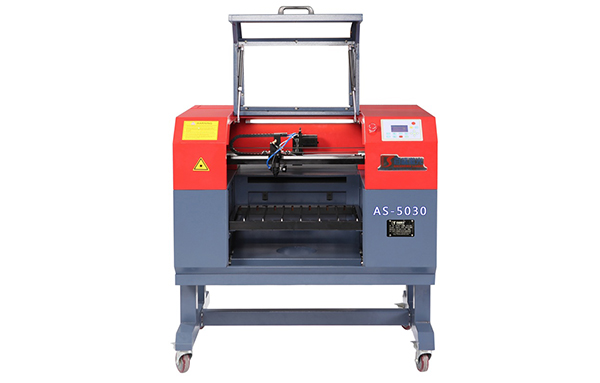

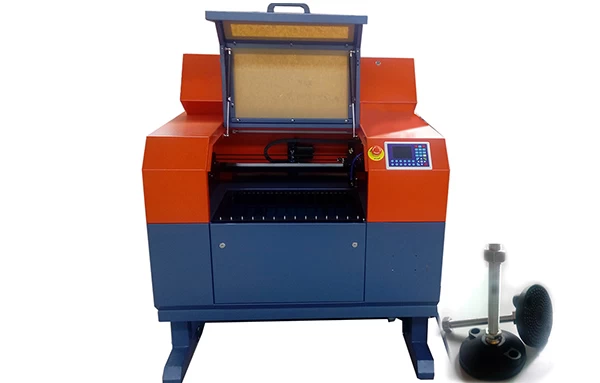

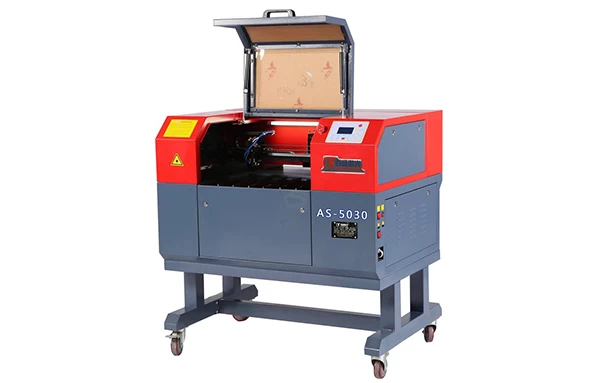

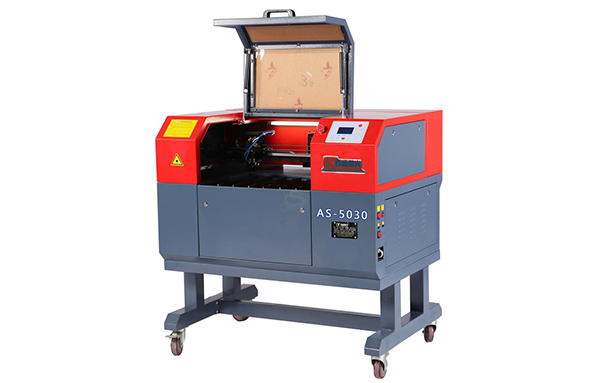

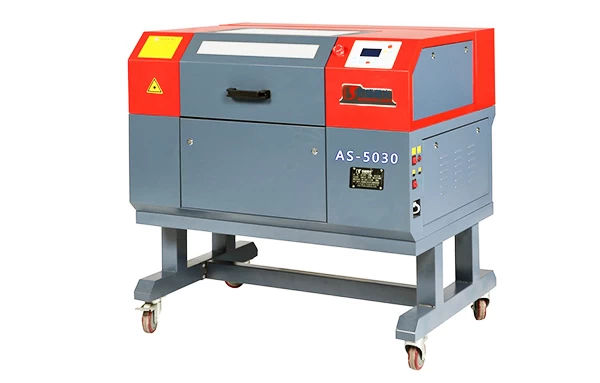

Small 5030 Co2 Laser Engraver 40W 60W with Up Down Blade Table

The Smaller footprint 500*300 co2 laser cutting engraving machine has up/down motorized table ,it has smaller laser beam it engrave paper ,leather ,wood very well..

Facebook Twitter Pinterest LinkedIn 分享

Description

Small 5030 Co2 Laser Engraver 40W 60W with Up Down Blade Table

Brand	Baisheng ,Guangzhou,China
Model	AS-5030
Laser Type	Sealed CO2 laser Glass Tube
Laser power/brand	35W 60W
Gross Power	<1300W
Net Weight	150KG
Gross wight	200KG
Processing Area	500mm*300mm
Machine Dimension	12090100
Packing Dimension	16192113
Minimum sharping character	Chinese Character 2mm/ letter 1mm
Power supply	220V±10% 50 HZ±10HZ (customizable)
Cutting/engraving Speed	0-64m/min
X/Y Positioning Accuracy	0.025mm
X/Y Repeated Positioning Accuracy	≤±0.01mm
Laser Control System	Ruida ./Topwidom
Data Transfer Port	PC cable ,USB port
Design software	Coreldraw AutoCAD Photoshop…AI
Graphic File Formats Supported	AI,DXF,PLT,DST,DSB,BMP,GIF,JPG,PNG,ICO
Operating temperature	0-45℃
Accessories	Exhaust fan/pipe. Air Compressor .air duct/water pipes , /user manual. Water Pump,Reflective mirrors ,len,wheels.one of 3 platforms(Metal honeycomb, knife edge Aluminum bars, Grid )…
optional	Red dot pointer positioning system/ CW water chiller/the other 2 platform
Consumable parts(recommend to be spared)	Laser tube, Mirrors, lens. power supply

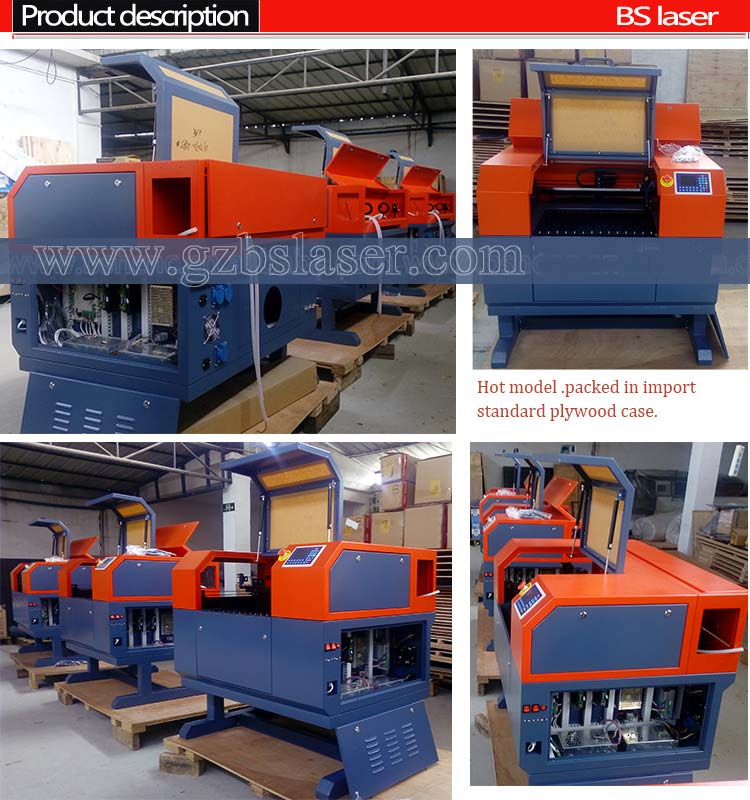

Machine packed with export standard handled and loaded with care:

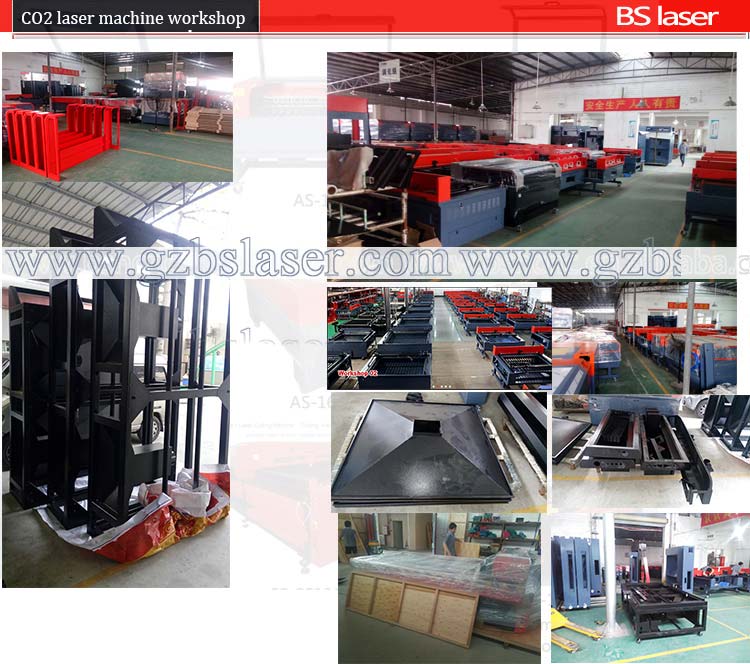

Co2 Laser cutting machine workshop:

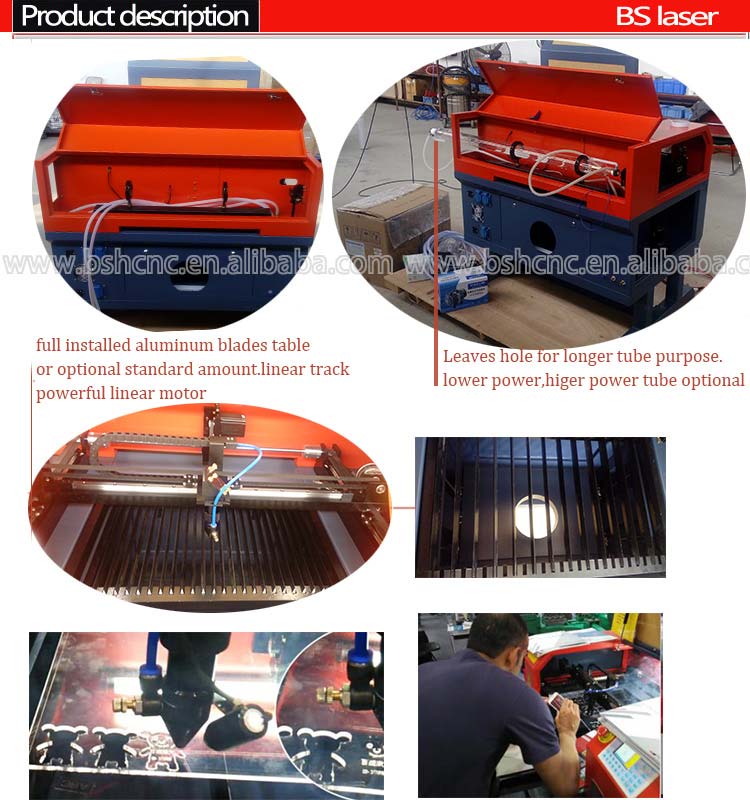

Laser spare parts or aceesories
