Small Battery Electrode Cutting Machine for Lab

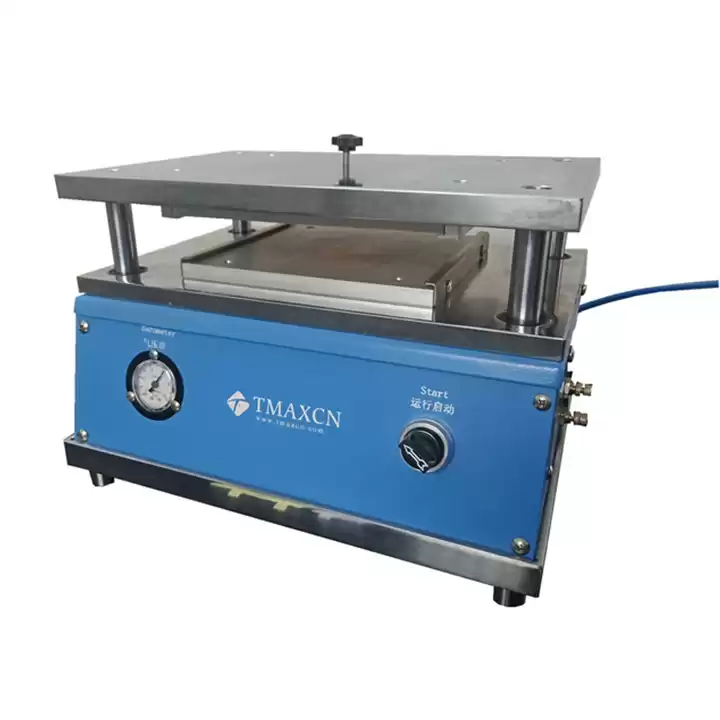

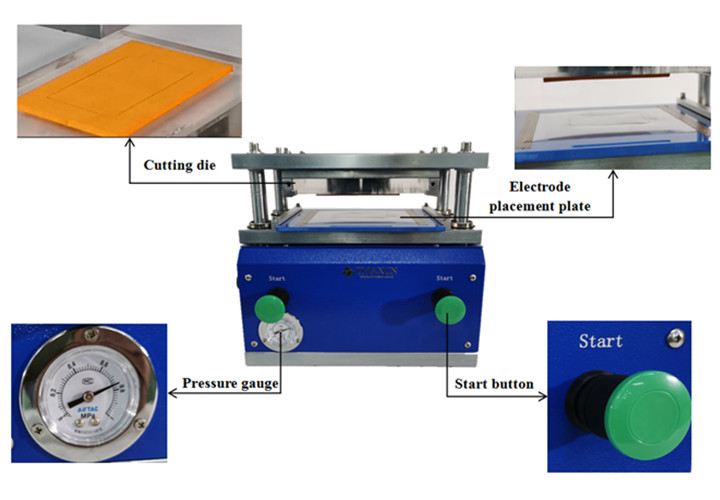

TMAX-180S is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut


Die Set Dimensions

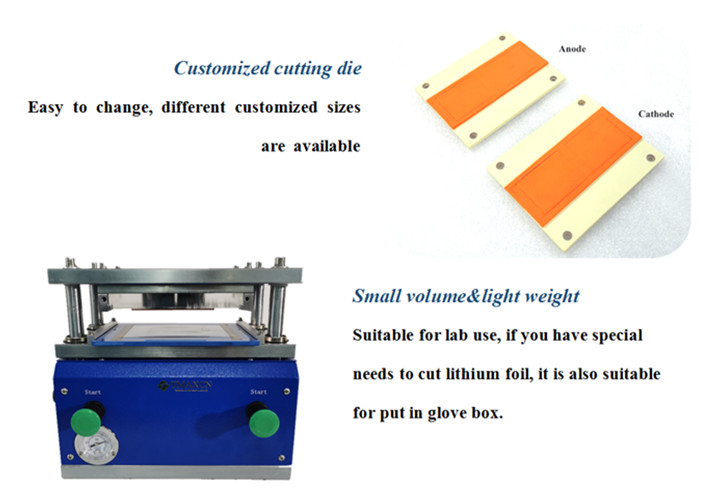

The die size can be customized according to customer's actual needs

Cutting Depth

 Max. 0.5mm (tested with aluminum laminated film)

Cutting Accuracy

±0.1mm

Cutting Pressure Force

Max. 1T(recommended pressure force for cutting battery electrodes is 0.5T)

Gas Pressure

· 0.5~1.0Mpa (0.7Mpa is recommended)

o For the use of inside the glove box, please use compressed inert gas such as Ar.

o For the use of outside the glove box, you may use the air compressor, 60 psi recommended.

· Compressor is not included, please contact the sales manager for further quote

· Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.

Feeding

Manually

Stroke Length

12mm

Cutting Die Life Span

~30000 strokes

Compliance

· CE Certified

· No UL required because no electricity

Warranty

One Year limited warranty with lifetime support

Product Dimensions

 370mm(L) x 250mm(W) x 245mm(H)

Optional

· You may  order pouch cell case forming machine  by click picture below right



· We can also provide sealing machines for making pouch cells.



Net Weight

32kg


Battery Electrode Cuter

Battery Electrode Cuter


Pouch cell making machine
