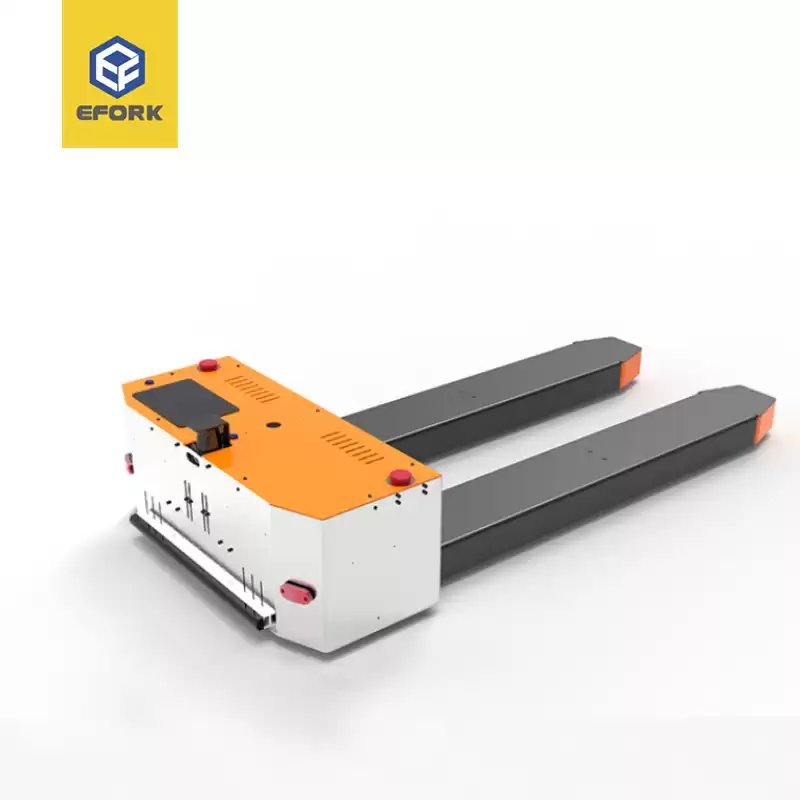

Product Name:Small Cattle Pallet Truck Forklift AGV
Product Advantage
1. Servo drive is used for walking and fork lifting, which makes walking and travel control more accurate;
2. Inertial navigation with two-dimensional code camera correction, the car walking positioning accuracy is high;
3. Dual drive power structure, with self-developed linkage lifting system, small vehicle size, light weight, greatly reducing the required channel width;
4. 48V large capacity lithium battery with manual / automatic charging system, 0.5c-1c high charging current, realizing uninterrupted operation;
Product parameters
Model: EDA * J
Navigation mode:Inertial navigation + QR code deviation correction
Body size: 1430 * 750 * 293mm(subject to design)
Accuracy in place: ± 10mm
Lifting height: 40mm

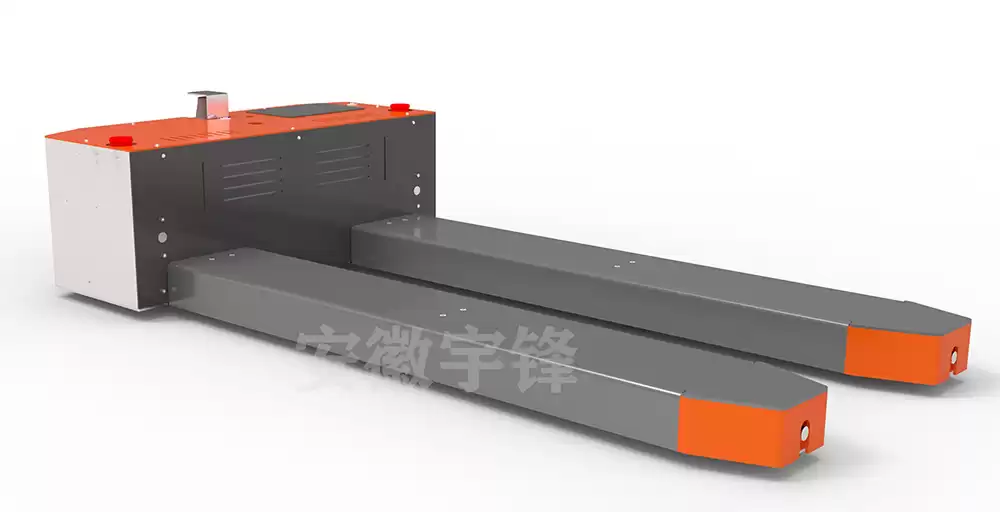

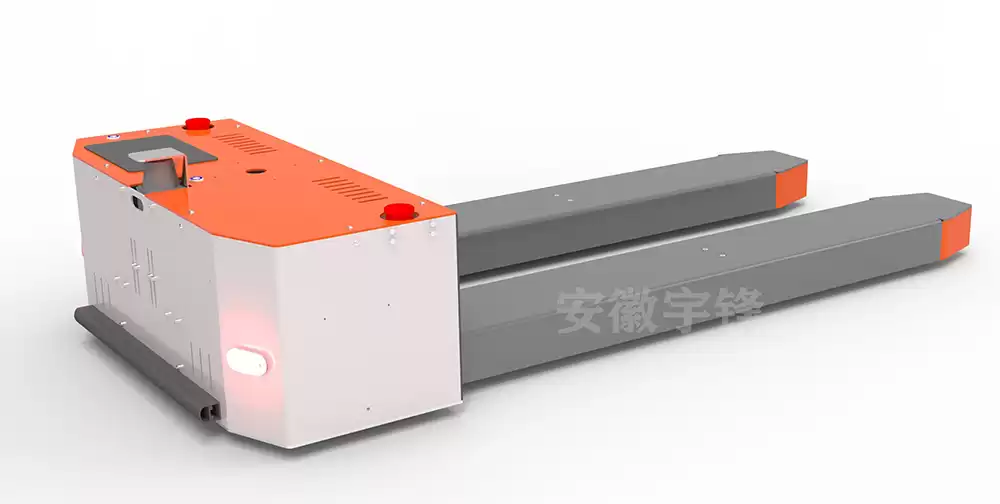

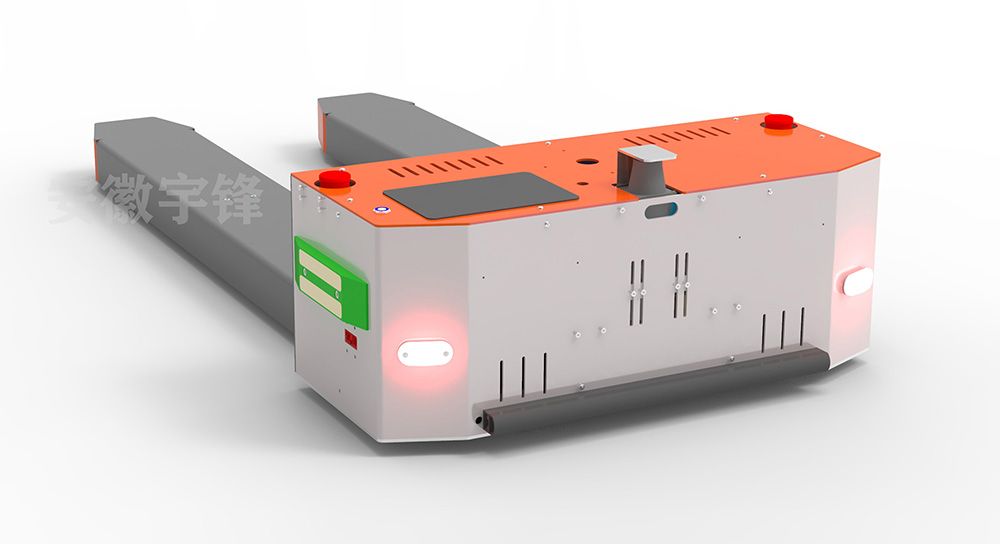

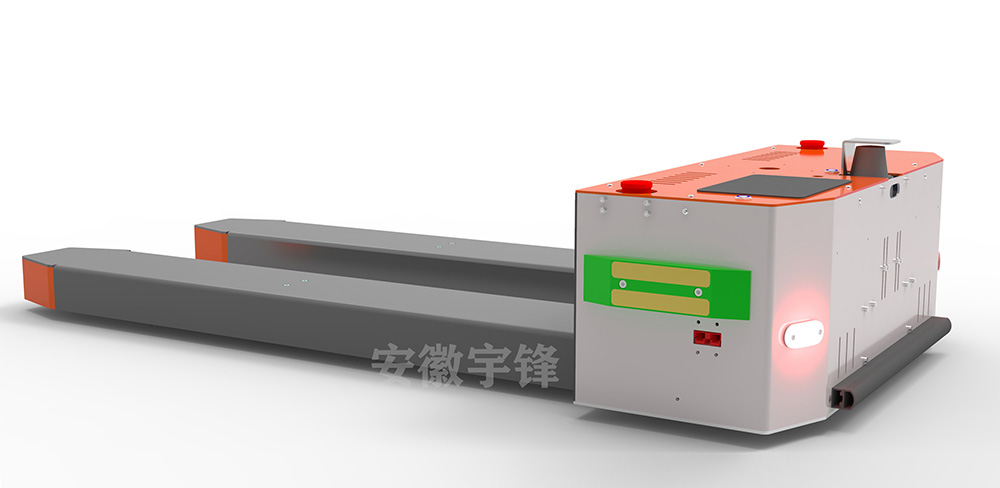

Product Display
Product Data
|
EDA10J05
|
|
Basic parameters
|
Appearance size
|
mm
|
L1430*W750*H293
|
|
Lifting time
|
s
|
±3
|
|
Navigation mode
|
Laser navigation
|
|
Lifting Height
|
mm
|
40
|
|
Lifting load
|
kg
|
500~1000
|
|
Load center
|
mm
|
500
|
|
Sports performance
|
Travel speed
|
m/s
|
≤1
|
|
Accuracy
|
mm
|
±10
|
|
Climbing ability
|
°
|
≤2°
|
|
Minimum turning radius
|
mm
|
1000
|
|
Driving mode
|
Two wheel differential drive
|
|
Power supply mode and charging method
|
Battery type
|
Lithium battery48V32AH
|
|
Battery voltage capacity
|
48V32AH
|
|
Number of charge discharge cycles
|
Times
|
1500
|
|
Charging mode
|
Manual charging / automatic charging / manual battery replacement
|
|
Safety Protection
|
Front safety laser scanner
|
Triple protection
|
|
Post diffuse reflection photoelectricity
|
Photoelectric protection
|
|
Contact sensor
|
Mechanical protection
|
|
Fork safety protection
|
Photoelectric protection
|
|
System function
|
Wireless network
|
Industrial WiFi
|
|
System interface
|
Reserved WMS, Med, RRP and central dispatching system expansion ports
|
|
other
|
Automatic charging station
|
Lithium battery automatic charging station
|
|
Warehouse management system / WMS
|
Yufeng warehouse management system
|
|
Manufacturing execution system / MES
|
Yufeng Manufacturing Execution System
|
|
Central dispatching system
|
Yufeng central dispatching system
|
|
Whole network monitoring system of Yufeng AGV
|
Whole network monitoring system of Yufeng AGV
|
|
Service life
|
About 10 years
|
|
Host color
|
Silver Orange Black Color
|
