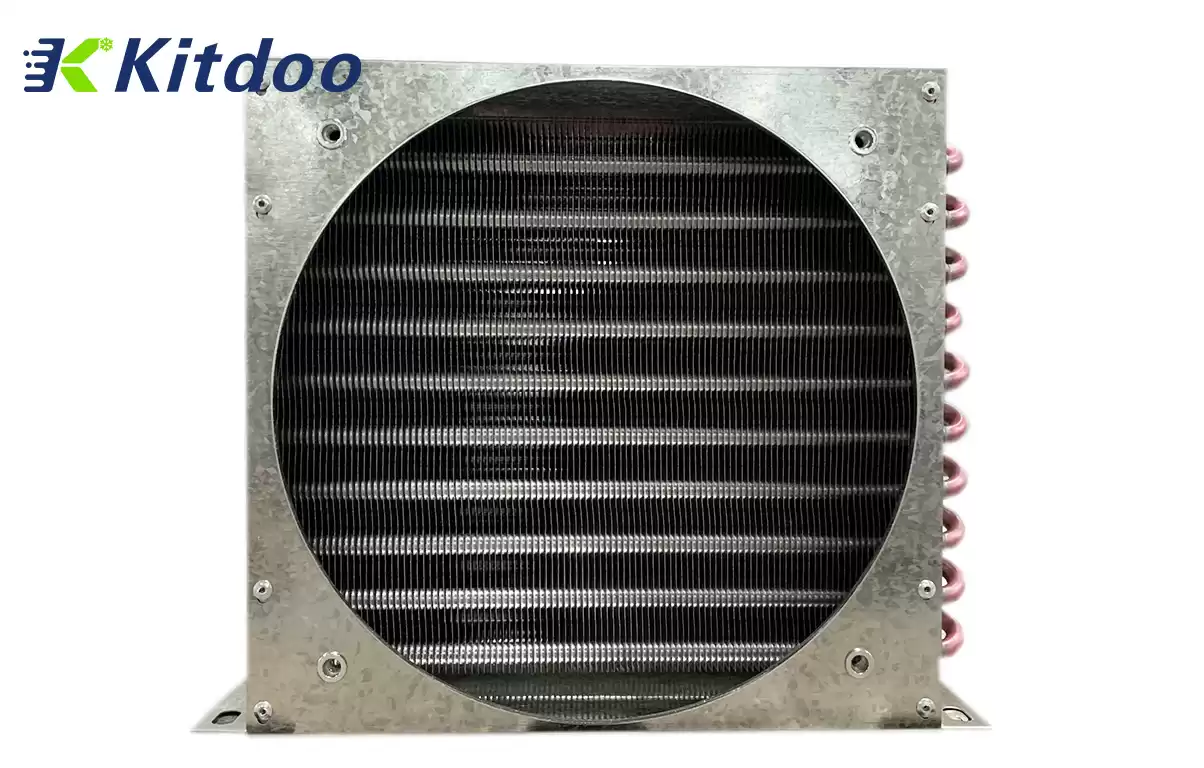

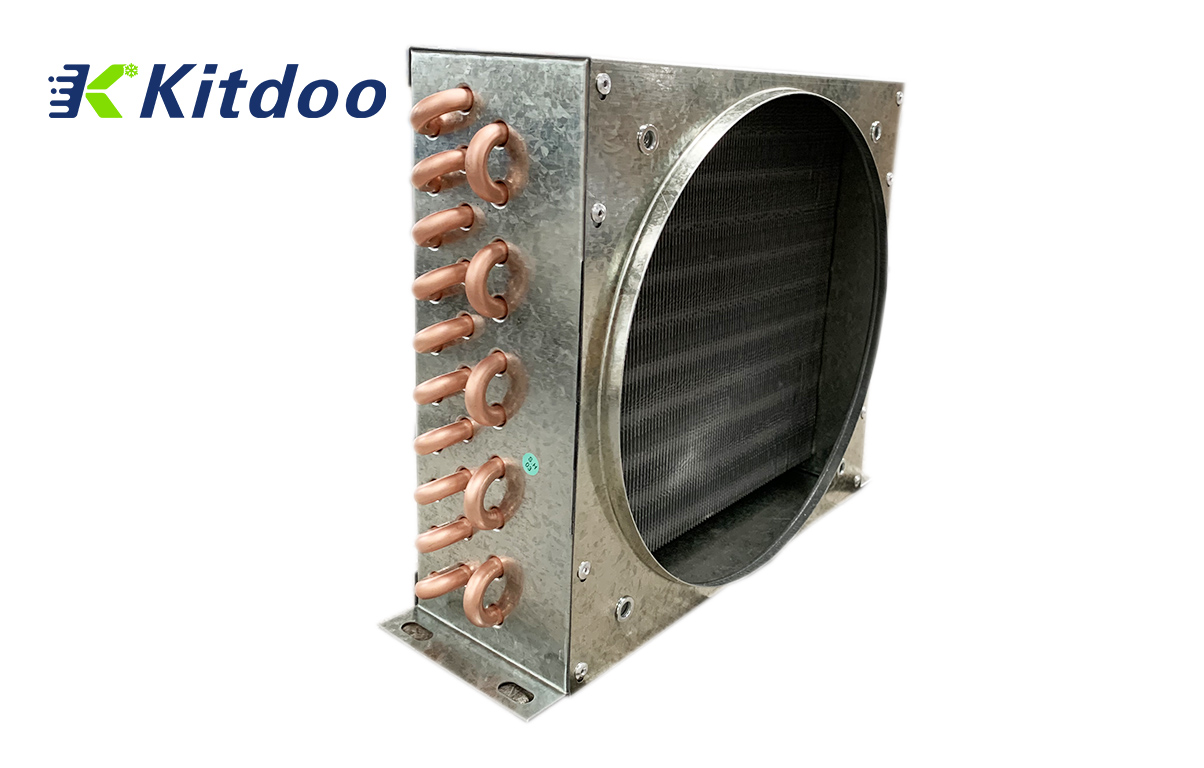

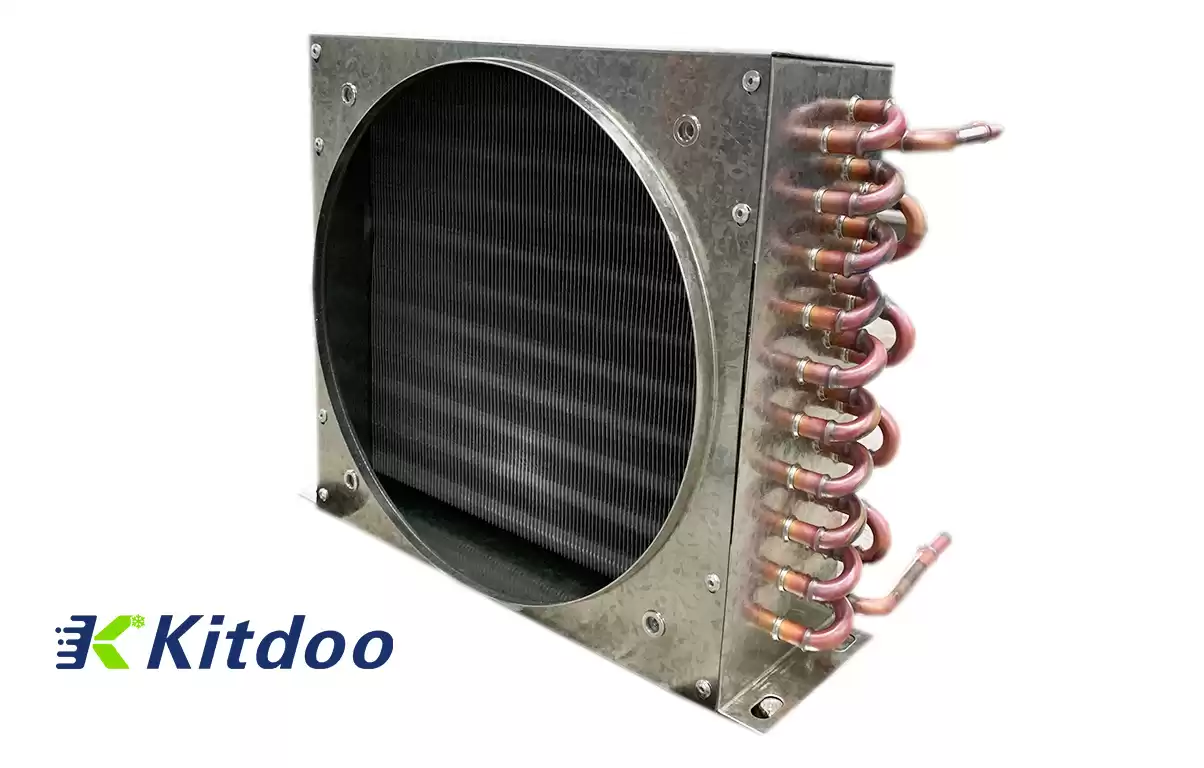

Small high-efficiency condenser for freezer

KITDOO specializes in producing FNF series condensers. The storage type heat exchanger has the characteristics of high heat exchange performance, small size, durability and reliability. The heat exchanger is widely used in freezers, cold storage, swimming pool thermostats, etc.


  • RefrigerantR22/R404A/R134/R410A
  • PortGuangzhou/Foshan/Shenzhen
  • Voltage220v/380v
  • PackingCarton
  • Colorblack/blue/green
  • Fan diameter200mm/250mm/300mm/350mm/400mm
  • Fin space2.5mm

Small high-efficiency condenser for freezer


            1.Kitdoo Cooling  Condenser with reasonable structure, good compatibility and can be matched with various compressors.

            2.The Air Cooled Condensers are tested under 2.8MPa, to make sure the products' high gas tightness.

            3.Base on customers' requirement,Kitdoo air cooled chiller condensers can be customized.

            4.Kitdoo Air Cooled Condensers with high quality aluminum fins, can be with different fin space to meet customers' requirement.

            5. Cabinet is steel plate with plastic spray, corrosion-proof and pleasant looking.
            6. Mechanically expanded pipes with AL fins good heat transfer performance.

            7. Air Cooling Condensers have done 2.8 Mpa gas pressure and pollution clear before leave factory.
            8. R22, R134A, R404A, R407C etc are optional.
            9. Large air flow and low speed Built-in motor with low noise and nice looking.
            10. Cold room condenser is widely use in big capacity condensing unit, large windward acreage and high heat exchange efficiency, with external motor.

Model

Capacity

w

Cooling surface

(m2)

Dimension

(mm)

Fan quantity

fan size

(mm)

FNF-1.9/9.8

1850

9.8

385*150*330

1

300

FNF-2.5/11.3

2500

11.3

440*150*420

1

350

FNF-2.8/13

3000

13

440*150*420

1

350

FNF-4.4/16.5

4400

16.5

460*150*460

1

350

FNF-5.5/20

5500

20

510*165*530

1

400

FNF-6.0/22

6500

22

510*200*530

1

400
