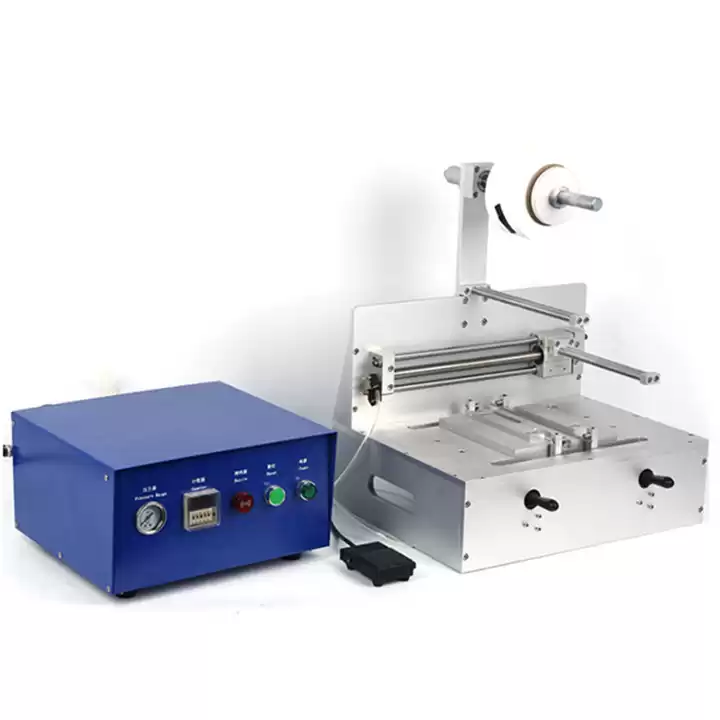

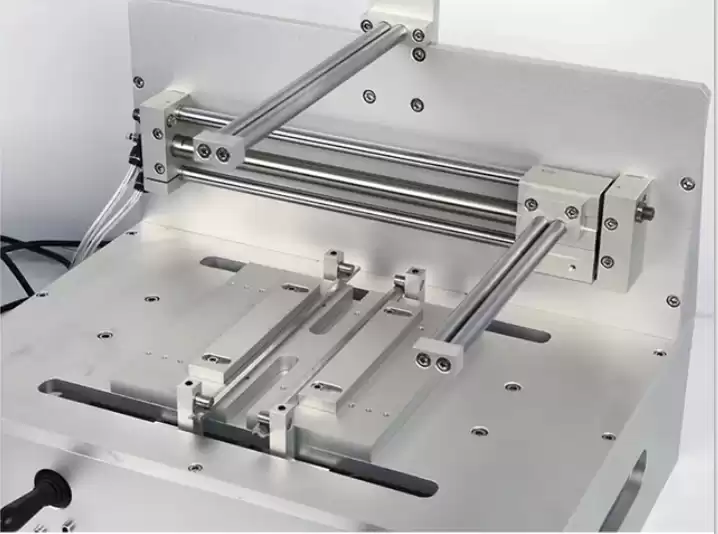

Small Layer By Layer Electrode Stacker Machine For Pouch Cell Stacking
It is suitable for the stacking process of pouch cell. The positive and negative electrodes and separator are laminated or stacking in Z fashion.
*Table type, can be placed on the ordinary desktop;
*The adjustment, operation and maintenance of the machine are simple and easy;
*It can be used in a wide range of laminations;
*High efficiency, with digital counter;
*Foot switch is used to control the action of air cylinder;
*The machine is small in size and beautiful in appearance;
|
Stacking mode
|
Z fashion
|
|
Suitable separator coil
|
Roll type separator, 3-inch roll core, max.φ200mm applicable
|
|
Applicable electrode size
|
Length:20～200mm
Width: 20～200mm
Thickness: within 18mm
Larger model for apply larger electrode is also available
|
|
Swing rod travel distance
|
300mm；
|
|
Power supply
|
AC220/110V; 50/60Hz
|
|
Power
|
200W
|
|
Air pressure source
|
0.4MPa～0.7MPa
|
|
Machine dimensions
|
L650mmW400mmH700mm
|
|
Control box size
|
L200mmW300mmH380mm
|
|
Weight
|
30Kg
|
