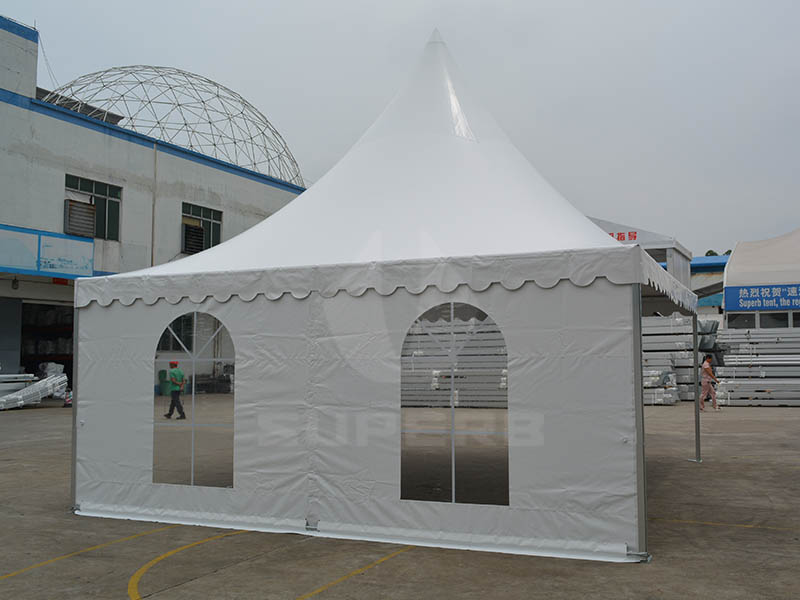

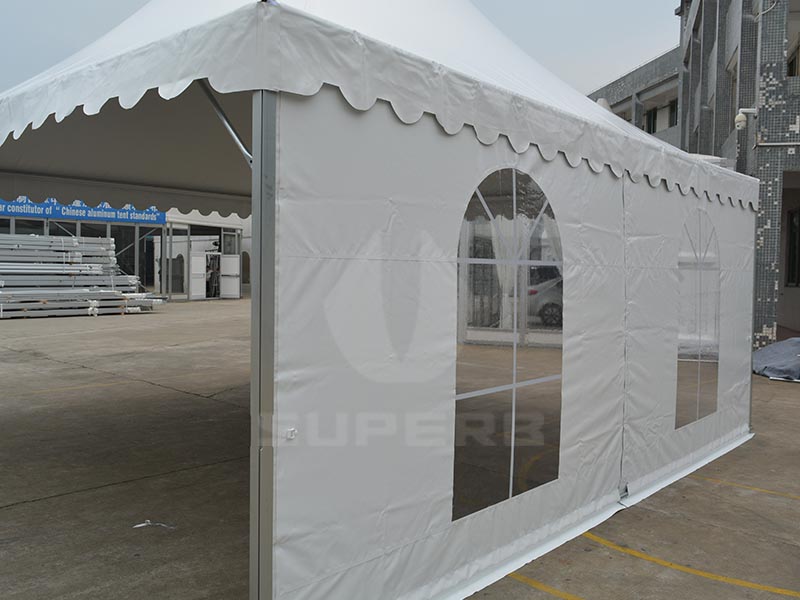

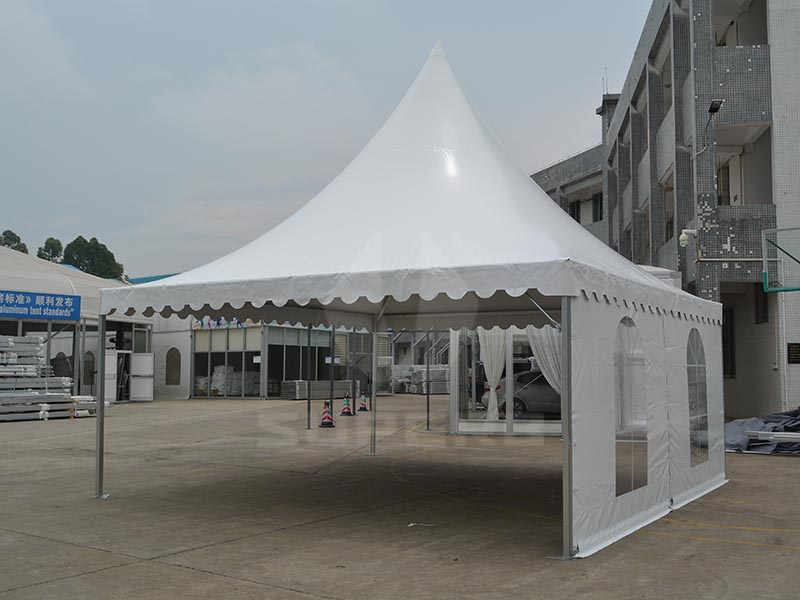

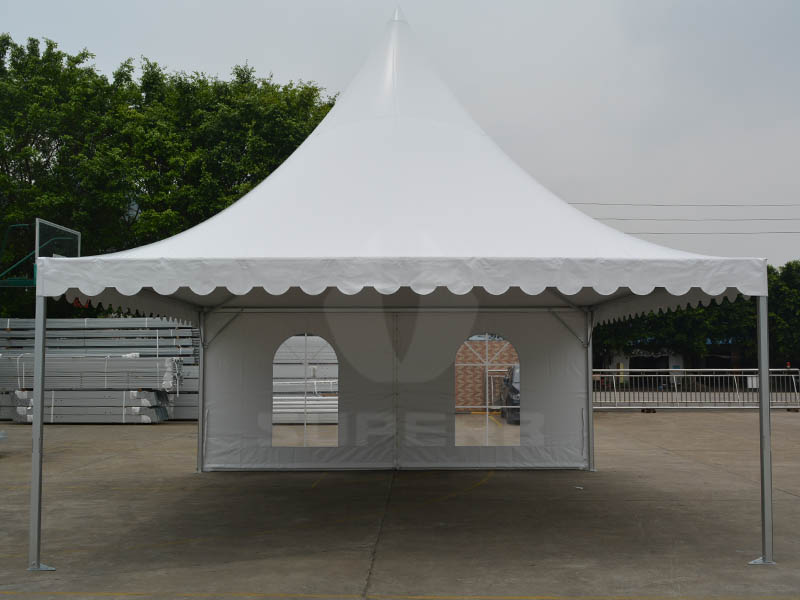

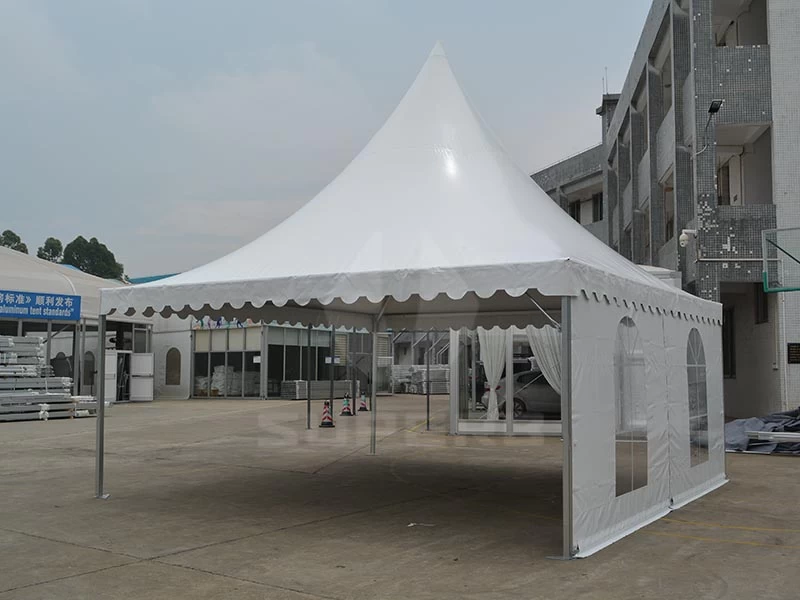

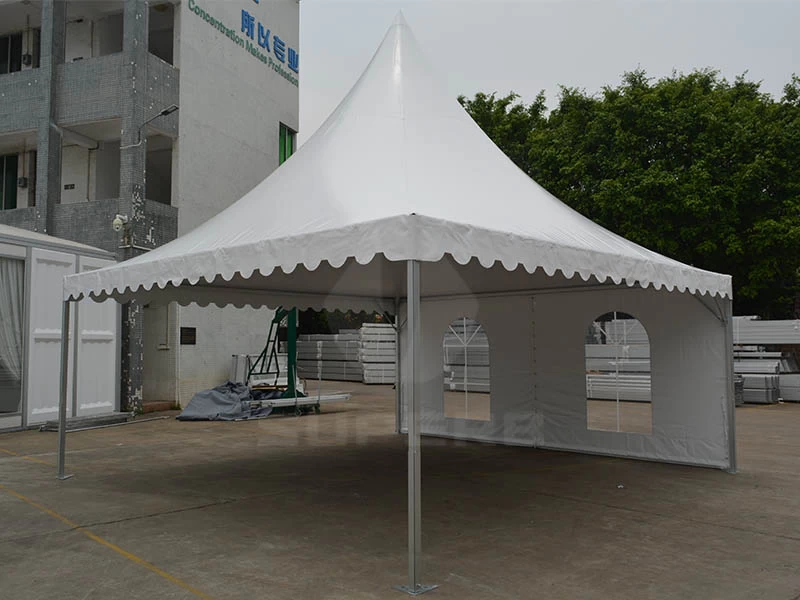

small outside gazebo party tents
gazebo party tent's application:
small outside gazebo party tents widely used for outdoor exhibitions, parties, festival celebrations, sports events, outdoor shops, walkways, garages, arenas, hajjs and so on.
gazebo party tent's available sizes:
● 3x3m,4x4m,5x5m,6x6m,8x8m,10x10m.
gazebo party tent's features:
● High peak design, elegant appearance.
● Can be connected to each other by adding rain gutters to get a tents world; which then absolutely will be an eye-catching scene.
● Can be connected to any other large tents behaving as the reception area before entering the tent halls.
● No exterior guy ropes or staking required.
● No poles inside, 100% interior space can be used.
● Relocatable, easy to install, dismantle and transport.
● Accessories available: Transparent PVC roof covers and walls, clear windows sidewalls, glass walls, ABS hard walls, sandwich walls, lining decoration, glass door, sliding door, flooring system, weight plates, anchors.

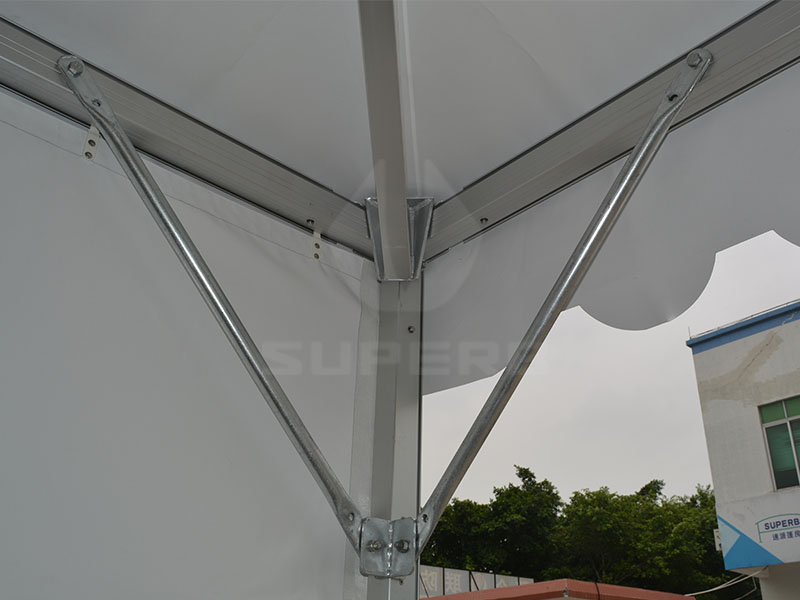

gazebo party tent's f rame:
● No maintenance required.
● Extruded 4 channel aluminum hollow profiles with anodized finishing above 12um.
● All steel connectors including small parts have galvanized finishing above 60um.
gazebo party tent's cover:
● Kedered roof fabric and sidewalls provide weather-proof tight coverings.
● Bar tensioning sidewalls system.
● Different brand fabric for option: China Fabric, Ferrari, Sioen, Verseidag.
The Specification of gazebo party tent:
|
Type
|
Span (m)
|
Side height (m)
|
Peak height (m)
|
Bay Distance (m)
|
Longest Component (m)
|
Wind Load (km/h)
|
|
PA3/2.5-3
|
3
|
2.5
|
4.2
|
3
|
3
|
80
|
|
PA4/2.5-4
|
4
|
2.5
|
4.8
|
4
|
4
|
80
|
|
PA5/2.5-5
|
5
|
2.5
|
5.2
|
5
|
5
|
80
|
|
PA6/2.5-6
|
6
|
2.5
|
5.8
|
6
|
6
|
80
|
|
PAG8/2.6-8
|
8
|
2.6
|
5.4
|
4
|
|
80
|
|
PAG10/2.6-8
|
10
|
2.6
|
6.4
|
5
|
|
80
|
|
Main frame Profile
|
65X65X2.5mm(3-channel,for 3-6m）/122x68x3mm(4-channel,for 8-10m））
|
|
Eave Connection
|
Hot-dip Galvanized Steel Insert
|
|
Frame Material
|
Hard Pressed Extruded Aluminum 6061/T6
|
|
Cover Material
|
Double PVC coated Polyester textile, flame retardant to DIN4102 B1,M2,750-900g/sq.m
|
The accessories of gazebo party tent:
