Features of small pitch P1.5 rental indoor LED display :

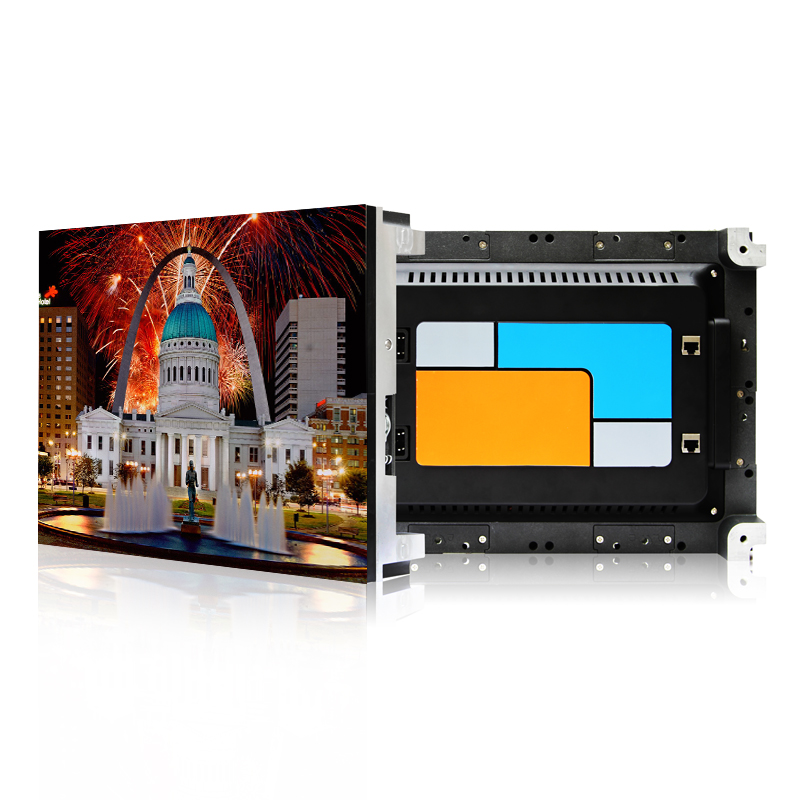

1、High color saturation, high contrast for good image display.

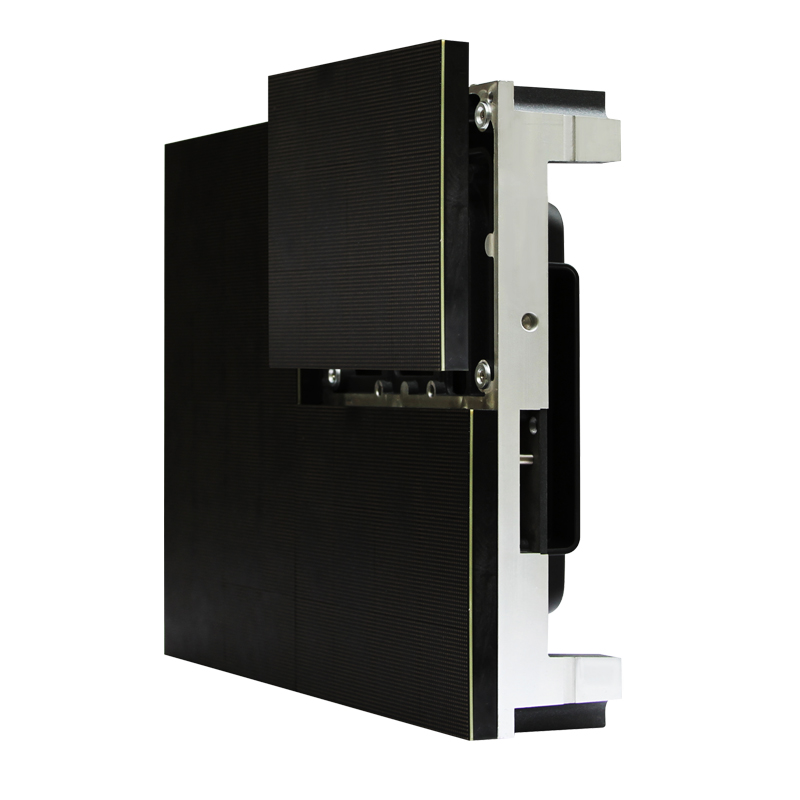

2、Excellent heat dissipation, cable-free design, use gold-plated connectors, product is very safe and reliable
3、System for rental applications,The cabinet is lightweight,thin and fast to assemble and disassemble.
4、The module can maintian not only in front, but also at the back, easy to solve the fault. Modular design, quickly to replace the power receiving card.
SPECS
Pixel Pitch
|
1.5625mm
|
LED Package
|
SMD1010
|
Pixel Density
|
409,600 dots/㎡
|
Color Configuration
|
1R1G1B
|
Brightness
|
Up to 1000cd/㎡ @ white color
|
Refresh Rate
|
Up to 1920Hz/s, could be adjusted
|
Gray Scale
|
16.7M color (Synchronized)
|
View Angle
|
H:140°, V:120°
|
Module Size
|
200x150mm
|
Cabinet Size
|
400x300mm
|
Cabinet Material
|
Die-casting Aluminum
|
Viewing Distance
|
2-100M
|
Drive Mode
|
1/32 scan
|
|
Power Supply
|
AC220V/110V/50 Hz, or manual switch
|
|
Lifespan
|
100,000 hours
|
|
Trouble Free Time
|
10,000 hours
|
|
Working Temperature
|
-20°C + 65°C
|
|
Environment Humidity
|
10% ~ 95%
|
Control System
|
Linsn/Nova
|
