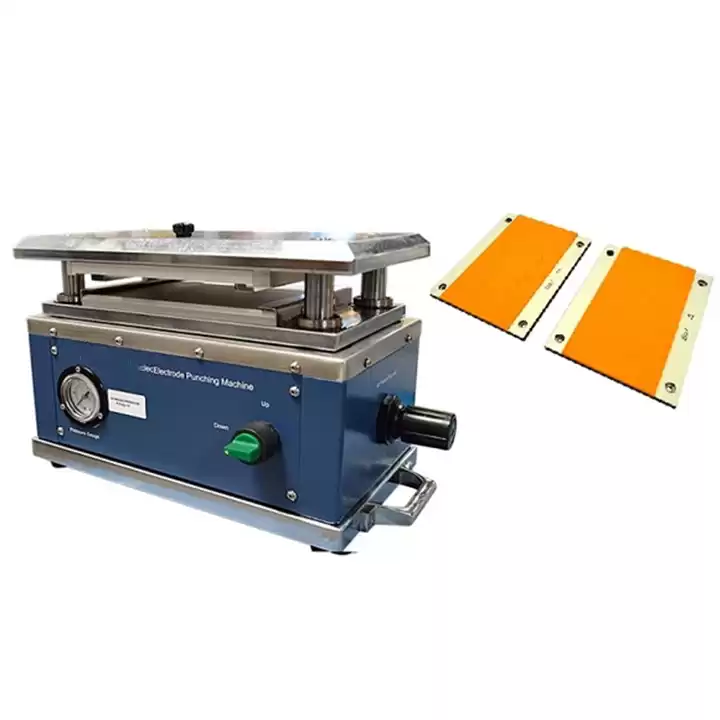

Small Pouch Cell Electrode Die Cutter For Electrodes Cutting and Pouch Cell Preparation
TMAX-180S is a gas driven die cutter for producing pouch battery cathode/anode electrodes ( no electricity required ) Its compact design enables the operation inside a glove box with Ar atmosphere where moisture/oxygen-sensitive electrodes will be cut
|
Die Set Dimensions
|
The die size can be customized according to customer's actual needs
|
|
Cutting Depth
|
Max. 0.5mm (tested with aluminum laminated film)
|
|
Cutting Accuracy
|
±0.1mm
|
|
Cutting Pressure Force
|
Max. 1T (recommended pressure force for cutting battery electrodes is 0.5T)
|
|
Gas Pressure
|
· 0.5~1.0Mpa (0.7Mpa is recommended)
o For the use of inside the glove box, please use compressed inert gas such as Ar.
o For the use of outside the glove box, you may use the air compressor, 60 psi recommended.
· Compressor is not included, please contact the sales manager for further quote
· Attention: If a gas cylinder is used instead of air compressor, a two-stage pressure regulator must be installed on the gas cylinder to limit the pressure within the required working range for safe operation.
|
|
Feeding
|
Manually
|
|
Stroke Length
|
12mm
|
|
Cutting Die Life Span
|
~30000 strokes
|
|
Compliance
|
· CE Certified
· No UL required because no electricity
|
|
Warranty
|
One Year limited warranty with lifetime support
|
|
Product Dimensions
|
370mm(L) x 250mm(W) x 245mm(H)
|
|
Optional
|
· You may order pouch cell case forming machine by click picture below right
· We can also provide sealing machines for making pouch cells.
|
|
Net Weight
|
32kg
|
