Product Name:Small Reach Truck Forklift AGV
Product parameters
Model: CQD * AJ
Navigation mode: laser navigation
Body size: 2270 * 1098 * 2350mm(subject to design)
Accuracy in place: ± 10mm
Lifting height: 1600mm-5000mm
Rated load: 1000kg-2000kg

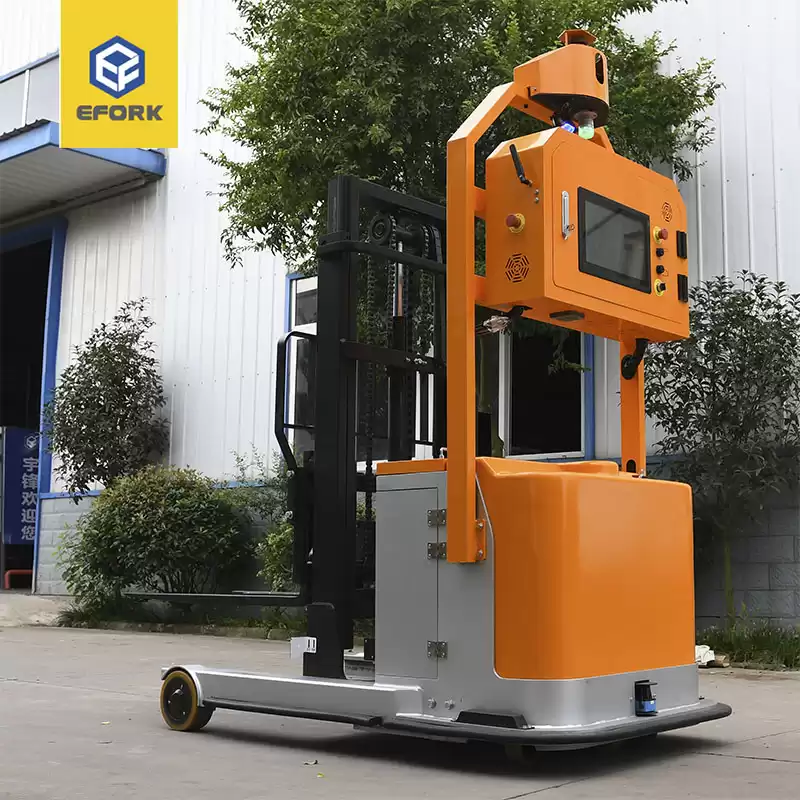

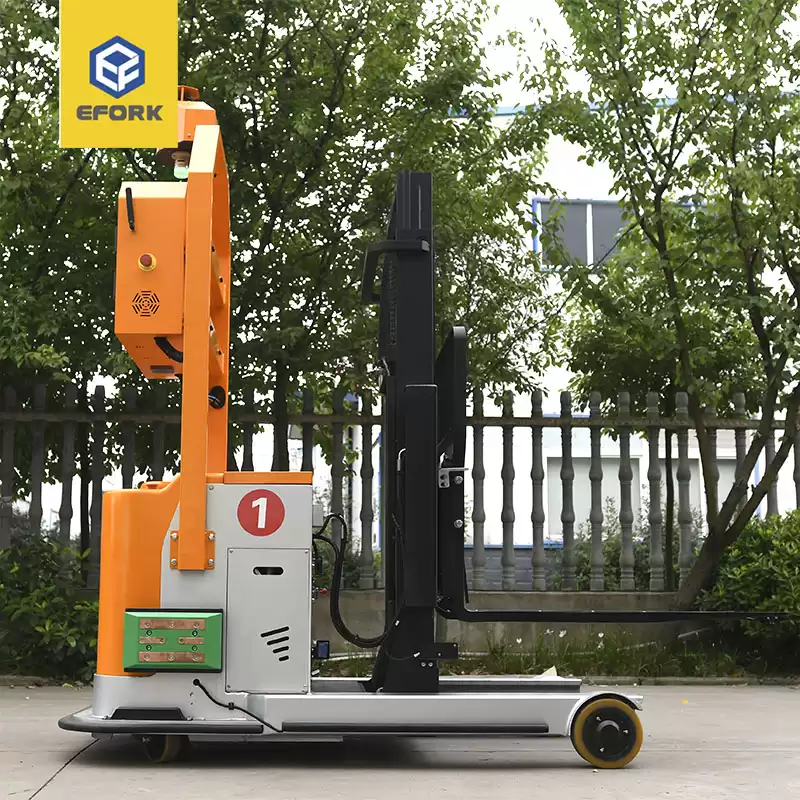

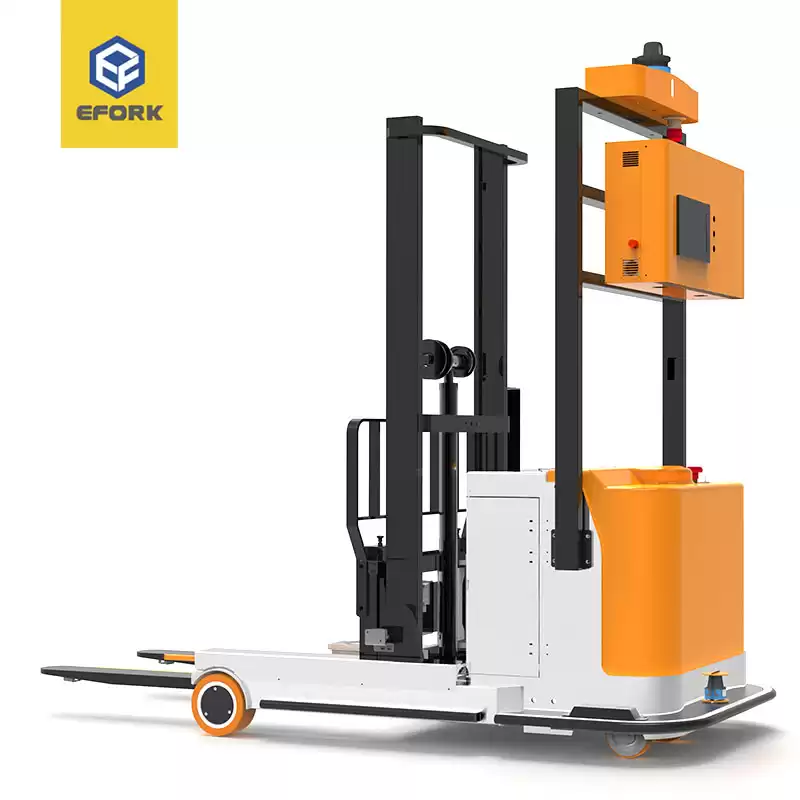

Product Display
Product Data
|
CQD*AJ01-16
|
|
Basic parameters
|
Dimension (including fork
|
mm
|
L2270*W1098*H2350
|
|
self weight
|
kg
|
3000
|
|
Navigation mode
|
Laser navigation
|
|
control mode
|
intelligent motion control system
|
|
Lift height
|
mm
|
1600
|
|
Rated load
|
kg
|
1000~2000
|
|
Load center）
|
mm
|
500
|
Sports performance
|
Running speed
|
m/min
|
40
|
|
Operating temperature
|
℃
|
-10℃-40℃
|
|
Orientation accuracy
|
mm
|
±10mm
|
|
Accuracy of stop
|
mm
|
±20mm
(Secondary positioning is needed for higher accuracy)
|
|
Direction of travel
|
two-way
|
|
Reach distance
|
mm
|
500/600/730
|
|
Lifting speed (loaded / unloaded)
|
mm/s
|
100/110
|
Descent speed (loaded / unloaded)
|
mm/s
|
120/140
|
|
（Minimum turning radius (excluding AST)）
|
mm
|
1750
|
（Stacking channel (1200 fork * 1000)）
|
mm
|
3000(Contain Ast)
|
Performance of lithium battery
|
Rated voltage
|
V
|
24
|
|
electric capacity
|
Ah
|
160(Customizable)
|
（Number of charge discharge cycles）
|
Pc
|
1500
|
|
Endurance time
|
h
|
It runs for about 8 hours
|
|
Charging time
|
h
|
1-2
|
safety protection
|
Laser obstacle avoidance
|
（YES）
|
|
Pallet in place inspection
|
（YES）
|
Inspection of fork tooth infrared sensor
|
（YES）
|
|
Emergency stop button
|
（YES）
|
|
Sound and light alarm
|
（YES）
|
|
Mechanical collision avoidance
|
（YES）
|
