Small Size 1.3 Inch 240X240 Resolution IPS Touch Panel TFT Display
It is a small size IPS touch TFT display product with high resolution. Normally, the higher resolution the display has, the better effect it's able to display. And the resolution of TFT display is determined by the pixel inside of the the LCD glass.
A small size IPS touch TFT display is manufactured by many process such as raw material purchasing, FPC bonding, backlight bonding, touch panel bonding, etc. While some of these process requires high level of clean room to avoid dust, dirty and static.
Small Size TFT Display
Product Parameters
| Display Type |
TFT Display |
| Display Size |
1.3 Inch |
| View Angle |
IPS/TN |
| Resolution |
240x240 |
| AA |
23.4x23.4mm |
| Backlight Color |
White LED |
| Brightness |
450cd/m2 |
| Interface |
I2C/SPI/MIPI/LVDS/RGB/MCU/UART |
| Control IC |
ST7789V |
| Connector |
FPC |
| Operating Temperature |
-20-70°C |
| Operating Voltage |
2.8V |
| Touch Panel |
Capacitive/Resistive |
| Requirements On Environmental Protection |
ROHS HSF |

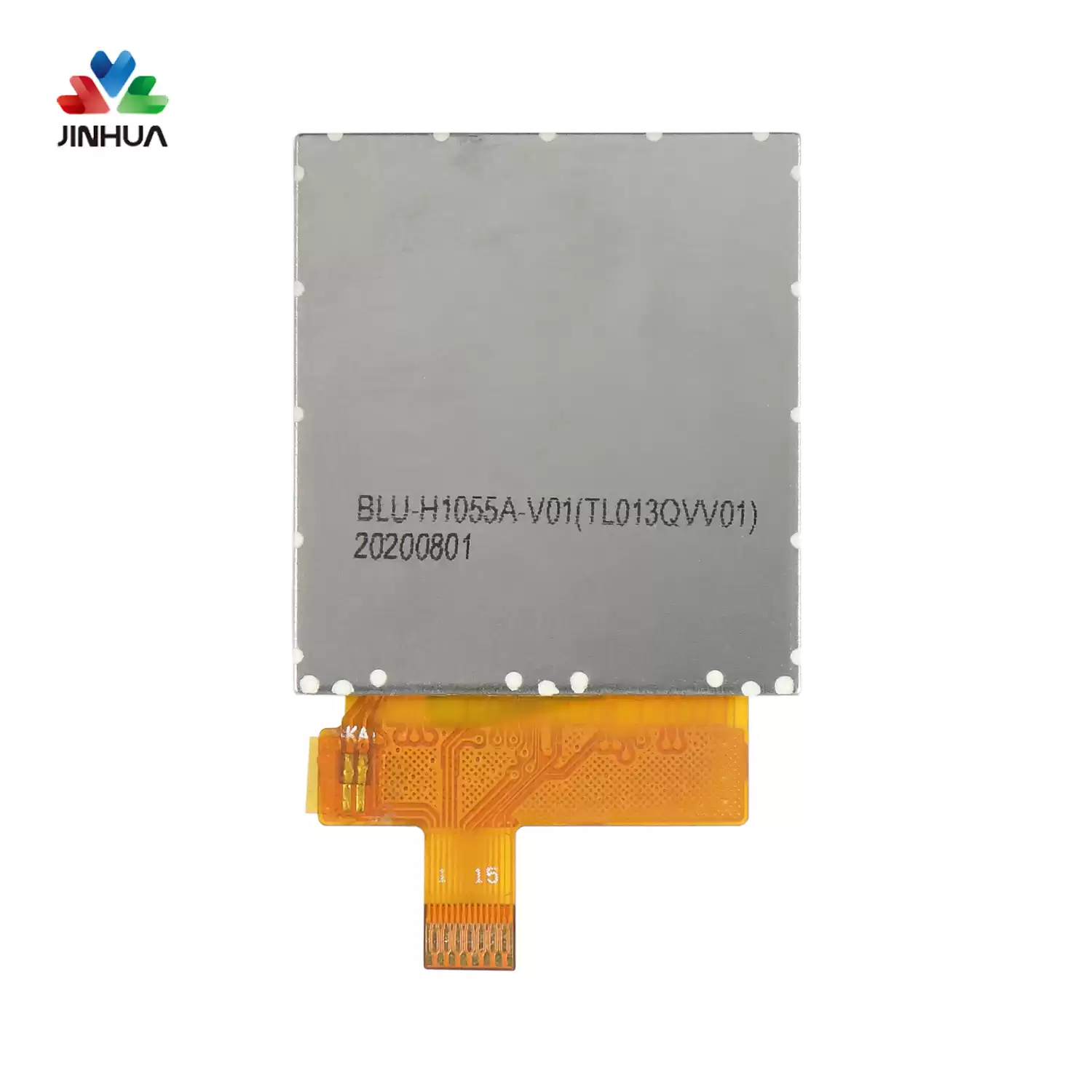

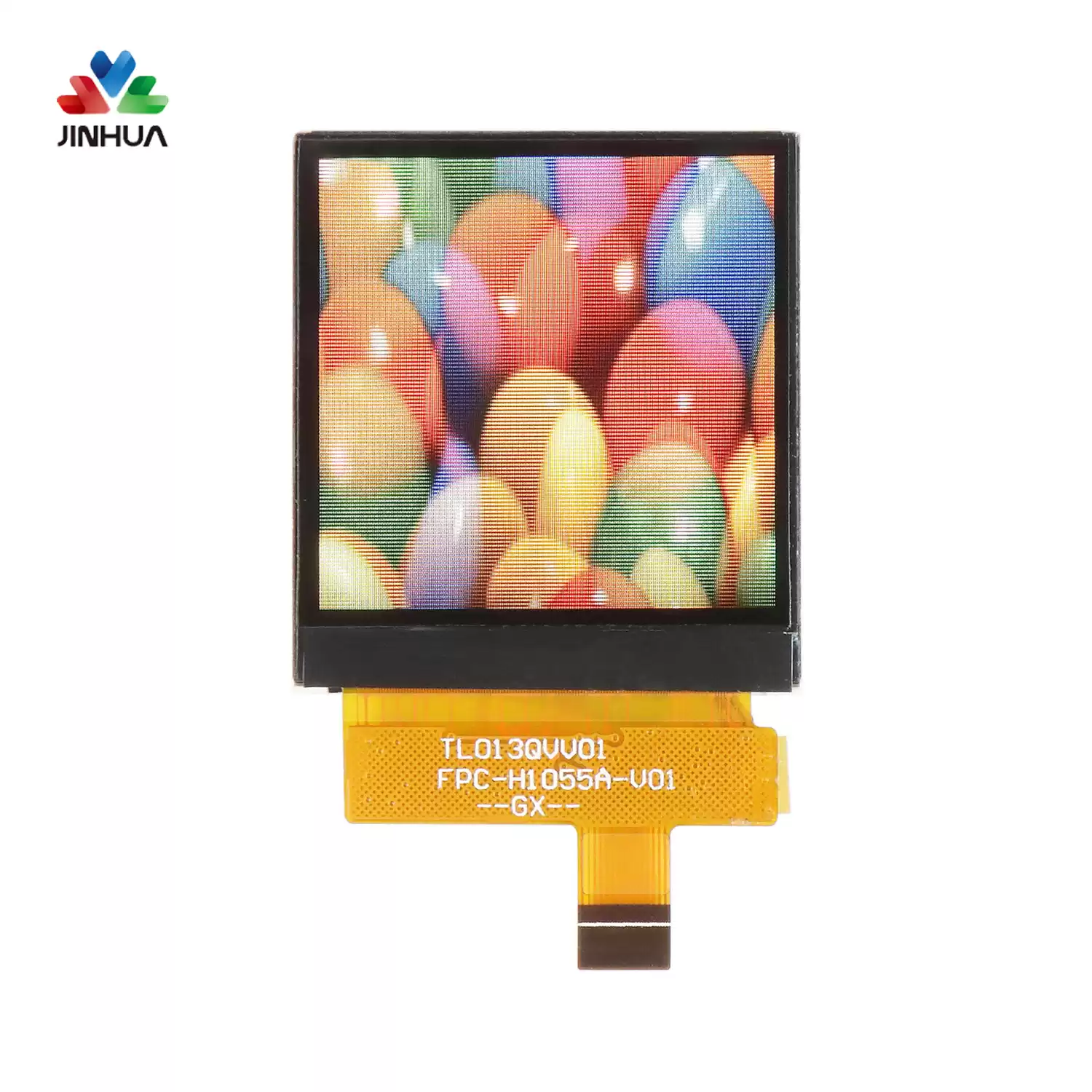

Detailed Picture
Features
Δ Wide Viewing Angle
Δ All Kinds Of Emitted Colors And Size
Δ I.C. Compatible
Δ Low Power Consumption
Δ Long Lifespan
Δ RoHS Compliant
Δ High Luminance
Δ Wide Range Working Temperature
Application
Small Size TFT Display is able to be used in both indoors and outdoors application even at some extremly ambient. It comes with advantages like high resolution and brightness, low power consumption and stable working performance. With a touch panel, it could realize human-machine interface easily.
